JVC KD-X260BT

Digital media receiver

Item # 105KDX260B

Built-in Bluetooth means you can enjoy hands-free calling, music streaming, and app control... wirelessly.

Find what Fits your car

Built-in Bluetooth means you can enjoy hands-free calling, music streaming, and app control... wirelessly.

Need help?
Contact our Virginia-based experts.

Ships free

In stock

Deeply discounted installation gear

$69.99 -$5.00 Price break

$64.99

Other options

About the JVC KD-X260BT

Easy smartphone integration

What fun is having a deep well of music at your disposal via apps like Spotify® and Pandora® if you can't enjoy it in the car? JVC offers an affordable way to get the most out of your phone in your car — the KD-X260BT digital media receiver. Built-in Bluetooth means you can enjoy hands-free calling, music streaming, and app control... wirelessly.

Easy smartphone integration

What fun is having a deep well of music at your disposal via apps like Spotify® and Pandora® if you can't enjoy it in the car? JVC offers an affordable way to get the most out of your phone in your car — the KD-X260BT digital media receiver. Built-in Bluetooth means you can enjoy hands-free calling, music streaming, and app control... wirelessly.

App control for Android

With a wired connection to your Android smartphone, you can control Pandora®, Spotify®, or iHeartRadio through this receiver and access basic controls on the screen display. JVC frees up select Android® users with wireless control of Internet radio stations right from the stereo through the Bluetooth connection. JVC's Remote Control app lets you use your compatible smartphone's touchscreen to control the action using finger swipes and gestures.

A versatile USB input

JVC builds a USB port into the front of this receiver to make charging your smartphone easy. Play stored music files from your smartphone or plug in a flash drive to play MP3, WAV, WMA, and even FLAC files with higher resolution than CD.

Expand away

If you're planning to expand your car audio system in the future, the KD-X260BT includes a set of preamp outputs. You can use the 13-band graphic EQ, time alignment, bass boost, loudness control, high- and low-pass filters, and subwoofer level control to tune according to your tastes.

Note: USB port only compatible with Android phones — no iPhone control.

iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

READ LESS

Product highlights:

    General Features:
    • digital media receiver with AM/FM tuner (does not play CDs)
    • built-in amplifier (22 watts RMS/50 peak x 4 channels)
    • built-in Bluetooth for audio streaming and hands-free calling (mic included)
    • detachable face with two-line display (red illumination)
    • USB 1.5A connection charges devices quickly
    • plays MP3, WMA, WAV, and FLAC files through USB
    • plays AAC files via Bluetooth
    • optional remote control
    Smartphone Features:
    • works with Android phones
    • control 2 phones at once
    • voice recognition dialing
    • control PANDORA, Spotify, and iHeartRadio from select Android phones
    Audio Features:
    • high- and low-pass filters
    • K2 technology improves the digital sound for most music sources
    • sound-shaping tools get more out of your digital music library
    • 13-band graphic EQ and 11 presets
    Expandability:
    • inputs: front USB (no iPhone control), front auxiliary input
    • outputs: 2-channel preamp outputs (2-volt rear/sub)
    Other Information:
    • built-in amplifier (22 watts RMS/50 peak x 4 channels)
    • compatible with most factory steering wheel audio controls (adapter required)
    • English or Spanish menu
    • warranty: 1 year
    • Our 60-day money-back guarantee
    • MFR # KD-X260BT

    What's in the box:

    • Digital media receiver (10A fuse)
    • Face (attached)
    • Sleeve (installed)
    • Trim ring (installed)
    • Wiring harness
    • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
    • 2 Radio removal tools
    • Face-fixing screw
    • Instruction Manual (En/Fr/Sp)
    • Warranty Information
    • Face-fixing screw note

    Customer reviews

    Loading reviews...

    JVC KD-X260BT reviews

    Average review:

    167 reviews

    Thanks for submitting your review

    Filter by rating

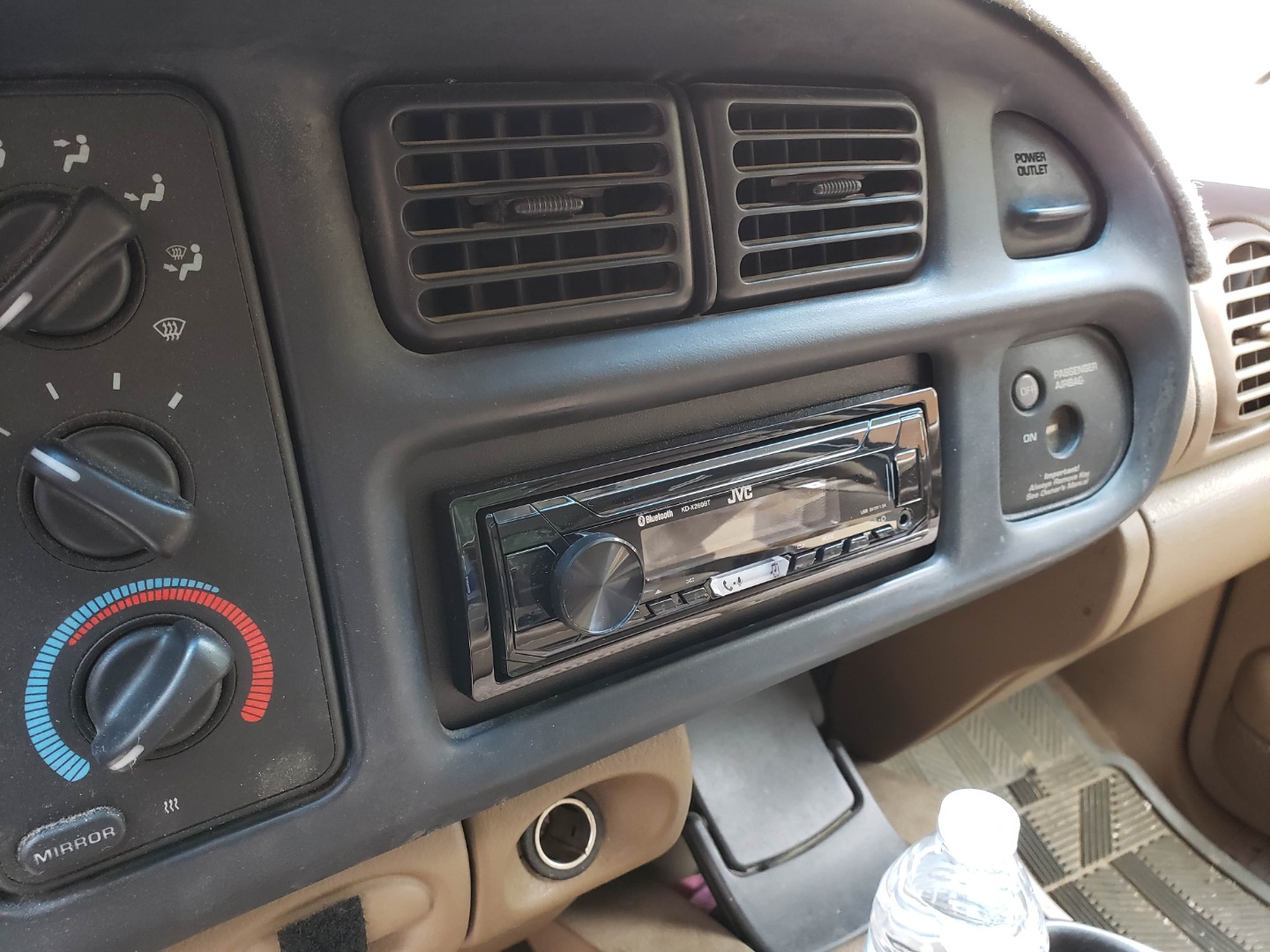

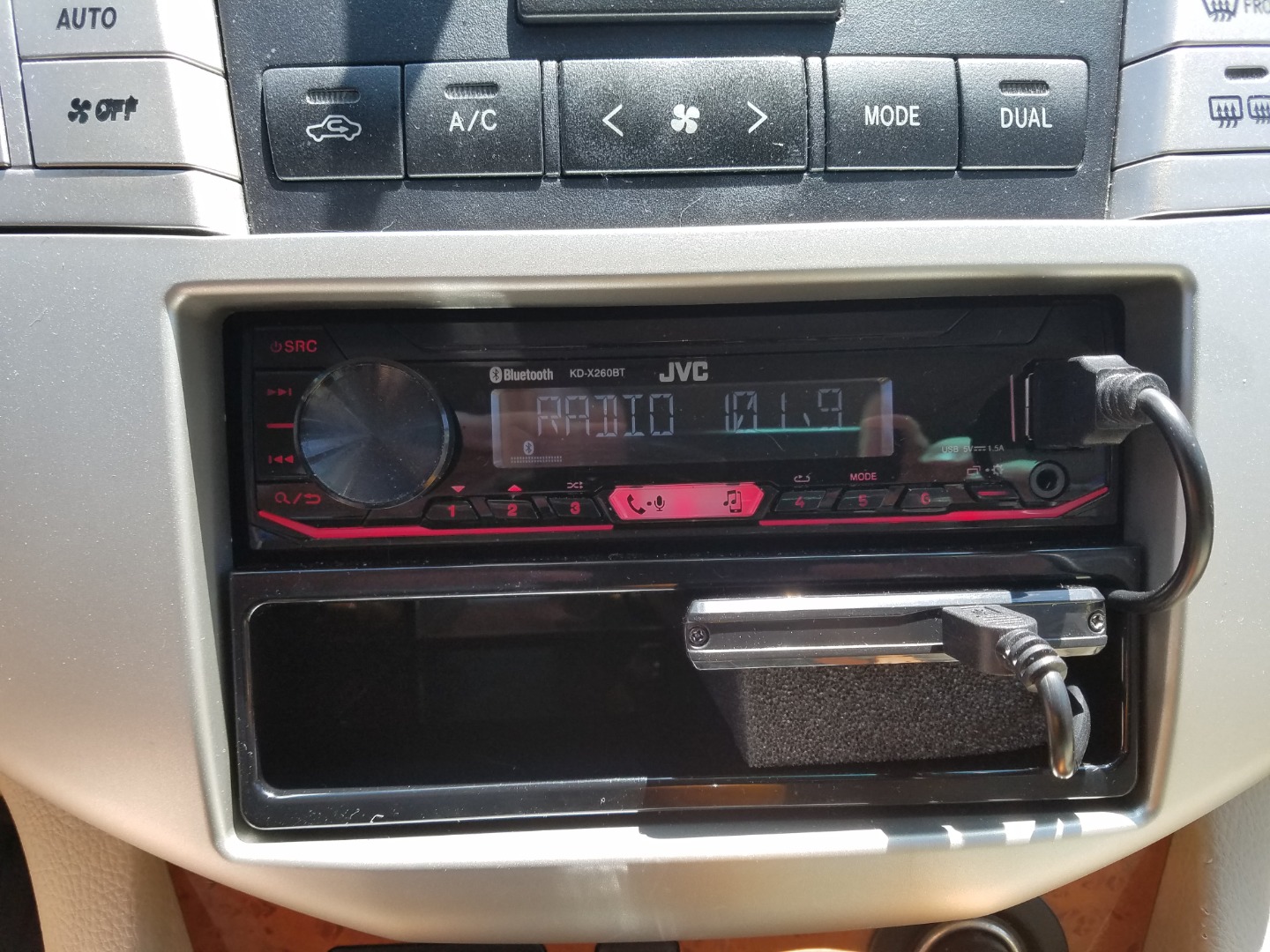

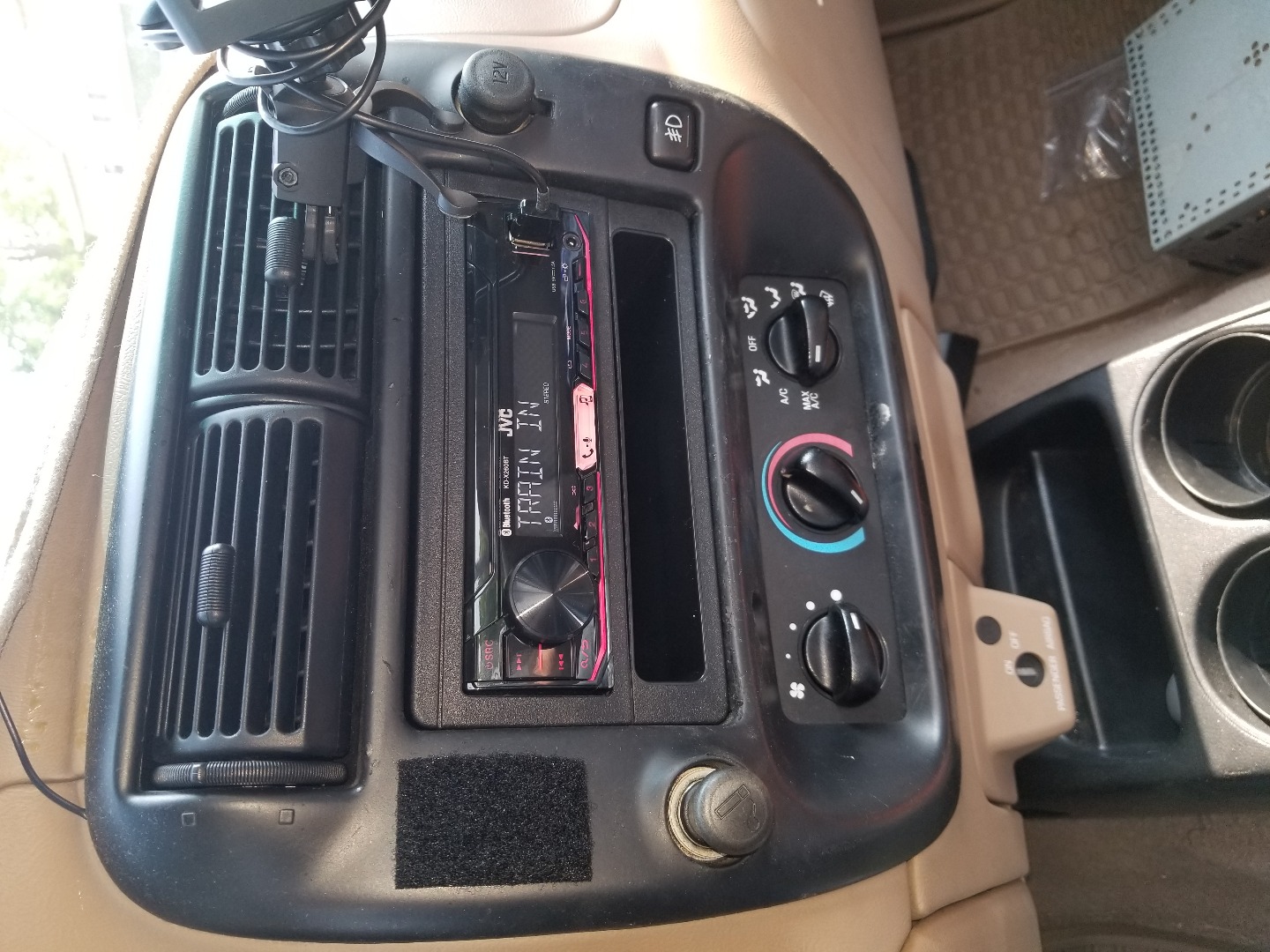

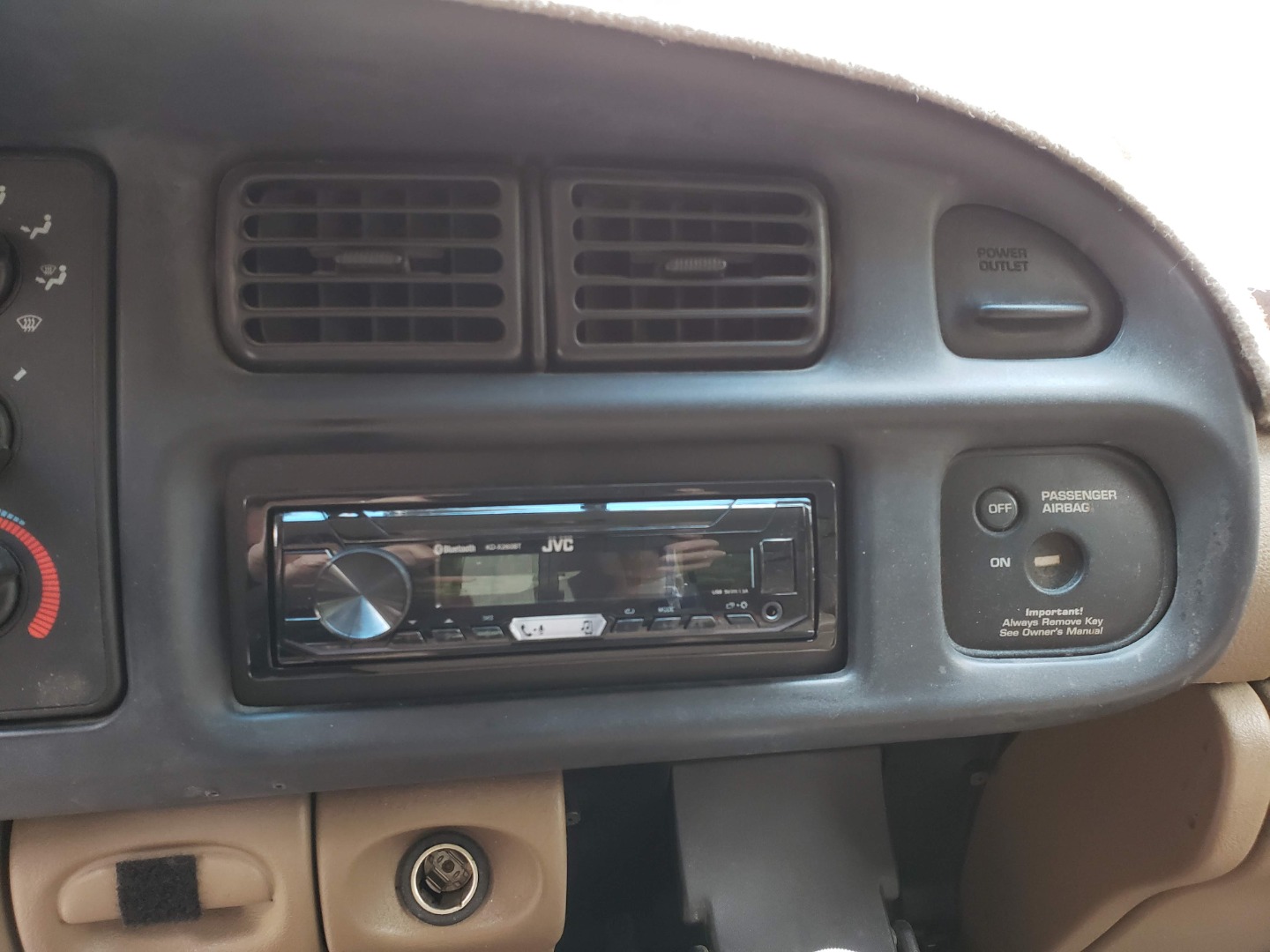

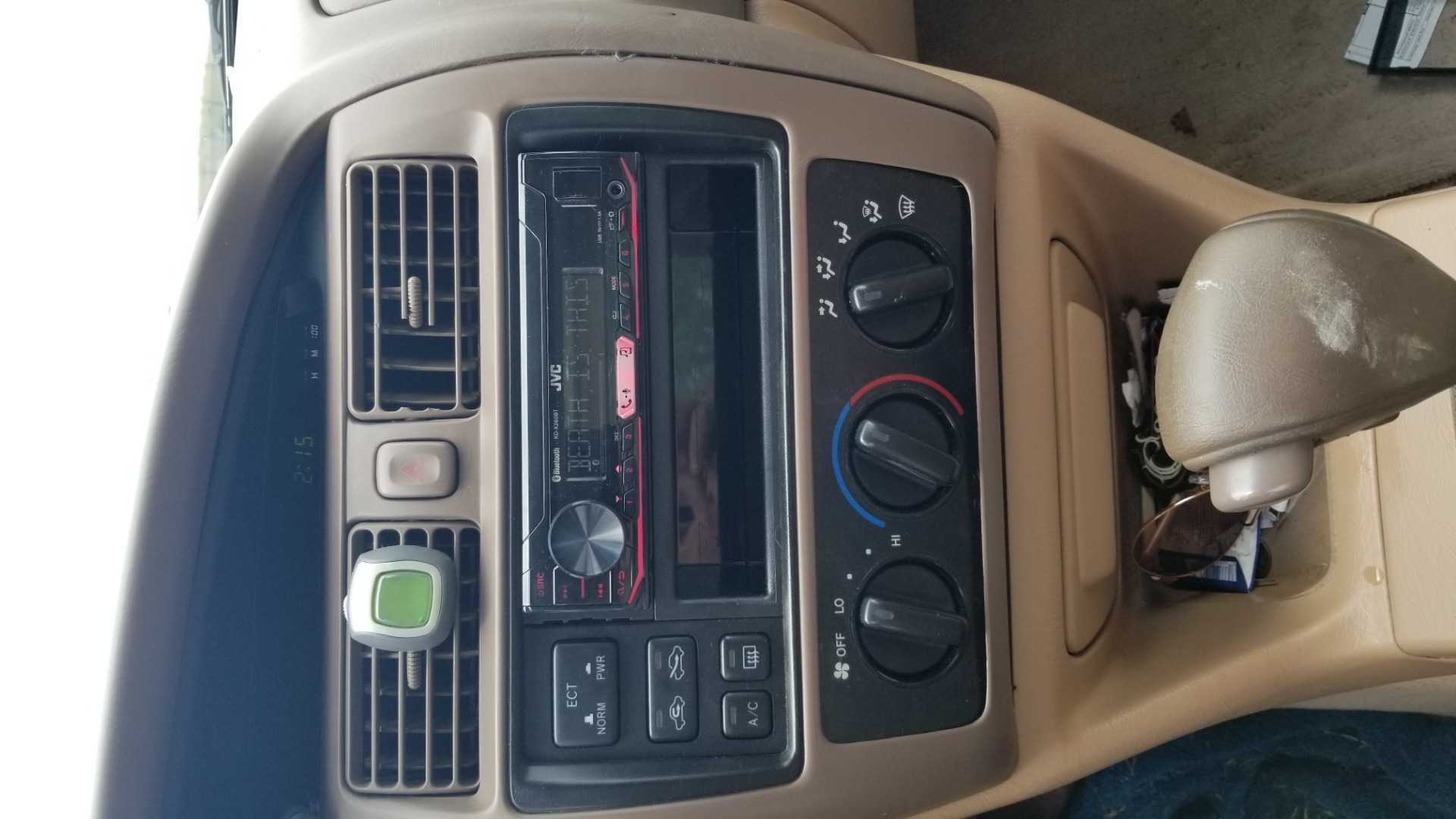

    Customer photos

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Pros:

    Cons:

    Crutchfield response

    << >>

    More details on the JVC KD-X260BT

    Stacey B.

    Features & specs

    Expandability
    AUX Input Front
    Audio/video Input ---
    USB Input Front
    Backup Camera Input No
    Second Camera Input No
    CarPlay No
    Android Auto No
    Siri Control No
    Android Control Yes
    Memory Card Slot USB memory
    Bluetooth Compatible Built-in
    Satellite Radio Ready No
    HD Radio No
    Navigation ---
    iPod Compatibility
    Full size N/A
    Nano N/A
    Touch N/A
    iPhone N/A
    General
    RMS Power (CTA-2006) N/A
    RMS Power (Manufacturer) 22 watts
    Peak Output 50 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 2-channel
    Sub Preamp Outputs No
    Switchable Rear Preamp Outputs Yes
    Video Screen No
    Navigation App Compatible (iOS)
    Navigation App Compatible (Android)
    Preamp Voltage 2.5 volts
    Screen Size ---
    Display Color White
    Key Button Color Red
    EQ Bands 13
    Wireless Remote Optional
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Tuner
    FM Sensitivity 8.2 dBf
    European Tuning Yes
    Seek/Scan Seek
    Radio Data System Yes
    File Playback
    Music File Playback MP3,WMAq,WAV,FLAC
    High-res Playback FLAC (96kHz)
    The JVC KD-X260BT replaces these items:

    Product Research

    Built-in Bluetooth
    Android/USB/Aux Integration
    Internet + AM/FM Radio
    Audio & DSP Section
    Remote Control
    Display Features

    Built-in Bluetooth

    Bluetooth Technology: The JVC KD-X260BT is equipped with built-in Bluetooth 3.0, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

    • Hands-Free Communication: HFP 1.6 (Hands Free Profile) & PBAB 1.0 (Phone Book Access Profile).
    • Audio Streaming: A2DP 1.2 (Advanced Audio Distribution Profile) & AVRCP 1.5 (Audio/Video Remote Control Profile).
    Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the JVC KD-X260BT. Check here for the latest Bluetooth compatibility information.

    SSP (Simple Secure Pairing): With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the JVC KD-X260BT without having to enter pin codes or go through complicated settings. You can pair up to five Bluetooth-enabled devices to the JVC head unit. When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.

    • Dual Phone Connection: Thanks to the Dual Phone Connection feature, two Bluetooth-enabled phones can remain connected to the JVC receiver. This means you can an answer an incoming call from either phone from the head unit. Also, both of your phone's contact lists are downloaded to the receiver. To make a call from one of the phones using the JVC receiver, you simply have to select Phone 1 or Phone 2 on the head unit's front-panel.
    • Streaming DJ: The new Streaming DJ feature allows five Bluetooth audio source devices to be connected to the JVC receiver at one time, so you can switch between Bluetooth playback sources a lot easier and quicker. While "BT Audio" source is selected on the head unit, you can simply press the music playback button on your connected Bluetooth source devices to switch between devices and begin music playback. However, you cannot stream audio from two different Bluetooth audio source devices at the same time or combine music libraries or playlists from two different connected devices.

    Bluetooth Hands-Free Communication (w/ External Mic): The head unit supports Bluetooth hands-free communication for your Bluetooth enabled mobile phone. And thanks to the latest Hands-Free Profile (HFP 1.6) with wideband speech capability, the KD-X260BT provides more natural sound quality and details during wireless calls. The controls of the KD-X260BT can be used to dial a number, answer an in-coming call, or end a call. The unit also includes an external microphone (with mounting bracket) featuring adjustable gain, so you can carry on your side of the conversation while listening to the caller through your vehicles speakers. During a conversation, you can switch between the Private Mode (talking directly on your cell phone) and the Hands Free Mode.

    • Answering A Call: When a call comes in, a ring-tone will be heard through your vehicle's speaker and the caller's name or phone number will be displayed. You can answer the call from the head unit's front-panel controls, or setup the head unit to automatically answer the incoming call immediately or after 1-30 seconds. The KD-X260BT also supports the Call Waiting function, so you can answer another incoming call while suspending the current call you are on. Your compatible cell-phone must also support this feature.
    • Dialing A Number: Using the KD-X260BT, you can dial a phone number in one of the following ways:
      • Enter Phone #: Allows you to directly dial a phone number up to 32 digits from the head unit's front-panel rotary dial.
      • Preset Dialing: You can store up to 6 contacts in the memory of this unit for speed dialing.
      • Phone Book: You can download phone book data from your mobile phone to the digital media receiver. You can then dial a contact within the phonebook from the head unit's front-panel controls. Your phonebook can be searched alphabetically or numerically.
      • Call History: The Call History is a list of calls that have originated from and were received by this unit that you can dial. You can select Outgoing, Incoming, or Missed calls.
      • Voice Dialing: If your mobile phone supports voice recognition, then you can dial out by voice command. Simply speak into the included microphone once you have activated the voice dialing function from the head unit's front-panel.

    Wireless Audio Streaming: The JVC KD-X260BT supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth-enabled smartphone or audio player, plus song/artist information display. You are able to stream your stored music library on your Bluetooth-enabled smartphone, as well as music apps downloaded on your smartphone to the JVC KD-X260BT for playback.

    • SBC + AAC Codecs: In addition to support for the standard SBC Bluetooth audio codec, the KD-X260BT offers support of AAC. By supporting AAC, the KD-X260BT offers better audio performance of the music streamed from and Apple iOS device. (iOS devices are only compatible using Bluetooth.)
    • Advanced Music Browsing: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the KD-X260BT lets you browse your stored music by Playlist, Artist, Album, Song, etc. Advanced music browsing is supported by Android 4.0+ smartphones and Apple iPhones 5.0+ (specific advanced functions vary by phone).
    • Song/Artist Information: The head unit will also display your stored music and music app's song information; such as Artist name and Song/Album title (not compatible with all apps).
    Note: When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

    Low Battery Information: When the battery of a connected Bluetooth device runs low, a beep sound is heard and "LOW BATTERY" appears on the receiver's display.

    Android/USB/Aux Integration

    Android Open Accessory 2.0 (AOA 2.0) Connectivity: The JVC KD-X260BT's front-panel USB port lets you connect your AOA 2.0 compatible Android (OS 4.1-7.1.2) smartphone for music playback. JVC does not guarantee operation with all Android devices, regardless of operating system. There are two Android AOA 2.0 modes to choose from based on what content you want to listen to and how you want to control it.

    • Auto Mode: The JVC KD-X260BT supports Android Open Accessory 2.0 (AOA 2.0), which lets you connect your Android (OS 4.1-7.1.2) smartphone to the KD-X260BT's front-panel USB port and listen to stored music and music apps from your Android device through the JVC head unit. You'll be able to control basic playback functions such as Play/Pause and Previous/Next Track. Other advanced music navigation will still be done from your Android smartphone's touchscreen. In this mode, the head unit will not display song/artist information; only "Audio Mode" will show up on display. You'll continue to view song/artist information from the Android device's touchscreen. You'll also still be able to access other functions and applications from your Android smartphone's touchscreen, while listening to music through the head unit. If you make a call or answer a call from your smartphone while listening to music in this mode, the music will pause until you are finished with the call and then start back up again.
    • JVC Music Play App: Downloading the JVC Music Play app onto your Android (OS 4.1-7.1.2) smartphone not only allows you to listen to stored music from your Android device through the JVC digital media receiver connected via USB, but it also lets you browse your Android smartphone's music library from the head unit's front-panel controls. You can browse your store music library by Playlist, Artist, Song, Album, or Genre. You can also control Play/Pause and Previous/Next track from the head unit. In addition, the head unit will display song/artist information. You can exit the JVC Music Play app to access other functions and applications of your Android smartphone, while your stored music library is still playing through your head unit. If you make a call or answer a call from your smartphone while listening to music in this mode, the music will pause until you are finished with the call and then start back up again.
    Note: Some Android devices may not fully support Android Open Accessory (AOA) 2.0. JVC does not guarantee operation with all Android devices.

    USB Mass Storage Devices: The JVC KD-X260BT features a front-panel USB (type-A) port that is hidden behind a flip-out cover. The USB port enables connection of USB mass storage class (MSC) devices, like USB thumbdrives or portable digital music players. You can insert a compatible USB MSC device into the head unit's USB port for playback, control, and song/artist display of a variety of music files.

    • Music Drive: The Music Drive feature lets you switch between multiple memory cards in a USB multi-card reader. When a mass storage class (MSC) compatible smartphone is connected to the head unit's USB input, the unit's Music Drive features lets you select its internal memory or external memory (such as an SD card) for stored music playback.
    • USB Charging: USB devices that can be charged via USB will be charged when plugged into the digital media receiver's USB port (max. 1.5A), and the vehicle's ignition switch is set to ACC or On.
    Note: Not compatible with Apple iOS devices or USB hubs.

    Compressed Music Files: The JVC KD-X260BT supports the following types of music files loaded onto a compatible USB mass storage class device.

    Media Type Description
    File System FAT 12/16/32
    Playable File Types MP3: bit rate of 8-320kbps w/ sampling rate of 8-48kHz
    WMA:
    bit rate of 32-192kbps w/ sampling rate of 8-48kHz
    WAV:
    bit depth of 16-bit w/ sampling frequency of 44.1kHz
    FLAC:
    bit depth of 24-bit w/ sampling frequency of 96kHz
    Maximum # of Folders/Files 999 folders/20,480 files (999 files per folder)
    Tags ID3 tag (version 1.0/1.1/2.2/2.3/2.4), WMA tag

    Playback & Search Functions: The JVC KD-X260BT offers a variety of playback and search functions to help you find and enjoy your music a USB memory device.

    • Track/Folder List: The Track/Folder List displays a list of music folders and tracks on a connected USB device, so you can easily access your music.
    • Repeat: Track Repeat (plays the current track repeatedly), Folder Repeat (plays all tracks of the current folder repeatedly), Off (cancels repeat function)
    • Random: Folder Random (plays all tracks of the current folder, then the tracks of the next folder in random), All Random (plays all tracks of the current USB device at random), Off (cancels random function)
    • Resume: If you change the source, playback also stops (without ejecting the USB device). Next time you USB for the playback source, the player will start from where it has been stopped previously.

    Front-Panel Auxiliary Input: A front-panel stereo minijack is provided to allow the connection of almost any portable audio source with a 3.5mm headphone output. Simply connect your portable digital music player to the unit's front-panel auxiliary input, and you can listen to the audio from the portable player through the speakers in your mobile audio system.

    Internet + AM/FM Radio

    Internet Radio Apps: The JVC KD-X260BT allows you to access Pandora, Spotify, and iHeartRadio online music services through your Bluetooth-connected Android smartphone. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the JVC KD-X260BT. Your Android device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

    • Pandora App: The free Pandora App (for Android 4.0+) lets you play music from the Pandora music service through the JVC KD-X260BT using your Bluetooth connected Android smartphone. The JVC KD-X260BT provides control over the Pandora music service and displays Artist, Album, and Song information. You can select Pandora stations from your station list and sort them by date or alphabetically. New stations can be created based on the current songs or artists playing. You can also skip song tracks within a station. You can even give songs a thumbs up or thumbs down, as well as bookmark song information. An active Pandora account is required.
    • Spotify: The KD-X260BT has the ability to playback & control content from the Spotify music app (for Android OS 4.0+) on your Bluetooth connected Android smartphone. You can play, pause and skip tracks, browse playlists, albums and radio stations through the JVC receiver's front-panel controls. You can even create your stations by entering a track, artist, or playlist. You also get song/artist information on the unit's LCD touchscreen. If you are a Spotify Premium user (requires a monthly paid subscription), you can enjoy ad-free, high quality music even when there is no internet connection.
    • iHeartAuto: The free iHeartAuto app for JVC (for Android OS 4.0+) lets you play music from the iHeartRadio music service through the JVC KD-X260BT using your Bluetooth connected Android smartphone. The iHeartRadio music service provides access to more than 1,500 live radio stations from coast-to-coast (including pop, country, urban, rock, talk, and sports). The KD-X260BT will provide control over the iHeartRadio Auto app, as well as display station identification and song/artist information. From the head unit's front-panel controls, iHeartRadio stations can be searched by the following categories (Local, Genre, City, or My Stations). The Local selection provides a list of radio stations in your local listening area. The unit also provides over 22 Genres to choose from (including pop, country, hip-hop, jazz, etc.) to help you find the right radio station for you. In addition, you can search for radio stations by City. Cities can be searched alphabetically. You can even store your favorite stations (My Stations) for easier, quicker access. An active iHeartRadio account is required.
    Note: Access to these Internet Radio services will depend on the availability of a cellular and/or WiFi network for purposes of allowing your Android smartphone to connect to the Internet. Not supported in Canada and only available in the United States.

    RDS AM/FM Tuner: The JVC KD-X260BT features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store a total of 18 FM stations presets and 6 AM station presets. The radio allows you to set your AM/FM stations manually or automatically. You can also switch the tuner's IF filter to Wide or Auto to increase/decrease the sensitivity. If an analog FM stereo broadcast is hard to receive, you can manually switch the tuner to Mono operation.

    • US or European Tuning: You can set the built-in AM/FM tuner between US standard and European tuning spacing.
    • RDS: The Radio Data System (RDS) feature displays radio broadcast information such as artist, title, and album when listening to compatible AM/FM stations.
    • Radio Timer: The head unit's Radio Timer features lets you tune into a preset station at a specific time regardless of the head unit's current source (you can activate the Radio Timer once, daily, or turn it completely off).

    Audio & DSP Section

    24 Bit D/A Converter: The JVC KD-X260BT utilizes a 24-bit digital to analog converter for superior sound quality.

    MOSFET Amplifier: The JVC KD-X260BT is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit. The power output specs for the KD-X260BT are as follows:

    • Full Bandwidth Power: 22 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
    • Maximum Output Power: 50 watts x 4 channels (200 total watts)

    Amp Gain: When you are using the KD-X260BT with factory speakers (or those rated to less than 50 watts peak), the Amplifier Gain Control can limit the amount of power being sent to those speakers. When the Amp Gain Control is set to "low," the volume control ranges from 0 (minimum) to 25 (maximum). When using speakers rated higher than 50 watts peak, you can set the Amp Gain Control to "high," and the volume control will range from 0 to 35.

    2.5V/2Ch Preamp Output: The KD-X260BT is equipped with two 2.5V preamp outputs (Rear/SW). You can set the Rear/SW preamp outputs for connecting a pair of full-range rear speakers (through an external amplifier) or for connecting a subwoofer (through an external amplifier). When set for rear speakers, the rear outputs operate with the unit's fader control. When set for subwoofer, the outputs are non-fading and offer an independent level control (-50 to +10).

    Subwoofer Speaker Connection: You can connect a subwoofer to this head unit without the need of a separate power amplifier. Simply connect a single subwoofer (4-8 ohm) directly to head unit's left rear speaker leads (the right rear speaker output will be muted). The rated power output for the subwoofer speaker channel remains 22 watts. The same subwoofer controls apply, except for the subwoofer level adjustment, which is adjustable from -6 to+3.

    Vehicle Setup: In order to optimize the sound quality in your vehicle, you can indentify the type of vehicle you have and the rear speaker location, as well as configure listening distances.

    • Car Type: Select your car type to automatically set the delay time of each speaker for timing adjustment of sound output of each channel to have the highest surround effect. Choose from Compact, Full Size Car, Wagon, Mini Van, SUV, or Off.
    • Rear Speaker Location: You can indicate the location of your vehicle's Rear speakers. Choose from Door, Rear Deck, 2nd Row, or 3rd Row.
    • DTA (Digital Time Alignment): For a better sound-stage you can select your optimal listening position. You can choose from All, Front Left, Front Right or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-20') for each individual speaker in the vehicle compared to your listening position.

    Crossover Network: The JVC KD-X260BT lets you choose between a 2-way or 3-way crossover network for your car audio application.

    • 2-Way Crossover: Allows you to set high-pass and low-pass crossovers for a standard Tweeter, Front, Rear, and Subwoofer speaker setup.
      • Speaker Size: select which size speakers are in your vehicle
        • Tweeter: Small, Medium, Large, or None
        • Front & Rear: 3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", 6x9", 7x10" or None
        • Subwoofer: 6.5", 8", 10", 12", 15" or greater, None
      • X'Over: Select the high pass or low pass crossover settings for your speakers.
        • Tweeter: high pass filter (HPF)
          • Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
          • Gain: -8 to 0 dB
        • Front & Rear: high pass filter (HPF)
          • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • Slope: -6dB, -12dB, -18dB, -24dB
          • Gain: -8 to 0 dB
        • Sub: low pass filter (LPF)
          • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • Slope: -6dB, -12dB, -18dB, -24dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB
    • 3-Way Crossover: Allows you to set high-pass and low-pass crossovers for a complex 3-way speaker system with Highs, Mids, and Sub
      • Speaker Size: select which size speakers are in your vehicle
        • Tweeter: Small, Medium, Large, or None
        • Midrange: 3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", or 6x9"
        • Woofer: 6.5", 8", 10", 12", 15" or greater, None
      • X'Over: Select the high pass or low pass crossover settings for your speakers.
        • Tweeter: high pass filter (HPF)
          • HPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
          • Slope: -6dB, -12dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB
        • Midrange: high pass filter (HPF) & low pass filter (LPF)
          • HPF Frequency:30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • LPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
          • Slope: -6dB, -12dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB
        • Woofer: low pass filter (LPF)
          • LPF Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • Slope: -6dB, -12dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB

    Equalizer: The JVC KD-X260BT is equipped with 11 EQ presets, a 3-Band Easy EQ (3-band), a 13-Band Pro EQ. Choose the one that best fits your type of music listening.

    • 11 EQ Presets: You can choose between the following EQ presets - Flat, Hard Rock, Pop, Hip Hop, R&B, Jazz, Classical, Drive 1/2/3, & User. The Drive EQ boosts frequencies that become hard to hear due to road noise (there are 3 levels). The User mode allows you to select either the 3-band Easy EQ or 13-Band Pro EQ.
    • 3-Band Easy EQ: The head unit's Easy EQ consists of a 3-band equalizer (Treble, Mid, & Bass). You can adjust the Treble, Mid, & Bass from -9 to +9.
    • 13-Band Pro EQ: The units Pro EQ consists of a 13-band equalizer (100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz, 10kHz, & 16kHz). Each frequency can be adjusted from -9 to +9. You can also adjust the Q-Factor of each frequency to 1.35, 1.50, or 2.0.

    K2 Technology: The KD-X260BT employs K2 technology which dramatically improves the sound quality of compressed music files during USB and Bluetooth playback. When the K2 feature is activated, the sound becomes wider, smoother, and more natural.

    Sound Effects: The KD-X260BT offers adjustable Sound Effects to provide a better listening experience inside your vehicle. Use the "Enhance" feature to virtually broaden the soundstage inside your vehicle. Use the "Sound Lift" feature to virtually lift the sound to ear level. Use the "Response" feature to virtually make the sound more realistic and live inside your car. Use the "Vol Link EQ" feature to boost certain frequency ranges that become hard to hear due to road noise.

    Loudness, Bass Boost & Bass Extension: The Loudness feature boosts low and high frequencies to produce a well-balanced sound at a low volume level. The unit's Bass Boost enhances low bass frequencies at any volume level. There is also a Bass Extension feature which further enhances the unit's bass output.

    Volume Adjust: The input level of each source (other than FM) is adjustable relative to the FM radio volume, so there isn't a significant volume difference when changing sources. Each source is individually adjustable from -15 to +6.

    Key Beep: The in-dash head unit provides an audible beep to confirm button operation. This function can be turned On or Off.

    Remote Control

    Steering Wheel Control Input: The head unit features a steering wheel remote control input wire (blue/yellow) within the included wiring harness that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).

    Optional Wireless Remote: The KD-X260BT can be controlled wirelessly from JVC's RM-RK52 IR remote control (sold separately; not available at Crutchfield).

    Display Features

    Detachable Face: The JVC KD-X260BT features a detachable face to deter theft. No face-case is provided. An optional soft face case (142DFC1X, sold separately) can be purchased for this unit. A face-fixing screw is supplied for making the face non-detachable, if desired.

    VA (Vertical Alignment) LCD: The KD-X260BT is equipped with a VA (Vertical Alignment) LCD screen that offers high contrast, sharp images, and a wide viewing angle for better visibility. The LCD screen provides information for audio settings, song/artist/album info, and station identification. You can even select between English or Spanish text.

    Music Sync Effect: The Music Sync Effect feature changes illumination patterns of receiver's display according to the rhythm of the music.

    Brightness: The unit offers a daytime and nighttime brightness settings for the LCD and button illumination. You can adjust the brightness level of each manually from 0-31.

    Dimmer: The unit's dimmer control can be set automatically, manually, or via timer. Manually select "Off" for daytime brightness setting or "On" for nighttime brightness setting. Choose "Auto" which switches between day and nighttime brightness setting automatically when you turn off/on the headlights (orange/white wire of harness must be connected to headlamp circuit). You can even set a specific time for the "Off" and "On" dimmer setting to be activated.

    Day & Time: The unit displays a 12-or 24-hour clock, as well as the day (Sun/Mon/Tue/Wed/Thu/Fri/Sat). The day & time can be selected to remain on, even if the head unit is switched off (as long as the vehicle's key is in the accessory or "on" position).

    Loading accessories...

    Customer Q&A

    Q
    Crutchfield asked: Why did you buy this?
    A
    Has what I need and a quality name/pakage [ Kevin  Nov 01, 2019 ]
    A
    Great reviews and decent price. [ Scott  Oct 22, 2019 ]
    A
    my grandson [ Sally  Oct 17, 2019 ]
    A
    My experience with JVC products has never been let down. [ Roque  Oct 02, 2019 ]
    A
    Value plus promotional deal. [ Michael  Sep 05, 2019 ]
    A
    Price, bluetooth, and currently running an older jvc so I should not have to rewire. [ Nathan  Sep 02, 2019 ]
    A
    Good value. Like JVC. More power than comparable radios. [ Kevin  Jul 23, 2019 ]
    A
    I was recommended this head unit by my older cousin who is a huge mentor in my life and I thank him for showing me what the world of car audio is like [ Elijah  Jun 14, 2019 ]
    A
    Great value for features offered - this for my old truck that I use just now and then on weekends so I didn't need high-end gear, but this was more quality than I expected! [ ALAN  Apr 26, 2019 ]
    A
    The provided information convinced me that this receiver would satisfy the installation requirements on my classic '87 Turbo Buick. [ Bruce  Apr 20, 2019 ]
    A
    Good reviews and cheap. [ Jeremy  Mar 13, 2019 ]
    A
    good deal and good brand [ Kristie  Mar 09, 2019 ]
    A
    Price and options I wanted [ James  Feb 27, 2019 ]
    A
    I love JVC units, they are easy to use and sound great. I love the features. [ Alex  Feb 18, 2019 ]
    A
    Good value for the price and well reviewed, also purchase of this unit allowed for two pair of JVC speakers at 1/2 price. [ Stuart  Feb 17, 2019 ]
    A
    I have the older KD-X240BT in another vehicle and it is a wonderful stereo so I wanted to continue with the success I have had. [ Is  Feb 09, 2019 ]
    A
    Best features for the price- I'm fixing up an old F-150 for my college-student granddaughter, and Bluetooth is a must. This JVC had that and more. I've used JVC products in the past and they have always proven dependable. [ Keith  Feb 08, 2019 ]
    A
    Good reviews. Seems to have decent options. [ JAVIER  Feb 01, 2019 ]
    A
    With new smartphones this is a must for younger drivers, they can pick a playlist and focus on the road. [ TIM  Dec 14, 2018 ]
    A
    To enjoy in my car [ Donna  Dec 02, 2018 ]
    A
    Had all the features I was looking for. Plus I've always had tremendous luck and satisfaction with JVC car stereos. [ Scott  Dec 01, 2018 ]
    A
    Bluetooth hands free callong [ REX  Nov 30, 2018 ]
    A
    Had all the features I needed in a receiver for my son's truck. [ Kimberly  Nov 07, 2018 ]
    SHOW MORESHOW LESS

    13 questions already asked

    Q
    Does this play with my iphone 6?
    [ Manny  Nov 20, 2019 ]
    1 answer
    A
    My daughter has it in her truck. She has an iPhone X, but as long as your Bluetooth is working I don't believe there will be a problem.
    [ Karen  Nov 20, 2019 ]
    Q
    Will bluetooth steering wheel controls work on this unit?
    [ Gary  Nov 08, 2019 ]
    1 answer
    A
    The ability to retain steering wheel controls with aftermarket receivers will be determined by the receiver you are using and the vehicle you have. For full information on this type of integration (including the parts you will need) please contact an Advisor by phone (1-800-324-9695) or online chat.
    [ Krissy  Nov 14, 2019 ]  Staff
    Q
    would you be able to hook up a amp and sub?
    [ m  Oct 20, 2019 ]
    1 answer
    A
    This unit has a single set of Pre-amp outputs that could be used for a subwoofer amplifier, yes. :)
    [ Calvin  Oct 30, 2019 ]  Staff
    Q
    Will this work with Samsung S 7 ph ?
    [ Mark  Oct 10, 2019 ]
    1 answer
    A
    Talk on it all the time on the Samsung S7. No problem. I replaced a working factory stereo in order to use hands free phone.
    [ CLYDE  Oct 11, 2019 ]
    Q
    How many tuner presets can this have?
    [ Craig  Sep 17, 2019 ]
    1 answer
    A
    I can't answer this question. I installed this radio in my son's car and he is very happy with it. I am also happy with the Bluetooth on it so I can talk with him while he is driving.
    [ JIM  Sep 17, 2019 ]
    Q
    Is this radio compatible with iphone?
    [ Rick  Sep 12, 2019 ]
    3 answers
    A
    Yes!
    [ Karen  Nov 20, 2019 ]
    A
    Yes
    [ Alan  Sep 24, 2019 ]
    A
    Hi Rick! Thank you for your question! The JVC KD-X260BT will offer some iPhone compatibility through a USB connection, as well as through Bluetooth. If connected via USB, for music control, you would still need to use the phone to control skip and seek functions for your music. In regards to Bluetooth connectivity, Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the JVC KD-X260BT. Feel free to chat with an Advisor online or by phone at 1-800-324-9695. Any of our Advisors will be happy to answer any questions you have on any of this information.
    [ Jess  Sep 23, 2019 ]  Staff
    Q
    Can I connect my CD changer to this?
    [ Tom  Jul 29, 2019 ]
    1 answer
    A
    USB and single pin plugs are on the front I don't see why not
    [ DARIN  Jul 30, 2019 ]
    Q
    Can't get it to Bluetooth connect to iPhone 8. Any tips?
    [ Ryan  Jun 20, 2019 ]
    2 answers
    A
    Make sure you are on the BlueTooth setting on the radio and that you are not connected to any other devices on your phone. Just follow the instructions and you should be fine. It also sometimes takes a while to connect but after that it is smooth sailing.
    [ Dylan  Jun 20, 2019 ]
    A
    Switch from iPhone to Android?
    [ Dave  Jun 20, 2019 ]
    Q
    I'm having trouble connecting to Bluetooth with my iPhone 8. Any tips?
    [ Ryan  Jun 20, 2019 ]
    1 answer
    A
    If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
    [ Krissy  Jun 27, 2019 ]  Staff
    Q
    would this effect my rear view camera in my 2013 Honda Civic LX?
    [ Mr.  Jun 01, 2019 ]
    1 answer
    A
    You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
    [ Krissy  Jun 06, 2019 ]  Staff
    Q
    Will this one play cd"s?
    [ Angela  Apr 09, 2019 ]
    7 answers
    A
    No it is only a receiver
    [ DARIN  Apr 10, 2019 ]
    A
    No, it doesn't play CD's
    [ Joshua  Apr 09, 2019 ]
    A
    No. ??
    [ JASON  Apr 09, 2019 ]
    A
    Yes
    [ Ronald  Apr 09, 2019 ]
    A
    No it has no cd tray
    [ Mustafa  Apr 09, 2019 ]
    A
    No ,it does not . Bluetooth and iPod connection
    [ charles  Apr 09, 2019 ]
    A
    Nope
    [ PHILLIP  Apr 09, 2019 ]
    Q
    Can I play IPod Classic through USB, or would I need something else to make that work?
    [ ZnB80  Feb 21, 2019 ]
    4 answers
    A
    Mine will not recognize any of my iPods. I have 5 different generation, and it will not work with any of them.
    [ Samuel  Feb 21, 2019 ]
    A
    Can't say for sure. All i know is when i plug my 7s into that port to charge it says "accessory unsupported". I connect to it via bluetooth. That was zero help to you I'm sure.
    [ JASON  Feb 21, 2019 ]
    A
    I don't know about the classic , I use my iPhone 8 . There is also a Aux cord .
    [ charles  Feb 21, 2019 ]
    A
    Not sure I only use iPhone, it will only connect via Bluetooth not usb
    [ DARIN  Feb 21, 2019 ]
    Q
    CAN YOU PLAY MUSIC BACK OFF OF A PLUGGED IN FLASH DRIVE IN THE USB PORT?
    [ JAKE  Nov 23, 2018 ]
    3 answers
    A
    Yes
    [ Steve  Nov 24, 2018 ]
    A
    Never tried it, it will not play my iPhone when plugged into the USB port , only through Bluetooth
    [ DARIN  Nov 23, 2018 ]
    A
    Yes you can with a Android it would let me with my iPhone.
    [ Larry  Nov 23, 2018 ]
    SHOW MORESHOW LESS

    Loading articles...

    TOP
