About the Infinity Reference REF-9633ix
A modern classic
A modern classic
One thing's for sure — our customers love Infinity's Reference Series speakers. Year after year, car after car, options like these Reference Series REF-9633ix 6"x9" 3-way car speakers remain a popular choice for replacing factory speakers because of their competitive pricing and superb sound.
Enhanced highs
Step up to a 1" edge-driven dome tweeter for smoother highs with minimal breakup. Plus, a supertweeter gives the high frequencies a bolder presence, and push-button tweeter attenuation lets you tweak any "brightness" you might hear.
Plus One+ woofer cone
The Reference Series polypropylene woofer with its durable hi-roll rubber surround ensures you'll enjoy powerful sound every mile you drive. Its oversized cone moves more air than other speakers of similar size, adding plenty of punch to the speaker's impressive performance.
Excellent power-handling
These speakers will really blossom when powered by an external amplifier, but they're also sensitive enough to be a good match for a factory or aftermarket stereo. Plus, Infinity comes up with a safe way to get a little more power out of your system — these 3-ohm speakers combine with the speaker wire in your car so your car stereo sees actual 4-ohm impedance.
Product highlights:
- 6"x9" 3-way speakers (pair)
- Plus One+ polypropylene woofer cone with hi-roll rubber surround
- 1" edge-driven, textile dome tweeter; textile semi-dome supertweeter
- True Four Ohm Impedance technology
- speaker's 3-ohm impedance combines with speaker wire impedance for a 4-ohm load
- compatible with virtually all factory or aftermarket car stereos
- handles up to 100 watts RMS (300 watts peak power)
- frequency response: 46-30,000 Hz
- sensitivity: 94 dB
- top-mount depth: 3-1/16"
- grilles included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # REF9633IX
What's in the box:
Infinity Reference REF-9633ix owner's manual
- Two 3-way speakers
- 2 Grilles
- 2 Grille frames
- 2 Bottom mount rings
- Eight 2" Screws
- 8 Speed clips
- 2 Adhesive backed foam gaskets
- Instruction manual
- Template on box
Featured video:
Reviews
Customer reviews
Loading reviews...
Infinity Reference REF-9633ix reviews
Average review:
Thanks for submitting your review

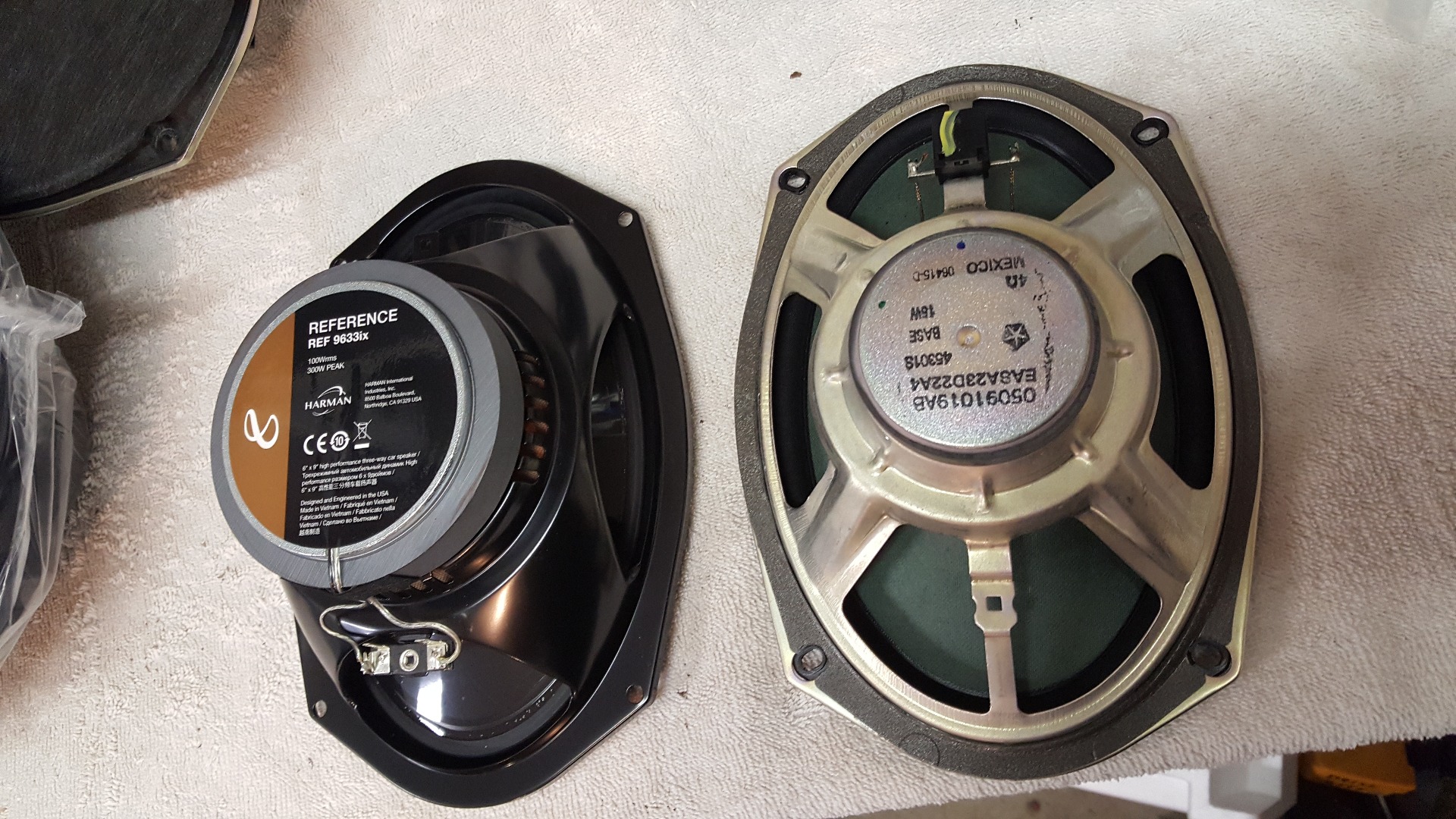

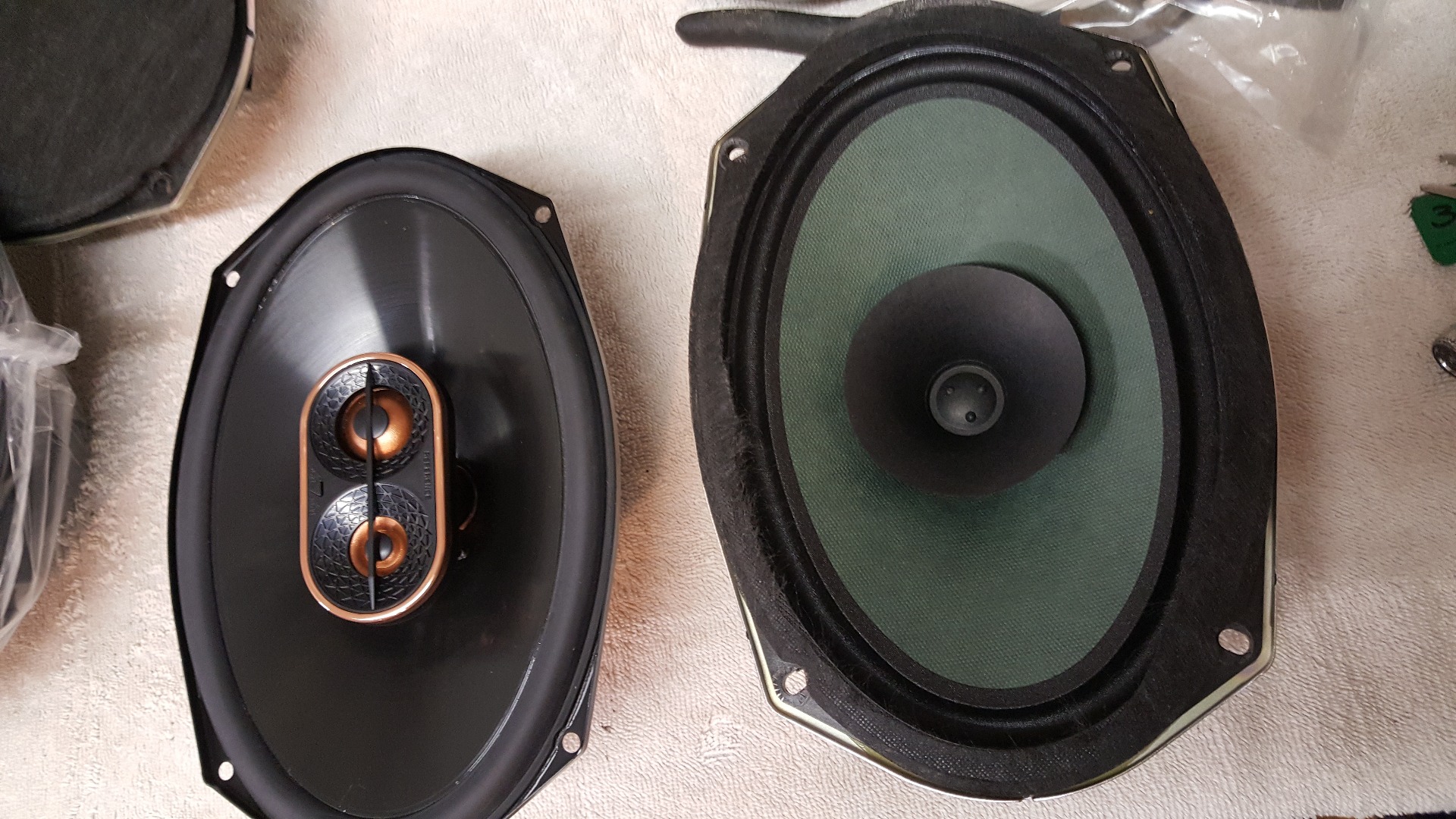

Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Infinity Reference REF-9633ix
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Design | 3-way | |
| Tweeter Design | Edge-Driven Dome | |
| Impedance (Ohms) | 3 | |
| Tweeter Composition | Textile | |
| Woofer Composition | Polypropylene | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 94 | |
| Frequency Response | 46 - 30k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 3 1/8 | |
| Bottom-mount Depth (Inches) | 3 11/16 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.551 | |
Product Research
Features
Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.
Angled Tweeter: The tweeters and super-tweeters are mounted at an angle (fixed), so they can be directed toward the listeners to improve imaging.
Tweeter Level Control: A switch on the front of the tweeter structure allows you to boost the tweeter output to +3dB, useful if the speakers are mounted low in a door where high frequencies are easily absorbed.
High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers.
The Infinity Reference REF-9633ix replaces these items
- Plus One+ polypropylene woofer with rubber surround
- 1" edge-driven textile dome tweeter and supertweeter
- 5-60 watts RMS power range
Loading accessories...
Customer Q&A
1 question already asked
Loading articles...
Put these in the door of a 15 regular cab silverado. The difference is amazing. I'm just running them off the kenwood double din 45 watt amp and they have really good bass and midrange. Highs are perfect for my setup.
Matt from Edmond, OK
