About the JBL Arena X 36Be
Arena rocks
Arena rocks
JBL lives up to their legend once again. Their Arena X 36Be 3-way component system combines the latest speaker technology and materials with one of the coolest-looking designs I've seen in a while. The set's acoustically optimized metal grilles stylishly flaunt the JBL logo, and magnetic trim rings help an easier installation and seamless finish. And while looks are impressive, it's the sound that counts. JBL prioritizes neutral, accurate playback so that you can enjoy the best of what your high-resolution audio files have to offer.
Collaborative design

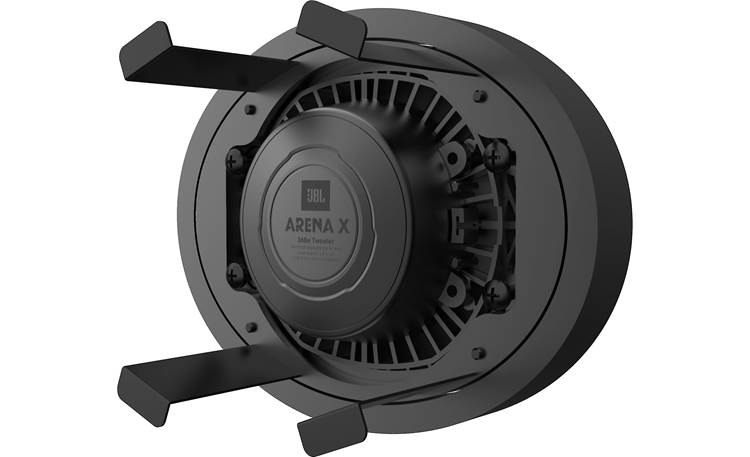

The Arena X Series tweeter is unlike any tweeter you've probably seen in a vehicle before. A collaboration with home audio titan, Revel, the beryllium dome tweeter is built into an oval ceramic-coated, cast-aluminum acoustic lens waveguide for unparalleled off-axis response. This ensures that you gain the smoothest sound possible, up to 40,000 Hz. And while you can use an active crossover system (not included), JBL includes precision crossover networks that ensure seamless interplay between the three drivers.
Carbon fiber woofers
JBL uses carbon fiber for both the 6-1/2" woofer and 3-1/2" midrange driver, providing hearty, bold lows that stay accurate at any volume.
Build an active system
JBL designed these speakers to be neutral, without coloration, so that you can craft exactly the right sound for you and your vehicle.
Product highlights:
- 3-way component speaker system
- includes 2 woofers, 2 midrange drivers, 2 tweeters, and 2 crossovers
- 6-1/2" carbon fiber woofer cone
- high-roll rubber surround
- die-cast aluminum woofer basket
- 3-1/2" carbon fiber midrange driver
- 1" beryllium dome tweeter
- 3-way crossover
- crossover points: 250 Hz at 12 dB/octave, 3500 Hz at 24 dB/octave
- 3-position tweeter level adjustment
- handles up to 100 watts RMS (200 watts peak power)
- frequency response: 20-40,000 Hz
- sensitivity: 90 dB at 2.83 volts/1 meter
- woofer mounting depth: 2-7/8"
- midrange mounting depth: 1-1/2"
- grilles included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # JBLSPKAXAM
Reviews
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the JBL Arena X 36Be
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 3-way | |
| Tweeter Design | Dome | |
| Impedance (Ohms) | --- | |
| Tweeter Composition | Beryllium | |
| Woofer Composition | Carbon fiber | |
| Woofer Surround | High roll rubber | |
| Parts Warranty | 1 year | |
| Labor Warranty | 1 year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 90 | |
| Frequency Response | 20 - 40k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 200 | |
| Top-mount Depth (Inches) | 2 13/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | --- | |
| Mounting Height (Inches) | --- | |
