JBL Club 4505

5-channel car amplifier — 45 watts RMS x 4 at 4 ohms + 500 watts RMS x 1 at 2 ohms

Item # 109CL4505

Although this futuristic JBL looks like it belongs in the cockpit of a stealth bomber, the Club 4505 5-channel...

Although this futuristic JBL looks like it belongs in the cockpit of a stealth bomber, the Club 4505 5-channel...

California customers:
Please click here for your Proposition 65 warning.

Need help?
Contact our Virginia-based experts.

Item # 109CL4505

This item is no longer available.

About the JBL Club 4505

Space-age power

Although this futuristic JBL looks like it belongs in the cockpit of a stealth bomber, the Club 4505 5-channel amplifier will deliver 45 watts RMS to each of the front and rear speakers in your car, while sending up to 500 watts RMS to your subwoofer — a much smarter ratio of subwoofer-to-full-range power than most 5-channel amps. Got some high-performance components? You can bridge the amp to 3-channel mode to power them with 130 watts RMS each while driving your sub with 500 watts RMS.

Space-age power

Although this futuristic JBL looks like it belongs in the cockpit of a stealth bomber, the Club 4505 5-channel amplifier will deliver 45 watts RMS to each of the front and rear speakers in your car, while sending up to 500 watts RMS to your subwoofer — a much smarter ratio of subwoofer-to-full-range power than most 5-channel amps. Got some high-performance components? You can bridge the amp to 3-channel mode to power them with 130 watts RMS each while driving your sub with 500 watts RMS.

Specialized high-tech integration features

And speaking of the future, this amp features an ADAS input, which lets you keep your advanced driver assistance system's (ADAS) warning messages after you've replaced the factory receiver or amplifier. You can select which channel plays your messages, so you'll hear lane departure or blind spot warnings, for example, through your system loud and clear. And if your vehicle comes equipped with a Harman HALOsonic noise cancellation/enhancement system, you can plug it right into the Club 4505 and enjoy a super quiet (or an engine-roaring) ride along with your music.

Works in almost any vehicle

Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio. Separate high- and low-pass filters on the front and rear channels tune the sound to perfectly fit your speakers. The subwoofer channel features a low-pass filter, bass boost, and phase switch to tune the bass for your subwoofer.

JBL Club 4505

Club 4505 inputs and controls

READ LESS

Product highlights:

  • 5-channel car amplifier
  • 45 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
  • 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
  • 130 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
  • Class D amp technology
  • variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
  • low-pass filter (32-320 Hz, 12 dB/octave) on subwoofer channel
  • bass boost on subwoofer channel (0-9 dB at 45 Hz)
  • phase switch on subwoofer channel (0, 180 degrees)
More Features:
  • preamp and speaker-level inputs
  • ADAS and HALOsonic inputs for advanced integration in select vehicles
  • fuse rating: 30A x 3
  • 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • 15-5/8"W x 2-1/4"H x 7-7/16"D
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # Club 4505
KEEP READINGREAD LESS

What's in the box:

  • 5-Channel amplifier
  • Six 30A ATO fuses (3 installed)
  • 4 Bare wire-to-RCA adapters
  • 4 Mounting screws (M4 x 53mm)
  • Quick-connect Guide
  • 2 JBL stickers

Featured video:

Customer reviews

Loading reviews...

JBL Club 4505 reviews

Average review:

16 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Another great JBL product

Zachary from WA on 2/10/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Seems very well made, with plenty of heft. Will update post install for sound quality.

Pros: Built well, good terminals.

Cons: Surface easily scratches.

Crutchfield response on

0 of 0 found this helpful

nice upgrade

Jerome from Vista, CA on 1/17/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

so far everything is good. great balanced sound and a nice upgrade coming from an outdated factory unit.

Pros: inexpensive, has all the standard adjustments, easy to install

Cons: doesn't have the option of a remote bass control, cheap acrylic on top of amp scratches easily

Crutchfield response on

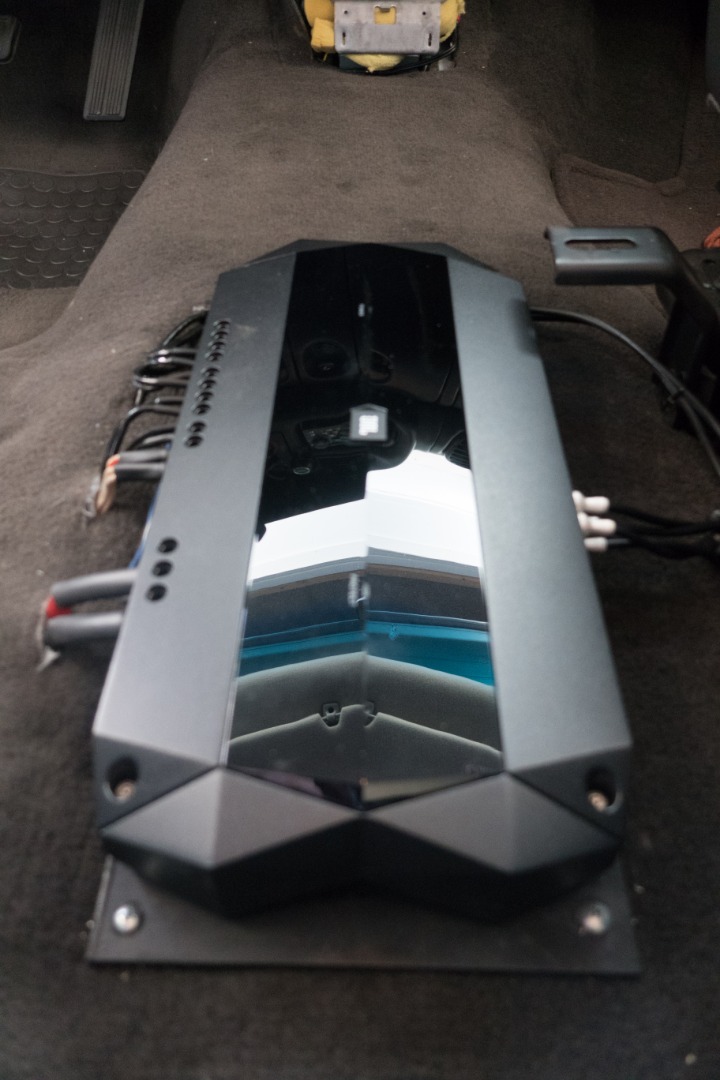

Customer review photo

0 of 0 found this helpful

JBL Club 4505

Brian from Davenport, IA on 12/22/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

i bought this to replace the Bose factory amp , required some rewiring, but with the JBL seprates and replacing Bose sub with Kenwood. HUGE DIFFERENCE.

Pros: compact size. remote, great value. great quality.

Cons:

Crutchfield response on

0 of 0 found this helpful

JBL Club 4505

chris from Hudson, NH on 12/10/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great amp. Perfect for my needs

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

JBL Club 4505

Stefan from Marietta, GA on 11/23/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Easy installation. Size is great. Loving it.

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

JBL Club 4505

Brian from Westminster, CA on 11/2/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Love this amplifier and very happy with it. The shape fit well under my center seat in my truck. Easy to install wiring and worked really well. I have it driving 4 coaxial speakers (2 6x9 JL Audios, 2 Alpine Type R 6.5" speakers) and two JL W0v3-4ohm SVC Subs in parallel. The amp gets a little warm at loud volumes, but in my truck it has plenty of ventilation. I did not look into the ADAS (?) options for plugging in something. Not sure if anyone would use that. Would rather have that port for a base knob. Would be nice to have a bass knob. That's my only gripe.

Pros: - Nice looking design - Plenty of Power - Supports 4ohm loads and 2 ohm load on sub at the same time

Cons: - No bass knob. - In my install, difficult to make adjustments because controls are on the long side

Crutchfield response on
Customer review photo Customer review photo Customer review photo Customer review photo

0 of 0 found this helpful

JBL Club 4505

MARCELO from Doral, FL on 9/4/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

I purchase this to replace my old GTO-5EZ. what a great product!

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

JBL Club 4505

Crutchfield customer from Labelle, FL on 7/15/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Bought to push the new CSA110 Memphis sub that was purchased at the same time and the 4 speakers, Alpine head unit purchased a few years back from Crutchfield. Nice nice power, plenty of room to dial in and adjust.

Pros: Plenty of power, adjustability. Love the 5 way.

Cons: None.

Crutchfield response on

0 of 0 found this helpful

JBL Club 4505

Luis from Jurupa Valley, CA on 6/1/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Have this amp hooked up to some 6.5 infinity components and it makes a diffrence between night and day. Super loud and clear

Pros: EverythinG

Cons: None

Crutchfield response on

0 of 0 found this helpful

Things that go boom!

Ryan Cole from Milton, FL on 5/26/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Bang for your buck! Pushing 4) 6 1/2 kicker 100w rms 300w peak speakers and 1) 15in kicker comp sub 300w rms 500w peak. Many knobs for sound customization and amazing clarity. Plenty of boom. Very well constructed. Nice sleek look. Well earned 5 ??

Pros: 100

Cons: 0

Crutchfield response on

0 of 0 found this helpful

Conversion from dual amps to single made simple..

Bin from Plano, IL on 4/3/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Tested on 4 Focal speakers with dual 10" JL audio subwoofers running a 2 ohm load. Sounded really good! Has enough power for my application and helped make wiring in the car more simple reducing two separate amps to one.

Pros: small Footprint, ease of use, sound quality....

Cons: None so far.

Crutchfield response on

1 of 1 found this helpful

Well rounded 5-channel amp

Vince from Little Falls, MN on 3/15/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great amp for the money. It throws more power to a sub woofer than other 5-channel amps. Using this amp to power a P2D2 single 12" and (4) 2-Ohm Infinity Kappa door speakers, it is a perfect match. The terminals and speakers level input's to RCA adapter are well built. I thought Iw as going to need a Lc2i to control the bass more since this was a factory head integration, but this has everything I need, the head unit bass control lowers and raises it enough. Great product!

Pros: Well balanced sub to speaker power ratio.

Cons:

Crutchfield response on

1 of 1 found this helpful

JBL Club 4505

Crutchfield customer from Granite Falls, WA on 1/15/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Works good. Running Kicker 6.5's, 6x9's and a CompR 12.

Pros:

Cons:

Crutchfield response on

1 of 2 found this helpful

JBL Club 4505

Stephen from Scranton, PA on 8/31/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

I have 2 JBL and 2 pioneer speakers and a rockford fosgate hooked up to this and have pkenty of drive to them all. Everything sounds great. Glad i purchased this

Pros: 5 ch

Cons: Big

Crutchfield response on

0 of 1 found this helpful

JBL Club 4505

Alan from San Gabriel, CA on 11/16/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great amp. Solid construction, all the terminals, knobs and switches feel great. I upgraded to the 4505 from two separate amps (1200w2ch,400w4ch) the balance between the speakers and sub is noticeably better.

Pros: Build quality Flexibility

Cons: High gloss finish is easy to scratch

Crutchfield response on

4 of 4 found this helpful

JBL Club 4505

Crutchfield customer from Lytle, TX on 11/3/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

This amp provides plenty of power to most stereo systems. There are a lot of adjustments on the amp and it takes some looking into to find out what they all do. Once you figure that out, you can make your system sound amazing.

Pros: Lots of different tuning options

Cons: Difficult to figure out if you are a first time amp tuner

Crutchfield response on

7 of 9 found this helpful

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

Product Research

Features

Overview: The JBL Club-4505 is part of the Club series of car audio amplifiers. This Class D 5-channel amplifier will accept both high-level and low-level inputs. Class D amplifiers are highly efficient and compact, generating lots of power without drawing much current or generating heat. The unit comes with spare fuses, speaker wire-to-RCA adapters, and mounting hardware.

Power Output: The Club-4505 delivers the following power output:

  • Full Range Channels:
    • 45 watts RMS x 4 at 4 ohms (<1.0% THD+N)
    • 65 watts RMS x 4 at 2 ohms (<1.0% THD+N)
    • 130 watts RMS x 2 at 4 ohms bridged (<1.0% THD+N)
  • Subwoofer Channel:
    • 320 watts RMS x 1 at 4 ohms (<1.0% THD+N)
    • 500 watts RMS x 1 at 2 ohms (<1.0% THD+N)

HALOsonic Compatible: JBL Club full range amplifiers are compatible with the Harman HALOsonic noise management system found in select vehicles. HALOsonic utilizes a combination of Active Noise Cancellation and Electronic Sound Synthesis to greatly reduce engine noise and road noise in the cabin, making for a much quieter ride. The amp features a 3.5mm connection to interface with the HALOsonic system.

ADAS: The Club-4505 has an RJ45 port for the Advanced Driver Assistance System (ADAS) that can override the audio source input to deliver a message or other audio from a connected ADAS accessory. On the amplifier, you can designate which speaker the ADAS signal is output: Front left, front right, rear left, or rear right.

Protection Circuitry: The amplifier features protection circuitry for thermal overload, over- or under-voltage (<9V or >16V), and short circuits. The LED on the top of the amp glows red if the amp goes into protection mode.

Controls: The Club-4505's controls are located on one side of the amplifier. The rotary controls require a small screwdriver (not included) to make adjustments. The amp controls include:

  • Gain: The rotary gain controls let you match the amp's input sensitivity to the output of the source unit. There are separate gain controls for the front, rear, and subwoofer channels.
  • Input Level: The Input Level switch lets you select the type of input you are using. For high-level input, there are two settings: Hi1 and Hi2. If the audio system fails to play with an amplifier connected to its output, or you get a "speaker disconnected" message on your factory stereo, set the switch to the Hi2 position. The Hi2 position includes a circuit design to fool this type of factory system into "seeing" a speaker connected to its output.
  • Crossovers: The amp features switchable crossovers for the front and rear channels that can be set to low pass (LPF), high pass (HPF), or Full Range. The subwoofer channel has a non-defeatable low pass filter. You can adjust the cutoff frequency of the crossovers from 32Hz to 320Hz using the independent rotary controls.
  • Bass Boost: You can apply up to 9 dB of bass boost, centered at 45 Hz, using the rotary control.
  • Phase: You can switch the phase of the subwoofer from 0° to 180°.

Connections: The JBL Club-4505 uses set screw terminals for the +12V power, ground, turn-on (remote) lead, and speaker outputs. The screws can be tightened/loosened with a Phillips-head or flat-head screwdriver (not provided). The amp connections include:

  • Power/Ground: The +12V Power and Ground terminals will accept up to 4-gauge wire. It is recommended that you use a minimum of 4 AWG power wire to the battery, with an in-line 90A fuse installed no more than 18" from the battery terminal. A 4 AWG ground wire (minimum) is also recommended, and attached to a metal area close to the amplifier.
  • Remote Turn-On: The Remote terminal will accept up to 8 AWG wire. Typically, an 18 AWG turn-on lead is included in an amplifier wiring kit.
  • Speaker Outputs: The amp features screw terminals that accept up to 8 AWG wire for connecting five speakers. There are markings on the terminals for bridging the amplifier.
  • Speaker-Level Input: The amp includes four bare wire-to-RCA adapters for connecting the amp to a factory radio or aftermarket head unit without preamp outputs. You should attach each speaker wire from the head unit to an adapter and plug the adapter's RCA plug into the amp.
  • Line-Level Inputs: The amplifier is equipped with three pairs of RCA inputs for connecting stereo RCA patch cables from the head unit to the amp.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
brooke choose this [ Allison  Feb 18, 2019 ]
A
Well reviewed; hopefully the 4 ch power is adequate [ BRIAN  Nov 26, 2018 ]
A
1 past experience with brand 2 power output 3 price [ kevin  Oct 08, 2018 ]
A
quality [ Chet  Jul 18, 2018 ]
A
Replacing a defective one [ Gregory  Jul 12, 2018 ]
A
Recommended by your staff [ A  Feb 27, 2018 ]
A
Jbl is a good brand and brooke recommend it for me [ johnny  Dec 05, 2017 ]
A
it looks easy for me to in stall i need 4 chanals speaker for my kickers and one 8'' for my woofer i got two amps one for my speaker and one for my woofer cant get it to work the rem wire cant hook up to both amp so i got this one . all in one amp hope it work. thank you. [ james  Dec 04, 2017 ]
A
I chose this amplifier to run the system in my 1996 Mazda Miata. It is a replacement for an aging Alpine V12 MRV-F357 5 channel currently powering a set of Pioneer Premier TS-C720PRS components up front. I had planned to add a small 8" subwoofer behind the driver's seat, but the subwoofer channel of my current amp is no longer operational. This amplifier meets my sizing and more than exceeds my power requirements at a very reasonable price, and will allow me to upgrade my system as planned. [ Jacob  Dec 04, 2017 ]
A
one size fits all, 5 channel [ Frank  Nov 17, 2017 ]
A
Specs and price [ Mark  Aug 25, 2017 ]
A
to receve sircusxm radio [ C Jyl  Apr 25, 2017 ]
A
Brand loyalty and the right specs for my other components [ Adam  Apr 11, 2017 ]
A
Paul recommended it for my set up. [ Darwin  Feb 23, 2017 ]
SHOW MORESHOW LESS

2 questions already asked

Q
Would this be a good amp to power 4 JBL GX602 speakers and 1 Pioneer TS-SW2502S4 10-Inch subwoofer?
[ FrostyAusty  Mar 16, 2018 ]
1 answer
A
Thanks for your question. For information on selecting the best amp for your subs I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.
[ Krissy  Mar 27, 2018 ]  Staff
Q
Can you wire two subwoofers up to this amp?
[ Matthew  Sep 19, 2016 ]
1 answer
A
The 5th channel is 2 Ohm stable so, yes, you can connect two SVC 4 Ohm subwoofers in parallel or two DVC 2 Ohm models in series/parallel to present to 2 Ohm final load and get up to 500 watts RMS (250 per sub). You can learn more about subwoofer wiring and impedance in the Crutchfield labs: http://www.crutchfield.com/learn/wiring-subwoofers-ohms.html?search=ohms I hope that helps. My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=5
[ Ryan  Sep 24, 2016 ]  Staff
