About the JBL Club 6522
The versatile speaker
The versatile speaker

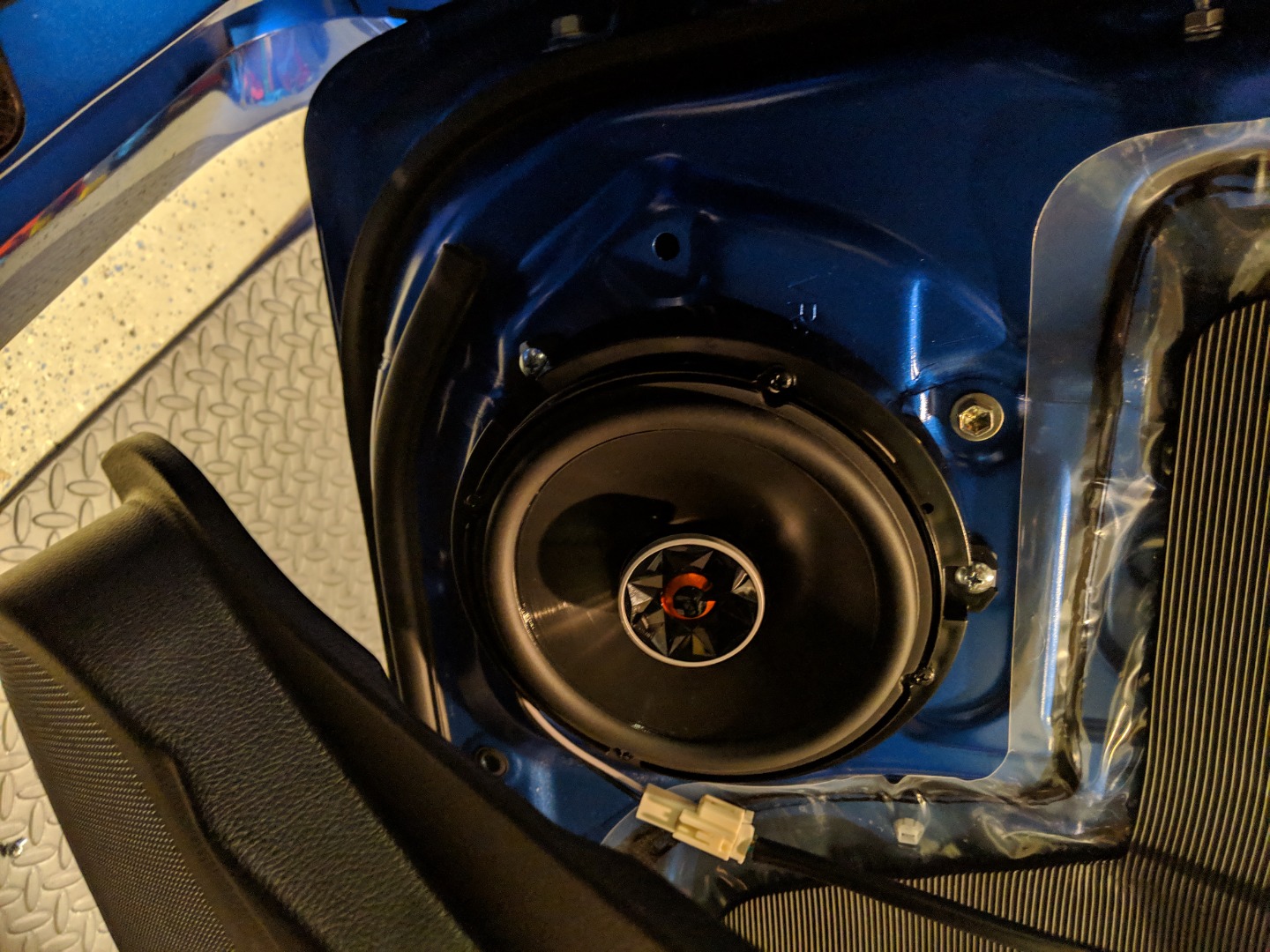

Imagine starting up your car for your morning commute, travel mug full of hot coffee at the ready, and brace yourself — your music sounds fantastic. Clear, detailed highs and hearty lows. That's because you installed JBL's Club 6522 2-way speakers in your doors. JBL equipped these coaxial speakers with UV-resistant polypropylene woofers for stellar performance even under the stickiest (or chilliest) environmental conditions — after all, your car door isn't the most forgiving place to reside.
The speaker's patented Plus One™ woofer structure extends the surface area of the cone to give you a better bass experience than other speakers this size. And an edge-driven PEI tweeter expands the high-frequency range, so you'll hear musical details that you never heard from your old speakers. A push-button tweeter output control lets you adjust the high frequencies to suit your vehicle's cabin.
A match for any system
The Club 6522's low-impedance design safely draws more power from your car stereo to give your music extra punch, but you'll get even better results feeding them power from an outboard amp.
- 6-1/2" 2-way speakers (pair)
- polypropylene Plus One woofer cone
- edge-driven PEI dome tweeter
- handles up to 60 watts RMS (180 watts peak power)
- frequency response: 53-21,000 Hz
- impedance: 3 ohms
- sensitivity: 93 dB at 2.83 volts
- top-mount depth: 2-1/16"
- grilles included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # CLUB 6522AM
What's in the box:
- Two 2-way speakers
- 2 Grilles
- 2 Mounting brackets
- Eight 1" Screws
- Eight 1/2" Screws
- 8 Speed clips
- 2 Adhesive backed foam gasket strips
- Instruction manual
- 2 JBL window stickers
- Template on box
JBL Club 6522 reviews
Thanks for submitting your review
More details on the JBL Club 6522
Features & specs
|Speaker Size||6 1/2|
|Tweeter Design||Edge-Driven Dome|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||N/A|
|Sensitivity at 2.83 volts||93|
|Frequency Response||53 - 21k Hz|
|Minimum RMS Wattage||---|
|Maximum RMS Wattage||60|
|Peak Power Handling (Watts)||180|
|Top-mount Depth (Inches)||2 1/16|
|Bottom-mount Depth (Inches)||N/A|
|Cutout Diameter or Length (inches)||5 1/8|
|Mounting Height (Inches)||0.686|
Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.
Tweeter Material: The tweeter diaphragms are PEI (Poly-Ether-Imide), a polymer film that produces a wide soundstage.
Angled Tweeter: The tweeters are mounted at an angle (fixed), so they can be directed toward the listeners to improve imaging.
Tweeter Level Control: A switch on the front of the tweeter allows you to boost the tweeter output to +3dB, useful if the speakers are mounted low in a door where high frequencies are easily absorbed.
High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers.
Mounting: Without an adapter, the speakers fit standard 6-3/4" applications. Given their required cutout, they will also fit 6-1/2" applications without an adapter, but new screw holes must be drilled. Using the included adapter brackets they can be mounted in a variety of 6-1/2" and 6-3/4" applications, without any modification.
