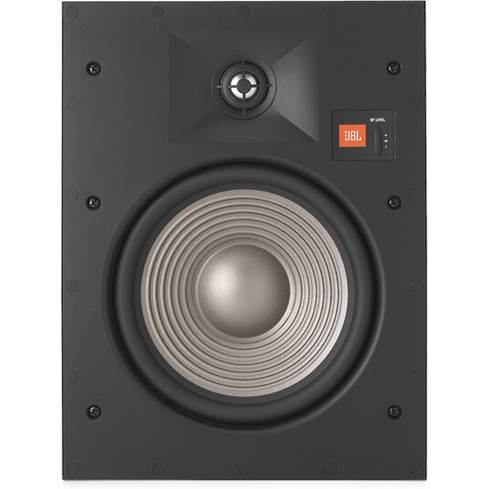

JBL Studio 2 8IW

Features

CCMD Lite Tweeter: The JBL Studio 2 8IW in-wall speaker is outfitted with a 1" CCMD Lite tweeter that delivers high-frequency detail with natural balance, precision imaging, and low distortion.

• High Definition Imaging (HDI) Waveguide: The CMMD Lite tweeter utilizes JBL's proprietary High Definition Imaging (HDI) waveguide that ensures that the loudspeaker fills the room with cinema-quality sound from almost any location.
• Aimable Tweeter: The CCMD Lite tweeter can pivot letting you target audio directly to your desired listening location, even when installed high on the ceiling or off-axis.
• Tweeter Level Control: There is a tweeter level control on the front baffle behind the grille. The tweeter level control allows you to fine-tune high frequencies (-3/0/+3dB) to suit room conditions and personal taste.

PolyPas Cone Woofer: The JBL Studio 2 8IW in-wall speaker houses a 8" long-throw woofer with a PolyPas cone and rubber surrounds for high output, high excursions, and extended bass response. The PolyPas cone is ribbed for improved strength that helps deliver richer and more articulate bass with low distortion.

Advanced Crossover Network: The JBL Studio 8IW in-wall speaker utilizes an advanced, high-order crossover network (2.8kHz) that delivers accurate timbre reproduction.

Zero-Bezel Profile: The JBL Studio 2 in-wall speaker features a nearly invisible zero-bezel profile that blends into almost any room. The included grille attaches magnetically and is paintable. The bezel and grille only protrude 0.25" from the ceiling.

Spring Post Terminals: The JBL Studio 2 in-wall loudspeaker is outfitted with a set of spring-post terminals to attach your speaker wire. The spring-post terminals will accommodate bare wire (up to 10AWG), pin-connectors, and banana plugs (single only).

• For wire lengths of less than 50', use at least 16-gauge speaker wire.
• For wire lengths between 50' and 100', use at least 14-gauge speaker wire.
• For wire lengths of greater than 100', use at least 12-gauge speaker wire.

Note: Your speaker wire must comply with all local building and safety codes for use in in-wall applications.

In-Wall Installation: The Studio 2 in-wall speaker utilizes JBL's XL-2 bracket system that is suitable for installation in drywall, plywood, and other wall material that is 0.5" to 2" thick. The XL-2 bracket system's special mechanical grip design minimizes vibration and improves sound reproduction.

• The Studio 2 in-wall speaker requires a rectangular cutout that measures 8.9375" (w) x 11.9375" (h) x 3.6875" (d).. The outer dimensions of the speaker are 10.0625" (w) x 13.0625" (h) x 0.25" (d).
• Make sure to allow at least 1" between the edge of the cutout and any obstructions behind the ceiling, so the speaker's locking mechanism will have room to engage fully.
• Perform an obstruction survey to be sure that there are no studs, lengths of conduit, pipes, heating ducts or air returns in the ceiling cavity that will interfere with the speaker.

Applications & Placement: The JBL Studio 2 8IW in-wall loudspeaker is the perfect choice for whole-house audio, 2ch music, and home theater applications. The Studio 2 8IW can act as a Front, Surround, or Surround Back speaker in a home theater setup. Follow these guideline for placement -

• Distributed Audio: Since distributed sound is general sound throughout an area, place the loudspeakers as uniformly as possible for even sound coverage throughout the area. Place the left and right loudspeakers roughly the same distance from the primary listener locations. To avoid "hot spots" where the sound is too loud, plan to use more loudspeakers, with each set to play at a lower volume.
• 2Ch Stereo: Place the left and right loudspeakers the same distance from the primary listening area (or as close to the same distance as possible). The distance from each speaker to its nearest side ceiling should also be as close to the same distance as possible. Ideally, the distance between the left and right loudspeakers should be slightly less than their distance from the primary listening area.
• Home Theater: The front left and front right loudspeakers should be located on either side of the video display. The surround left and surround right loudspeakers should be located to the sides of the main listening area, while the the surround back left and surround back right loudspeakers should be located behind the listening area.

Note: See the Owner's Manual for specific angle and distance measurements in regards to speaker placement.
