JBL Stadium 1000

Mono subwoofer amplifier — 1,000 watts RMS x 1 at 2 ohms

Item # 109STAD100

Amp technology has come a long way since a 1000-watt amp would take up most of your trunk.

Amp technology has come a long way since a 1000-watt amp would take up most of your trunk.

California customers:
Please click here for your Proposition 65 warning.

Ricardo
Need help?
Contact our Virginia-based experts.
Discontinued item

Item # 109STAD100

Ricardo
Need help?
Contact our Virginia-based experts.

About the JBL Stadium 1000

Bass delivered with style

Amp technology has come a long way since a 1000-watt amp would take up most of your trunk. JBL's Stadium 1000 mono amplifier powers your subwoofer with up to 1,000 watts RMS from a compact chassis that takes up very little space. A low-pass filter clears the way for your sub to play clean, powerful bass, while a bass boost and phase switch help you get the sound just the way you want it. And JBL includes a wired remote control so you can adjust the bass level from the front seat.

Bass delivered with style

Amp technology has come a long way since a 1000-watt amp would take up most of your trunk. JBL's Stadium 1000 mono amplifier powers your subwoofer with up to 1,000 watts RMS from a compact chassis that takes up very little space. A low-pass filter clears the way for your sub to play clean, powerful bass, while a bass boost and phase switch help you get the sound just the way you want it. And JBL includes a wired remote control so you can adjust the bass level from the front seat.

Connectivity

This amplifier can accept low- or speaker-level inputs so it'll work in almost any system, and the package includes screw-on RCA-to-bare wire adapters for the speaker-level signal. JBL has also included their electrical anti-rotational locking (E.A.R.L.) ground terminal, for a more conductive and secure ground connection for the amplifier.

The Stadium 1000 sub amp will integrate perfectly and look fantastic in a system that uses the matching JBL Stadium 4 four-channel full-range amplifier.

JBL Stadium 1000

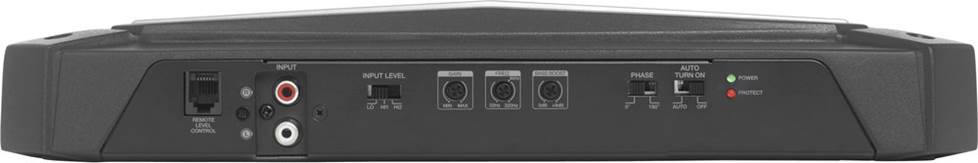

Stadium 1000 input and control panel

READ LESS

Product highlights:

  • mono subwoofer amplifier
  • 700 watts RMS x 1 at 4 ohms (1,000 watts RMS x 1 at 2 ohms)
  • variable low-pass filter (32-320 Hz, 12 dB/octave)
  • variable bass boost (0-9 dB at 70 Hz)
  • phase switch (0, 180 degrees)
  • wired remote level controller included
  • preamp and speaker-level inputs
    • speaker wire-to-RCA adapters included
  • E.A.R.L. ground terminal included
  • fuse rating: 35A x 3
  • wiring and hardware not included with amplifier
    • 4-gauge power and ground leads recommended
  • 13-1/8"W x 2-1/8"H x 7-1/16"D
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # STADIUM 1000

What's in the box:

  • Mono amplifier
  • Six 35A ATO fuses (3 installed)
  • 2 Bare wire-to-RCA adapters
  • EARL ground terminal (for 1/0-gauge wire)
  • 3 Flat-head screws (Length 1/2")
  • Heat shrink tube (Length 1-9/16")
  • 4 Mounting screws (Length 2-3/16")
  • 1/0-gauge power/ground wire adapter
  • Remote bass controller
  • 16.5' Remote cable (RJ25 plugs on both ends)
  • Owner's Manual

Customer reviews

We don't have any reviews, yet.
Submit a review and then enter to win a $350 rewards card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

Product Research

Features
Controls
Connections

Features

Power Output: The JBL Stadium 1000 mono amplifier delivers 700 watts RMS x 1 at 4 ohms, and 1000 watts RMS x 1 at 2 ohms. The amp's total peak power is 2600 watts.

Protection Circuitry: The amplifier features protection circuitry for thermal overload, DC voltage on the audio output, over- or under-voltage (<9V or >16V), and short circuits. The LED on the back panel of the amp glows red if the amp goes into protection mode.

Remote Level Control: The Stadium 1000 comes with a rotary Remote Level Control module that lets you control the bass output from a convenient location in the vehicle. A 16.5-foot cable is included.

Controls

Gain: The Stadium 1000's rotary gain control let you match the amp's input sensitivity to the output of the source unit. The maximum input sensitivity of the amplifier 0.2V for a line-level input, and 2V for speaker-level input. The maximum signal level is 20V for both line and speaker level inputs. A small screwdriver (not included) is required to set the gain.

Input Level: The Input Level switch should be set to match the type of input signal connected to the amplifier. If using line-level connections, select LO. If using speaker-level inputs, select Hi1 or Hi2. Hi2 contains a special circuit designed to fool a factory audio system to detect a speaker connected to its output, and should be used only if Hi1 doesn't work.

Low Pass Filter: The amp features a non-defeatable low pass filter with a cutoff frequency between 32Hz and 320Hz. The crossover has a 12dB per octave slope. A small screwdriver is required to adjust the frequency.

Bass Boost: The amplifier's Bass Boost circuit is adjustable from 0dB to +9dB, centered at 70Hz. A small screwdriver is required to adjust the bass boost control.

Phase: You can set the subwoofer phase at 0° or 180°. While playing music with lots of bass, slide the phase switch back and forth. Choose the setting that provides more bass. If there is little difference, leave the switch at 0°.

Auto Turn-on: If your stereo does not have a "Remote Out" wire, you can set the amplifier to automatically turn on when it detects a speaker level signal on the input. If you are connecting a remote turn-on lead, the switch should be left in the "off" position.

Connections

Terminals: The JBL Stadium 1000 uses set screw terminals for the +12V power, ground, turn-on (remote) lead, and speaker outputs. The screws can be tightened/loosened with a Phillips-head screwdriver (not provided).

Power/Ground: The +12V Power and Ground terminals will accept up to 4-gauge wire. It is recommended that you use a minimum of 4 AWG power wire to the battery, with an in-line 100A fuse installed no more than 18" from the battery terminal. A 4 AWG ground wire (minimum) is also recommended, and attached to a metal area close to the amplifier.

E.A.R.L. Terminal: An Electrical Anti-Rotational Locking (E.A.R.L.) terminal is provided for the ground wire. The terminal is designed for 1/0 AWG ground wire, and requires a large crimping tool to secure the wire. The terminal includes 3 screws to attach the terminal to your vehicle's metal chassis.

Remote Turn-On: The Remote set screw terminal will accept up to 8 AWG wire. Typically, an 18 AWG turn-on lead is included in an amplifier wiring kit.

Power/Ground Adapter: If you wish to use power and ground wire larger than 4 AWG, you can use the included plug-in adapter. The adapter has posts that insert into the +12V, REM, and GND terminals and offers 1/0 AWG power and ground terminals. An 18 AWG screw terminal for the remote turn-on wire is also provided.

Speaker Outputs: The amp features screw terminals for connecting two subwoofers. The terminals are wired internally in parallel. The amplifier's minimum speaker impedance is 2 ohms.

Line-Level Inputs: The amplifier is equipped with a pair of RCA inputs for connecting a stereo RCA patch cable from the head unit to the amp.

Speaker-Level Input: The amp includes two speaker-level adapters (bare wire-to-RCA) for connecting the amp to a factory radio or aftermarket head unit. You should insert the left and right speaker wires from the head unit into the adapters and plug the adapters into amp's RCA inputs.

Remote Level Control: An RJ-25 modular "phone" jack is provided for connecting the Remote Level Control cable.
