Jensen CR271ML

Touchscreen, Voice, & Remote Control
Built-in Bluetooth
USB & MicroSD Card Playback
Audio & Radio Section
AV + Camera Connectivity

Touchscreen, Voice, & Remote Control

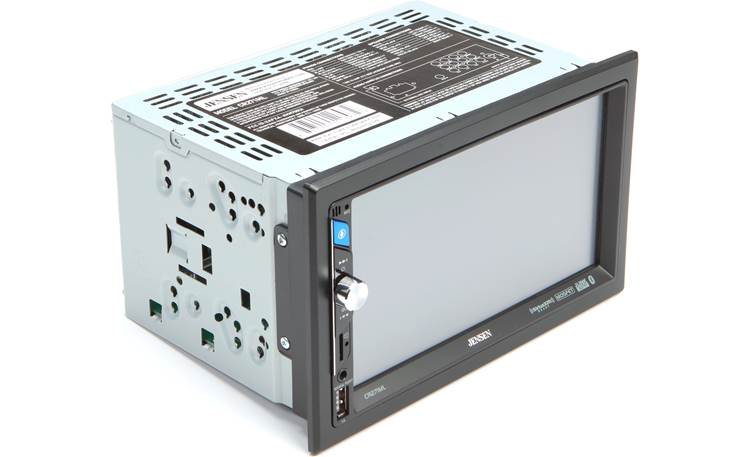

7" Touchscreen Monitor: The Jensen CR271ML features a 7" touchscreen LCD monitor with LED backlit and a resolution of 1024x600 (614,400 total pixels). The 7" touchscreen monitor makes it is easy to see and navigate the in-dash receiver. You can select between 3 different preset wallpapers (backgrounds). You can also adjust the screen brightness, contrast, hue, saturation, and sharpness.

• Hard-Key Controls: In addition to touchscreen controls, the head unit features a 3-way rotary knob and 3 push-buttons along the left edge of the screen. The 3-way rotary knob controls Power, Volume, and Mute. There are two push-buttons that operate Previous/Next Track and Fast Forward/Reverse function. The other push-button activates "Push-To-Talk" and voice dial.
• Video Lock Out: For safety reasons, you cannot view a video source on the built-in monitor as long as the vehicle is in motion. In order to display video, the head unit's pink wire must be hardwired into the vehicle's parking brake light circuit, and the vehicle's parking brake must be engaged.

Push-To-Talk Voice Assistant: When connected via Bluetooth to an iPhone with Siri or Android smartphone with Google Assistant or Bixby, you can access the mobile device's digital voice assistant through the Jensen receiver by pressing the "Push-to-Talk" button on the front-panel. You'll speak your command into the head unit's front-panel or external microphone and the digital voice assistant will be heard through your vehicle's speakers (music playback will be attenuated). Compatible digital voice assistant functions include hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more. You'll be able to ask your digital voice assistant get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your compatible smartphone. The head unit's audio is attenuated while the digital voice assistant provides voice prompts.

Note: The head unit's LCD touchscreen will only display hands-free calling and Bluetooth audio information (all other digital voice assistant functions are only audible through the Jensen head unit; visual data will still need to be viewed from your smartphone device).

J-Link Smart Remote App: The J-Link Smart Remote app (for Apple iOS 9.1+ and Android OS 5.0+) lets you use your compatible smartphone or tablet device like a wireless remote control for the Jensen CR271ML. Your compatible Apple iOS or Android device will need to be wirelessly connected to the digital multimedia receiver via Bluetooth. Control functions include -

• Power On/Off
• Volume Up/Down
• Source Selection
• Playback & Tuning
• Audio Settings

IR Remote Control: The included 39-button IR remote provides wireless operation of the Jensen digital multimedia receiver.

Optional Steering Wheel Controls: The head unit features a SWC (steering wheel control) input which lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel control adapter from PAC or Metra (see Accessories tab).

Key Beep: The in-dash head unit provides an audible beep to confirm button operation (this can be turned On or Off).

Built-in Bluetooth

Bluetooth Technology: The Jensen CR271ML is equipped with built-in Bluetooth 4.1+EDR, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles -

• Hands-Free Communication: HFP (Hands Free Profile), PBAB (Phone Book Access Profile).
• Audio Streaming: A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile).

Note: Due to the differences in Bluetooth technology, some mobile devices may be incompatible, function improperly, or may not support all features when used with the CR271ML.

Hands-Free Communication: The CR271ML supports Bluetooth hands-free communication from your Bluetooth enabled mobile phone. You can answer an incoming call from the head unit's touchscreen and carry on a phone conversation hands-free. The unit's front-panel integrated microphone or the included external microphone carries on your side of the conversation while your car's speakers are used to hear the other person. You can increase or decrease the volume level of a call, using the head unit's rotary knob on the front panel. You can also transfer calls between the receiver and your Bluetooth enabled phone.

• Answering A Call: During an incoming call, the caller's phone number or assigned contact name will be seen on the unit's LCD and a ring-tone will be heard through your car stereo speakers. You can then manually answer the incoming call from the head unit's touchscreen. You can also set the unit to automatically answer an incoming call within 5 seconds. Any audio playback will be muted during a call. You can even reject an incoming call using the CR271ML, so the call will revert to your phone's voice mail.
• Making A Call: You can make a call using the Jensen in-dash head unit's touchscreen controls. Outgoing calls can be made be entering telephone numbers directly via the head unit's touchscreen keypad. You can also make a call from your phone's transferred phonebook (manually transferred) using the Jensen's CR271ML touchscreen. In addition, you can use the receiver's call log (which consists of dialed numbers, received call, and missed calls) to make a call from the CR271ML's touchscreen. If your phone supports voice recognition, you can even use your voice to dial a number from your contacts.

Wireless Audio Streaming: The Jensen CR271ML allows you to play back stored music and music apps from your Bluetooth enabled smartphone, tablet, or audio player. You can control basic music playback functions (Play/Pause, Previous/Next Track) from the CR271ML. Advanced music navigation will still need to be done through your Bluetooth mobile device. This unit will also display song/artist information (no album art) from a connected Bluetooth audio device. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

USB & MicroSD Card Playback

USB Port: The Jensen CR271ML is equipped with a front-panel USB (type-A) port for connection of a USB MSC (mass storage class) device, such as a USB thumb drive. The unit supports playback of MP3 and FLAC music files, as well as MP4 video and JPEG photo files loaded onto a USB MSC device. You'll be able to control your music tracks and view song/artist/album display from the head unit's touchscreen. The USB port (5V/2.1A) will also charge USB enabled devices, such as your smartphone.

Note: The head unit's USB port does not support, Apple iOS devices, Android OS devices, USB hubs, or card readers.

microSD Card Slot: The Jensen CR271ML is also equipped with a front-panel microSD card slot for connection of a microSD card (up to 64GB). The unit supports playback of MP3 and FLAC music files, as well as MP4 video and JPEG photo files loaded onto a microSD card. You'll be able to control your music tracks and view song/artist/album display from the head unit's touchscreen.

Compatible File Type: The head unit supports MP3 music files (up to 320kbps), FLAC music files (up to 48kHz), MP4 video files, and JPEG photo files stored on a USB MSC device or microSD memory card formatted in FAT16 or FAT32. The unit can recognize up to 2000 files, 200 folders, and 2000 files per folder.

Playback Control: The CR271ML provides various playback & search functions to find and enjoy your MP3/FLAC music files on your USB MSC device or microSD card. Playback functions include Play/Pause & Random/Repeat. Search functions include Folder/File List & Previous/Next Track.

Song/Artist/Album Display: The Jensen CR271ML will even display artist name, song title and album title (including album art). It also displays the elapsed playing time of a song or track of your music stored on a USB MSC device or microSD card.

Audio & Radio Section

CTA2006 Compliant: The power specifications for the CR271ML are compliant with the CTA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Technology Association (CTA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers.

• CTA2006 Specs: 16 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
• Maximum Power Output: 50 watts x 4 channels (200 watts total)

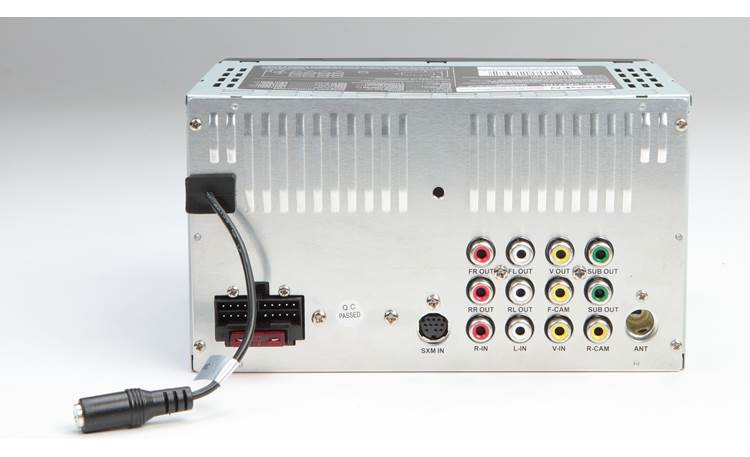

2V/6Ch Pre-Outs + Sub Control: The Jensen CR271ML is equipped with six 2.0-volt pre-outs (Front/Rear/Sub). The front and rear channels are fading, while the subwoofer output is non-fading. The CR271ML also offers Subwoofer Control with an adjustable low-pass crossover filter (Off/80/120/160Hz) and separate level control (0-15) for the unit's mono-Sub pre-out.

Equalizer: The Jensen head unit offers 7 EQ presets (Pop, Rock, Jazz, Classic, Beat, Flat, & User) that can be easily selected to tailor the sound to your genre of music. The User preset allows you to manually adjust the receiver's 7-band EQ (60, 160, 400, 1k, 3k, 7k, 15k Hz), so you can further fine-tune the sound to match your music content and preference. EQ settings are saved globally.

Loudness: The Loudness feature compensates for deficiencies in the low and high sound ranges at lower volume.

AM/FM Tuner: The head unit features a built-in AM/FM tuner with manual, seek, and preset tuning. The unit features 3 FM bands and 2 AM bands with the capability of storing 6 presets for each band giving you a total of 18 FM presets and 12 AM presets (30 total). You can also automatically store the six strongest stations in your area inside the current selected band. The unit's tuner also is equipped with a Seek mode that when used with the Local function, only allows radio stations with a strong local radio signals to be played.

Note: The tuner features selectable North America and European tuning.

SiriusXM-Ready: The Jensen CR271ML is SiriusXM-Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300 sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 140+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include -

• Channel List & Category Search: Channel list displays a list of all available channels. Category Search allows you to search for channels in a certain genre or category.
• Song/Artist Info: Displayed Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit's touchscreen monitor.
• 18 Presets: You can save up to 18 SiriusXM Satellite Radio station presets for quick and easy access.
• Parental Controls: Channels containing unsuitable content for children can be blocked and are only accessible through a custom pass-code.

Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

AV + Camera Connectivity

AV Inputs: The Jensen CR271ML is equipped with an Aux input (on side of touchscreen monitor) that consists of a 3.5mm jack for connection of an external portable audio device with a headphone jack or analog output. The Aux input only supports audio playback (not video compatible). There is also a rear-panel AV input that consists of a composite video and stereo RCA jacks for connecting an external audio/video source (Parking Brake must be applied to view video on-screen).

Video Output: A single RCA composite video-output jack allows you to an add external monitor, such as rear headrest or overhead monitor (sold separately). The video outputs will display whatever image is being displayed on the head unit's touchscreen monitor. This includes the warning "Video Is Disabled For Your Safety" when trying to watch video from a USB device, microSD card, or AV input without the vehicle's parking brake engaged. You will need to engage the vehicle's parking brake to see video from these sources through the head units' video output. However, you can view USB Mirrored content from a mobile device through the video output without the parking brake engaged.

Dual Camera Inputs: The Jensen CR271ML is outfitted with two camera inputs; one backup camera input and one front camera input.

• Backup Camera Input: The backup camera input consists of a composite video RCA jack for connecting an optional rearview camera (sold separately - see Accessories tab) in order to display the area behind your vehicle on the head unit's touchscreen. When an optional rearview camera is connected to this unit, the rear view image is automatically displayed on the screen when your vehicle is placed in reverse gear (violet/white wire of harness must be connected to reverse light wire of vehicle). Automatic rearview video switching takes approximately 1.5 seconds.
• Front Camera Input: In addition to the backup camera input, the CR271ML features a front camera input that consists of a composite video RCA jack and allows you to connect a front camera or dash camera (sold separately). The front camera input can be accessed from the touchscreen monitor's on-screen menu. The front camera input will display on the digital media receiver's LCD monitor and remain on display until you deactivate the front camera input.

Note: The camera inputs are meant as a driving aid only; never solely rely on the camera inputs when driving. In addition to using the camera inputs, always look around you to make sure everything is clear when maneuvering your vehicle.
