Jensen VX7021

Navigation receiver (Factory Refurbished)

Item # 110VX7021R

Jensen's VX7021 navigation receiver combines expert guidance with loads of entertainment options, so you can stay...

Find what Fits your car

Jensen's VX7021 navigation receiver combines expert guidance with loads of entertainment options, so you can stay...

Need help?
Contact our Virginia-based experts.

Ships free

Add to wishlist

About the Jensen VX7021

Jensen delivers in-dash video and navigation value

Finding the correct route to an unfamiliar address shouldn't be a chore, and it shouldn't bust your budget, either. Jensen's VX7021 navigation receiver combines expert guidance with loads of entertainment options, so you can stay on track and enjoy your favorite audio and video sources along the way. It can even get your phone involved in the fun with music streaming and hands-free calling.

Jensen delivers in-dash video and navigation value

Finding the correct route to an unfamiliar address shouldn't be a chore, and it shouldn't bust your budget, either. Jensen's VX7021 navigation receiver combines expert guidance with loads of entertainment options, so you can stay on track and enjoy your favorite audio and video sources along the way. It can even get your phone involved in the fun with music streaming and hands-free calling.

A gorgeous 6.2" display leads the way

Looking for a particular spot? The VX7021 doesn't just offer maps of the entire U.S., Puerto Rico, and the U.S. Virgin Islands, it also boasts an expanded database of points of interest, providing access to nearly 11 million potential destinations. You'll see the maps laid out clearly on the receiver's easy-to-follow 6.2" screen, while an improved user interface makes finding your away around very friendly.

Handy navigation features

iGO primo navigation software ensures you're getting the most reliable routes, while lane guidance keeps you on the right path for your next maneuver. In some instances you'll see realistic depictions of complicated intesections or 3D representations of buildings and landmarks to help orient yourself. This stereo's compatible with Naviextras, which allows you to download maps for other countries, including points of interest.

Go hands-free with Bluetooth®

Built-in Bluetooth connectivity lets you make and take calls with your compatible phone through the VX7021. Jensen includes an external microphone so your callers won't have to struggle to hear your voice over road noise and wind. This Jensen gives you full access to your phonebook, so you can keep your phone safely stowed away.

Music streaming

Built-in A2DP technology allows you to stream music from your smartphone through this receiver, and gives you control over the music on your Android™ phone or iPhone®. If you've got Pandora Internet radio on your iPhone, you can control it through the VX7021's interface with a wired hookup; Android users get finger-friendly command via a wireless Bluetooth connection.

Take your music and video to go

This receiver will play all your CDs and DVDs, including discs loaded with music files, while front and rear A/V inputs offer connections for more audio/video sources. Go ahead and load up your iPod® or thumb drive with tunes for your travels — the receiver's front USB port provides convenient access, not to mention plenty of charging power for your devices.

When you're parked, you can enjoy movies from DVDs or other video sources on the receiver's display. Jensen includes a wireless remote control, allowing your passengers to pick the playlist.

No matter your audio source, the VX7021's 10-band equalizer lets you tweak the settings to suit your listening preferences.

Expansion options

Satellite radio's a wonderful way to keep track of sports, news, talk, and commercial-free music as you travel, and you can access all that wonderful programming by adding a SiriusXM tuner (not included) to this stereo. Your favorite stations are always there and, even better, you can view the channel art on the big screen. You can also connect a rear-view camera, so you can see more of what's behind your vehicle when getting in and out of tight spots. If you're looking to add subs and amps, you can take advantage of 6-volt front, rear, and subwoofer preamp outputs.

Want to keep your car's steering wheel audio controls?

In most cars, you'll need an adapter to retain those controls with this car stereo. Connect a few wires, then program the adapter for your particular car and radio, and you'll retain the convenience of your steering wheel controls. You'll see the adapters that work with your vehicle when you add this receiver to your cart.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

READ LESS

Product highlights:

    General Features:
    • DVD/CD receiver with 6.2" touchscreen and AM/FM tuner
    • built-in GPS navigation
    • fits double-DIN (4" tall) dash openings
    • internal amp (13 watts RMS CEA-2006/40 peak x 4 channels)
    • built-in Bluetooth for hands-free calling and audio streaming
    • remote control
    Smartphone Features: (see Details for info on compatibility)
    • built-in iPod, iPhone, and iPad control
    • iPhone Pandora control with USB
    • Android Pandora control through Bluetooth
    Navigation Features:
    • maps of the United States, Puerto Rico, and the U.S. Virgin Islands, plus 11 million points of interest
    • lane guidance and junction view
    • 3D representations of landmarks and buildings
    Audio/video Features:
    • plays CDs, DVDs, and USB memory devices (see Details for full capabilities)
    • 10-band equalizer
    • subwoofer controls
    Expandability:
    • compatible with SiriusXM satellite radio tuner
    • inputs: front USB input; front (minijack) and rear (RCA) A/V inputs; rear-view camera input
    • outputs: 5-channel preamp outputs (6-volt front, rear, and mono subwoofer); rear video output
    Other Information:
    KEEP READINGREAD LESS

    What's in the box:

    • Refurbished navigation receiver w/ integrated 6.2" touchscreen monitor (15A fuse)
    • 4GB SDHC map card (pre-installed)
    • Trim ring
    • Wiring harness
    • AV/Preamp harness
    • SWC adapter cable
    • Remote control
    • CR2025 3V lithium battery
    • GPS antenna (w/ attached 10' cable)
    • Microphone w/ visor clip (attached 7.75' cable terminated by a 3.5mm connector)
    • Self-adhesive mount
    • Rear support stud
    • Rubber bushing
    • Installation/Quick Start Guide
    • "STOP" sheet
    • Limited Warranty information

    Customer reviews

    Loading reviews...

    Jensen VX7021 reviews

    Average review:

    11 reviews

    Filter by rating

    Customer photos

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Prefect for me

    Crutchfield customer from Virginia Beach, VA on 8/10/2019

    2004 Nissan Maxima

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    excellent for the price

    Pros: easy install

    Cons: none

    Crutchfield response on

    1 of 1 found this helpful

    Jensen VX 7021

    Crutchfield customer from Kansas City, MO on 7/21/2019

    2007 Ford F-150

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Exceptional value especially when you add the Jensen backup camera. The total cost was less than some standard dash mount GPS systems. Crutchfield customer support was extremely helpful as well. Customer support specialist Luna assisted me with an error I made when typing my address and even called back to confirm an additional error I didn't even realize. Her attention to detail saved my order from being delayed. I will never buy from anywhere else.

    Pros: Very affordable with excellent value added to vehicle.

    Cons: None

    Crutchfield response on

    2 of 2 found this helpful

    Jensen VX7021

    Crutchfield customer from Adelanto, CA on 7/20/2019

    2014 Volkswagen Passat

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Affordable head unit with navigation and DVD. Basic functions for all features. Connects easily with bluetooth. Current setup is listening to Spotify through my cellphone, but the head unit does not display song/title/etc.

    Pros:

    Cons:

    Crutchfield response on

    0 of 0 found this helpful

    Jensen VX7021

    Crutchfield customer from Radford, VA on 7/18/2019

    2004 Toyota Sequoia

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Has some quirks but works well and was very easy to instal with the kit from Crutchfield. I'm not sure if the battery sent with the remote control is dead or if the remote itself is broken, it's not a huge concern of mine so I haven't tried to figure it out.

    Pros:

    Cons:

    Crutchfield response on

    0 of 0 found this helpful

    Expected a little more life from this radio

    Guest from Holland, MI on 7/9/2019

    2003 Chevrolet Silverado 2500/3500

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Purchased this a couple years ago. Had not driven the truck for a few months and when started using it again I am experiencing problems. Every time I start the vehicle the screen needs to be recalibrated. Normally this is done once after installing. Called Crutchfield for advise and tried the reset and battery disconnect without any success. Trying to decide the next step.

    Pros:

    Cons:

    Crutchfield response on

    0 of 0 found this helpful

    Nice stereo

    Crutchfield customer from Endwell, NY on 7/4/2019

    2009 Ford F-150 STX

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Great unit for the price! Easy to install, easy to use. Looks and sounds awesome!

    Pros:

    Cons: Remote that cane with this unit does not work.

    Crutchfield response on

    0 of 0 found this helpful

    Jensen VX7021

    Crutchfield customer from Dothan, AL on 6/14/2019

    2002 Ford Explorer

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    After having a dash mounted GPS and Sirius receiver, I wanted to clear up the clutter. This unit put it all in dash, and was an easy installation. I had one question on the controls, and a phone call to Crutchfield quickly resolved it

    Pros:

    Cons:

    Crutchfield response on

    2 of 2 found this helpful

    Jensen VX7021

    Crutchfield customer from Corpus Christi, TX on 6/14/2019

    2004 Volvo XC70

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Navigation is fast and very up to date. This head unit even makes the radio sound great. There's more inputs and outputs than most need but it's great for my family's road trip car.

    Pros: Fast an sounds great

    Cons:

    Crutchfield response on

    2 of 2 found this helpful

    Jensen VX7021

    Crutchfield customer from Kingman, AZ on 6/10/2019

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Kept loosing Bluetooth signal and took a really long time to load after starting my car. Maybe I received a defective unit as Jensen has been around a long time.

    Pros:

    Cons:

    Crutchfield response on

    3 of 3 found this helpful

    Super easy!

    Crutchfield customer from Spring Valley, CA on 6/9/2019

    2004 Ford F-150

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Great stereo, very easy install, had it up and running in about 30 minutes! Plug and play

    Pros:

    Cons:

    Crutchfield response on

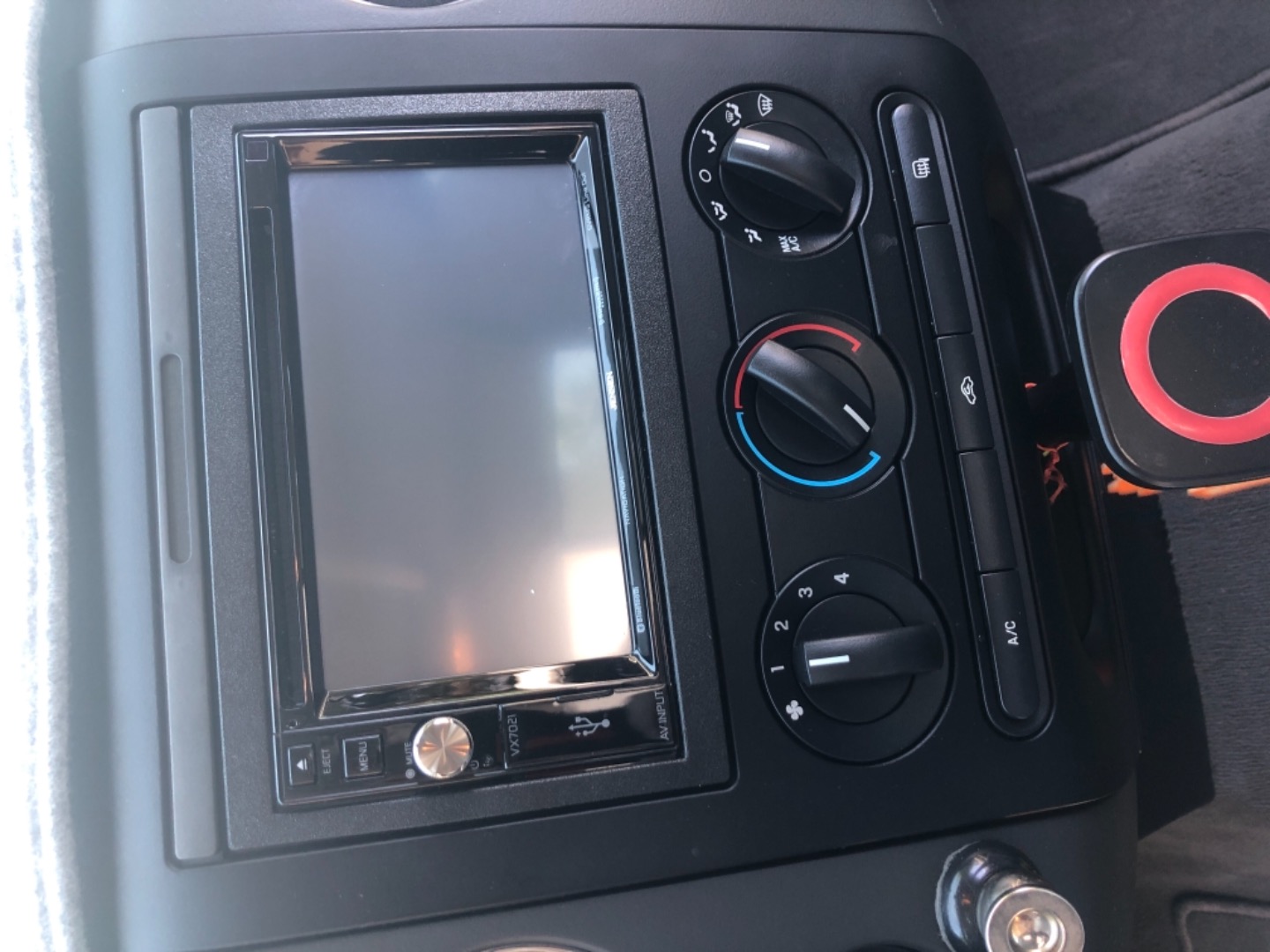

    Customer review photo

    2 of 2 found this helpful

    Very disappointed

    Crutchfield customer from Little Rock, AR on 6/5/2019

    2005 Dodge Ram 1500

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    I really dont like this model. It does not allow me to control my phone play list when I blue tooth. Those engineers should be shot.

    Pros:

    Cons:

    Crutchfield response on 6/5/2019
    We're sorry you're disappointed with your receiver. Whenever you are not completely satisfied with anything you purchase from Crutchfield, please contact our Customer Support team at 1-800-955-9091. Purchases from Crutchfield can be returned or exchanged within 60 days of the purchase.

    8 of 14 found this helpful

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Pros:

    Cons:

    Crutchfield response

    << >>

    More details on the Jensen VX7021

    Stacey B.

    Features & specs

    Expandability
    AUX Input Mini (front), RCA (rear)
    Audio/video Input Mini (front), RCA (rear)
    USB Input Front
    Backup Camera Input Yes
    Second Camera Input No
    CarPlay No
    Android Auto No
    Siri Control No
    Android Control Yes
    Memory Card Slot USB memory
    Bluetooth Compatible Built-in
    Satellite Radio Ready SiriusXM
    HD Radio No
    Navigation Yes
    iPod Compatibility
    Full size Classic/5th gen
    Nano 7/6/5/4/3/2/1
    Touch 6/5/4/3/2/1
    iPhone 7+/7/6S+/6S6+6/5S/5C/5/4S/4/3G
    General
    RMS Power (CTA-2006) 13 watts
    RMS Power (Manufacturer) 13 watts
    Peak Output 40 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 5-channel
    Sub Preamp Outputs Yes
    Switchable Rear Preamp Outputs No
    Video Screen Yes
    Navigation App Compatible (iOS)
    Navigation App Compatible (Android)
    Preamp Voltage 6.0 volts
    Screen Size 6.2
    Display Color
    Key Button Color Variable
    EQ Bands 10
    Wireless Remote Yes
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 90 Days
    Labor Warranty 90 Days
    Tuner
    FM Sensitivity 9 dBf
    European Tuning Yes
    Seek/Scan Seek
    Radio Data System Yes
    File Playback
    Music File Playback MP3, WMA
    High-res Playback N

    Product Research

    Touchscreen & Remote Control
    Onboard Navigation
    Built-in Bluetooth
    Disc & USB Playback
    iPod/iPhone Integration
    AM/FM+Pandora+SiriusXM Radio
    Audio Section
    A/V Connection

    Touchscreen & Remote Control

    6.2" Touchscreen Display: The Jensen VX7021 features a fixed 6.2" widescreen touchscreen LCD monitor. The screen has a resolution of 800 x RGB (3) x 480 with 1,152,000 total pixels. This unit has touchscreen controls with interactive video graphics, making menu navigation easy. The Jensen VX7021 offers a variety of display adjustments to customize the display.

    • UI Colors: You can adjust the colors of the on-screen menu's touchscreen buttons from Green, Red, Amber, Light Blue, or Dark Blue.
    • Background Wallpaper: You can choose from five different background wallpapers - Speed, Blue Haze, Dark Matter, Northern Lights, or Radiation.
    • Brightness: The unit's LCD backlight can be adjusted to Night, Dark, Normal, or Bright.
    • Picture Adjustment: When watching a video, you can adjust the touchscreen display's brightness, contrast, saturation, and hue (from 1-20).
    Note: For safety reasons, you cannot view a video source on the built-in monitor as long as the vehicle is in motion. In order to display video, the head unit's pink wire must be hardwired into the vehicle's parking brake light circuit, and the vehicle's parking brake must be engaged.

    Start-Up Time: The Jensen VX7021 will turn on to the last source selected. The unit has start-up time of approximately 17.5 seconds from Off to the last Source selected. It then takes another 5 seconds to access the navigation screen.

    Clock & Date Display: The navigation receiver offers a 12- or 24-hour clock display which is visible from any source or menu screen. The clock & date are both visible on the main menu screen only.

    Hard-Key Controls w/ Variable Button Illumination: In addition to the touchscreen controls, the unit includes frequently used buttons and a rotary-dial along the left edge of the screen. You can adjust the head unit's button illumination from the following preset colors - Blue, Purple, Sky Blue, Aqua Blue, Yellow, Green, Red, White or Demo (scans through all preset colors). You can also select a custom "Custom" color that is adjusted between Red, Green, and Blue (values range: 0-255).

    Remote Control: The Jensen head unit comes with an IR remote and supports many vehicle's steering wheel controls (adapter required).

    • IR Remote Control: The head unit comes supplied with a n IR remote control which provides wireless operation of the Jensen navigation receiver; including Bluetooth hands-free and audio streaming functions.
    • Optional Steering Wheel Control Interface: The unit features a SWC (steering wheel control) input lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel control adapter (see accessories tab).

    Onboard Navigation

    iGO Primo Next Gen & TomTom Navigation: The Jensen VX7021 contains map coverage of the United States (all 50 states) and Puerto Rico with over 10,000,000 points-of-interests from TomTom; all stored on a pre-installed 4GB SDHC memory card (the SDHC map card must remained installed in order for navigation system to function). The map database was created using high-resolution aerial and land based data collection. The VX7021 employs iGO Primo Next Gen navigation software for turn-by-turn visual and voice assistance to your selected destination. The software quickly calculates step-by-step directions to any destination available on the included on-screen navigation map.

    Note: While the receiver's map database was judged to be as accurate as possible at the time of its release, a map database can never be 100% accurate. Road information that is maintained in the map databases, such as turn restrictions or road names may change over time.

    Map Updates: iGO offers periodic updates (purchase fees will apply) for data such as roads, new addresses, and other navigational information that will keep the Jensen navigation system up to date and provide the best possible experience. For updates and add-on options, please visit www.naviextras.com (requires Windows XP or newer; not compatible with Mac). A free program called "Toolbox" can be downloaded from this website so you can create a copy of your map as a backup, as well as assist in easily checking for updates and optional features that are available.

    GPS Receiver & Antenna: The Jensen VX7021 features a built-in SiRFprima GPS receiver and includes an external GPS antenna which determines vehicle speed and heading changes, along with longitude and latitude information, to accurately determine vehicle heading and position on the system's digital map. The GPS antenna can be mounted inside or outside of the vehicle. The GPS antenna measures 1.5625" (w) x 0.625" (h) x 1.9375" (d); with a 10' cable.

    Note: The navigation receiver took approximately 17.5 seconds to calculate directions from Charlottesville, Virginia to LA, California. It only took 12.5 seconds to calculate directions from Charlottesville, Virginia to Baltimore, Maryland. These tests were done inside the Crutchfield Lab of the Crutchfield Head Quarters. Results will vary based on length of calculated route and your surrounding area.

    On-Screen Map: The unit's on-screen map shows your vehicle's current position (a blue arrow by default), the recommended route (an orange line), the surrounding map area, and your destination as a checkered flag. The on-screen map shows streets, roads, and highways in a way that is similar to how a paper road map show them. A road's width and colors corresponds to their importance, so you can easily tell a freeway from a small street. When navigating a route, the top section of the map screen shows information about your next route maneuver and the next street or the next city/town. When approaching a turn, the map screen will zoom in and raise the view angle to let you easily recognize your maneuver at the next junction. If the next turn is at a distance, it will zoom out and lower the view angle to be flat so you can see the road in front of you. The map also displays data; such as the posted speed limit, your current speed, current time, distance to your destination, time left before you reach your destination, and your arrival time.

    • 2D Map Mode: The Jensen VX7021 allows you to view its on-screen map in a 2D (two-dimensional) view only. Similar to paper road maps, the 2D mode, shows you streets, roads, and elevation by color. 3D maps is an optional feature that is available for purchase through www.naviextras.com.
    • Color Mode: The navigation map screen uses different color themes (Day/Night) during the day and during the night for both the map and the menu screen. Daytime colors are similar to paper road maps, and the menus are bright. The nigh color themes use dark colors for large objects to keep the average brightness of the screen low. You can also set the navigation unit to switch between daytime and night color modes automatically based on the current time and GPS position.
    Note: You can continue to listen to a selected source while viewing the on-screen navigation map.

    Travel Guidance: The Jensen VX7021's navigation map offers helpful lane information and signpost guidance, as well as tunnel view and freeway services.

    • Lane Information: When navigation on multilane roads, it is important to take the appropriate lane in order to follow the recommended route. If lane information is available in the map data, the map screen will display the lanes and their directions using small arrows at the bottom of the map. High lighted arrows represent the lanes you need to take.
    • Signposts: Where additional information is available, signposts substitute arrows. Signposts are displayed at the top of the map. The color and style of the signposts are similar to the real ones you can see above the road or by the roadside, They show the available destinations and the number of the road the lane leads to.
    • Tunnel View: When entering a tunnel, the map is replaced with a generic tunnel image so that surface roads and buildings cannot distract you.
    • Freeway Services: When driving on a freeway, you have the navigation system check for the next exit with service stations, restaurants, or lodging.

    Audible Alerts: The Jensen VX7021 offers various audible alerts and functions to help you get to your destination safely.

    • Voice Guidance w/ Text-to-Speach: In addition to graphic directions, the VX7021 provides voice guidance with turn-by-turn instructions and street name announcement. You can select from English, French, Spanish, Korean, Japanese, and Chinese audible languages. The volume of the voice prompts can be increased with increases in speed to overcome road noise. Voice guidance can be turned off if you prefer.
    • Safety Alert: This function can warn you when you approach road safety cameras, school zones, or railroad crossings (if available). You can also add your own alert points. Beeps or the spoken type of alert will be heard when you are approaching of these points.
    • Speed Limit Warning: Some maps may contain information about the speed limits of certain road segments. The VX7021 provides an audible warning if you exceed the recommended speed limit.
    Note: While navigating, other sources may be selected and listened to; such as AM/FM Tuner, CD, USB, iPod, & Bluetooth. The unit will mute the audio of the other source during navigation voice-prompts.

    Find Destination: From the "Find" menu, you can select your destination by entering an address or selecting a place of interest (10,000,000 POIs), a location on the map, or one of your Favorite destinations. You can also look up your recent destinations from your history or enter coordinates. iGO primo offers you several ways of choosing your destination -

    Destination Search Description
    Browse Map Select a point on the map for your destination by touching the screen.
    Address Enter a full address or a part of an address; for example a street name without a house number or the names of two intersecting streets. Or enter ZIP code only; this way you do not need to select the name of the city and the search for street names might be faster as well.
    POIs Search over 11 million POIs (points-of interest) by name, near you current location, along route, near your destination, or around a city.
    Favorites You can save your favorite addresses (like home & work) and POIs for quicker access the next time you are traveling.
    History The places that you have set as destinations in the past are automatically stored for easier access. Smart History suggests these previously used locations as destinations based on your navigation habits, using parameters like the current time of day, the day of week, and the current location.
    Combined Search You can do a combined search of Addresses, POIs, Saved locations, and recent destinations.
    Coordinates Allows you to search your destination by longitude and latitude values.
    Where Am I? this screen contains information about the current position (or approximately the last known position if GPS reception is not available) and a button to search for Car Repair, Health Agencies, Police, and Gas Stations around your area.

    Route Calculation: The Jensen VX7021 calculates your route based on your Vehicle Type, Route Method, and Avoidances.

    • Vehicle Type: You select what type of vehicle you are driving, so the navigation unit can determine the best route based on your vehicle type (Car, Emergency, Bus, or Taxi).
    • Route Method: You can choose which route method (Fastest, Shortest, Green, Economical, or Easy) the navigation unit should use when calculating your route.
      • Fastest: gives a quick route, if you can travel at or near the speed limit on all roads. Usually the best section for fast and normal cars
      • Shortest: gives a route that has the smallest total distance of all possible routes. It can be practical for slow vehicles
      • Green: gives a quick, but full efficient route based on the fuel consumption data you provide
      • Easy: results in a route with fewer turns and no difficult maneuvers
    • Avoidances: You can tell the navigation unit to avoid certain types of roads along your calculated route, such as - Highways, Tolls, Carpool/HOV, Unpaved Roads, and/or Ferries.

    Planning a Route: The Route Planner feature lets you built your route using the list of destinations you have chosen. You can modify the list as you like (adding or removing a destination (waypoint), changing a final destination, or setting a new starting position. The Itinerary page will display turn-by-turn instructions for your entire route and the distance between turns. You can then preview all the route information and simulate travel along your projected route.

    Modify A Route: You can select "Route Alternative" to see the turn-list and map screen of four routes (Fastest/Shortest/Economical/Easy) with the selected route planning parameters, giving you the option to select which route to take. You can also choose to Detour around the road ahead, avoid a specific road, or around a section of the route. The unit will also automatically recalculate your route if you stray from the navigation unit's previously calculated route.

    Trip Logs: Trip logs contain useful information about your trip. Trip logs can be saved manually when you reach your destination or automatically along your route. Trip log data includes; Start/End Time, Avg./Max. Speed, Total/Driving/Stopped Time, Total Distance, and Min./Max. Altitude.

    Quick Menu: The Quick menu is a selection of controls and functions that are frequently needed during navigation; it can be opened directly from the Map screen. The content of the Quick Menu is fully customizable.

    Built-in Bluetooth

    Bluetooth Technology: The Jensen VX7021 is equipped with built-in Bluetooth, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

    • Hands-Free Communication: HFP (Hands Free Profile), PBAB (Phone Book Access Profile).
    • Audio Streaming: A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile).
    Note: When certain Samsung Android smartphones are connected via Bluetooth and Pandora is playing, when a call comes in, the unit may lock-up and freeze. Jensen has released a firmware update to fix this issue (as of 3/17/2017).

    Multi-Device Pairing: Before using the unit's Bluetooth functions, you must pair your Bluetooth enabled mobile phone or audio device to the VX7021. You can pair up to five Bluetooth-enabled devices with the Jensen VX7021, but only one can be connected and used at a time. Due to the differences in Bluetooth technology, some mobile devices may be incompatible, function improperly, or may not support all features when used with the VX7021.

    Hands-Free Communication (w/ external mic): The VX7021 supports Bluetooth hands-free communication from your Bluetooth enabled mobile phone. You can answer an incoming call from the head unit's touchscreen and carry on a phone conversation hands-free. The included external microphone carries on your side of the conversation while your car's speakers are used to hear the other person. You can make a call by entering the phone number, selecting a contact from your Phonebook list, or using the Call History Log of received/dialed/missed calls.

    • Answering A Call: During an incoming call, the caller's phone number will be seen on the unit's LCD and a ring-tone will be heard through your car stereo speakers. You can then manually answer the incoming call from the head unit's front-panel controls. You can also set the unit to automatically answer an incoming call within 5 seconds.
    • Making A Call: You can make a call using the Jensen in-dash head unit's front-panel controls. Outgoing calls can be made be entering telephone numbers (0-9, *, #) directly via the head unit's touchscreen. You can also search for contact names (up to 2,000) in your mobile phone's phonebook from the Jensen VX7021 and then make your call. In addition, you can make a call by searching your mobile phone's call history (Received/Dialed/Missed).

    Wireless Audio Streaming: The Jensen VX7021 allows you to play back stored music and music apps from your Bluetooth enabled smartphone, tablet, or audio player. You can control basic music playback functions (Play/Pause & Previous/Next Track) from the VX7021. Advanced music navigation will still need to be done through your Bluetooth mobile device. This unit does not display song/artist information from connected Bluetooth audio devices. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

    Disc & USB Playback

    Disc Compatibility: The Jensen VX7021 has a front-loading disc-slot to make loading your disc easier. The VX7021 supports playback of DVD Video, DVD-R/RW, DVD+R/RW, CD-Audio, and CD-R/RW discs. The unit supports MPEG/AVI/Xvid video & JPEG photo files recorded on to CD-R/RW, DVD-R/RW and DVD+R/RW discs. It also supports playback of MP3/WMA music files loaded onto a CD-R/RW, DVD-R/RW, or DVD+R/RW disc.

    Front-Panel USB Port: The Jensen VX7021 features a front-panel USB (type-A) port for connection and control of a portable USB mass-storage class (MSC) device, such as portable digital audio players or USB thumbdrives. The USB port enables playback of MP3/WMA audio files recorded in FAT16 or FAT32 on a connected USB mass storage class device. The head unit also supports JPEG still image and MPEG/AVI/Xvid video playback via USB. USB portable audio devices that can be charged via USB will be charged when plugged into the navigation receiver's USB port (1A), and the vehicle's ignition switch is set to ACC or On.

    Note: The unit's USB port is not compatible with Android smartphones and tablets.

    File Compatibility: The Jensen VX7021 supports the following types of audio, video, and photo files recorded onto a disc, or loaded onto a USB mass storage class device.

    Media Type Disc (CD-R/RW, DVD-R/RW, DVD+R/RW) USB (msc)
    File System ISO9660 Level 1/Level 2, Joliet FAT 16/32
    Playable File Types Audio MP3: bit rate up to 128kbps w/ sampling frequency up to 48kHz
    WMA: bit rate up to 128kbps w/ sampling frequency up to 48kHz
    Video MPEG-1/2, Xvid, AVI
    Photo JPEG
    Max # of Files/Folders 1,500 total files/folders
    Tags MP3 ID3-tags, WMA-tags

    Search Functions: The VX7021 provides various search functions to find your music, videos, and photos.

    • Folder/File Search: This menu screen provides a search list for music, video, or photo files stored on your MP3/WMA disc or USB device.
    • Fast Forward/Fast Reverse: You can fast forward or reverse a track/chapter when playing a disc or USB device.
    • Direct Search: During disc or USB playback you can use the numeric keypad on the touch-screen display to access a chapter/track directly.

    Playback Functions: The Jensen VX7021 offers a variety of playback functions to enjoy your music, video, and photo files.

    • Repeat Play: Repeat Chapter, Titles, Tracks, and Folders on a disc or USB device.
    • A-B Repeat: A-B Repeat allows you to repeat a specific section of a DVD.
    • Random Play: When playing a disc or USB device, you can play audio tracks/files in random order.

    Parental Lock: The DVD system has a built-in Parental Lock feature to prevent unauthorized persons from viewing restricted disc content. By default, the rating system is unlocked. You can choose from 8 different levels of Parental Lock. Once setup, the parental lock is released only by entering the user 4-digit password.

    Off Eject: You can eject a disc with the unit powered off. You cannot insert a disc with the head unit powered off.

    iPod/iPhone Integration

    iPod/iPhone Control: The Jensen VX7021 navigation receiver supports connection to either a Lightning-connector or 30-pin connector Apple iPod/iPhone through its USB connection using the cable that came with your Apple device. The Jensen VX7021 offers audio playback, control, song/artist/album display, and battery charging.
    • Content Browsing: You can control your connected iPod/iPhone from the head unit's touchscreen. You can use the VX7021's touchscreen to browse your music by Playlist, Artist, Album, Song, Genre, or Composer. You can also access a music track directly by using the head unit's touchscreen keypad. In addition, you can activate Random & Repeat playback modes. Newer iPod/iPhones with iOS 6.0+ will still allow you to navigate stored content and apps from the Apple device's touchscreen; older iPod/iPhone devices will be locked during connection.
    • Music Information: The Jensen VX7021 will display your iPod/iPhone's music file information from stored music and select music apps. The head unit will display Track number, Elapsed playing time, Artist name, Song/Album title, and Album Art.
    • Battery Charging: The head unit's USB connection provides 1 of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position. This unit does not charge the iPad. If your iPod/iPhone has no initial battery charge, then the unit will not recognize it.

    iPod/iPhone Compatibility Chart: The Jensen VX7021 is "Made for iPod/iPhone" compatible and support the following iPod/iPhone model features (6/15/2017):

    iPod/iPhone Generation Tested Version Media Type Control Type Display Type Bluetooth Charge
    Audio Video Head Unit iPod/iPhone Pandora App Song/Artist Text Track Info Album Art Phone Audio
    iPhone 2G 3.1.3 Y N Y N N Y Y Y Y N Y
    3G 4.2.1 Y N Y N N Y Y Y Y Y Y
    3GS 6.1.6 Y N Y Y N Y Y Y Y Y Y
    4 7.1.2 Y N Y Y N Y Y Y Y Y Y
    4S 9.3.5 Y N Y Y Y Y Y Y Y Y Y
    5/5C/5S 10.3.2 Y N Y Y Y Y Y Y Y Y Y
    6/6+/6S/6S+ 10.3.2 Y N Y Y Y Y Y Y Y Y Y
    7/7+ 10.3.2 Y N Y Y Y Y Y Y Y Y Y
    touch 1st 2.2.1 Y N Y N N Y Y Y N N Y
    2nd 4.2.1 Y N Y N N Y Y Y N Y Y
    3rd 5.1.1 Y N Y N N Y Y Y N Y Y
    4th 6.1.6 Y N Y Y N Y Y Y N Y Y
    5t 9.3.5 Y N Y Y N Y Y Y N Y Y
    6th 10.3.2 Y N Y Y N Y Y Y N Y Y
    nano 1st 1.3.1 Y N Y N N Y Y Y N N Y
    2nd 1.1.3 Y N Y N N Y Y Y N N Y
    3rd 1.1.3 Y N Y N N Y Y Y N N Y
    4th 1.0.4 Y N Y N N Y Y Y N N Y
    5th 1.0.2 Y N Y N N Y Y Y N N Y
    6th 1.2 PC Y N Y N N Y Y Y N N Y
    7th 1.02 PC Y N Y N N Y Y Y N Y Y
    classic 80GB 1.1.2 Y N Y N N Y Y Y N N Y
    120GB 2.0.1 Y N Y N N Y Y Y N N Y
    160GB 2.0.4 Y N Y N N Y Y Y N N Y
    video 5th 1.3 Y N Y N N Y Y Y N N Y
    Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

    AM/FM+Pandora+SiriusXM Radio

    RDS AM/FM Tuner: The head unit features a built-in AM/FM tuner with manual, seek, scan, preset, and direct tuning. The Radio Data System (RDS) feature displays radio broadcast information such as artist, title, and album when listening to compatible FM stations. FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

    • Preset Tuning: The unit features 3 FM bands and 2 AM bands with the capability of storing 6 presets for each band giving you a total of 18 FM presets and 12 AM presets (30 total). You can also automatically store the six strongest stations in your area inside the current selected band.
    • Local Seek: The unit's tuner also is equipped with a Seek mode that when used with the Local function, only allows radio stations with a strong local radio signals to be played.
    • Direct Tuning: The built-in AM/FM tuner also allows direct frequency tuning through the unit's touchscreen panel.
    Note: The tuner features selectable North America and European tuning.

    Pandora App: The free Pandora App (either from Apple's Apps Store or Google Play) lets you play music from the Pandora music service through the Jensen VX7021 using your USB-connected Apple iPhone (iOS 9.0+) or Bluetooth paired Android smartphone. Your compatible mobile device will need an active Data Plan account with connection to the Internet via 3G, EDGE, or WiFi. You will also need a Pandora music service account. The Jensen VX7021 provides control over the Pandora music service and displays Artist, Album, and Song information (including Album Art).

    • Station List: You can select Pandora stations from your Station List.
    • Skip Songs: You can skip song tracks within a station. You cannot skip back to a previous song. Pandora limits the number of skips allowed.
    • Thumbs Up/Down: You can give songs a thumbs up or thumbs down to help Pandora personalize stations to suit your preferences.
    • Bookmarking: The song or artist currently being played can be bookmarked & stored in your Pandora account.
    Note: When certain Samsung Android smartphones are connected via Bluetooth and Pandora is playing, when a call comes in, the unit may lock-up and freeze. Jensen is in the process of working on a firmware update to fix this issue (as of 2/16/17).

    SiriusXM Ready: The Jensen VX7021 comes ready for SiriusXM programming. Thanks to its proprietary SiriusXM Connect port, you can add the optional SXV300V1 SiriusXM Connect tuner and receive more than 150 channels of exclusive programming directly from SiriusXM, via the "SiriusXM All Access" package (subscription required). Visit SiriusXM.com for a complete list of subscription options & channel guide. Additional features of the SXV300V1 SiriusXM Connect tuner include:

    • Channel list displays a list of all available channels
    • Category Search searches for channels in a certain category
    • Direct Channel input allows you to directly enter a station number using the remote control
    • Information such as Channel Name w/ Channel Art, Artist Name, and Song Title can be viewed on the head unit's display
    • Up to 18 SiriusXM Satellite Radio station presets
    • Channels containing unsuitable content for children can be blocked
    Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

    Audio Section

    D/A Converter: The Jensen VX7021 is equipped with a high-performance 24-bit, 192kHz digital-to-analog converter with a multi-bit Sigma-Delta modulator.

    CEA2006 Compliant: The power specifications for the VX7021 are compliant with the CEA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Electronics Association (CEA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers. The power output specs for the VX7021 are as follows:

    • CEA2006 Specs: 13 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
    • Maximum Power Output: 40 watts x 4 channels (160 watts total)

    6V/5Ch Preamp Outputs w/ Subwoofer Control: The Jensen VX7021 is equipped with five 6.0-volt preamp outputs (Front/Rear/mono-Sub). The front and rear channels are fading, while the subwoofer output is non-fading with an adjustable low-pass crossover filter (Off/80/120/160Hz) and separate level control (+/-12).

    EQ: The he head unit features a 10-band EQ (31.5Hz, 62Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, and 16kHz) that can be adjusted from 0-20.

    Loudness: The Loudness feature compensates for deficiencies in the low and high sound ranges at lower volume.

    Source Level: You can increase the relative volume (+/-6) of the unit's source inputs to match the external source's output level. The Source Level can be used for the VX7021's Radio, Disc, USB, iPod, Bluetooth, SiriusXM, Navigation, or AV input.

    Programmable Turn-on Volume: You can program the VX7021 to turn on with the volume at a preset level, instead of the same level as when the head unit was turned off last. This prevents possible speaker damage or a startling surprise when the receiver first turns on at a high volume level.

    Beep Tones: An audible beep tone confirms each function selection. The beep tone can be disabled/enabled in the Setup Menu.

    A/V Connection

    Dual AV Inputs: The Jensen VX7021 is equipped with AV input terminals on the front and rear of the unit to enable enjoyment of content from an external connected source. The rear composite video/stereo RCA inputs are ideal for permanent installations, while the front AV mini-jack (3.5mm) input will come in handy for quick connection of a portable audio/visual source.

    Video Out: A single RCA composite video-output jack allows you to an add external monitor such as rear headrest monitor (sold separately). The video output will display whatever image is being being displayed on the head unit's touchscreen monitor. This includes the warning "Video Is Disabled For Your Safety" when trying to watch video from a DVD, USB device, or AV inputs without the vehicle's parking brake engaged. You will need to engage the vehicle's parking brake to see video from these sources through the head units' video output.

    Note: The video out function is not compatible with the unit's HDMI "Mirroring" input, even when the vehicle's parking brake is engaged.

    Rear View Camera Input: The Camera Input consists of a Composite video RCA jack for connecting an optional rear view camera (sold separately) in order to display the area behind your vehicle on the head unit's touchscreen. When an optional rearview camera is connected to this unit, the rear view image is displayed on the screen when your vehicle is placed in reverse gear (green/white wire of harness must be connected to reverse light wire of vehicle).

    Loading accessories...

    Customer Q&A

    7 questions already asked

    Q
    Can a/v media being played through this unit be displayed on the screen? For example if playing a movie will it display on the screen?
    [ Grant  Jul 02, 2019 ]
    2 answers
    A
    Grant, I apologize if my answer wasn't clear enough. This unit will display video content on it's screen via DVD or AV input on the rear of the unit. This function will only work when the parking brake is engaged, and the vehicle is not in motion. You can also send the video out to a separate monitor, which will mirror whatever is displaying on the main units screen (including the "video is disabled for your safety" message when the parking brake is not engaged). Hope this clears it up, and if you need further, more personalized help, one of our advisors would love to help! https://www.crutchfield.com/support/ContactUs.aspx
    [ Calvin  Jul 16, 2019 ]  Staff
    A
    Grant, you can play video through the unit when the parking brake is engaged, and the vehicle is not in motion.
    [ Calvin  Jul 16, 2019 ]  Staff
    Q
    Deoes the ready harness need to be modified to get the rear backup camera to work while in reverse?
    [ Grant  Jul 02, 2019 ]
    1 answer
    A
    The connections of an aftermarket backup camera are not part of the ReadyHarness service. The connections for the camera require tapping into the reverse light wires, and are done manually.
    [ Calvin  Jul 12, 2019 ]  Staff
    Q
    Will this unit work with a factory backup camera?
    [ Laura  Jul 01, 2019 ]
    4 answers
    A
    This comes with a yellow backup camera input wire. It may work if your cars factory has the same hook ups.
    [ WES  Jul 02, 2019 ]
    A
    My 2006 Highlander did not have a factory camera. That said, it should be compatible with the exception of the actual video connector. Most after market units have the standard 'RCA' type connector and I have no idea what the factory used but knowing them it's probably something else. Any car audio installer in your area could probably tell you what the factory uses and if they can splice the factory unit to your stereo.
    [ ROBERT  Jul 02, 2019 ]
    A
    Yes, but you have to purchase separately
    [ Curtis  Jul 02, 2019 ]
    A
    There is a spot for the backup camera to connect. As well as wires to connect to the reverse mechanism gear
    [ Brian  Jul 01, 2019 ]
    Q
    Do you need an antenna or something for the GPS?
    [ Mack  Jun 19, 2019 ]
    6 answers
    A
    yes, but the unit comes with a GPS antenna. I installed the antenna inside the dash behind the stereo. Works perfectly.
    [ david  Jun 19, 2019 ]
    A
    It should have an antenna with it
    [ WILLIAM  Jun 19, 2019 ]
    A
    Yes. It is included with the unit
    [ Robert  Jun 19, 2019 ]
    A
    No. It comes with it
    [ Cody  Jun 19, 2019 ]
    A
    I used the antenna that came with the radio and just put it on the dash next to the windshield and it works fine
    [ WILLIAM  Jun 19, 2019 ]
    A
    Yes. I wouldn't purchase this unit. Go with something else, screen lags and the 13 band eq setting is a joke. Just my advice.
    [ Sheena  Jun 19, 2019 ]
    Q
    Does this have turn by turn directions, and can you update maps?
    [ b  May 31, 2019 ]
    2 answers
    A
    It does and you can update maps aswell maps come preloaded on a sd card and they give you a website where to upgrade on load up, I feel the nav on this model is pretty good havent had any issues with it
    [ Noah  Jun 02, 2019 ]
    A
    Yes to both question. I installed it in my GTO and absolutely love it. It works flawlessly and have really improved the sound. I highly recommend it!
    [ Kenneth  May 31, 2019 ]
    Q
    How can I get Bluetooth or audio port to work while the GPS is in use?
    [ Terry  May 24, 2019 ]
    1 answer
    A
    If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
    [ Krissy  Jun 05, 2019 ]  Staff
    Q
    Does this radio have Canada on the GPS?
    [ John  May 11, 2019 ]
    1 answer
    A
    Unfortunately this unit does not have any maps of Canada, you would need to visit www.naviextras.com to see if you can obtain the maps you would need.
    [ Jess  May 18, 2019 ]  Staff
    SHOW MORESHOW LESS

    Loading articles...

    TOP
