Kenwood KDC-BT772HD

CD receiver

Item # 113BT772HD

I knew that Kenwood's KDC-BT772HD CD receiver would be a winner when I saw its long list of features, including...

Find what Fits your car

I knew that Kenwood's KDC-BT772HD CD receiver would be a winner when I saw its long list of features, including...

Need help?
Contact our Virginia-based experts.

Ships free

In stock

Deeply discounted installation gear

$169.99 -$10.00 Price break

$159.99

Other options

Add to wishlist

About the Kenwood KDC-BT772HD

Get the most out of your music

I knew that Kenwood's KDC-BT772HD CD receiver would be a winner when I saw its long list of features, including deep smartphone integration and high-res music playback. You can stream music from multiple Internet radio stations or tune in your local HD Radio™ stations. Kenwood rounds out this sleek receiver with some serious sound-shaping controls, including a 13-band equalizer. And Kenwood's Remote app gives you smartphone control over the receiver.

Get the most out of your music

I knew that Kenwood's KDC-BT772HD CD receiver would be a winner when I saw its long list of features, including deep smartphone integration and high-res music playback. You can stream music from multiple Internet radio stations or tune in your local HD Radio™ stations. Kenwood rounds out this sleek receiver with some serious sound-shaping controls, including a 13-band equalizer. And Kenwood's Remote app gives you smartphone control over the receiver.

Enhanced wireless for two phones

In addition to hands-free calling with Bluetooth, you can pair your phone with this Kenwood for wireless audio streaming. If your Android™ is Bluetooth aptX-compatible or your iPhone® includes AAC files, you'll enjoy clear, almost CD-quality music streaming. To get Bluetooth running quickly, simply plug your Android or iPhone into the USB port and the receiver will pair automatically. This Kenwood lets you can quickly switch between two paired phones — handy for vehicles with more than one driver.

HD radio and more

HD Radio

The KDC-BT772HD lets you enjoy HD Radio from participating stations, so you'll hear FM that's close to CD quality or AM that comes in clear and static-free. And most participating stations send out secondary programming, giving you more choices when you're in the mood for radio. And if you're not in an area with HD Radio stations, don't worry — this Kenwood's sensitive radio tuner will pick up local analog stations, too. Using the controls on the receiver, you can access your favorite Pandora®, Spotify®, and iHeartRadio® Internet Radio stations from your iPhone or Android.

Satellite radio too

You can also check out the incredibly deep programming offered by satellite radio by adding a SiriusXM tuner. Nothing makes a trip go faster than finding a great SiriusXM station and letting it play hour after hour.

Other music options

You can also satisfy your music fix by playing CDs or connecting a portable music player to the rear-panel aux input. You can play, control, and charge select Android phones, an iPod®, or an iPhone that's plugged into the one of two rear-panel USB ports. And the USB ports can also handle a thumb drive loaded with music, including high-res FLAC files.

More cool features

You can use this Kenwood's dynamic 13-band graphic equalizer and digital time alignment to make sure it always feels like the band's right in front of you. The KDC-BT772HD also provides three pairs of hot RCA preamp outputs, enabling you to get a super-clean signal to additional amps in your system. With its variable color adjustment, you get to pick the color for the receiver's high contrast display for just the right look in your dash.

Want to keep your car's steering wheel audio controls?

In most cars, you'll need an adapter to retain those controls with this car stereo. Connect a few wires, then program the adapter for your particular car and radio, and you'll retain the convenience of your steering wheel controls. You'll see the adapters that work with your vehicle when you add this receiver to your cart.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our articles about Bluetooth profiles and streaming music using Bluetooth with aptX.

READ LESS

Product highlights:

  • CD receiver with AM/FM tuner
  • high-contrast 1.5-line display with variable-color illumination
  • Pandora, Spotify, and iHeartRadio control with iPhone and Android
  • plays USB drives loaded with high-res FLAC music files (up to 24-bit/96kHz)
  • built-in HD Radio tuner
Bluetooth Features:
  • Bluetooth with aptX for superior sound quality with compatible devices
  • hands-free calling and wireless audio streaming with dual phone connection
  • Music Mix feature allows music streaming and control from up to five paired smartphones
  • control the stereo using Kenwood's free Remote app
Smartphone Features:
  • built-in Android AOA 2.0 control and charging of select Android devices USB connection
  • supports Android music playback using the Kenwood Music Play app
  • built-in iPhone and Android control using USB port
Audio Features:
  • 13-band equalizer with digital time alignment
  • subwoofer level controls with high- and low-pass filters
Expandability:
  • compatible with SiriusXM satellite radio tuner (not included)
  • inputs: rear panel auxiliary input and dual rear USB ports
  • outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer)
Other Info:
  • built-in MOSFET amplifier (22 watts RMS/50 peak x 4 channels)
  • plays CDs, CD-Rs and CD-RWs, including discs loaded with MP3, WMA, and AAC files
  • compatible with most factory steering wheel audio controls (adapter required)
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # KDC-BT772HD

What's in the box:

  • CD receiver (10A fuse)
  • Face (attached)
  • Trim ring (attached)
  • Sleeve (installed)
  • Wiring harness
  • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
  • 2 Removal tools
  • Face-fixing screw
  • Instruction Manual (En/Fr/Sp)
  • Warranty Card

Featured video:

Customer reviews

Loading reviews...

Kenwood KDC-BT772HD reviews

Average review:

46 reviews

Filter by rating

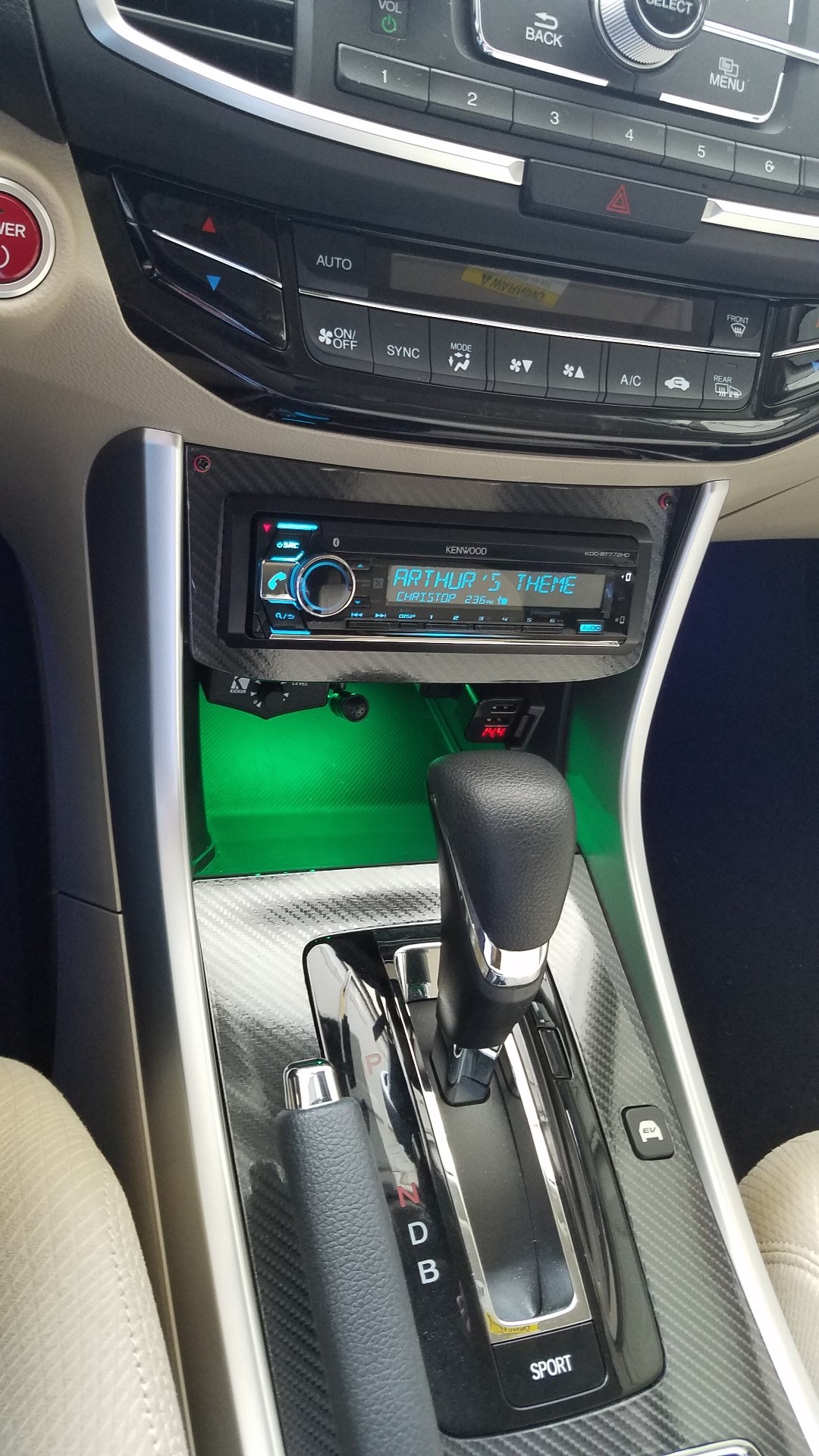

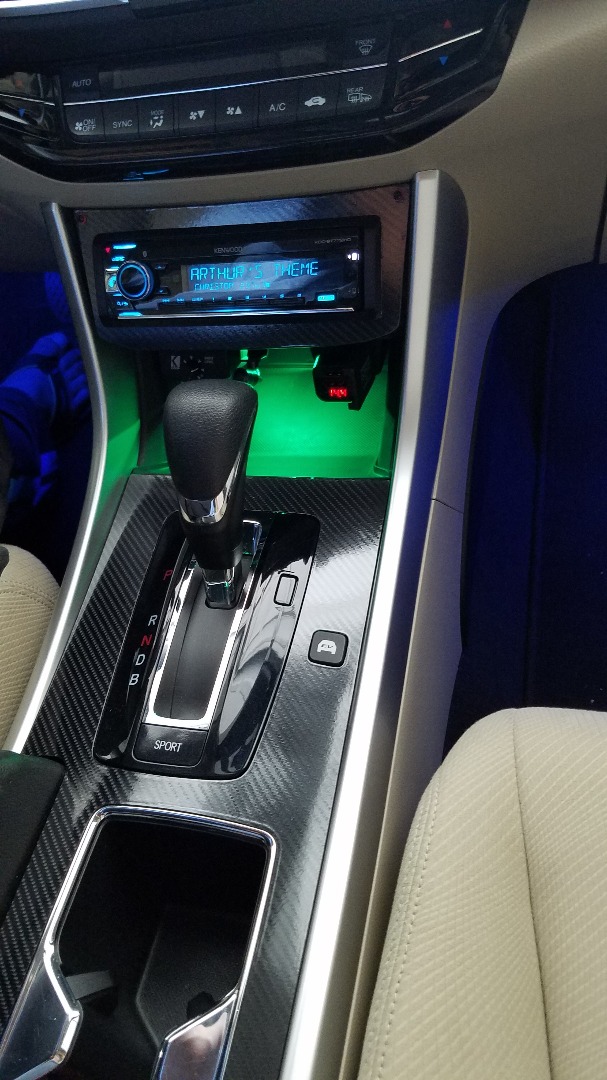

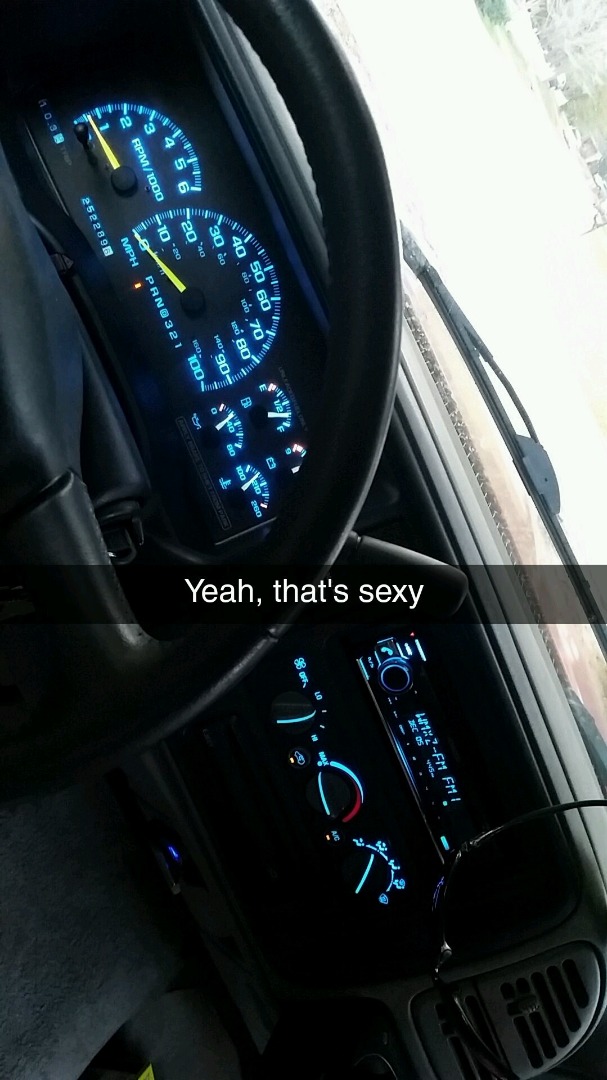

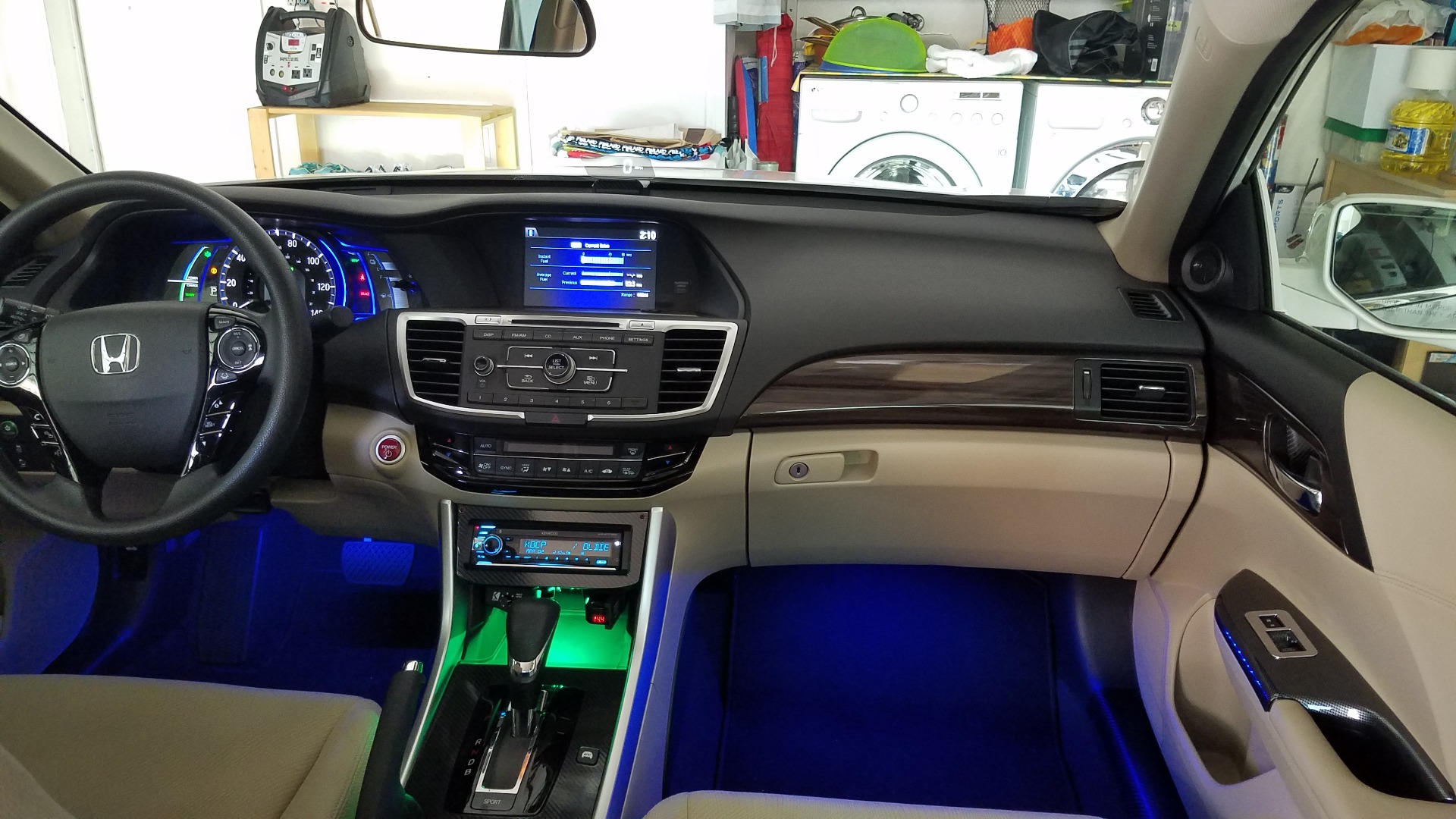

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Kenwood KDC-BT772HD

Crutchfield customer from Bronx, NY on 9/6/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

I am very pleased with my new car radio

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Del City, OK on 8/31/2019

2002 Chevrolet Silverado 1500

Verified customer (What's this?)
Verified employee purchase (What's this?)

This is a great stereo. The bluetooth connects automatically once you start the car and sounds great. It has a clean look also.

Pros: Hands free bluetooth, great sound and clean look

Cons: Did not come with remote but you can buy one separately

Crutchfield response on

0 of 0 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from White City, KS on 5/23/2019

2003 Ford F-150

Verified customer (What's this?)
Verified employee purchase (What's this?)

I am satisfied with everything about this stereo except for the remote apps don't seem to work right but everything else works great and has great sound I know a lot of people in their reviews were saying it was hard to see in the daytime bright light I found that green number one works good for just about any kind of lighting so I have not had any issues with that. sounds good everything is pretty easy to use if you understand the settings all in all I'm pretty satisfied with my purchase crutchfield was great I got my purchases pretty quick everything was in order just the way it should have been

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Saint Augustine, FL on 3/31/2019

1992 Ford F Series

Verified customer (What's this?)
Verified employee purchase (What's this?)

Just installed this radio and it works great. I recommend this radio.

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

Kenwood KDC-BT772HD

Joe from Northbridge on 3/10/2019

2004 Jeep Grand Cherokee

Verified customer (What's this?)
Verified employee purchase (What's this?)

I like my new Kenwood radio and having it Pre Wired before I got it made it that much easier. Nice job .

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

Great unit

Justin short from Nokomis, FL on 1/24/2019

1993 Nissan 300ZX 2+2

Verified customer (What's this?)
Verified employee purchase (What's this?)

This unit has way more options then I'm used to!! Has an,amazing,display and love the color options you can create.

Pros: Great color, crazy sound options to tweak,the sound.

Cons: N/a

Crutchfield response on

3 of 3 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Tiffin, OH on 1/23/2019

2001 GMC Sierra 2500

Verified customer (What's this?)
Verified employee purchase (What's this?)

The radio works great !! Nice looking in my truck.

Pros:

Cons:

Crutchfield response on

2 of 2 found this helpful

Not great in comparision

Dean from Moorestown, NJ on 1/22/2019

2004 MINI Cooper

Verified customer (What's this?)
Verified employee purchase (What's this?)

I think the fault of my KDC-BT772HD is that it replaced my KDC-BT958HD. It was an improvement in some areas like audio adjustments and radio preset storage and selection but other things such as display and input selection went from good on the old unit to bad on this one. I guess I will have to give it some time to see if I can adjust.

Pros: preset save and select audio adjustments

Cons: display input select

Crutchfield response on

2 of 3 found this helpful

Buy something else

kerry from Pahrump, NV on 1/15/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

I have had this installed for over 6 mo. now the sound quality is great, makes my MB quarts, focal, and JL's ROCK. however, you need the manual to make any adjustments, its too complicated, the clock read out is too small, now I'm starting to have problems, the clock changes time for some reason, back and forth to the correct time, also now when you turn the car on, I never know what the volume is, sometimes it's soft and builds up, other times It's just loud, I like loud music hence the bi-amp set up I have, my wifey does't Real disappointed in this kenwood

Pros: GREAT sound

Cons: Everything else

Crutchfield response on 1/22/2019
Kerry, we're sorry you're having issues with your receiver. If the problem continues, please just reach out to our Tech Support team. Lifetime tech support comes with every Crutchfield purchase.

2 of 3 found this helpful

Great value

Crutchfield customer from Finksburg, MD on 1/9/2019

2010 Jeep Wrangler Unlimited

Verified customer (What's this?)
Verified employee purchase (What's this?)

Excellent value. Great Quality. No issues yet to date. Feature rich: CD, HD radio, USB1, USB2, BT1, BT2, AUX-in. Sirius ready - not for me, but it may be your preference. Appreciate the in-depth User customization. I like being able custom set the display dimmer time parameters, speaker sizes, vehicle type, and so on. Quick, single button, access to AUDIO configurations. Handy since this unit has seven (7) separate audio sources available...and not all audio sources have precisely the same output. The only thing that I might consider a negative is the size of the buttons - I have large hands (i.e.: fat fingers). But this is a single DIN unit and there is only so much space available.

Pros: Feature RICH. Sound output extremely customizable to help suit your vehicle's acoustic characteristics. Multiple Audio Sources: Radio, CD, 2-USB, 2-BT, Aux in, Sirius ready. 13 Band Custom User EQ.

Cons:

Crutchfield response on

3 of 3 found this helpful

Kenwood KDC-BT772HD

John from Clinton, OK on 12/26/2018

2006 Jeep Liberty

Verified customer (What's this?)
Verified employee purchase (What's this?)

Awesome stereo, easy install, bluetooth so my kid is thrilled lol.

Pros:

Cons:

Crutchfield response on

3 of 4 found this helpful

Awesome Bluetooth HD radio with awesome sound

Al from Saint Charles, MO on 12/21/2018

2001 Ford F-150

Verified customer (What's this?)
Verified employee purchase (What's this?)

Installed this head in a 2001 F150 Super Crew cab...using the original speakers. The sound is beyond belief!! If I had know that a new head would make this much difference, I would have replaced it years ago. The Bluetooth features work great for calling. The noise reduction and mic volume increase produce call quality of my new Ford C-Max with Sync technology. The set-up of the unit is fairly straight forward and allows as much or as little customization as desired. Comes with two USB ports (rear) and one aux (rear) which work great. For the price point, I highly recommend this unit to anyone wanting to replace an older factory unit. You will be amazed!!!

Pros: Easy installation using the Chesterfield pre-assembled cables Beyond belief sound quality Extensive customization options

Cons: None!

Crutchfield response on

2 of 2 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Platteville, WI on 12/9/2018

1999 Chevrolet K Series

Verified customer (What's this?)
Verified employee purchase (What's this?)

Love this deck...bluetooth function is all I was hoping for...and puts out great sound with plenty of tuning options

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

So many features

Ranald from Elm Grove, La on 11/22/2018

1996 Chevrolet S10

Verified customer (What's this?)
Verified employee purchase (What's this?)

Installed this deck 2 days ago and I absolutely love it. Initial setup is a little complicated, because it has so many features. This deck has Everything! Bluetooth paired w my android seamlessly with Incredible sound quality! The HD radio has Great reception and clarity. Crutchfield sends the installation master sheet and the Correct wiring harness for your vehicle. I could not be more pleased!

Pros: Rear aux & dual usb are long enough to mount anywhere

Cons: Non

Crutchfield response on

3 of 3 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Pensacola, FL on 10/26/2018

2006 Subaru Forester

Verified customer (What's this?)
Verified employee purchase (What's this?)

Easy install and great features make this an easy choice. The color options for the faceplate allow you to match the vehicles dash and the buttons are easy to reach.

Pros:

Cons:

Crutchfield response on

3 of 3 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Haverhill, MA on 9/24/2018

2006 Jeep Wrangler

Verified customer (What's this?)
Verified employee purchase (What's this?)

Fits my Jeep perfectly. Sounds great. Easy to use. This is my first Kenwood stereo. I'll never buy anything else.

Pros: Sounds great. Easy to use.

Cons: None

Crutchfield response on

2 of 3 found this helpful

Great Upgrade

BR from Wooster, OH on 9/10/2018

2004 Ford Ranger

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great improvement on the factory cassette deck in the 2004 Ford Ranger. Installation was easy. The menus are not the best to navigate but are better than other units I have owned in the past.

Pros: Easy install, better sound, easy sound tuning with presets

Cons: Menus aren't the best to navigate for certain items.

Crutchfield response on

2 of 2 found this helpful

Kenwood KDC-BT772HD

Lloyd from Aurora, CO on 9/7/2018

1994 Toyota 4Runner

Verified customer (What's this?)
Verified employee purchase (What's this?)

Nice head unit so far. I like the EQ that comes with this unit. There are a lot of other functions, I have not tried out as yet.

Pros: Nice and easy to follow instruction.

Cons: None yet

Crutchfield response on

3 of 4 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Bentonville, AR on 8/23/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

I like almost everything about it. Still trying to figure out all of the settings. I think that in the name of "sleekness" the buttons and volume knob aren't as user friendly as they could be.

Pros:

Cons:

Crutchfield response on

2 of 2 found this helpful

Good replacement for stolen unit

Pat from Lenexa, KS on 8/21/2018

2001 Chevrolet Blazer

Verified customer (What's this?)
Verified employee purchase (What's this?)

The unit works great in my 2001 Blazer. The display being hard to read in bright sunlight is why it didn't get 5 stars. The unit recognized my iPad without me having to fool with it was a plus. The installation gear made this a straight forward install that looks good.

Pros: Great unit drives factory speakers well.

Cons: Display is hard to read in bright sunlight. If that will make you cry this may not be the unit for you

Crutchfield response on

4 of 5 found this helpful

Awesome head unit

Crutchfield customer from Napa, CA on 8/17/2018

2006 Harley-Davidson Street Glide

Verified customer (What's this?)
Verified employee purchase (What's this?)

I thought this unit for my 2006 Harley St. glide and it is awesome. I will be purchasing a Nother soon for my car. It's very stylish and sounds great lots of adjustments for my style of music and I just believe that it was a good purchase upgrade on my Harley

Pros: Many adjustments to your sound likes. The Bluetooth is so simple to work and basically is a stereo itself is just a great purchase

Cons: None

Crutchfield response on

2 of 3 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Carmichael, CA on 8/13/2018

2001 Chevrolet Suburban

Verified customer (What's this?)
Verified employee purchase (What's this?)

Works great. Some of the options I had to re manual to understand how.

Pros:

Cons:

Crutchfield response on

1 of 2 found this helpful

I click the like button! :)

Michael Lee from Gretna, NE on 7/30/2018

2002 Chevrolet Silverado 1500

Verified customer (What's this?)
Verified employee purchase (What's this?)

I was very impressed with the sound quality on this unit. I read many reviews with complaints on no short cuts to the source you want to listen to but unless you can't make up your mind on what you want to listen to it's really no big deal. I'd recommend this unit to anyone looking for good sound quality. I did buy the remote control because I need readers to see anything in small print. Good purchase for me. I went with the ready wire harness Crutchfield offers and so glad I did. They did a nice clean job and saved me time during install. I recommend this service also.

Pros: Great sound!

Cons:

Crutchfield response on

2 of 2 found this helpful

Kenwood KDC-BT772HD

Don from Milford, DE on 7/28/2018

2012 Ram 2500

Verified customer (What's this?)
Verified employee purchase (What's this?)

So far so good. Sounds great with my stock 2012 Ram 2500 speakers. Wish they offered a bracket to mount the rear usb and aux inputs to. Easy install thanks to Crutchfield's wiring harness and directions. Linking to my phone was easy and sounds great.

Pros: Sounds great, Easy install, Plenty of adjustments for sound.

Cons: rear usb and aux input's. Needs some kind of bracket.

Crutchfield response on

1 of 2 found this helpful

Kenwood KDC-BT772HD

Joe from Owings, MD on 7/21/2018

2006 Honda Civic EX

Verified customer (What's this?)
Verified employee purchase (What's this?)

Unfortunately the display was too small and not visible in the daylight. I exchanged it for the Kenwood DPX793BH, which is a 2 din.

Pros: pairing to bluetooth is very easy. the ability to pair two phones is great.

Cons: display is too small and not visible in the daylight (even with the brightness set at 31). The knob feels very cheap.

Crutchfield response on

2 of 2 found this helpful

Kenwood KDC-BT772HD

Matt from Ashland, VA on 7/20/2018

1997 Lexus ES300

Verified customer (What's this?)
Verified employee purchase (What's this?)

After only a couple weeks of ownership, my daughter loves the unit. Hoping it stands the test of time and teenage abuse.

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

Kenwood KDC-BT772HD

Robert from New London, CT on 7/10/2018

1984 Ford Econoline

Verified customer (What's this?)
Verified employee purchase (What's this?)

This unit has good sound BUT the things that are negative are the CLOCK DISPLAY, WAY TOO SMALL, and the buttons are too small. for tuning.. Having to go through the whole menu to get to one place is not desirable either.. A very complicated unit. Wish my other radio did not wear out.

Pros: Sound is nice

Cons: Make the clock display much bigger.don't want to have an accident from trying to see the time.

Crutchfield response on

5 of 5 found this helpful

Great Unit for the Price

Tracy from Renton, WA on 7/3/2018

2004 Ford F-150

Verified customer (What's this?)
Verified employee purchase (What's this?)

Bought this to replace stock unit in 2004 Ford F-150, mainly for the Bluetooth capability. Easy installation, didn't take more than an hour with the FREE installation gear (wire harness and DIN adapter) that came from Crutchfield. Better Sound, great bluetooth clarity, and multiple colors to match dash. Would have been 5 stars, but the buttons are small, and you have to cycle thru every Source Option to make your selection. Otherwise, very good bang for the buck.

Pros: Nice upgrade from stock unit Great Bluetooth Good power for a head-unit-only system

Cons: Small buttons Both USB's on the back Must cycle through Source options - no independent buttons.

Crutchfield response on

4 of 4 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Irving, TX on 6/17/2018

2010 Toyota Tacoma

Verified customer (What's this?)
Verified employee purchase (What's this?)

Kenwood never disappoints. Bought this for my sons pickup and he has not even begun to explore all of the features. Unfortunately, the factory speakers just can't do the stereo justice so he is saving for speakers next. The only con, as has been mentioned before is that to get to a new source input you have to cycle through all of them.

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

Major upgrade

Jerry from Fairbanks, AK on 5/26/2018

2002 Chevrolet Silverado 2500/3500

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great upgrade from the factory stereo, it is great hear crisp clean sound and have the features of Bluetooth for hands free calling.

Pros: Easy to install, crisp sound.

Cons: To many sources to scroll through when moving from radio to blootooth to CD etc...

Crutchfield response on

1 of 1 found this helpful

Garbage

Henry from Mooresville, NC on 5/19/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

This radio is a piece of junk. Appearance wise it looks like it belongs on display at one of those big discount retail stores. The buttons are all very small and feel flimsy, it feels like it's going to break everytime I touch it. To get it to do anything I want is a project every time. I guess I got what I paid for. A waste of money. Oh well. I've been doing custom car stereo work since 1990 as a hobby so don't take my review lightly. The only reason someone would give this unit a good review is because they have never had a quality head unit to compare it to.

Pros: None

Cons: It's a piece of junk.

Crutchfield response on

3 of 10 found this helpful

Kenwood KDC-BT772HD

Steven from Watsonville, CA on 5/4/2018

2002 Chevrolet Corvette

Verified customer (What's this?)
Verified employee purchase (What's this?)

Cruchfield service is excellent. this unit produces quality sound. Although the HD radio is worthless and the display is unreadable with any sunlight. Cruchfield honored their return policy and made things right with a unit that made more sense for me.

Pros: great sound

Cons: poor display

Crutchfield response on

2 of 3 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Milwaukee, WI on 4/24/2018

1990 GMC K Series

Verified customer (What's this?)
Verified employee purchase (What's this?)

Too many bells and whistles. I'd rather see the money spent on a better amp with less frills.

Pros:

Cons:

Crutchfield response on

2 of 2 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Burlington, IA on 4/22/2018

2015 Volkswagen Passat

Verified customer (What's this?)
Verified employee purchase (What's this?)

Awesome receiver. Fast shipping and easy installation. They sent every needed for a fast and proper installation

Pros:

Cons:

Crutchfield response on

2 of 3 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Edwardsville, IL on 4/3/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

5 Stars for price, ease of installation (thanks to Crutchfield's attention to detail). Intuitive navigation - easier to adjust settings and change modes than other sets.

Pros:

Cons:

Crutchfield response on

2 of 3 found this helpful

I LOVE IT ! ! !

Manny from Simi Valley, CA on 4/2/2018

2016 Honda Accord LX

Verified customer (What's this?)
Verified employee purchase (What's this?)

This is a great single DIN head unit. There are tons of features. I installed it on my 2017 HONDA ACCORD HYBRID plus an antenna adaptor & an Axxess ASWC-1 - Steering Wheel Control Adapter. Everything worked well including my stock iMID display and ALL the factory steering and head unit's functions. Now, the audio qaulity of my Accord is 100X better than the factory stereo. My only complain with this unit there is that there is no shortcut button for the source. You literally have to go through (cycle) all the sources, which is A LOT, just to get back to where you to listen like FM radio. I can also listen to Pandora (and control it) wirelessly, without connecting my phone to the USB cable and also use my steering control I replaced all my stock speakers with Kicker and added an 8inch low profile (hideaway) amplified subwoofer also made by kicker installed under the front passenger seat. I made a template and fabricated a face frame and installed the unit where the compartment was. I removed the compartment door trimmed it and attached the metal Kenwood case to it then installed the frame I made. the frame and the center console with vinyl. The microphone was installed under the unit Under the unit, you will see my Kicker's subwoofer gain control, Kenwood microphone and the Honda's stock 12V outlet.

Pros: Lots of features

Cons: No shortcut key button for CD or Radio.

Crutchfield response on
Customer review photo Customer review photo Customer review photo

2 of 2 found this helpful

nice radio

Hal from Johns Creek, GA on 3/26/2018

2001 Ford Focus

Verified customer (What's this?)
Verified employee purchase (What's this?)

all good, easy installation, wiring kit a must

Pros: all good

Cons: none

Crutchfield response on

1 of 2 found this helpful

Awesome stereo

Crutchfield customer from Longview, WA on 3/20/2018

2003 Honda Civic

Verified customer (What's this?)
Verified employee purchase (What's this?)

I absolutely love this stereo. Bluetooth works awsome sound is great faceplate does detach. Switched from a Sony Mex-gs620bt and haven't had a problem sence.

Pros: Bluetooth hands free calling, sound quality is great, Spotify, Pandora, iheart radio playback, various colors for faceplate, detachable faceplate.

Cons: NFC and Kenwood apps don't seem to work very well for me don't know if others have same problem.

Crutchfield response on

0 of 0 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Albuquerque, NM on 3/20/2018

2000 Ford F-250 Super Duty

Verified customer (What's this?)
Verified employee purchase (What's this?)

Love it. Sound is crystal clear.

Pros:

Cons:

Crutchfield response on

0 of 1 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Mcpherson, KS on 3/12/2018

2003 Dodge Ram 1500

Verified customer (What's this?)
Verified employee purchase (What's this?)

Nice sound and ease of use. Only thing that's not so great is the usb ports. They will charge the phone but in order to use them to play any music you have to download an app. I've tried the apps and none seem to work right. But I use the Bluetooth features so it works great for me!! Love that the display changes color too!! For me it's pretty great!

Pros:

Cons:

Crutchfield response on

1 of 2 found this helpful

Kenwood KDC-BT772HD

Gerald from Borger, TX on 3/11/2018

1996 Ford Bronco

Verified customer (What's this?)
Verified employee purchase (What's this?)

Install was easy. Sound is fantastic

Pros:

Cons:

Crutchfield response on

0 of 1 found this helpful

Kenwood KDC-BT772HD

Wayne from Hollis, NY on 2/22/2018

2000 Mercedes-Benz E-Class

Verified customer (What's this?)
Verified employee purchase (What's this?)

I love this unit. It could do everything I ask for plus more. I was planning to use this radio as a stepping stone to a more expensive radio but it has everything I need such as bluetooth for the telephone and a usb port to install a stick with my music. It is definetly a keeper. Changing the color of the lcd screen is great as well.

Pros:

Cons:

Crutchfield response on

1 of 2 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Sarasota, FL on 1/28/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great sound quality

Pros:

Cons:

Crutchfield response on

1 of 2 found this helpful

Kenwood KDC-BT772HD

Crutchfield customer from Springfield, MO on 1/9/2018

2006 Pontiac G6

Verified customer (What's this?)
Verified employee purchase (What's this?)

This is the 3rd or 4th Kenwood in-dash I've bought and they all have been great quality, i love the connectivity this one has to offer.

Pros:

Cons:

Crutchfield response on

2 of 3 found this helpful

Kenwood KDC-BT772HD

Scott from Bellevue, OH on 12/28/2017

2003 Chrysler Sebring

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great product from a trusted name. Install was easy with kit provided by Crutchfield. Great sound and options. Bought to replace factory radio in my daughters car and wanted the Bluetooth for her iPhone.

Pros:

Cons:

Crutchfield response on

2 of 3 found this helpful

Kenwood KDC-BT772HD

Joseph from Summerville, SC on 12/15/2017

1998 Chevrolet K Series

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great look, great sound. User friendly. Fully customizable. Great upgrade from stock.

Pros: Fully customizable. Great options. Sharp look

Cons: Haven't found one yet

Crutchfield response on
Customer review photo

4 of 7 found this helpful

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Kenwood KDC-BT772HD

Stacey B.

Features & specs

Expandability
AUX Input Mini (rear)
Audio/video Input ---
USB Input Rear (2)
Backup Camera Input No
Second Camera Input No
CarPlay No
Android Auto No
Siri Control Yes
Android Control Yes
Memory Card Slot USB
Bluetooth Compatible Built-in
Satellite Radio Ready SiriusXM
HD Radio Built-in
Navigation ---
iPod Compatibility
Full size No
Nano 7
Touch 6/5
iPhone X/8+/8/7+/7/6S+/6S/6+/6/5S/5C/
General
RMS Power (CTA-2006) N/A
RMS Power (Manufacturer) 22 watts
Peak Output 50 watts
RMS Power Bandwidth 20-20kHz
Preamp Outputs 6-channel
Sub Preamp Outputs Yes
Switchable Rear Preamp Outputs No
Video Screen No
Navigation App Compatible (iOS)
Navigation App Compatible (Android)
Preamp Voltage 4 volts
Screen Size ---
Display Color Variable
Key Button Color Variable
EQ Bands 13
Wireless Remote Optional
Steering Wheel Control Compatible Adapter required
Parts Warranty 1 Year
Labor Warranty 1 Year
Tuner
FM Sensitivity 8.2 dBf
European Tuning Yes
Seek/Scan Seek
Radio Data System Yes
File Playback
Music File Playback MP3,WMA,AAC,WAV,FLAC
High-res Playback FLAC (96kHz)

Product Research

Built-in Bluetooth
Android & iPhone Integration
Internet+SiriusXM+HD Radio
Disc/USB/Aux Playback
Audio Section
Remote Control
Display Features

Built-in Bluetooth

Bluetooth 3.0: The Kenwood KDC-BT772HD is equipped with built-in Bluetooth (ver. 3.0) allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

  • Hands-Free Communication: HFP 1.6 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile).
  • Audio Streaming: A2DP 1.2 (Advanced Audio Distribution Profile), AVRCP 1.5 (Audio/Video Remote Control Profile).
Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Kenwood KDC-BT772HD. Visit Kenwood's Support Site for a complete list of compatible Bluetooth enabled phones.

SSP/USB/NFC Pairing: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the Kenwood KDC-BT772HD without having to enter pin codes or go through complicated settings. You can even pair your Apple iPhone (iOS 5+) or Android smartphone (running Kenwood Music Play App) by simply connecting it to the Kenwood head unit via USB and following a single prompt on the head unit's display. Android (OS 4.0+) smartphones that have Near Field Communication (NFC) pair simply by touching the Android device's NFC tag to the NFC tag on the head unit's front-panel.

  • Dual Phone Connection: Thanks to the Dual Phone Connection feature, two Bluetooth-enabled phones can remain connected to the Kenwood receiver. This means you can an answer an incoming call from either phone from the head unit. Also, both of your phone's contact lists are downloaded to the receiver. To make a call from one of the phones using the Kenwood receiver, you simply have to select Phone 1 or Phone 2 on the head unit's front-panel.
  • Music Mix: The new Music Mix feature allows five Bluetooth audio source devices to be connected to the Kenwood receiver at one time, so you can switch between Bluetooth playback sources a lot easier and quicker. While "BT Audio" source is selected on the head unit, you can simply press the music playback button on your connected Bluetooth source devices to switch between devices and begin music playback. However, you cannot stream audio from two different Bluetooth audio source devices at the same time or combine music libraries or playlists from two different connected devices.
Note: You can pair up to five Bluetooth-enabled devices to the Kenwood head unit. When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.

Bluetooth Hands-Free Communication (w/ External Mic): The head unit supports Bluetooth hands-free communication for your Bluetooth enabled mobile phone. The controls of the KDC-BT772HD can be used to dial a number, answer an in-coming call, or end a call. The unit also includes an external microphone (featuring adjustable gain), so you can carry on your side of the conversation while listening to the caller through your vehicles speakers. During a conversation, you can switch between the Private Mode (talking directly on your cell phone) and the Hands Free Mode.

  • Answering a Call: When a call comes in, a ring-tone will be heard through your vehicle's speaker and the caller's name or phone number will be displayed. You can answer the call from the head unit's front-panel controls, or setup the head unit to automatically answer the incoming call immediately or after 1-30 seconds. The KDC-BT772HD also supports the Call Waiting function, so you can answer another incoming call while suspending the current call you are on. Your compatible cell-phone must also support this feature.
  • Dialing a Number: Using the KDC-BT772HD, you can dial a phone number in one of the following ways:
    • Enter Phone #: Allows you to directly dial a phone number up to 32 digits from the head unit's control knob or remote control.
    • Preset Dial: Allows you to register up to 6 phone numbers for quick dialing. The preset numbers can be accessed from the head unit's front-panel controls.
    • Phone Book: You can download phone book data from your mobile phone to the KDC-BT772HD. You can then dial a contact within the phonebook from the head unit's front-panel controls. Contacts are categorized as Home, Office, Mobile, Other, or General.
    • Call History: The Call History is a list of calls that have originated from and were received by this unit that you can dial. You can select Outgoing, Incoming, or Missed calls.
    • Voice Dialing: If your mobile phone supports voice recognition, then you can dial out by voice command. Simply speak into the included microphone.

External Mic: The external wired microphone offers improved audio quality versus an integrated microphone, so you can be heard easier over noisy traffic and road noise. You can adjust the volume level, noise cancellation, and echo cancellation of the microphone without affecting the other sources. The external microphone features an attached 10' cable terminated by a right-angle 3.5mm connector which plugs into the mic input on the rear-panel of the head unit. The microphone offers an integrated mounting bracket which can be clipped to your vehicle's sun-visor or taped to your dash.

Wireless Audio Streaming: The Kenwood KDC-BT772HD supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth-enabled smartphone or audio player. You are able to stream your stored music library on your Bluetooth-enabled smartphone, as well as music apps downloaded on your smartphone to the Kenwood KDC-BT772HD for playback.

  • AAC & aptX Codecs: In addition to support for the standard SBC Bluetooth audio codec, the KDC-BT772HD offers support for AAC and aptX codecs for higher quality audio streaming from select Apple & Android devices. By supporting AAC, the KDC-BT772HD offers better audio performance of the music streamed from your Apple iPod, iPhone, or iPad. aptX audio coding technology provides even better sound quality with lossless, CD-quality streaming for compatible aptX-compatible smartphones, like many Android smartphones with OS 4.0+.
  • Advanced Music Browsing: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the KDC-BT772HD lets you browse your stored music by Playlist, Artist, Album, Song, etc. (AVRCP 1.4 phones only; which includes Android 4.0+ and iPhone 5.0+).
  • Song/Artist Information: The head unit will also display your stored music and music app's song information; such as Artist name and Song/Album title (not compatible with all apps).
Note: When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

Siri Eyes Free Control: When paired and connected to an iPhone with Siri via Bluetooth, the Kenwood KDC-BT772HD has the ability to access Siri through its front-panel controls and external microphone. Simply press-and-hold down on the head unit's Answer Button to engage Siri and use the included microphone to communicate with Siri. Siri's voice will heard through your vehicle's speakers. All Siri functions including hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more can be done through the KDC-BT772HD and its microphone. You even can ask Siri to get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your iPhone with Siri. The head unit's audio is attenuated while Siri provides audible directions.

Note: The head unit's display will only indicate hands-free calling and Bluetooth audio information (all other functions of Siri are only audible through the Kenwood KDC-BT772HD; visual data will still need to be viewed from your iPhone device).

Android & iPhone Integration

Android Open Accessory 2.0 (AOA 2.0) Connectivity: The Kenwood KDC-BT772HD's rear-panel USB ports let you connect select Android (OS 4.1-7.1.2) smartphones that support AOA 2.0 for music playback. Kenwood does not guarantee operation with all Android devices, regardless of operating system. There are two Android AOA 2.0 modes to choose from based on what content you want to listen to and how you want to control it.
  • Hand Mode: The Kenwood KDC-BT772HD supports Android Open Accessory 2.0 (AOA 2.0), which lets  you connect your Android smartphone (OS 4.1-7.1.2) to the KDC-BT772HD's rear-panel USB ports and listen to stored music and music apps from your Android device through the Kenwood head unit. You'll be able to control basic playback functions such as Play/Pause and Previous/Next Track. Other advanced music navigation will still be done from your Android smartphone's touchscreen. In this mode, the head unit will not display song/artist information; only "Hand Mode" will show up on display. You'll continue to view song/artist information from the Android device's touchscreen. You'll also still be able to access other functions and applications from your Android smartphone's touchscreen, while listening to music through the head unit. If you make a call or answer a call from your smartphone while listening to music in this mode, the music will pause until you are finished with the call and then start back up again.
  • Browse Mode (via Kenwood Music Play App): Downloading the Kenwood Music Play app onto your Android (OS 4.1-7.1.2) smartphone with AOA 2.0 support not only allows you to listen to stored music from your Android device through the Kenwood CD receiver connected via USB, but it also lets you browse your Android smartphone's music library from the head unit's front-panel controls. You can browse your store music library by Playlist, Artist, Song, Album, or Genre. The contents of a Playlist or Category can be searched alphabetically or numerically; you can even skip through the stored music files in specific increments (0.5/1/5/10%). You can also control Play/Pause and Previous/Next track from the head unit. In addition, the head unit will display song/artist information. You can exit the Kenwood Music Play app to access other functions and applications of your Android smartphone, while your stored music library is still playing through your head unit. If you make a call or answer a call from your smartphone while listening to music in this mode, the music will pause until you are finished with the call and then start back up again.

iPhone Direct Connection: The Kenwood KDC-BT772HD's rear-panel USB ports can be used to connect your Lightning Apple device or 30-pin iPhone 4S to the head unit. The USB connection allows for playback of stored music and music apps on your iPod or iPhone through Kenwood receiver. If you have a newer iPod/iPhone with the Lightning-connector, you can use Kenwood's Lightning connector-to-USB cable (113KCIP103 sold separately) or the Lightning-to-USB cable that came with your Apple device to connect your iPod/iPhone to the KDC-BT772HD. If you have an iPhone 4S with a 30-pin dock connector, you can use the dock connector-to-USB cable that comes with your Apple device or a 3rd party "Made for iPod/iPhone" certified dock-to-USB cable (sold separately) to connect your iPhone 4S to the KDC-BT772HD.

  • Head Unit Control: From the head unit's front-panel controls you can search for stored music by Playlist, Artist, Album, Song, Podcast, Genre, and Composer. The contents of a Playlist or Category can be searched alphabetically or numerically; you can even skip through the stored music files in specific increments (0.5/1/5/10%). The KDC-BT772HD also supports Repeat (file/all) and Random (album/all) playback functions of stored music on your iPod/iPhone. In addition, you'll be able to control basic playback functions (such as Play/Pause, Previous/Next Track) from stored music and select music apps streamed to your iPhone. You can also choose to control your Apple device from its own touchscreen, instead of the head unit.
  • Song/Artist Info Display: The KDC-BT772HD will display your iPod/iPhone's music file information such as Track number, Elapsed playing time, Artist name, Song title, and Album title.

Smartphone Charging: The head unit's USB connection provides 1.5A of current to power and charge your connected Apple iPod/iPhone or Android smartphone when your vehicle's ignition switch is set to the 'ACC' or 'On' position (if your iPod/iPhone has no initial battery charge, then the unit will not recognize it).

Apple Device Compatibility Chart: The Kenwood KDC-BT772HD is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 11/28/2017):

Apple Device Generation Tested Version Media Type Control Type Music Apps Display Type Bluetooth Charge
Audio Video Head Unit iPod/iPhone Remote App Pandora Spotify iHeart Radio Artist/Song Text Track Info Phone Audio Siri
iPhone
4S 9.3.5 Y N Y Y Y Y Y Y Y Y Y Y Y Y
5/5C 10.3.3 Y N Y Y Y Y Y Y Y Y Y Y Y Y
5S 11.1.2 Y N Y Y Y Y Y Y Y Y Y Y Y Y
SE 11.1.2 Y N Y Y Y Y Y Y Y Y Y Y Y Y
6/6/+6S/6S+ 11.1.2 Y N Y Y Y Y Y Y Y Y Y Y Y Y
7/7+ 11.1.2 Y N Y Y Y Y Y Y Y Y Y Y Y Y
8/8+ 11.1.2 Y N Y Y Y Y Y Y Y Y Y Y Y Y
X 11.1.2 Y N Y Y Y Y Y Y Y Y Y Y Y Y
touch
5th 9.3.5 Y N Y Y Y Y Y Y Y Y N Y Y Y
6th 11.1.2 Y N Y Y Y Y Y Y Y Y N Y Y Y
nano
7th 1.02PC Y N Y N N N N N Y Y N Y N Y
Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

 Internet+SiriusXM+AM/FM Radio

Internet Radio Apps: The Kenwood KDC-BT772HD allows you to access Pandora, Spotify, and iHeartRadio online music services through your USB-connected or Bluetooth-connected iPhone, or Bluetooth-connected Android smartphone. Your Apple iPhone must be connected to the KDC-BT772HD via the Kenwood KCA-iP103 cable (sold separately), the cable supplied with your iPhone, or through Bluetooth. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the Kenwood KDC-BT772HD. Your iPhone or Android smartphone will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

  • Pandora App: The free Pandora App (for Apple iOS 9.0+ or Android 4.0+) lets you play music from the Pandora music service through the Kenwood KDC-BT772HD using your USB or Bluetooth connected Apple iPhone, or Bluetooth connected Android smartphone. The Kenwood KDC-BT772HD provides control over the Pandora music service and displays Artist, Album, and Song information. You can select Pandora stations from your station list and sort them by date or alphabetically. New stations can be created based on the current songs or artists playing. You can also skip song tracks within a station. You can even give songs a thumbs up or thumbs down, as well as bookmark song information. An active Pandora account is required.
  • Spotify: The KDC-BT772HD has the ability to playback & control content from the Spotify music app (for Apple iOS 8.0+ or Android OS 4.0+) on your USB or Bluetooth connected iPhone, or Bluetooth connected Android smartphone. You can play, pause and skip tracks, browse playlists, albums and radio stations through the Kenwood receiver's front-panel controls. You can even create your stations by entering a track, artist,  or playlist. You also get song/artist information on the unit's LCD touchscreen. If you are a Spotify Premium user (requires a monthly paid subscription), you can enjoy ad-free, high quality music even when there is no internet connection.
  • iHeartAuto: The free iHeartAuto app for Kenwood (for Apple iOS 8.0+ or Android OS 4.0+) lets you play music from the iHeartRadio music service through the Kenwood KDC-BT772HD using your USB or Bluetooth connected Apple iPhone, or Bluetooth connected Android smartphone. The iHeartRadio music service provides access to more than 1,500 live radio stations from coast-to-coast (including pop, country, urban, rock, talk, and sports). The KDC-BT772HD will provide control over the iHeartRadio Auto app, as well as display station identification and song/artist information. From the head unit's front-panel controls, iHeartRadio stations can be searched by the following categories (Local, Genre, City, or My Stations). The Local selection provides a list of radio stations in your local listening area. The unit also provides over 22 Genres to choose from (including pop, country, hip-hop, jazz, etc.) to help you find the right radio station for you. In addition, you can search for radio stations by City. Cities can be searched alphabetically. You can even store your favorite stations (My Stations) for easier, quicker access. An active iHeartRadio account is required.
Note: Access to these Internet Radio services will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Not supported in Canada and only available in the United States.

SiriusXM-Ready: The Kenwood KDC-BT772HD is SiriusXM-Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300 sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 175+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:

  • Channel List w/ Category Search: The Channel list displays a list of all available channels. You can also search and list channels in specific categories.
  • Song/Artist Info:  Displayed Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit's LCD.
  • SmartFavorite Presets: Up to 18 SiriusXM Satellite Radio station presets can be saved. These 18 SiriusXM presets are automatically identified as SmartFavorites for advanced features such as Replay, TuneStart & TuneScan (see below).
    • Replay: When you select a SmartFavorite preset you can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content.
    • TuneStart: With the TuneStart enabled, playback will automatically start from the beginning of a song when you tune to a SmartFavorite preset channel.
    • TuneScan: TuneScan gives you a short preview of the songs that you have missed on each of your Smart Favorite Preset music channels or currently tuned music channel.
  • Parental Control: Channels containing unsuitable content for children can be blocked. When enabled, The Parental Control feature requires you to enter a 4-digit passcode to tune to the locked channels.
Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

HD Radio: With its built-in HD Radio tuner, you can receive digital AM/FM broadcasts from local stations where available. HD Radio significantly improves AM/FM audio quality and reception, as well as includes information such as artist name and song titles or traffic news, viewable on the receiver's display. HD Radio Technology will deliver high-quality digital sound. AM digital will have FM-like quality in stereo (70dB SN @ 40-15kHz), while FM digital will have CD-like quality (75 dB SN @ 20-20kHz) with static free and clear reception. The unit's built-in HD Radio tuner allows analog AM/FM tuning as well.

  • Seek Tuning: You can choose one of three seek modes: Auto 1 (seek tuning), Auto 2 (cycles through and tunes the selected band's preset stations only with each button press), or Manual. You can also setup the KDC-BT772HD to search only HD Radio stations, Analog AM/FM stations, or both.
  • Tuner Presets: The KDC-BT772HD's tuner features 3 FM banks (1, 2, 3) and 1 AM bank for storing presets. You can store 6 presets for each AM/FM bank giving you a total of 18 FM presets and 6 AM presets (total of 24). Not only does the CD receiver's tuner allow you manually enter your desired presets you can choose to have the unit automatically put stations with good reception in the memory banks automatically; this is a handy feature when traveling.
  • Station Info, Multicasting, & Emergency Alerts: AM/FM digital stations can offer text and data such as artist names and song titles. In addition to conventional broadcasts, with HD Radio broadcasting it is possible to choose from up to 8 multicast programs (HD1 to HD8). You can even receive an emergency alert message while listening to another source or while in Standby mode, via HD Radio Broadcast
Note: HD Radio is the system for digital AM and FM broadcasting in the U.S. More than 2,000 radio stations are broadcasting their primary signals in digital HD Radio technology, as a free service. Go to HDRadio.com to check for HD

Disc/USB/Aux Playback

Disc Compatibility: The unit features a single disc player that will playback CD-Audio and finalized CD-R/CD-RW audio discs.

  • CD Read: This function sets the method for reading a CD disc. You can choose between two modes - CD1 (automatically distinguishes between audio file disc and music CD when playing a CD or CD-R/RW disc) or CD2 (when unable to play a special formatted CD, set this function to CD2 to force playing; some music CD  discs may be unplayable even when set to this mode).
  • Off Insert/Eject: A CD disc can be inserted or ejected with the power off. When a disc is inserted with the power off, the unit will automatically power up and begin playback.
  • Auto Reload: If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.
Note: For proper disc playback you must install the unit within 30-degrees of horizontal.

Dual USB Ports for MSC Playback: The Kenwood KDC-BT772HD features two rear-panel USB (type-A) porta that are attached to the rear-chassis via 39" cables. The USB ports enable connection of USB mass storage class (MSC) devices like USB thumbdrives, USB card readers, or portable digital audio players. You can insert a compatible USB MSC device into the head unit's USB port for playback, control, and song/artist display of a variety of music files.

  • Drive Change: The Drive Change feature lets you switch between multiple memory cards (up to 4) in a USB multi-card reader. When a mass storage class (MSC) compatible compatible portable digital audio player is connected to the head unit's USB input, the unit's Drive Change features lets you select between the device's internal memory or external memory (such as a microSD card) for stored music playback.
  • USB Charging: USB devices that can be charged via USB will be charged when plugged into the CD receiver's USB ports (max. 1.5A), and the vehicle's ignition switch is set to ACC or On.

Note: Not compatible with USB hubs.

Compatible Music Files: The Kenwood KDC-BT772HD supports the following types of music files recorded onto CD-R/RW discs or loaded onto USB mass storage class devices.

Media Type CD (-R/RW) USB  (MSC)
File System ISO9660 Level 1 or 2, Romeo, Joliet, or Windows long file name FAT 12/16/32
Playable File Types  MP3: bit rate of 8-320kbps w/ sampling rate of 8-48kHz
 WMA:
bit rate of 32-192kbps w/ sampling rate of 8-48kHz
AAC: bit rate of 32-192 kbps w/ sampling rate of 8-48 kHz

 MP3: bit rate of 8-320kbps w/ sampling rate of 8-48kHz
 WMA:
bit rate of 32-192kbps w/ sampling rate of 8-48kHz
AAC: bit rate of 32-192 kbps w/ sampling rate of 8-48 kHz
WAV:
bit depth of 16-bit w/ sampling frequency of 44.1kHz
FLAC:
  bit depth of 24-bit w/ sampling frequency of 96kHz
Maximum # of Folders/Files 999 folders/20,480 files (999 files per folder)
Tags ID3 tag (version 1.0/1.1/2.2/2.3/2.4), WMA tag, AAC tag, FLAC tag, WAV tag

Playback & Search Functions: The Kenwood KDC-BT772HD offers a variety of playback and search functions to help you find and enjoy your music on disc and USB.

  • Music Search: The Kenwood AM/FM CD receiver features a Music Search feature which allows you to scroll through and select your music folders and files, as well as scroll through your audio CD's music tracks using the head unit's rotary knob.
  • Repeat & Random: You can repeat the playback of a music file or folder on a CD or USB device. You can also randomly play back all files on a disc or within a folder of a USB device.
  • Last Position Memory: If the unit is shut off or switched to the tuner mode while a CD or USB is playing, the next time CD or USB is selected as the source, playback will resume from the point where it left off.

Aux In: The unit is equipped with a rear-panel 3.5mm minijack auxiliary input that can be used to input audio from a portable audio source, such as a portable MP3 player. The Aux input must be turned on to function.

Audio Section

24 Bit D/A Converter: The Kenwood KDC-BT772HD utilizes a 24-bit digital to analog converter for superior sound quality.

MOSFET Amplifier: The Kenwood KDC-BT772HD is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit. The power output specs for the KDC-BT772HD are as follows:

  • Full Bandwidth Power: 22 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
  • Maximum Output Power: 50 watts x 4 channels

6Ch/4V Pre-Outs + Sub Control: The KDC-BT772HD is fitted with front, rear and subwoofer 4-volt pre-outs. The front and rear speaker preamp outputs are balance and fade adjustable. The subwoofer preamp output is non-fading and features independent level control (-50 to +10)

Vehicle Settings: In order to optimize the sound quality in your vehicle, you can indentify the type of vehicle you have, select speaker sizes & locations, as well as configure listening distances.

  • Car Type: Select your car type to automatically set the delay time of each speaker for timing adjustment of sound output of each channel to have the highest surround effect. Choose from Compact, Full Size Car, Wagon, Mini Van, SUV, or Off
  • Speaker Size: You can select which size speakers are in your vehicle - Tweeter (Small, Medium, Large, or None), Front & Rear (3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", 6x9", 7x10" or None), and Sub (6.5", 8", 10", 12", 15" or Over, None).
  • Rear Speaker Location: You can indicate the location of your vehicle's Rear speakers. Choose from Door, Rear Deck, 2nd Row, or 3rd Row.
  • DTA (Digital Time Alignment): For a better sound-stage you can select your optimal listening position. You can choose from All, Front Left, Front Right or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-20') for each individual speaker in the vehicle compared to your listening position.

High Pass & Low Pass Crossovers: You are able to select independent high pass crossovers for your tweeters, front speakers, and rear speakers; as well as a low pass crossover for the head unit's sub output.

  • Tweeter: Set high pass filter (HPF) for tweeters.
    • Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
    • Gain: -8 to 0 dB
  • Front & Rear: Independently set high pass filter (HPF) for front & rear speakers.
    • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
    • Slope: -6dB, -12dB, -18dB, -24dB
    • Gain: -8 to 0 dB
  • Sub: Set low pass filter (LPF) for the sub output.
    • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
    • Slope: -6dB, -12dB, -18dB, -24dB
    • Phase: Reverse (180°), Normal (0°)
    • Gain: -8 to 0 dB

Equalizer: The Kenwood KDC-BT772HD offers 8 EQ Presets for easy adjustment, a 13-band EQ for customized tuning, a Drive EQ mode to overcome road noise, and a Stage EQ for better imaging. Separate EQ settings and EQ presets can be stored for each source or you can apply one EQ preset or curve to all sources.

  • Preset EQ: The integrated equalizer offers 8 preset sound modes (Rock, Pops, Easy, Top 40, Jazz, Natural, Drive EQ, or User) suitable for the music genre of your choice.
  • 13-Band EQ: The User mode allows you to manually adjust the head unit's 13-band EQ (62.5Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz, 10kHz, & 16kHz). Each frequency's gain level can be adjusted from -9dB to +9 dB, while the Q-factor can be adjusted to 1.35, 1.5, or 2.0
  • Drive EQ: The Drive EQ mode helps you hear your music over road noise. It boosts certain frequency ranges that become hard to hear due to road noise.
  • Stage EQ: Stage EQ virtually lifts the sound up to ear-level for better imaging inside your vehicle.

Audio Settings: The Kenwood KDC-BT772HD offers a variety of audio settings to further enhance your music listening experience.

  • Sound Reconstruction: When MP3, WMA, AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Sound Reconstruction function restores their high frequencies so the sound quality is closer to files encoded at a high bit rate. The processing is optimized for the compression format and the bit rate used. When Sound Reconstruction is Off, the unit plays the original sound stored in the audio file.
  • Space Enhancer & Sound Realizer: The Spacer Enhancer widens the soundstage inside your vehicle, while the Sound Realizer makes your music sound more realistic.
  • Loudness, Bass Boost & Bass Extension: The Loudness feature boosts low and high frequencies to produce a well-balanced sound at a low volume level. The unit's Bass Boost enhances low bass frequencies at any volume level. There is also a Bass Extension feature which further enhances the unit's bass output at extremely low frequencies.
  • Volume Offset: The level of each source may be independently adjusted to prevent radical leaps in output volume when switching from one source to another. The available settings range from -15 to +6.

Key Beep: The in-dash head unit provides an audible beep to confirm button operation. This function can be turned On or Off.

Remote Control

Remote App (for Apple iOS): The Kenwood Remote App (for Apple iOS 8.0+) operates the Kenwood receiver like a wireless remote control from your USB or Bluetooth connected Apple iOS device. The Kenwood Remote App provides traditional touchscreen control, as well as directional and freeform gesture control from your compatible mobile device.

  • Source Selection: The Kenwood Remote App provides list of the receiver's built-in sources and connected sources (CD, Aux, AM/FM, USB, Bluetooth); so you can select which source you want to listen to from the app on your mobile device.
  • Playback Control: The application lets you control CD, USB, and Bluetooth audio playback. You have control of Play/Pause, Previous/Next Track, and Repeat/Random. From the app you can also select AM/FM bands, select preset stations, and seek AM/FM stations.
  • Display Information: The app also displays source information such as station number, track number & playback time, as well as song/artist/album information (when applicable)
  • Audio Settings: From the application on your mobile device, you can adjust the receiver's volume up or down. In addition, audio settings such as EQ, Crossover, DTA, and other audio adjustments can be easily set using the Kenwood Remote application.
Notes:
  • When using the Kenwood Remote App with your compatible Apple iOS device, the application and device must be connected to the receiver via Bluetooth (not USB) for playback of Bluetooth audio. For playback of a USB-direct connection from an Apple iOS device, the device and application must be connected to the head unit via USB (not Bluetooth).
  • The Remote App is no longer compatible with any model Android OS device (as of 1/1/2019).

Steering Wheel Remote Compatibility: The head unit features an OEM steering wheel remote control input wire (blue/yellow) within the included wiring harness that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).

Optional IR Remote: The KDC-BT772HD is compatible with Kenwood's IR remote control (RC-406, sold separately) for wireless operation of the receiver.

Display Features

Detachable Face w/ Hidden CD Slot: The Kenwood KDC-BT772HD features a hidden CD slot behind a manual flip-up cover which blends into the front-panel of the head unit. The KDC-BT772HD also features a detachable face to deter theft (no face case provided). An optional soft face case (142DFC1X, sold separately) can be purchased for this unit. A face-fixing screw is supplied for making the face non-detachable, if desired.

1.5 Line Display: The KDC-BT772HD is equipped with a 16 digit 1.5 line LCD screen. You can select between English or Spanish text.

Variable Color Illumination: The Kenwood KDC-BT772HD features variable color display and button illumination. You can choose from one of 24 preset colors, have the unit scan through all 24 preset colors continuously, or customize your own color (RGB; 0-9). The custom setting allows you to individually adjust the intensity of Red, Green, and Blue (from 0-9) to better match your vehicle's interior lights. The same color setting can be applied to both the LCD and buttons, or you can choose a different color for the LCD and button illumination. The Kenwood logo remains red.

Brightness & Dimmer: You can adjust the brightness of the LCD and button illumination independently or together (from 0-31). You can also dim (on or off) the display and button illumination. You can even set a specific time for the "Off" and "On" dimmer setting to be activated.

Text Scroll: The KDC-BT772HD will display song/artist information text from CD, USB, Bluetooth, iPhone, and Android. You can set the text scrolling feature to three different modes (Auto, Once, or Off) to scroll longer titles across the screen.

12Hr/24Hr Clock: The head unit can be set to display a 12hr or 24hr clock. The unit also displays the day (Sun, Mon, Tue, Wed, Thu, Fri, or Sat). The clock is only displayed when selected and does not displayed simultaneously with song/artist or station information. The day & time can be selected to remain on, even if the head unit is switched off (as long as the vehicle's key is in the accessory or start position).

Demo Mode: This unit features a Demo mode which can be turned On or Off within the menu.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
This radio was recommended by one of the customer support folks at Crutchfield based on my wants and needs for a new radio. [ Terry  Aug 20, 2019 ]
A
boat [ bob  Feb 03, 2019 ]
A
Kenwood quality [ Stephen  Dec 08, 2018 ]
A
good value [ Franklin J.  Nov 23, 2018 ]
A
No real particular reason other than I wanted a Kenwood system [ Gregory  Nov 01, 2018 ]
A
the alpine cd receiver i got from Crutchfield couple year's ago failed to function, so thought i'd try Kenwood this time, if this radio fail's next time i'll buy from somebody else.... this being the third unit from Crutchfield [ DANNY  Sep 30, 2018 ]
A
The features and the deal was perfect! [ W  Aug 19, 2018 ]
A
I really wanted the rear usb and aux jacks. I don't like wires sticking out of dashboards so this was a good fit for my needs. [ bill  Jun 12, 2018 ]
A
Current Kenwood still working fine after 6+ years, just doesn't have HD Radio or Handsfree Calling, Have HD radio in GF Honda, what a difference it makes, would never purchase without. [ drew  May 06, 2018 ]
A
I chose this radio because I like Kenwood and have always been pleased with their products [ Brian  Apr 15, 2018 ]
A
I was looking for a sleek looking single din deck with bluetooth, USB storage, and AUX plug. This unit had it all. Bryce at Crutchfield helped me narrow my selection down to this unit. [ Nicholas  Apr 05, 2018 ]
A
Recommended [ Catherine  Apr 05, 2018 ]
A
I picked this stereo unit for its phone control capability over blue tooth and usb inputs for my music library on thumb drive. [ JERRY  Apr 03, 2018 ]
A
Claims high quality pre amp signals [ Chris  Apr 03, 2018 ]
A
Features/options I was looking for at price I felt was a good value. [ Robert  Mar 31, 2018 ]
A
it has the features I was looking for [ JEFF  Mar 13, 2018 ]
A
Looks like a great budget head unit. Kenwood makes quality products, even on the lower priced products. Has all of the features I need, but nothing that I wont use. [ Clint  Mar 10, 2018 ]
SHOW MORESHOW LESS

8 questions already asked

Q
Will this head unit control the BMW factory 6 disk changer?
[ Scott  Aug 12, 2019 ]
1 answer
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
[ Krissy  Aug 20, 2019 ]  Staff
Q
KENWOOD KDC-by-772hd blue tooth stopped working. How do I turn it on?
[ Mark D  Jun 05, 2019 ]
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
[ Krissy  Jun 11, 2019 ]  Staff
Q
Will this work with a kenwood cd auto changer KDC-C715?
[ Robert  Mar 12, 2019 ]
2 answers
A
I wish I knew the answer. My unit handles a single CD which is just fine with me. I'm sorry I can't be of any help.
[ Dave  Mar 12, 2019 ]
A
hi, Rober i believe it doesn't support anything like that. It was the only model i found with Bluetooth and cd player in one. I have never came across any cd changer function like in the menu and i don't remember seeing any connections for the cd changer on the back either.
[ Oliver  Mar 12, 2019 ]
Q
How can you remove unused sources from the menu, like Pandora, iHeartRadio, etc.? I don't want to scroll through unused inputs when selecting a source.
[ Utmtnman  Dec 16, 2018 ]
4 answers
A
Thanks for all the answers. I reached out to Kenwood and it is possible after all. I tried it successfully. Here is their response: "You can turn off the Spotify, Pandora, iHeart, and the built-in aux. Simply press the SRC button repeatedly to enter STANDBY as a source, press the volume button to enter FUNCTION mode, turn the knob and select SOURCE SELECT, select a source, and adjust accordingly." -Kenwood Tech Support
[ Utmtnman  Dec 31, 2018 ]
A
Great question... from what I can tell no you can't.
[ CHARLES  Dec 16, 2018 ]
A
In have this head unit and don't know that you can remove unused sources from it. Its not like a computer, tablet or phone where if you don't use it get rid of it.
[ Ryan  Dec 16, 2018 ]
A
It is possible but I don't remember how. Read the instructions.
[ KYLE  Dec 16, 2018 ]
Q
what power plug does this unit use? IOS or older style Kenwood? I'm doing a swap out.
[ Jeff  Dec 01, 2018 ]
2 answers
A
Im not sure what you mean by power plug. It does have 2 USB inputs and a 3.5mm aux input. The stereo comes its own wire harness but I wouldn't have a pic of that. A lot of times if you look through the advertising pics crutchfield usually does a good job at showing the wiring harness as well. Hope this helps if not sorry.
[ Fernando  Dec 01, 2018 ]
A
What do you mean by power plug?
[ Oliver  Dec 01, 2018 ]
Q
Has anyone had trouble with the Kenwood app?
[ Shane  Mar 12, 2018 ]
2 answers
A
I have both the kenwood app and the kenwood music app. If I am connected through bluetooth playing spotify and connect USB then I have to recycle through inputs on stereo back to spotify in order for it to charge and to keep using spotify through bluetooth. If you read manual it has some options related to all of this that you can change depending on if you are using android or iOS.
[ Fernando  Dec 01, 2018 ]
A
Yes, and i have never resolved it. I have a samsung j3 2016 and when i plug it into either usb port it locks up my phone and needs the battery pulled to reset it.....?? It has since updated the os on the phone about a month ago to the latest os, but really dont feel like pulling the battery again haha, spose someday i will try it. The bluetooth app works fine though, kinda sad i cant charge my phone from it though.
[ John  Mar 13, 2018 ]
Q
Can I use the rear input plug for my iPod I assume? I just need to route the wire out front, correct?
[ Scott  Mar 01, 2018 ]
3 answers
A
Yes that is correct!
[ BRET  Mar 01, 2018 ]
A
Correct, route an extension cable from the deck to the iPod. I did a 2 usb/Aux dash mount jacks to keep the install clean.
[ Stacy  Mar 01, 2018 ]
A
Correct, you need to pull the rear USB port to where you can plug into it and should be fine.
[ Scott  Mar 01, 2018 ]
SHOW MORESHOW LESS

Loading articles...

TOP
