Kenwood CMOS-310

Universal rear-view camera with multiple view modes

Item # 113CMOS310

Panaramic view Kenwood's CMOS-310 rear-view camera keeps you aware of your surroundings so you can drive more...

Panaramic view Kenwood's CMOS-310 rear-view camera keeps you aware of your surroundings so you can drive more...

Discontinued item
1 question - 1 answer

Item # 113CMOS310

About the Kenwood CMOS-310

Panaramic view
Kenwood's CMOS-310 rear-view camera keeps you aware of your surroundings so you can drive more safely. Shift into reverse, and you can check out the view behind your vehicle — the picture shows up on your receiver's screen automatically. The camera captures a 190-degree horizontal view and 151-degree vertical view, so you'll really get the big picture — especially handy if you're trying to back up in a large vehicle or if you're towing something.
CMOS-310 rear-view camera

Panaramic view
Kenwood's CMOS-310 rear-view camera keeps you aware of your surroundings so you can drive more safely. Shift into reverse, and you can check out the view behind your vehicle — the picture shows up on your receiver's screen automatically. The camera captures a 190-degree horizontal view and 151-degree vertical view, so you'll really get the big picture — especially handy if you're trying to back up in a large vehicle or if you're towing something.

Five view modes
The camera gives you five view modes — the package includes a dash-mount button that allows you to switch modes, and you can also use the touchscreen to switch view modes on a compatible Kenwood receiver. You can also connect a second CMOS-310 to the A/V input on select Kenwood receivers, set it as a front camera in the menu, then switch views between the front and rear cameras. The 25-foot cable and harness assembly is long enough for most vehicles and includes a composite video connector, so it'll work with almost any video receiver. Mounting bracket included.

READ LESS

Product highlights:

  • rear-view camera with view selection button
  • 190-degree horizontal and 151-degree vertical view
  • 310,000 pixels
  • built-in power supply
  • multiple view modes
    • Super Wide View: 190-degrees
    • Wide View: 135-degrees
    • Overhead View: displays image as if from straight above vehicle
    • PinP View: overhead view on upper half, wide view on lower half
    • Corner View: views as seen from two corners displayed on left and right halves
  • can be used as a front camera with DNX7160, DNX7180, DNX7190, DNX9960, DNX9980, and DNX9990 receivers
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # CMOS-310

What's in the box:

  • Rear-view camera with bracket (attached 5' cable terminated by a molex connector)
  • Switch unit with attached 40" cable
  • 25' Camera control function harness
  • Mounting screw
  • Double-sided adhesive tape
  • Rubber waterproof clamp
  • Instruction Manual (Eng/Fre/Spa)
  • Kenwood Warranty Card

Customer reviews

Loading reviews...

Kenwood CMOS-310 reviews

Average review:

4 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Kenwood CMOS-310

Russ B.
The Kenwood CMOS-310 replaces these items:

Product Research

Features

Compatibility: The Kenwood CMOS-310 Universal Multi-View Camera can be used as a rear-view camera with Kenwood in-dash monitors; however, the standard composite video output (RCA plug) extension cable makes it compatible with virtually any mobile video monitor.

Note: The CMOS-310 can also be used as a front camera with the Kenwood DNX7160, DNX7180, DNX7190, DNX9960, DNX9980, DNX9990 in-dash navigation receivers.

Waterproof Chassis: The camera is built into a compact waterproof aluminum case, making it perfect for mounting outside the vehicle.

Super Wide Viewing Angle: The 190° horizontal and 151° vertical viewing angles provide an excellent near field view of anything behind you. The camera gives you a mirror image for rear view confirmation.

CMOS Optics: The 1/4" color CMOS image sensor has approximately 310,000 pixels to deliver a high quality picture.

Illumination Range: The multi-view camera provides an illumination range of approximately 0.9 to 100,000 lux. It offers less light distortion from nearby light sources.

Switch Unit: The included dash-mount switch unit can be used to switch the multi-view camera's display mode, view/hide the guidelines display, and adjust the camera to better suit your vehicle; when connected to select Kenwood in-dash navigation head units.

  • Display Modes: The CMOS-310 camera system can display 5 different camera images.
    • Super Wide View: wide-angle image covering a horizontal angle of approximately 190°
    • Wide View: camera image covering a horizontal angle of approximately 135°
    • Overhead View: image seen from the viewpoint straight up above the vehicle
    • PinP View: the overhead view is displayed on the upper half of the screen, while the wide view is displayed on the lower half
    • Corner View: the views seen from the two corners of the vehicle are displayed on the left and right halves of the screen
  • Image Adjustments: The multi-view camera features the following image adjustments.
    • Centering: adjusts the center of the camera installation position
    • Right-and-Left Angle: adjusts the horizontal angle (in the rotary direction) of the camera installation position
    • Up-And-Down Angle: adjusts the vertical angle (inclination) of the camera installation position
  • Guideline Adjustments: The multi-view camera features the following guideline adjustments.
    • Size: adjusts the overall size of guidelines displayed in the wide or overhead view mode
    • Horizontal Direction: adjusts the left-right positioning of the guidelines displayed in the wide or overhead view mode
    • Vertical Direction: adjust the length of the guidelines displayed in the wide or overhead view mode
    • Red Line Position: adjusts the position of the red line display in the wide or overhead view mode; the red line can be used independently to set the reference line for the vehicle parking position

    Note: The dash-mount switch unit is compatible with the Kenwood DNX7160, DNX7180, DNX7190, DNX9960, DNX9980, DNX9990 in-dash navigation receivers.

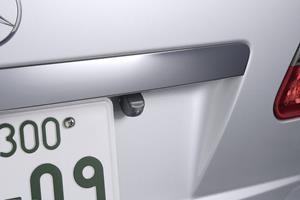

Mounting: The multi-view camera comes supplied with a metal mounting bracket that attaches to the camera with two supplied machine screws and attaches to your vehicles with its self-adhesive backing or included mounting screw. Once the camera is installed in the mounting bracket the camera's angle can be adjusted to work in your application. The dash-mount switch unit comes with two-sided tape to attach the switch unit to your dash, near the driver seat.

Note: The multi-view camera should be installed at a height of 1.8' or more.

Dimensions:

  • Camera (with bracket): 1.385" (w) x 1.035" (h) x 1.345" (d)
  • Control Switch: 1.135" (w) x 0.465" (h) x 1.485" (d)
