Kenwood DMX7704S

Digital multimedia receiver (does not play CDs)

Item # 113DMX7704

Kenwood's DMX7704S digital multimedia receiver doesn't just have a big screen — it's got a big list of...

Find what Fits your car

Kenwood's DMX7704S digital multimedia receiver doesn't just have a big screen — it's got a big list of...

Discontinued item
31 questions - 95 answers

Item # 113DMX7704

About the Kenwood DMX7704S

Feature-packed and camera-ready

Kenwood's DMX7704S digital multimedia receiver doesn't just have a big screen — it's got a big list of multimedia features. This Bluetooth®-equipped receiver handles both iPhone® and Android™ integration using Apple CarPlay™ and Android Auto™. But the really big news is that you can use the 6.95" touchscreen to control your smartphone, your audio, your video, and even select Kenwood dash cams.
High-res audio

Feature-packed and camera-ready

Kenwood's DMX7704S digital multimedia receiver doesn't just have a big screen — it's got a big list of multimedia features. This Bluetooth®-equipped receiver handles both iPhone® and Android™ integration using Apple CarPlay™ and Android Auto™. But the really big news is that you can use the 6.95" touchscreen to control your smartphone, your audio, your video, and even select Kenwood dash cams.

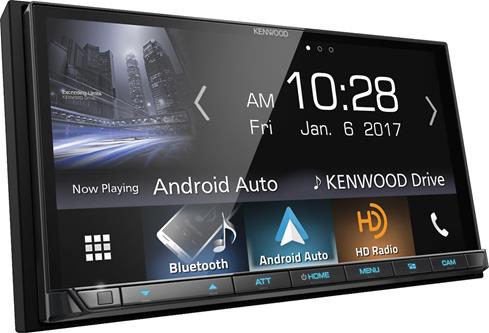

Kenwood DMX-7704S digital media receiver

Works with Apple CarPlay and Android Auto

Designed for dash cams

Dash cameras are becoming more and more popular, and this Kenwood is ready for its close-up. The DMX7704S is designed to work in total harmony with Kenwood's DRV-520 dash camera (sold separately). You can control the camera's view and video recordings using the receiver's resistive touchscreen, so you'll be able to record any drive. You'll also get lane departure warnings, collision alerts, and more.

Rear view, too

And with two camera inputs, you can also install a Kenwood rear-view camera and use the receiver's built-in parking guides to back up safely in any crowded lot. The touchscreen lets you adjust the viewing angle for the best possible off-axis viewing.

Apps on the big screen

Android Auto™: If you're an Android fan, you'll love how Android Auto integrates the Android platform into your driving experience in a non-distracting way. You'll have voice control access to Google Maps, weather, music, your phone, text messages, plus easy access to many of your favorite apps. Get more info at www.android.com/auto.

Apple CarPlay™: CarPlay integrates your iPhone® into the driving experience, putting iPhone content at the driver's fingertips with minimal distraction. That means easy access to your music library, your phone, messages, navigation, and many third-party streaming music apps, too. Learn more at www.apple.com/ios/carplay.

Phone swapping: If your family includes both iPhone and Android users, you simply plug in the phone you want to use without having to choose a particular input or adjust menu settings for control.

Siri Eyes Free: With your compatible iPhone, you can take advantage of Siri Eyes Free functionality with a touch of the touchscreen, using your voice to place calls, select music, hear notification, add reminders, or even compose and listen to text messages.

HD Radio

HD Radio

The DMX7704S lets you enjoy HD Radio from participating stations, so you'll hear FM that's close to CD quality or AM that comes in clear and static-free. And if you're not in an area with HD Radio stations, don't worry — this Kenwood's sensitive radio tuner will pick up all the local analog stations, too.

Satellite and Internet radio

Using the controls on the receiver, you can access your favorite Pandora® or Spotify® Internet Radio stations from your iPhone or Android. You can also check out the amazing array of satellite radio programming by adding a SiriusXM tuner.

Plenty of inputs

You can also satisfy your music fix by connecting a portable music player to the rear aux input. And the two rear USB ports can also handle a thumb drive loaded with MP3, WMA, AAC, WAV, or FLAC music files.

Perfect your sound

The powerful built-in amplifier sends a crisp, clear signal to your speakers, while the 13-band graphic equalizer boasts Kenwood's Drive EQ feature — when the radio is playing at lower volumes it boosts frequencies in the music that are often masked by road noise.

The built-in DSP (digital sound processing) with digital time alignment lets you zero in on your perfect sound, while the three sets of 4-volt preamp outputs deliver an ultra-clean signal for adding additional amps for more power.

Think visual

You can get the look you like by choosing from a vast array of colors and backgrounds. This Kenwood plays video content in bright, clear detail when you're parked. When you're on the road, you can entertain your passengers by sending a movie from the receiver to a rear-seat screen.

iDatalink Maestro lets you keep your factory extras

The DMX7704S offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). The module lets you keep factory features in your Chrysler, Ford, GM, Toyota, Fiat, or VW vehicle that you'd otherwise lose when you install a new radio. You'll also be able to check out expanded functionality on the Kenwood's screen, including gauges, climate controls, a distance sensor, and tire pressure and temperature monitors. It'll even integrate your stealth K40 radar detector into the stereo's display, so you can see and hear about incoming threats (coming soon).

Want to keep your car's steering wheel audio controls?

In most cars, you'll need an adapter to retain those controls with this car stereo. Connect a few wires, then program the adapter for your particular car and radio, and you'll retain the convenience of your steering wheel controls. You'll see the adapters that work with your vehicle when you add this receiver to your cart.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

READ LESS

Product highlights:

    General Features:
    • digital multimedia player with AM/FM tuner
    • built-in amplifier (22 watts RMS/50 peak x 4 channels)
    • plays media loaded with MP3, WMA, AAC, WAV, and FLAC music files
    • 6.95" Clear Resistive touchscreen display
    • built-in HD Radio tuner
    • variable color key illumination with over 30,000 choices of colors
    • fits double-DIN (4" tall) dash openings
    Smartphone Features:
    • Android Auto compatible
    • Apple CarPlay compatible
    • built-in Bluetooth for hands-free calling and music streaming
    • display and command of select music, navigation, and other apps with iPhone and Android
    • Pandora control with iPhone and Android
    • Siri Eyes Free control for select iPhones
    • screen mirroring with select Android and iPhone models
    Audio/Visual Features:
    • 13-band graphic EQ with Drive EQ
    • DSP with digital time alignment
    • bass boost and loudness controls
    • high- and low-pass filters
    Camera Features
    • designed to work with Kenwood's DRV-520 dash camera
    • two camera inputs for dash and rear-view cameras
    • parking grid lines for rear-view camera
    Expandability:
    • built-in iPod, iPhone, and iPad control and rapid Android charging via USB port
    • compatible with SiriusXM satellite radio tuner
    • inputs: rear USB input, rear analog A/V input (mini-jack),
    • outputs: RCA video output, analog audio output (mini-jack), 6-channel preamp outputs (4-volt front, rear, sub)
    Other Information:
    • compatible with most factory steering wheel audio controls (adapter required)
    • compatible with iDatalink Maestro
      • retains factory settings for Ford, GM, Chrysler, Fiat, Toyota, and VW
      • displays engine performance data on touchscreen
    • warranty: 1 year
    • Our 60-day money-back guarantee
    • MFR # DMX7704S

    What's in the box:

    • Digital media receiver w/ integrated 6.95" monitor (15A fuse)
    • Wiring harness
    • Two 39" USB extension cables
    • GPS antenna (attached 11.5' cable terminated by a proprietary connector)
    • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
    • Self-adhesive pad
    • 2 Radio removal tools
    • 6 Pan-head ISO-mount screws
    • 6 Flat-head ISO-mount screws
    • Instruction Manual
    • Warranty card

    Featured video:

    Customer reviews

    Loading reviews...

    Kenwood DMX7704S reviews

    Average review:

    124 reviews

    Thanks for submitting your review

    Filter by rating

    Customer photos

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Pros:

    Cons:

    Crutchfield response

    << >>

    More details on the Kenwood DMX7704S

    Stacey B.

    Features & specs

    Expandability
    AUX Input Mini (rear)
    Audio/video Input Mini (rear)
    USB Input Rear (2)
    Backup Camera Input Yes
    Second Camera Input Yes
    CarPlay Yes
    Android Auto Yes
    Siri Control Yes
    Alexa Voice Control
    Android Control Yes
    Memory Card Slot USB Memory
    Bluetooth Compatible Built-in
    Satellite Radio Ready SiriusXM 3.0
    HD Radio Built-in
    Navigation Optional
    iPod Compatibility
    Full size No
    Nano 7
    Touch 6/5
    iPhone X/8+/8/7+/7/6S+/6S/6+/6/5S/5C/
    General
    RMS Power (CTA-2006) N/A
    RMS Power (Manufacturer) 22 watts
    Peak Output 50 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 6-channel
    Sub Preamp Outputs Yes
    Switchable Rear Preamp Outputs No
    Video Screen Yes
    Navigation App Compatible (iOS) Apple
    Navigation App Compatible (Android) Google,Waze
    Preamp Voltage 4 volts
    Screen Size 6.95
    Display Color
    Key Button Color Variable
    EQ Bands 13
    Wireless Remote Optional
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Tuner
    FM Sensitivity 9.3 dBf
    European Tuning No
    Seek/Scan Seek
    Radio Data System Yes
    File Playback
    Music File Playback MP3,WMA,AAC,FLAC,WAV,DSD
    High-res Playback FLAC/WAV(24-bit/192kHz),DSD(up to 11.2MHz)
    Second Camera Input Lane Watch N
    The Kenwood DMX7704S replaces these items:

    Product Research

    Touchscreen & Remote Control
    iPhone Integration w/ CarPlay
    Android Auto + USB Playback
    Built-in Bluetooth
    Internet+SiriusXM+HD Radio
    Audio & DSP Section
    AV + OEM Connectivity

    Touchscreen & Remote Control

    6.95" Clear Resistive Touchscreen: The Kenwood DMX7704S features a 6.95" widescreen (16:9) clear resistive touchscreen LCD with LED backlighting. The clear resistive touchscreen LCD provides a high contrast ratio, crystal clear display, and vivid text. The LCD touchscreen has a resolution of 800 (H) x 480 (V) x RGB with 1,152,000 total pixels. The LCD touchscreen is highly responsive with touchscreen operations that include tap, touch & hold, flick left/right, and swipe up/down.

    • Custom Home Screen & Shortcuts: You can customize the head unit's Home Screen by rearranging the icons and moving the icons of the seven most sources you use most to this screen. Three programmable shortcut source keys offer a quick jump to your favorite sources
    • Background Color & Images: You can choose between nine preset background colors - Blue, Purple, Sky Blue, Yellow, Green, Amber, Red, Pink, White. You can also choose to link the displays color with the unit's front-panel variable color illumination that you set. In addition, there are six preset background images or you can download your own still image (800 x 600) for use as the unit's background from a connected USB thumbdrive.
    • Picture Adjustments: You can adjust the LCD touchscreen's backlight, contrast, black level, brightness, and color.
    Note: To prevent the display of video while the vehicle is in motion, the light green wire (within harness) must be connected to the vehicle's parking brake detection circuit. You cannot view video unless your vehicle's parking brake is engaged. If you attempt to view video without the parking brake engaged, the unit's LCD touchscreen will simply display a blue screen and "Parking Off". While your vehicle is in motion (parking brake off), you can still view all of the head unit's menu screens/settings, source information, metadata, and album artwork; as well as CarPlay & Android Auto.

    Front-Panel Controls w/ Variable Color Illumination: In addition to the touchscreen controls, the unit includes frequently used buttons along the bottom edge of the screen. You can adjust the head unit's button illumination, as well as display background color from the following preset colors - Blue, Purple, Sky Blue, Yellow, Green, Amber, Red, Pink, White or Scan (Scans through all preset colors). You can also select a custom "User" color that is adjusted between Red, Green, and Blue (values range: 0-31).

    Dimmer: The dimmer function will dim the head unit's display & front-panel illumination automatically when your vehicle's light switch is turned On, if you have the unit's orange/white "Illumination" wire connected to your vehicle's headlamp circuit. You can also choose to dim the display manually. The Kenwood logo and eject button remain the same brightness.

    Clock & Date: The digital media receiver offers a 12-hour clock & day/month/year display. The clock is visible from any source or menu screen. With your vehicle's key in the accessory or start position, the head unit will continue to display the LCD background image, clock, and button illumination during "Standby" mode. Pressing and holding the Power/Home button turns the unit off completely.

    Remote Control: The Kenwood DMX7704S offers compatibility with factory steering wheel controls (adapter sold separately) and is compatible with Kenwood's IR wireless remote control (sold separately) for added convenience.

    • Steering Wheel Remote Compatibility: The head unit features an OEM steering wheel remote control input wire (blue/yellow) within the included wiring harness that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).
    • Optional Remote Control: The optional Kenwood KNA-RCDV331 IR wireless remote control (113RCDV331, sold separately) unit is designed to operate this Kenwood digital media receiver. The wireless remote controller operates off of two supplied "AAA" batteries. The remote operates off of IR transmission so the KNA-RCDV331 must be pointed at the front-panel of the Kenwood head unit within direct line of sight.

    iPhone Integration w/ CarPlay

    Apple CarPlay Compatible: Apple CarPlay is the smarter, safer in-vehicle interface to operate your iPhone (iOS 7.1+) with Lightning-connector. Your iPhone must be connected to the Kenwood receiver's "black" USB port (not "grey") via the included USB extension cable and the Lightning-cable that came with your Apple device or Kenwood's Lightning connector-to-USB cable (113KCIP103 sold separately). CarPlay features Siri voice control and is specially designed for driving scenarios. It also works with the Kenwood receiver's touchscreen controls. Use CarPlay to get directions, make phone calls, listen to voice mail, send/ receive messages and select music in a way that keeps you focused on the road ahead.

    • Maps: The power and simplicity of Apple Maps comes to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars.
    • Phone & Messages: You'll be able to make calls, return missed calls, and listen to voicemails through the Kenwood receiver. Siri can also help you do all these things. In addition, Siri can send, read, and reply to your text messages for you; so you never have to look at your iPhone while driving.
    • Music Library: Access your artists, song, playlists, and iTunes Radio on your iPhone using the Kenwood receiver's touchscreen. Or, just tell Siri what you'd like to listen to. The head unit's touchscreen will display song/artist information, as well as album art in the background.
    • Apps: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, radio, sports, news, podcasts, & audiobooks. Control them from the head unit's touchscreen just like you would from your iPhone. Current supported apps include (fees may apply):

    Notes:

    • Only one Apple CarPlay device can be connected at a time. Must be connected to the "black" USB port (not "grey" USB port).
    • An Android Auto device and Apple CarPlay device cannot be connected at the same time.
    • Bluetooth hands-free phone cannot be used while Apple CarPlay is being used with a connected iPhone.
    • If you need an additional USB extension cable, use Kenwood's CA-U1EX USB extension cable (113CAU1EX, sold separately). Any other USB extension cable can cause CarPlay to malfunction.

    iPod/iPhone Music Playback Only: If you don't desire Apple CarPlay, you can also connect your Lightning-connector Apple iPod/iPhone to the DMX7704S for music playback & control only using  Kenwood's Lightning connector-to-USB cable (113KCIP103 sold separately) or the Lightning-to-USB cable that came with your Apple device. You can use either USB port on the radio. The receiver supports playback of stored music and music apps, along with control and charging, plus song/artist information and album art.

    • Head Unit Control: The Kenwood head unit allows you to navigation your iPod/iPhone's music library from its front-panel & touchscreen controls. The head unit offers unique search features like Category Search & Link Search, plus offers basic playback functions like Play/Pause, Fast Forward/Rewind, Previous/Next Track and Repeat/Random of your connected iPod/iPhone. You'll also still be able to control most connected Apple devices from its own touchscreen while connected via USB.
      • Category Search: Category Search allows you to navigate your iPod/iPhone's music library by Playlist, Artists, Album, Song, Genre, Song, Podcast, Audiobook, or Radio. You can then search each of these categories using the head unit's touchscreen slider function (categories will be listed in alphabetical order).
      • Link Search: The head unit offers Link Search, which allows you to play songs related to the currently playing song. Link Search lets the head unit create an album list of the currently playing artist, a song list of the currently playing album, a artist list of the currently playing genre, or a album list of currently playing composer.
    • Song/Artist Info & Album Art: The DMX704S will display your iPod/iPhone's stored music information including Track number, Elapsed playing time, Song/Album title, Artist name, and Album art. The unit will also display song/artist info and album art from select music apps.
    • Battery Charging: The head unit's USB connection provides 1.5A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position. If your iPod/iPhone has no initial battery charge, then the unit will not recognize it.

    Apple Device Compatibility Chart: The Kenwood DMX7704S is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 4/4/2018):

    Apple Device Generation Tested Version Media Type Control Type Specific Apps Display Type Bluetooth Charge
    Audio Video Head Unit iPod/iPhone CarPlay Pandora Spotify Album Art Song/Artist Track Info Phone Audio Siri
    iPhone
    5/5C 10.3.3 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    5S 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    SE 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    6/6+/6S/6S+ 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    7/7+ 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    8/8+ 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    X 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    touch
    5th 9.3.5 Y N Y Y N N N Y Y Y N Y Y Y
    6th 11.2.6 Y N Y Y N N N Y Y Y N Y Y Y
    nano
    7th 1.02 PC Y N Y N N N N Y Y Y N Y N Y
    Notes:
    • Only one Apple iPod or iPhone can be connected at a time. If you try and connect two Apple devices at the same time, you get the following on-screen message "Only the first connected iPod/iPhone can be used". You'll need to disconnect both devices and reconnect the one you want to listen to.
    • Not compatible with 30-pin Apple devices.
    • Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

    Android Auto + USB Playback

    Android Auto: The Kenwood digital media receiver supports the Android Auto app for Android smartphones running OS Lollipop (5.0 or newer). Your compatible Android smartphone must be connected to the JVC receiver's "black" USB port (not "grey") via the included USB extension cable and the USB cable that came with your smartphone, plus be paired via Bluetooth. Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into simple on-screen "card-style" pop-ups that appear just when they're needed. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include:

    • Google Assistant: The Kenwood receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, or listen to music.
    • Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and Google Speech Technology. You can even listen to music from your Android Auto device or other connected source device while using Google Maps. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
    • Phone & SMS: With Android Auto you get access to your contacts and messages through the Kenwood receiver while keeping your eyes on the road. Use the unit's external mic and Google Speech Technology to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
    • Music: Access your Android smartphone's music library through the Kenwood receiver via Google Play Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and Google Speech Technology. You also get access to online music and radio stations from Amazon Music, Pandora, Spotify, iHeart Radio, Slacker Radio, & Tune-In. Music apps include song and station browsing, plus song/artist information and album art or station logo.

    Notes:

    • Only one Android device with Android Auto can be connected at a time.
    • An Android Auto device and Apple CarPlay device cannot be connected at the same time.
    • Bluetooth hands-free phone and wireless music streaming cannot be used while Android Auto is being used with a connected Android smartphone.
    • Use a USB cable that is under 6' long and avoid using any extension cable other than the one supplied.
    • If you need an additional USB extension cable, use Kenwood's CA-U1EX USB extension cable (113CAU1EX, sold separately); any other USB extension cable can cause Android Auto to malfunction.
    • Click here to learn more About Android Auto and to see what phones are compatible.

    Dual USB Ports: The Kenwood DMX7704S features two USB ports (one is "black" and the other is "grey") that are attached to the rear-chassis via 7" cords and comes with 39" USB extension cables. These USB ports can be used for connection and control of up to two portable USB mass-storage class (MSC) devices, such as USB thumbdrives or portable digital music players. The USB ports enable playback of a variety of audio (including high resolution files) and video files stored on a compatible USB memory device (see chart below).

    • Control: The Category List screen lets you search your music folders by Playlist, Artist, Song, or Album. Once a category is selected, you can then search the music files alphabetically. Link Search allows you to play songs related to the currently playing song. The head unit can create an album list of the currently playing artist, a song list of the currently playing album, a artist list of the currently playing genre, or a album list of currently playing composer.
    • Display: The receiver will display song/artist information along with album art of compatible music files.
    • Charging: USB portable audio devices that can be charged via USB will be charged when plugged into the digital media receiver's USB port (5V/1.5A), and the vehicle's ignition switch is set to ACC or On.
    Notes:
    • Two USB mass storage class devices or USB thumbdrives can be connected at the same time; you can switch back and forth between devices (it does not combine the libraries).
    • The USB ports do not support MTP (Media Transfer Protocol), AOA (Android Open Accessory), USB hubs, or card-readers.
    • You can connect an Android smartphone with Android Auto and a USB thumbdrive at the same time.
    • You can connect an Apple iPod/iPhone to the "black" USB port and a USB thumbdrive to the "grey" USB port at the same time.

    File Compatibility: The Kenwood DMX7704S supports the following types of audio and video files recorded onto a disc or loaded onto a USB mass storage class device.

    Media Type USB (MSC)
    File System FAT 16/32, exFAT, or NTFS
    Playable File Types Audio MP3/WMA/AAC: bit rate of 8-320kbps; sampling frequency of 16-48kHz
    WAV/FLAC (High Resolution): bit depth of 16/24-bit; sampling frequency of 16-192kHz
    DSD (High Resolution):
    bit depth of 1-bit; sampling frequency of 2.8/5.6/11.2MHz
    Video MPEG-1: max resolution of 352 x 240 or 352 x 288; max bit-rate of 1.5Mbps
    MPEG-2:
    max resolution of 720 x 480 or 720 x 576; max bit-rate of 8Mbps
    MPEG-4:
    max resolution of 1920 x 1080 (30fps); max bit-rate of 8Mbps
    H.264:
    max resolution of 1280 x 720 (30fps); max bit-rate of 8Mbps
    WMV/MKV:
    max resolution of 1920 x 1080 (30fps); max bit-rate of 8Mbps
    Maximum # of Folders/Files 9,999 folders/50,000 total files (999 files per folder)
    Tags MP3 ID3-tags (ver. 1.0/1.1/2.2/2.3/2.4), WMA-, AAC-, and FLAC-tags

    Firmware Updates via USB: The unit's operating system is updateable via free downloadable software from Kenwood's support site. Firmware downloads assist in maintaining system performance when using external devices and emerging technologies. Firmware/software updates can be downloaded onto a USB thumbdrive from your computer and then inserted into the head unit's USB port and uploaded. Go to Kenwood's Support Site for the latest firmware/software updates.

    Built-in Bluetooth

    Bluetooth 3.0: The Kenwood DMX7704S is equipped with built-in Bluetooth 3.0 allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

    • Hands-Free Communication: HFP 1.6 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile).
    • Audio Streaming: A2DP 1.3 (Advanced Audio Distribution Profile), AVRCP 1.5 (Audio/Video Remote Control Profile).
    Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Kenwood DMX7704S. Visit Kenwood's Support Site for a complete list of compatible Bluetooth enabled phones.

    Multi-Device Pairing w/ Dual Phone Connection: You can pair up to ten Bluetooth-enabled devices to the Kenwood head unit with a maximum of two Bluetooth phones and one Bluetooth audio player connected at one time, making it easier to switch between devices. Thanks to the Dual Phone Connection feature, two Bluetooth-enabled phones can remain connected to the Kenwood receiver. This means you can an answer an incoming call from either phone from the head unit. Also, both of your phone's contact lists are downloaded to the receiver. To make a call from one of the phones using the Kenwood receiver, you simply have to select Phone 1 or Phone 2 on the head unit's touchscreen.

    • Secure Simple Pairing (SSP): With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the Kenwood DMX7704S without having to enter pin codes or go through complicated settings.
    • Auto Pairing (for iPhone): You can even pair your Apple iPhone (iOS 5.0+) by simply connecting it to the Kenwood head unit via USB and following a single prompt on the head unit's display.
    Note: When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.

    Hands-Free Communication w/ External Mic: The head unit supports Bluetooth hands-free communication for your Bluetooth enabled mobile phone. Thanks to the latest Hands-Free Profile (HFP 1.6) with wideband speech capability, the Kenwood DMX7704S provides more natural sound quality and details during wireless calls. The touchscreen controls of the DMX7704S can be used to dial a number, answer an in-coming call, or end a call. The unit also includes an external microphone (featuring adjustable gain), so you can carry on your side of the conversation while listening to the caller through your vehicles speakers (All or Front only). During a conversation, you can switch between the Private Mode (talking directly on your phone) and the Hands Free Mode.

    • Answering a Call: When a call comes in, a ring-tone will be heard through your vehicle's speaker and the caller's name or phone number will be displayed. You can answer the call from the head unit's touchscreen, or setup the head unit to automatically answer the incoming call immediately (1-30 seconds).
    • Dialing a Number: Using the DMX7704S, you can dial a phone number in one of the following ways:
      • Entering a Phone Number: Allows you to directly dial a phone number from the head unit's touchscreen keypad.
      • Preset Dialing: Allows you to register up to 5 phone numbers for quick dialing. The preset numbers can be accessed from the head unit's touchscreen.
      • Phonebook: You can download phonebook data (up to 1000 entries) from your phone to the DMX7704S. You can then dial by using the downloaded phone book and search it alphabetically.
      • Call History: The Call History is a list of calls that have originated from and were received by this unit that you can dial. You can select Outgoing, Incoming, or Missed calls (up to 50 entries total).
      • Voice Dialing: If your mobile phone supports voice recognition, then you can dial out by voice command. Simply speak into the included microphone.
    Note: This unit allows you to answer a call or dial out using any option without engaging the vehicle's parking brake.

    Wireless Audio Streaming: The Kenwood DMX7704S supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth-enabled smartphone or audio player, plus song/artist information display and support for AAC lossless music streaming. You are able to stream your stored music library on your Bluetooth-enabled smartphone, as well as music apps downloaded on your smartphone to the Kenwood DMX7704S for playback.

    • SBC & AAC Codecs: In addition to support for the standard SBC Bluetooth audio codec, the DMX7704S offers support of AAC codecs for higher quality audio streaming from select Apple devices. By supporting AAC, the DMX7704S offers better audio performance of the music streamed from your Apple iPod, iPhone, or iPad.
    • Advanced Music Playback: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the DMX7704S lets you browse your stored music by Playlist, Artist, Album, Song, etc. (AVRCP 1.4-up phones only; which includes Android 4.0+ and iPhone 5.0+).
    • Song/Artist Information: The head unit will also display your stored music and music app's song information; such as Artist name and Song/Album title (not compatible with all apps).
    Note: When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

    Siri Eyes Free Control: When paired and connected to an iPhone with Siri via Bluetooth, the Kenwood DMX7704S has the ability to access Siri through its front-panel controls and external microphone. Simply press-and-hold down on the head unit's "VOICE" button to engage Siri and use the included microphone to communicate with Siri. Siri's voice will heard through your vehicle's speakers. All Siri functions including hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more can be done through the DMX7704S and its microphone. You can even ask Siri to get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your iPhone with Siri. The head unit's audio is attenuated while Siri provides audible directions.

    Note: The head unit's LCD touchscreen will only display hands-free calling and Bluetooth audio information (all other functions of Siri are only audible through the Kenwood DMX7704S; visual data will still need to be viewed from your iPhone device).

    Internet+SiriusXM+HD Radio

    Internet Radio Apps (for iPhone & Android): You can access Pandora & Spotify online music services on your USB or Bluetooth connected iPhone, or Bluetooth connected Android smartphone through the Kenwood DMX7704S receiver. Your compatible mobile device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

    • Pandora: The free Pandora App (for Apple iOS 10.0+ or Android OS 4.0+) lets you play music from the Pandora music service through the DMX7704S using your USB or Bluetooth connected Apple iPhone or Bluetooth connected Android smartphone. The Kenwood DMX7704S provides control over the Pandora music service and displays Artist, Album, and Song information. You can select Pandora stations from your station list and sort them by date or alphabetically, or shuffle playback stations in your list. New stations can be created based on the current songs or artists playing. You can also select stations from a Genre list. In addition, you can skip song tracks within a station. You can even give songs a thumbs up or thumbs down. An active Pandora account is required.
    • Spotify: The DMX7704S has the ability to playback & control content from the Spotify music app (for Apple iOS 9.0+ or Android OS 4.0+) on your USB or Bluetooth connected iPhone, or Bluetooth connected Android smartphone. You can play, pause and skip tracks, browse playlists, albums and radio stations through the Kenwood receiver's touchscreen & front-panel controls. You can even create your stations by entering a track, artist,  or playlist. You also get song/artist information on the unit's LCD touchscreen. If you are a Spotify Premium user (requires a monthly paid subscription), you can enjoy ad-free, high quality music even when there is no internet connection.
    Note: Access to these Internet Radio services will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet

    SiriusXM-Ready: The Kenwood DMX7704S is SiriusXM 3.0 Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300, sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 175+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:

    • Channel List w/ Category Search: A channel list displays a list of all available channels. The Category Search function searches for channels in a certain category.
    • Song/Artist Info + Album Art: Displayed Information such as Channel Name, Channel Logo, Artist Name, Song Title, & Album Art can be viewed on the head unit's LCD
    • Smart Favorite Presets: Up to 20 SiriusXM Satellite Radio station presets can be saved. Up to 6 of your SiriusXM presets on the current band are recognized as Smart Favorites for advanced features such as TuneStart, TuneScan, & TuneMix.
      • TuneStart: TuneStart allows you to choose whether to start a song from the beginning or from its live point when tuning to a Smart Favorite channel.
      • TuneScan: TuneScan plays the first 6 seconds of each song that has not been listened to from each of the channels which you have saved as Smart Favorites.
      • TuneMix: TuneMix plays a unique blend of songs from your Smart Favorite preset music channels from the current SiriusXM preset band, allowing you to build a custom channel from as few as two to as many as six music channels.
    • Instant Replay: You can pause, rewind, and replay up to 60 minutes of current channel. You'll also be able to rewind and replay the last 30 minutes of content from your six Smart Favorite channels.
    • Alerts: Receive alerts of your favorite song or artist, favorite sports teams, plus traffic and weather.
      • Content Alerts: When a broadcast program related to the your favorite artist or song starts, a message appears to allow you to switch to that station.
      • SportsFlash: SportsFlash will notify you when a big play happens during a game with one your favorite sports teams. You can choose to tune to that station or continue to listening to the previous channel.
      • Traffic & Weather Now: Traffic & Weather Now allows you to access the latest report whenever you want to hear it by city.
    • Parental Control: Channels containing unsuitable content for children can be blocked.
    Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

    HD Radio: With its built-in HD Radio tuner, you can receive digital AM/FM broadcasts from local stations where available. HD Radio significantly improves AM/FM audio quality and reception, as well as includes information such as artist name and song titles or traffic news, viewable on the receiver's display. HD Radio Technology will deliver high-quality digital sound. AM digital will have FM-like quality in stereo (80dB SN @ 40-15kHz), while FM digital will have CD-like quality (80 dB SN @ 20-20kHz) with static free and clear reception. The unit's built-in HD Radio tuner allows analog AM/FM tuning as well.

    • Seek Modes + Direct Access Tuning: You can choose one of three seek modes: Auto 1 (seek tuning), Auto 2 (cycles through and tunes the selected band's preset stations only with each button press), or Manual. You can also setup the DMX7704S to search only HD Radio stations. In addition, you can directly access an AM/FM station by entering in the frequency number using the unit's LCD touchscreen.
    • Tuner Presets: You can store 15 FM presets and 5 AM presets (total of 20). Not only does the digital media receiver's tuner allow you manually enter your desired presets you can choose to have the unit automatically put stations with good reception in the memory banks automatically; this is a handy feature when traveling.
    • Station Info/Album Art AM/FM digital stations can offer text and data such as artist names and song titles; as well as Album Art.
    • Multicasting & Emergency Alerts: In addition to conventional broadcasts, with HD Radio broadcasting it is possible to choose from up to 8 multicast programs (HD1 to HD8). HD Radio also delivers critical and life-saving messages to the public during emergency situations.
    Note: HD Radio is the system for digital AM and FM broadcasting in the U.S. More than 2,000 radio stations are broadcasting their primary signals in digital HD Radio technology, as a free service. Go to HDRadio.com to check for HD Radio stations in your area.

    Audio & DSP Section

    24/32-Bit DAC: The Kenwood DMX7704S utilizes a 24/32-bit digital to analog converter for superior sound quality with a Signal to Noise ratio up to 98.5dB.

    MOSFET Amplifier: The Kenwood DMX7704S is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit. The power output specs for the DMX7704S are as follows:

    • Full Bandwidth Power: 22 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
    • Maximum Output Power: 50 watts x 4 channels

    6ch/4V Pre-Outs + Sub Control: The DMX7704S features front, rear and subwoofer 4.0-volt pre-outs. The front and rear speaker pre-outs are balance and fade adjustable. The subwoofer preamp output is non-fading and offers independent level control (-50 to +10 dB).

    DSP: In order to optimize the sound quality, you can use the unit's DSP to set the type of vehicle, speaker sizes & locations, listening distances, and x-over points. You can also choose to bypass the head unit's DSP feature.

    • Car & Speaker Type: Indicate the type of vehicle and the size of your vehicle's speakers, plus their location inside the vehicle.
      • Car: Select your car type - Compact, Full Size Car, Wagon, Mini Van, SUV, Mini Van (Long) or Off.
      • Speaker Size: Independently set the Front & Rear speakers to OEM 3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", 6x9", 7x10", or None. You can set the Subwoofer to 6.5", 8", 10", 12", 15"+, or None. Set the Tweeter to Small, Middle, Large, or None.
      • Speaker Location: Set the location of the Front speakers to Upper Door Area, Lower Door Area, On Dash, or Under Dash. Set the location of your Rear speakers to Upper Door Area, Lower Door Area, Upper Cargo Area, Lower Cargo Area, Upper 3rd Row Area, Lower 3rd Row Area, or Parcel Shelf Area.
    • Listening Position + Digital Time Alignment: Select your optimal listening position from All, Front Left, Front Right or Front All. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-20') for each individual speaker in the vehicle compared to your listening position. The Front Focus feature even lets you localize the sound image in front of a selected seat (Left or Right).
    • High Pass & Low Pass Crossovers: Allows you to set high-pass and low-pass crossovers for a Front, Rear, and Subwoofer speaker setup.
      • Front & Rear: Independently set high pass filter (HPF) for your front & rear speakers.
        • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
        • Slope: -6dB, -12dB, -18dB, -24dB
        • Gain: -8 to 0 dB
      • Sub: Set low pass filter (LPF) for unit sub output.
        • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
        • Slope: -6dB, -12dB, -18dB, -24dB
        • Gain: -8 to 0 dB
        • Phase: Reverse (180°), Normal (0°)

    Equalizer: The Kenwood DMX7704S offers 8 EQ Presets for east adjustment, a 13-band EQ for customized tuning, and a Drive EQ mode to overcome road noise. Separate EQ settings and EQ presets can be stored for each source or you can apply one EQ preset or curve to all sources.

    • Preset EQ: The integrated equalizer offers 8 preset sound modes (Flat, Pops, Easy, Top40, Jazz, Powerful, Rock, or User 1-4) suitable for the music genre of your choice.
    • 13-Band EQ: The User modes (1-4) allows you to manually adjust the head unit's 13-band EQ (62.5Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz, 10kHz, & 16kHz). Each frequency's gain level can be adjusted from -9dB to +9 dB.
    • Drive EQ: The Drive EQ mode helps you hear your music over road noise. It boosts certain frequencies ranges that becomes hard to hear due to road noise.

    Music Enhancement: You can restore the sound lost due to audio compression, as well as enhance the sound by virtually manipulating the soundscape.

    • Sound Realizer: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Realizer feature boosts low frequencies which can be lost during compression. Set to Level 1, Level 1, Level 3, or Off.
    • Supreme: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Supreme Setting function restores their high frequencies so the sound quality is closer to files encoded at a high bit rate. The processing is optimized for the compression format and the bit rate used. When the Supreme Setting is Off, the unit plays the original sound stored in the audio file.
    • Space Enhancer & Stage EQ: You can set the Space Enhancer to Small, Large, or Off. Each setting value indicates the soundscape level. You can also virtually raise the sound position heard from your speakers; the Stage EQ can be set to High, Middle, Low, or Off.

    Volume Level & Bass Management: The digital media receiver offers several volume level adjustments to tailor the audio output of your sources. The DMX7704S also provides bass management to get the most impact out of your system.

    • Volume Offset: The level of each source may be independently adjusted to prevent radical leaps in output volume when switching from one source to another. The available settings range from -8 to +6.
    • Bass Boost & Extension: The DMX7704S features a four-step Bass Boost (Off/1/2/3) to enhance your music's lower frequencies. When "Bass Extension" is turned on, frequencies lower than 6.25 Hz are set the same gain level as the unit's 7-Band EQ 62.5 Hz gain setting.
    • Loudness: This function enhances low and high frequencies to make the sound clearer lower volumes.

    Source Beep: The in-dash receiver provides an audible beep to confirm source selection. This function can be turned On or Off.

    AV + OEM Connectivity

    AV Input: The Kenwood DMX7704S digital media receiver is fitted with a rear-panel minijack (3.5mm) audio/video input to connect external AV sources, such as a game system, Blu-ray player, or TV tuner.

    AV Output (with Dual Zone): The unit features a composite video jack and 3.5mm audio jack to output AV signals to an optional monitor and headphone system. The unit's AV output can be set to AV-In, USB, or Off. Volume of the second zone can be controlled by the digital media receiver or your rear entertainment system.

    Notes:

    • If you select USB, iPod, Spotify, Pandora, Bluetooth, CarPlay, or Android Auto as the main source, you cannot select USB or iPod as the AV output source.
    • CarPlay, Android Auto, Bluetooth, Pandora, & Spotify cannot be selected as an AV output source.

    Rear & Front Camera Inputs: The unit features a composite video input for connecting an optional rear view camera, such as the Kenwood CMOS-230 (113CMOS230, sold separately). By connecting a rear view camera, you can use the in-dash receiver's touchscreen LCD to see what's behind you when backing up. There is also a composite video input for connecting a front dash-cam (sold separately), so you can display what's ahead of you on the head unit's touchscreen LCD monitor.

    • Parking Guide Lines: When a rear-view camera is connected and you are viewing a rear view image, parking guide lines appear on-screen making parking easy and safer. There are three color-coded horizontal guidelines and two vertical guidelines.
    • Rear-View Auto Switching: The video from this connection can be set to display when switched to this input, or display the rear view camera video automatically when the vehicle is shifted into Reverse gear. The purple/white wire of the wiring harness must be connected to the vehicle's reverse lamp circuit for automatic video switching. Automatic video switching takes approximately 0.75 seconds.
    Note: The rear view camera feature is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.

    Dash Cam Ready: In addition to the front camera input, the DMX7704S is equipped with a proprietary "Dash Cam" control input for connecting Kenwood's DRV-N520 dashboard camera (113DRV520, sold separately). The DRV-N520 offers high resolution 1080p recording, plus motion detection technology. The dashboard camera's live and recorded video are displayed on the DMX7704S' touchscreen. You'll also control the DRV-N520's settings and parameters from the DMX7704's touchscreen.

    GPS Antenna: The Kenwood head unit comes with a GPS antenna to enhance the performance of CarPlay and Android Auto navigation maps.

    OEM Integration: This Kenwood digital media receiver is compatible with the iDatalink Maestro RR (794ADSMRR, sold separately); a web programmable module that will permit the aftermarket Kenwood receiver to work with select Ford, Lincoln, and Mercury vehicles that feature the factory SYNC system; as well as select GM vehicles with factory OnStar; select Chrysler/Dodge/Jeep vehicles with U-Connect, select Volkswagens with factory digital amplifier, plus select Toyota/Scion and Honda/Acura vehicles.

    • Retained Features: The iDatalink Maestro RR lets Ford/Lincoln/Mercury, GM, Dodge/Chrysler, and VW owners swap out their factory radio for this aftermarket Kenwood head unit; while retaining the Ford Sync system, GM OnStar system, Chrysler/Dodge/Jeep U-Connect system, steering wheel controls, Bluetooth, USB interface, Satellite Radio, and 911 assist. You also get to keep the hands-free mic that comes with the car (which is specially tuned to that particular vehicle). *Retained features will vary by vehicle.
    • Extra Features: In some installations, the iDatalink Maestro RR lets you configure the head unit to operate interior climate controls and provides extra visual data; such as User Selectable Gauges, Vehicle Info (Tire Pressure/Battery Voltage/Check Engine Codes/Door Ajar Warning), and Visual Park Assist. *Extra features will vary by vehicle.

    Note: The iDatalink Maestro RR is web programmable, which means you'll need to flash the iDatalink Maestro RR interface module with the correct firmware from iDatalink's website. In addition to flashing the iDatalink Maestro RR module, you'll also need a vehicle specific harness (sold separately). The Kenwood receiver's OEM Setup menu must also be configured with your compatible vehicle's factory system before initial operation.

    Loading accessories...

    Customer Q&A

    31 questions already asked

    Q
    Are there any tutorial videos I can look at in addition to my master manual to install this deck into my 2014 dodge challenger?
    [ antwan  May 11, 2018 ]
    1 answer
    A
    I don't know of any, but I found it to be pretty straightforward when I did it in my Pontiac G6. I installed the Axxess integrated steering wheel control interface and the Onstar interface so it was a little more complicated, but following all the manuals worked for me. Good luck
    [ Dowell Jeffries  May 14, 2018 ]
    Q
    I've read that you are not able to control the navigation volume when using CarPlay. Has anyone else used CarPlay with navigation that can confirm whether this is an issue or not?
    [ Jason  May 10, 2018 ]
    1 answer
    A
    I use carplay every day and have had no issues adjusting navigation volume. My steering wheel controls work perfectly for both media (songs, radio etc) volume and navigation volume.
    [ Tal  May 10, 2018 ]
    Q
    What do the 39" USB extension cables ends look like? Standard USB A? When connected to these USBs, does it charge the phone and at what amp if so? 1.0, 2.0?? Is there a way to mount those in a nice way or should I get the mountable usb add-on cables?
    [ Samuel  Apr 24, 2018 ]
    2 answers
    A
    The cord ends in a standard USB-A female end. Fast charging works on my Pixel 2, which means the output is either 2 or 2.1 amps. I ran the cable between the plastic and the carpet on my center console on the driver and passenger side. Very unintruisive. With Android Auto, I plug in my phone, then use the Kenwood for maps, calls, music,.. Etc.
    [ BRANDON  May 02, 2018 ]
    A
    It's basically an extension, so you can plug the cable that came with you phone in. I have a Note 8, and although it's not Quick Charge 2.0, it does charge my Note 8 pretty fast. I have my wires just off to the side.
    [ David Duong  May 02, 2018 ]
    Q
    When I first purchased my radio, whenever I played my music through bluetooth, the album art/artist picture would display on the screen. Now nothing ever happens.. What could the problem be?
    [ Takia  Apr 10, 2018 ]
    2 answers
    A
    Do you have the same phone, are you playing the same songs, the image is in the song file if it is missing there will not be a picture
    [ JEFF  Apr 24, 2018 ]
    A
    If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
    [ Krissy  Apr 24, 2018 ]  Staff
    Q
    i purchased the installation kit with the Data Link Maestro that is supposed to work with my ford sync. But none of the car gauges or other options that are on the radio screen work. Could something Possibly NOT be connected?
    [ Takia  Apr 10, 2018 ]
    4 answers
    A
    The Maestro Module needs to be set up for full functionality. You have to go to the iData Link website and put in all of your information and upload it to the Maestro Device.
    [ TROY  Apr 10, 2018 ]
    A
    You might have to program it.
    [ Jason  Apr 10, 2018 ]
    A
    The idatalink module plugs into the port on the back of the kenwood, and should also have a harness that taps into the ODB-II port. That harness is where it will read vehicle diagnostics. That being said I am not sure beyond that, I purchased a PAC interface and that doesn't have those options.
    [ James  Apr 10, 2018 ]
    A
    If you have the OBDII cable plugged in, some of the cables.aren't plugged in or hooked up incorrectly. I had' an adapter that wasn't needed that was attached to the harness and it prevented me from connecting the needed cable.
    [ Albert  Apr 10, 2018 ]
    Q
    What "added functions " the 129.00 accessory kits gives to 2011 Ram Longhorn ? What gauges will be displayed on the radio ?
    [ New User  Apr 08, 2018 ]
    1 answer
    A
    Thanks for your question! For specific details regarding installation in your '11 Ram, you would be better served contacting an Advisor directly by phone (888.955.6000) or online chat. They can help determine the differences between install options in your truck so that you can make the best choice to fit your needs and preferences.
    [ Larry  Apr 17, 2018 ]  Staff
    Q
    Will my Motorola XT1650 connect to this device if using Android Auto ?
    [ adam  Mar 27, 2018 ]
    6 answers
    A
    Not sure, I run a Android S5. Unfortunately that head unit seems to have issues with it, I used an Alpine Android auto connect unit this weekend and it performed much better
    [ dennis  Mar 31, 2018 ]
    A
    If Android auto runs on the Motorola, then yes
    [ JEFF  Mar 28, 2018 ]
    A
    Yes, as long as your phone is running at least Android 5
    [ Jay  Mar 28, 2018 ]
    A
    Yes
    [ Brian  Mar 27, 2018 ]
    A
    Most likely.
    [ Morgan  Mar 27, 2018 ]
    A
    I don't see why not. As long as your phone is Android auto compatible. And you have an adapter to USB. you should be fine.
    [ Mark  Mar 27, 2018 ]
    Q
    Can you completely screen mirror your iphone and use the display to control your phone? Not talking about CarPlay.
    [ Billy  Mar 26, 2018 ]
    3 answers
    A
    No just select features and apps. Like the screen shots you see.
    [ William  Mar 26, 2018 ]
    A
    No.
    [ Craig  Mar 26, 2018 ]
    A
    Not that I know of. There's no option on the Kenwood to do that, at least not one I'm aware of! That would be cool. I had screen mirroring on my previous unit (Chinese) but the screen would not interact, it was strictly a video feed from the phone.
    [ John  Mar 26, 2018 ]
    Q
    Can I listen to flac files on a USB and use the maps app from my iphone using car play at the same time?
    [ Paul  Mar 19, 2018 ]
    1 answer
    A
    Yes. I got all my music in a usb about 32gb and you can use the maps, phone, ect.... at the same time. Its an amazing radio would totally recommend it. The dash cam for it works great too
    [ Erick  Mar 19, 2018 ]
    Q
    Is the only difference between this radio and the DDX 9704s the DVD/CD receiver?
    [ Balahké  Mar 18, 2018 ]
    1 answer
    A
    Thanks for your question. For information on comparing two or more models I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences and help you make the best choice for your system and your budget.
    [ Krissy  Mar 28, 2018 ]  Staff
    Q
    Trying to connect & activate Sirius, screen says "check tuner" and won't let me go to channel 1. What do I do?
    [ Kristen  Jan 11, 2018 ]
    2 answers
    A
    I believe there are 2 ways you can have Sirius XM on the DMX, at least in my 2013 Silverado. You can add an XM tuner to it to get Sirius XM or if you car already has Sirius XM it can use it programming the iDataLink Maestro to have it. I am using my trucks existing Sirius XM tuner with the iDataLink. I did not have to do anything with my subscription. Once installed the Sirius XM worked just fine. If you look through the audio sources you will notice that one is labeled Sirius XM and the other is just Satellite Radio. The Sirius XM source would be if you add a Sirius XM tuner, the Satellite Radio is the one that works with my trucks existing Sirius XM thru the iDataLink. Hope this helps.
    [ BrierPatch  Jan 14, 2018 ]
    A
    In my truck the existing Sirius antenna wouldn't work on the aftermarket unit. Had to buy a Sirius antenna and it worked fine after that. Sirius will transfer your subscription to the new unit free.
    [ Dave  Jan 11, 2018 ]
    Q
    how fast does this boot up?
    [ Troy  Jan 05, 2018 ]
    5 answers
    A
    Quik..i have had radio for awhile. I have no issues what so ever. The Android play is gimick e... oyher than yhat. LOVE THE RADIO
    [ Waren  Jan 05, 2018 ]
    A
    It takes about 7-10 seconds, it isnt too bad, but everything about the radio otherwise makes this a minor point.
    [ Kenneth  Jan 05, 2018 ]
    A
    NOT LONG, COUPLE SECONDS
    [ William  Jan 05, 2018 ]
    A
    I haven't timed it but it this isn't a slow receiver, it gets going at a decent speed. My previous receiver took forever compared to this. I use this receiver to link to my iPhone via carplay, and carplay takes under a minute to get going. I love this receiver, my only complaint is that Kenwood could update how their interface looks. If you like the graphics, you'll love this receiver.
    [ John  Jan 05, 2018 ]
    A
    Immediately
    [ Richard  Jan 05, 2018 ]
    Q
    do I have to use android auto or can I simply connect via Bluetooth and use my phone to control apps like google maps and spotify? seems silly to use an app to control other apps
    [ jordan  Dec 27, 2017 ]
    2 answers
    A
    YOu can do it both ways. Use your phone while connected to control apps or you can just click on that particular app in the radio itself
    [ Erick  Dec 28, 2017 ]
    A
    No, you cannot control the applications via Bluetooth. Android Auto is there to simplify the application interfaces for better/safer use while driving. There is supposedly a version of Android Auto coming that will leverage Wi-Fi, but it is not coming in the immediate future.
    [ Xirtic  Dec 28, 2017 ]
    Q
    On DMX 7704s has 2 mini jack inputs one is for bluetooth mic can the other marked AV-in can this be used for axxess steering wheel control or do you still need to wire it in 2017 Hyundia Tucson ?
    [ thomas  Nov 27, 2017 ]
    1 answer
    A
    Those inputs cannot be used for the steering wheel radio controls. There is an interface needed to make translate from the Hyundai to Kenwood languages and that interface will connect to the Blue/yellow wire on the Kenwood's harness. We have advisors that can help you get all the installation gear needed to install this receiver into our Tuscon. You can reach one on 1-800-324-9695 My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=101
    [ Paul  Dec 04, 2017 ]  Staff
    Q
    does it play video files?
    [ Bob  Nov 23, 2017 ]
    2 answers
    A
    Yes, it plays MPEG-1, MPEG-2, MPEG-4,H.264 and WMV/MKV through the USB port.
    [ Tom  Nov 23, 2017 ]
    A
    Yes. But by default one must be parked.
    [ Xirtic  Nov 23, 2017 ]
    Q
    I recently purchased this drive and I formatted a thumb drive according to the manual. I put multiple folders for music and tv shows and movies. When I go to USB on the head unit they all appear in one place and I have to press next to change the file a and I cannot browse the files by folder or type? Any help??
    [ Robert  Nov 22, 2017 ]
    1 answer
    A
    If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer, or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.
    [ Krissy  Nov 29, 2017 ]  Staff
    Q
    How do I control the climate controls with this unit?
    [ Tony  Nov 21, 2017 ]
    1 answer
    A
    You will need a control unit that is compatible with your vehicle's factory controls (e.g. Maestro RR)
    [ Josh  Nov 21, 2017 ]
    Q
    Does my phone need to be USB connected to use the Android Auto features or can it connect via bluetooth to do this? I'd like to have a wireless setup without the need to physically plug in my phone to the unit; primarily Google Maps and Google Play Music are the two apps I'd like to use wirelessly.
    [ Joe  Nov 20, 2017 ]
    6 answers
    A
    I have an iPhone and it works with Bluetooth. My maps work when I have it plugged in. It all works better hardwired.
    [ Rich  Nov 21, 2017 ]
    A
    Yes it has to be connected via the USB connection coming from the unit, my installer hid my USB connection so it's not that visible.
    [ Richard  Nov 20, 2017 ]
    A
    Yes. Must be connected by usb. Android Auto on bluetooth only doesn't exist as of yet for an aftermarket headunit as far as I know.
    [ Gary  Nov 20, 2017 ]
    A
    I assume it's the same as iPhone. You have to be tethered via USB.
    [ William  Nov 20, 2017 ]
    A
    Yes.. in order to use Android Auto.. you must connect your phone thru the usb cable. Adroid Auto wont work via Bluetooth.
    [ Jose  Nov 20, 2017 ]
    A
    To use Android Auto your phone does have to be plugged in. You can use Google maps and Google play over Bluetooth but the map won't be displayed on screen, only the audio will be played over the speakers.
    [ Julio  Nov 20, 2017 ]
    Q
    With this unit work with rear license plate cameras?
    [ Jim  Oct 23, 2017 ]
    6 answers
    A
    Yes, it has inputs for front and rear cameras
    [ Cody  Oct 23, 2017 ]
    A
    It has a front and rear camera setup just need an av Cable for non factory built in cameras
    [ Brian  Oct 23, 2017 ]
    A
    Yes I have one
    [ Anthony  Oct 23, 2017 ]
    A
    i do not have that, but yes it will work!
    [ Lawrence  Oct 23, 2017 ]
    A
    Don't see why it wouldn't,
    [ JEFF  Oct 23, 2017 ]
    A
    Yes. There is an input for that.
    [ Xirtic  Oct 23, 2017 ]
    Q
    Is this unit customizable? Such as the physical button colors, and the touchscreen background, and the homepage buttons
    [ Drew  Sep 23, 2017 ]
    3 answers
    A
    Physical button colors are customizable. The screen background can be changed to several built in backgrounds.
    [ Jay  Sep 25, 2017 ]
    A
    Absolutely. The buttons have full led color customization plus a fade setting. There are select preset background(6 I think). The three homepage can be whatever you want them to be. I have mine set to android auto, Bluetooth, and spotify.
    [ Greg  Sep 23, 2017 ]
    A
    Yes it is, and you will love what this radio. It also read USB thumb drive like movies and music ?? videos
    [ Winford  Sep 23, 2017 ]
    Q
    Can you put a memory card in it to play music?
    [ Matt  Sep 20, 2017 ]
    6 answers
    A
    You can use a USB flash drive to play music.
    [ Craig  Sep 20, 2017 ]
    A
    No "memory card" slot per se, but it has two USB cables in rear that you could easily hook up a memory stick to and even leave permanently connected if desired. Cables tout to wherever you want them (glove box, floorboard, etc).
    [ William  Sep 20, 2017 ]
    A
    Just a usb drive
    [ Michael  Sep 20, 2017 ]
    A
    No, there's no option for a memory card. You can play music through your phone or a USB/thumb drive
    [ BRANDON  Sep 20, 2017 ]
    A
    No, but you can connect a USB drive to the two available usb's and that would work, but no memory cards
    [ John  Sep 20, 2017 ]
    A
    No
    [ Richard  Sep 20, 2017 ]
    Q
    Can this connect to a car's hotspot? so I could use google maps and spotify?
    [ Jorge  Sep 09, 2017 ]
    4 answers
    A
    I don't think so, it has to be hooked to an Android to do Google maps or I phone to do iOS but the phone could be hooked to a cars hotspot and the phone hooked to the stereo
    [ JEFF  Sep 09, 2017 ]
    A
    No. There is no WiFi connection, and no internet over Bluetooth. It relies on your phone (Android Auto or Apple CarPlay) as the source for mapping and media. USB is the other source. No WiFi.
    [ Xirtic  Sep 09, 2017 ]
    A
    The way it works is when you pair via bluetooth/ wifi your phone to the radio the radio runs those apps from your phone . So you have to have those app in your phone already for it to work.
    [ Erick  Sep 09, 2017 ]
    A
    There are no smarts in this receiver to do Google maps or Spotify by itself. That functionality is done through your phone via Android Auto or Apple Carplay.
    [ CHRIS  Sep 09, 2017 ]
    Q
    Does this work with Samsung Galaxy s7 and newer? It isn't in the compatibility list, but wondering if there was an update that allows the s7 and newer to connect.
    [ Michael  Aug 24, 2017 ]
    5 answers
    A
    Yes it does (not sure about S8). I have a Galaxy S7 and it works fine. Make sure you have a good quality micro-usb cable or it won't work. You'll also need to enable Developer Options and then USB debugging (google it).
    [ Stephen  Aug 25, 2017 ]
    A
    It seems the compatibility list is outdated. Works perfectly with my Nexus 6p.
    [ Justin  Aug 24, 2017 ]
    A
    I have had no issues using it with my S7 edge. Android auto starts up the moment I plug in the usb. And if you don't want to use the USB, it plays music and will allow you to use the phone with just a bluetooth connection. It is an amazing radio with many options!
    [ Kenneth  Aug 24, 2017 ]
    A
    Mine works on a s7. I had to go on YouTube and watch a video on how to change settings to use carplay. Easy fux
    [ Waren  Aug 24, 2017 ]
    A
    My S7 connected with no issues, both via Bluetooth-only and Android Auto (which uses both Bluetooth and USB connections).
    [ MARK  Aug 24, 2017 ]
    Q
    Does this radio link with radar detectors via the idatalink maestro?
    [ Cody  Aug 08, 2017 ]
    3 answers
    A
    I think the only way is to get a permanently mounted K40 radar system. Search and you will find the release info. Out of my budget range :(.
    [ William  Aug 24, 2017 ]
    A
    In the settings there is a radar detector Icon that is grayed out on mine.
    [ Nicholas  Aug 09, 2017 ]
    A
    No
    [ Michael  Aug 08, 2017 ]
    Q
    does the phone have to be connected to the usb cable to use carplay or does carplay work over the bluetooth?
    [ beerman  Jul 30, 2017 ]
    7 answers
    A
    Yes, Carplay, and Andriod Auto only work if device is connected via USB.
    [ Justin  Aug 01, 2017 ]
    A
    It needs to be connected for CarPlay. But it can stream music and make calls over bluetooth.
    [ Rob  Aug 01, 2017 ]
    A
    Needs the cable, Pioneer has come out with one that does this over BT
    [ JEFF  Jul 31, 2017 ]
    A
    Ok it works eighter way. But when you need to connect the car play you need tongo to your phone settings to change. It. I got an iphone sonin the iphone when you press the car play it ask for the type of connection if bluetooth or usb only. If u got an android the phone needs to be connected via bluetooth easier setup and if you going to use it connected then you sellect the usb like the iphone. Advantage of usb is that the phone charges at the same time its connected to the radio. If you got a different type of phone check the manual it has a list of phones it works with.
    [ Erick  Jul 31, 2017 ]
    A
    You must connnect by cable to use CarPlay
    [ Carl  Jul 31, 2017 ]
    A
    It must be plugged in via USB.
    [ Blake  Jul 31, 2017 ]
    A
    yep...need to connect with cable to phone to use carplay
    [ Lawrence  Jul 31, 2017 ]
    Q
    Can this connect two phones at the same time? Iphone and android.
    [ Antonio  Jul 01, 2017 ]
    4 answers
    A
    Playing music is limited to one phone at a time. U can have a few hooked up and switch when it picks them up. No matter what it's one at a time tho.... so u have to do that manually but really easy
    [ Rich  Nov 21, 2017 ]
    A
    To the best of my knowledge both android An Apple can be plugged in at the same time only one can be used at a time the other will just be used as charging The phone not being used at that moment
    [ Anthony  Oct 23, 2017 ]
    A
    The manual states the unit can support two phones. The USB connections have one for Android and one for Apple I believe. You can download the manual to confirm.
    [ Tommie  Jul 02, 2017 ]
    A
    Yes, phone calls can come through both but I think playing music is limited to one phone
    [ William  Jul 02, 2017 ]
    Q
    Can i connect the stock rear veiw camera(incase this is needed mazda cx5 2016.5) for reversing to this unit?
    [ whoizaghost  Jun 30, 2017 ]
    1 answer
    A
    You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
    [ Kenny  Jun 30, 2017 ]  Staff
    Q
    Is it possible to have USB playback during Carplay use?
    [ Steven  Jun 16, 2017 ]
    3 answers
    A
    Yes. While playing music from a USB, I was able to start Android Auto (and I assume CarPlay) and navigate or see my AA home screen. I'm not sure if it would work with voice commands without stopping USB playback.
    [ Mark  Jun 17, 2017 ]
    A
    If CarPlay is treated the same as Android Auto, then I would say yes. I do this regularly.
    [ Xirtic  Jun 16, 2017 ]
    A
    Apple CarPlay basically mimics your phone on the screen. It has to be tethered to use. When connected you can play from your music or select apps like Pandora, Spotify, and Amazon music. Radio can play music off a USB memory device but that would not be using CarPlay.
    [ William  Jun 16, 2017 ]
    Q
    Does this unit have a warning message at startup that requires you to accept each time the unit turns on?
    [ Brad  May 30, 2017 ]
    5 answers
    A
    Yes but it will go away if you have it checked
    [ JEFF  Jul 31, 2017 ]
    A
    Yes, but it disappears after 10 sec if you have the option selected
    [ Justin  May 31, 2017 ]
    A
    Yes it does. You can also check a box on the same screen (one time) that makes it automatically go off after 10 seconds.
    [ Carl  May 30, 2017 ]
    A
    Yes, unfortunately
    [ Joe  May 30, 2017 ]
    A
    Yes it does.
    [ Travis  May 30, 2017 ]
    Q
    Is Waze compatible with Android Auto on the Kenwood DMX7704S? I've read that the new Pioneer units are specifically Waze-compatible.
    [ The Crusher  May 19, 2017 ]
    4 answers
    A
    works on my pixel
    [ Mark  Mar 27, 2018 ]
    A
    Yes I have been able to use waze with my galaxy s8
    [ Richard  Sep 20, 2017 ]
    A
    I have not been able to get WAZE to work on my Galaxy S6 and the Kenwood. Supposedly, the way to do it is to change the default mapping app. But for me, it's greyed out, so I can't. It might be something specific with the phone. I'm getting a new phone is a couple weeks, so haven't been too worried about that yet. Otherwise. Android Auto is working very well for me.
    [ CHRIS  May 20, 2017 ]
    A
    Hi. I am in the Waze beta program for Android Auto. The beta has yet to be officially released (in the US anyway) but everything I read/interpret in the forum indicates it's not too far away. I recently installed this same head unit, and based on what I have read Waze/AA combination should work. Obviously need to get the Waze beta for AA to confirm. I'm confident it will as I suspect AA and related configurations are driven from the smartphone. Kenwood does have a site for firmware upgrades (none for our unit as it's very new) so if the head unit needed an update I'm sure Kenwood would offer a firmware upgrade.
    [ Tommie  May 19, 2017 ]
    Q
    Does this include GPS? It says in the overview GPS antenna included.
    [ Ken_J  Apr 05, 2017 ]
    2 answers
    A
    I'm sorry for the long delay. I forwarded your question to an Advisor and they responded with the following: There is no separate Navigation module. The navigation is done through the Apple Carplay or Android Auto features of your cell phone. This allows you to use the maps from your phone and the GPS antenna helps boost the signal for navigation. If you would like to discuss further you can contact an Advisor directly by phone (1-800-324-9695) or online chat.
    [ Kenny  Apr 08, 2017 ]  Staff
    A
    Thanks for your question. Navigation is not included but is an optional accessory. The antenna is included to help with connecting a navigation module. Hope this helps.
    [ Kenny  Apr 05, 2017 ]  Staff
    SHOW MORESHOW LESS

    Loading articles...

    TOP
