Kenwood DMX9706S

Digital multimedia receiver (does not play CDs)

Item # 113DMX9706

Kenwood builds wireless Apple CarPlay® and wireless Android Auto™ into this powerhouse of a receiver.

Find what Fits your car

Kenwood builds wireless Apple CarPlay® and wireless Android Auto™ into this powerhouse of a receiver.

Need help?
Contact our Virginia-based experts.

Ships free

In stock

Deeply discounted installation gear

$599.99 -$100.00 Instant savings

$499.99

About the Kenwood DMX9706S

Add wireless Apple CarPlay and Android Auto

If you're ready to step up your dash, Kenwood's DMX9706S multimedia receiver with its customizable, widget-based 6.95" touchscreen display lifts you all the way up... and then some! Let's talk about the convenience factor: Kenwood builds wireless Apple CarPlay® and wireless Android Auto™ into this powerhouse of a receiver, which means you'll get all the best smartphone integration features while your phone stays in your pocket or bag. If you need a charge, connect your phone via USB and functionality remains the same.

Add wireless Apple CarPlay and Android Auto

If you're ready to step up your dash, Kenwood's DMX9706S multimedia receiver with its customizable, widget-based 6.95" touchscreen display lifts you all the way up... and then some! Let's talk about the convenience factor: Kenwood builds wireless Apple CarPlay® and wireless Android Auto™ into this powerhouse of a receiver, which means you'll get all the best smartphone integration features while your phone stays in your pocket or bag. If you need a charge, connect your phone via USB and functionality remains the same.

When it comes to music, Kenwood gives you lots of great options, including high-res audio playback, and cool music service options. Bluetooth makes it happen for hands-free calling and music streaming.

Wireless smartphone integration and more

With your iPhone® or Android™ smartphone connected to the DMX9706S via USB, you'll gain a variety of apps that are simple to switch between, whether you're using this radio's touchscreen or voice control. This receiver also offers:

  • Wireless Android Auto: Android Auto integrates the Android platform into your driving experience in a non-distracting way. You'll have voice control access to Google Maps, weather, music, your phone, text messages, plus easy access to many of your favorite apps. Get more info at https://www.android.com/auto.
  • Wireless Apple CarPlay: CarPlay integrates your iPhone® into the driving experience, putting iPhone content at the driver's voice command with minimal distraction. That means easy access to your music library, your phone, messages, navigation, and many third-party streaming music apps, too. Learn more at https://www.apple.com/ios/carplay.
  • Phone swapping: If your family includes both iPhone and Android users, you simply plug in the phone you want to use without having to choose a particular input or adjust menu settings for control.

Additionally, Kenwood's built-in Wi-Fi allows you to wirelessly mirror select Android devices on your touchscreen while your parking brake is engaged, so you can view an app not supported by Android Auto.

Bluetooth for more than one

The DMX9706S lets you pair two Bluetooth-equipped phones and quickly switch between them for hands-free calling — an excellent road trip convenience. And when you're streaming music, Kenwood's Music Mix lets you pair five phones so everybody can pick their tunes for an on-the-fly listening session.

Three camera inputs

These days, vehicle cameras are a must for safer driving, and Kenwood gives you three video inputs for front-, side-, and rear-view cameras. Kenwood also provides a proprietary input for the DRV-N520 dash cam. You can use electronic angle adjustment of your display to tailor the screen's contrast for the best viewing in your vehicle's dash location. This Kenwood plays video content in bright, clear detail when you're parked. When you're on the road, you can entertain your passengers by sending a movie from the receiver to a rear-seat screen, while you enjoy your music up front.

Two USB inputs and more

Two rear USB inputs open up your source options, and there's great news for audiophiles — this receiver supports high-res file playback of music stored on a USB drive. Do you use Pandora™ and Spotify™ all the time on your smartphone? This receiver makes it easy. And if you're looking for radio stations that won't fade away as you leave the city limits, add a SiriusXM tuner (not included) to this Kenwood to enjoy satellite radio's extensive programming wherever you may roam.

Shape your sound from your dash

This receiver's suite of sound-crafting tools include a 13-band equalizer, deep crossover settings, and built-in digital time alignment. Bring back the depth and detail for all your digital music sources with this receiver's processing power. If your car speakers are located down low in the doors, this receiver offers Stage EQ, which adjusts your music's frequencies to virtually "raise" your speakers for better, more natural imaging.

The DMX9706S also includes three pairs of 4-volt RCA preamp outputs that provide an ultra-clean signal when it's time to add amplifiers to your system. And if you're building a 3-way system, this receiver gives you that next-level crossover capability.

iDatalink Maestro lets you keep your factory extras

The DMX9706S offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio. You'll also be able to check out engine performance data and other vehicle info on the Kenwood's screen, even radar info from a compatible detector. Once you've identified your vehicle, you'll see the iDatalink module offered on the way to the Shopping Cart if it's compatible.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

READ LESS

Product highlights:

    General Features:
    • digital multimedia player with AM/FM tuner
    • plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
    • 6.95" Clear Resistive touchscreen display
    • customizable widget-style display
    • Waze-ready with Apple CarPlay or Android Auto
    • electronic viewing angle display adjustment
    • fits double-DIN (4" tall) dash openings
    Smartphone Features:
    • wireless or wired Android Auto compatible
    • wireless or wired Apple CarPlay compatible
    • wireless mirroring for select Android devices
    • built-in Bluetooth with dual phone connection for hands-free calling and music streaming
    • display and command of select music, navigation, and other apps with iPhone and Android
    • Pandora and Spotify control with iPhone and Android; Apple Music control with iPhone only
    • Siri Eyes Free control for select iPhones
    • compatible with Google Assistant when using Android Auto
    • built-in iPod, iPhone, and iPad control and rapid Android charging via USB port
    Audio/Visual Features:
    • 13-band graphic EQ
    • Drive EQ and digital signal processing
    • 3-way crossover
    Expandability:
    • compatible with SiriusXM satellite radio tuner
    • inputs:dual rear USB input, three camera inputs
    • outputs: rear analog A/V output, 6-channel preamp outputs (4-volt front, rear, sub)
    Other Information:
    • built-in amplifier (22 watts RMS/50 peak x 4 channels)
    • compatible with most factory steering wheel audio controls (adapter required)
    • works with iDatalink Maestro module
      • retains factory features in a wide selection of vehicles
      • displays engine performance data on touchscreen
    • warranty: 1 year
    • Our 60-day money-back guarantee
    • MFR # DMX9706S

    What's in the box:

    • Digital media receiver w/ fixed 6.95" touchscreen monitor (15A fuse)
    • Sleeve (attached)
    • Trim ring
    • Wiring harness
    • Two 39" USB extension cables
    • GPS antenna (attached 11.5' cable terminated by a proprietary connector)
    • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
    • Self-adhesive pad
    • 2 Radio removal tools
    • 6 Pan-head ISO-mount screws
    • 6 Flat-head ISO-mount screws
    • Quick Start Guide
    • Warranty card

    Featured video:

    Customer reviews

    Loading reviews...

    Kenwood DMX9706S reviews

    Average review:

    6 reviews

    Thanks for submitting your review

    Filter by rating

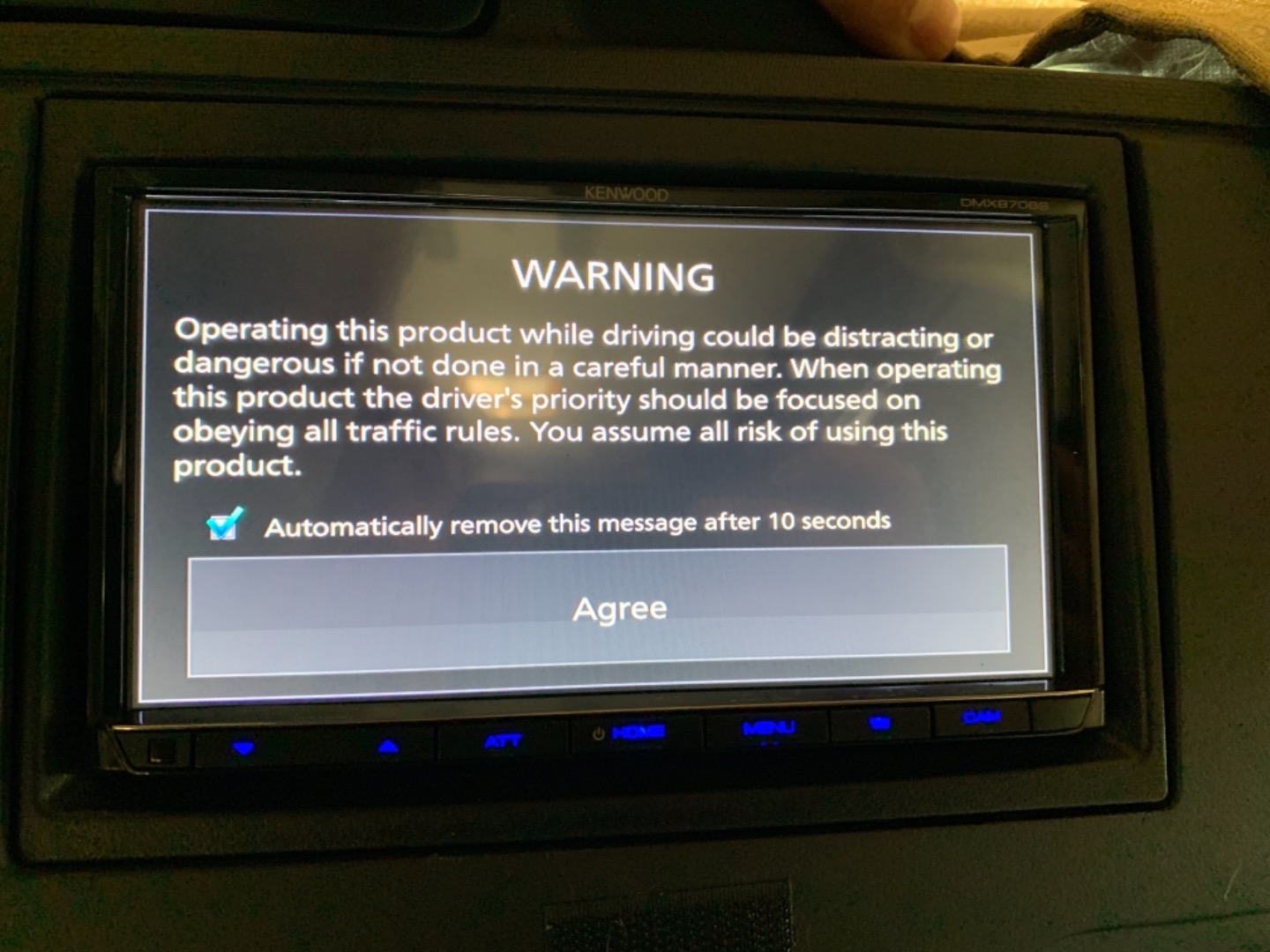

    Customer photos

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Pros:

    Cons:

    Crutchfield response

    << >>

    More details on the Kenwood DMX9706S

    Stacey B.

    Features & specs

    Expandability
    AUX Input Mini (rear)
    Audio/video Input Mini (rear)
    USB Input Rear (2)
    Backup Camera Input Yes
    Second Camera Input Yes
    CarPlay Wireless
    Android Auto Wireless
    Siri Control CarPlay only
    Android Control Yes
    Memory Card Slot USB
    Bluetooth Compatible Built-in
    Satellite Radio Ready SiriusXM 3.0
    HD Radio No
    Navigation Optional
    iPod Compatibility
    Full size No
    Nano No
    Touch 6
    iPhone XSMax/XS/XR/X/8+/8/7+/7/6S+/6S
    General
    RMS Power (CTA-2006) N/A
    RMS Power (Manufacturer) 22 watts
    Peak Output 50 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 6-channel
    Sub Preamp Outputs Yes
    Switchable Rear Preamp Outputs No
    Video Screen Yes
    Navigation App Compatible (iOS) Apple, Google, Waze
    Navigation App Compatible (Android) Google,Waze
    Preamp Voltage 4 volts
    Screen Size 6.95
    Display Color
    Key Button Color Variable
    EQ Bands 13
    Wireless Remote Optional
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Tuner
    FM Sensitivity 9.3 dBf
    European Tuning No
    Seek/Scan Seek
    Radio Data System Yes
    File Playback
    Music File Playback MP3,WMA,AAC,FLAC,WAV
    High-res Playback WAV/FLAC (24-bit/192kHz)

    Product Research

    Android (Android Auto) & iPhone (CarPlay) Integration
    Built-in Bluetooth
    Internet+SiriusXM+AM/FM Radio
    USB + AV Playback
    Audio & DSP Section
    Camera & OEM Connectivity
    Touchscreen & Remote Control

    Android (Android Auto) & iPhone (CarPlay) Integration

    Android Auto Wireless: The Kenwood DMX9706S supports the Android Auto app for select Android smartphones using a wired or wireless connection. You can connect Google's Pixel/Pixel XL, Pixel 2/2XL, Pixel 3/3XL, and Nexus 5X/6P (running Android OS 8.0 Oreo or higher and version 4.7 or higher of the Android Auto app) or Samsung's Galaxy S8/S8+, Galaxy S9/S9+, S10/S10+, and Note 8/9/10 (running Android OS 9.0 Pie or higher and version 4.7 or higher of the Android Auto app) to the Kenwood receiver wirelessly using WiFi and Bluetooth (both wireless connections must be made; a wired USB connection must be made initially between the Android phone and the Kenwood receiver to setup Wireless Android Auto). Android smartphones running Lollipop 5.0 or higher can be connected to the Kenwood receiver's "grey" USB port (not "black") using the included USB extension cable and USB cable that came with your smartphone, plus be paired via Bluetooth. Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into a simple on-screen interface that is simple to use in the vehicle. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include -

    • Google Assistant: The Kenwood receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, listen to music, or even control select Google Assistant smarthome enabled devices.
    • Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and Google Speech Technology. You can even listen to music from your Android Auto device or other connected source device while using Google Maps. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
    • Phone & SMS: With Android Auto you get access to your contacts and messages through the Kenwood receiver while keeping your eyes on the road. Use the unit's external mic and Google Speech Technology to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
    • Music: Access your Android smartphone's music library through the Kenwood receiver via Google Play Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and Google Speech Technology. You also get access to online music and radio stations from Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, Slacker Radio, Tune-In, and more; as well as news, sports and talk radio apps. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible app for Android Auto.

    Notes:

    • The initial setup for Android Auto requires that your vehicle be stopped and the parking brake is engaged. You will need to connect the parking brake wire of the receiver's harness to your vehicle's parking brake circuit for the head unit to recognize that the vehicle's parking brake is engaged.
    • Only one Android device with Android Auto can be connected at a time. An Android Auto device and Apple CarPlay device cannot be connected at the same time.
    • Bluetooth hands-free phone and wireless music streaming cannot be used while Android Auto is being used with a connected Android smartphone.
    • Use a USB cable that is under 6' long and avoid using any extension cable other than the one supplied. If you need an additional USB extension cable, use Kenwood's CA-U1EX USB extension cable (113CAU1EX, sold separately); any other USB extension cable can cause Android Auto to malfunction.
    • Click here to learn more About Android Auto and to see what phones are compatible.

    Wireless Apple CarPlay: Apple CarPlay is a smarter, safer in-vehicle interface to operate your iPhone with Lightning Connecter, and is specially designed for driving scenarios. Your iPhone can be connected to the Kenwood DMX9706S wirelessly or via USB. A wireless connection to your compatible iPhone (iOS 9.0+) can be made using the Kenwood receiver's built-in WiFi (5GHz) and Bluetooth (2.4GHz) - requires both wireless connections. Or, you can choose to connect your compatible iPhone (iOS 7.1+) to the Kenwood receiver via USB. Your iPhone will need to be connected to the Kenwood receiver's "black" USB port (not "grey") via the included USB extension cable and the Lightning-cable that came with your Apple device or Kenwood's Lightning connector-to-USB cable (113KCIP103 sold separately). You can control CarPlay from the Kenwood receiver's touchscreen controls or use Siri to control to control CarPlay with just your voice. You'll be able to use CarPlay to get directions, make phone calls, listen to voice mails, send/receive text messages, select music, and even control Apple HomeKit compatible devices in a way that keeps you focused on the road ahead.

    • Navigation Maps: The power and simplicity of Apple Maps comes to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze, you can choose to navigate via the Google Maps or Waze application instead of Apple Maps. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
    • Phone & Messages: You'll be able to make calls, return missed calls, and listen to voicemails through the Kenwood receiver. Siri can also help you do all these things. In addition, Siri can send, read, and reply to your text messages for you; so you never have to look at your iPhone while driving.
    • Music Library: Access your artists, song, playlists, and iTunes Radio on your iPhone using the Kenwood receiver's touchscreen. Or, just tell Siri what you'd like to listen to. The head unit's touchscreen will display song/artist information, as well as album art in the background.
    • Apps: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, radio, sports, news, podcasts, & audiobooks (subscriptions and fees may apply). Control these apps from the head unit's touchscreen just like you would from your iPhone. Current supported apps include:
    • Apple HomeKit Compatible: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.

    Notes:

    • Wireless Apple CarPlay will not work without a vehicle speed pulse connection. You will need either a radio replacement interface with a vehicle speed pulse connection or Kenwood's OBD-II Spped Pulse Generation (KNA-SPM100) - both sold separately. Alternatively, you can also hardwire the Kenwood receiver's speed pulse wire to your vehicle's speed pulse wire (this method is much more time consuming and requires more installation experience).
    • Only one Apple iPhone with CarPlay can be connected at a time. An Apple CarPlay and Android Auto device cannot be connected at the same time.
    • Bluetooth hands-free phone and wireless music streaming cannot be used while Apple CarPlay is being used with a connected iPhone.
    • If you need an additional USB extension cable, use Kenwood's CA-U1EX USB extension cable (113CAU1EX, sold separately). Any other USB extension cable can cause CarPlay to malfunction.

    Miracast for Android (Wireless Mirroring): Wi-Fi Certified Miracast lets you wirelessly send the display of your compatible Android OS 4.2+ device that also supports Miracast to the Kenwood receiver's touchscreen monitor. This allows you to view practically any content that is playing on your compatible Android device on the receiver's touchscreen (vehicle's parking brake must be engaged). Control will still be done from your Android device's touchscreen (not the Kenwood receiver). Click here to check for Miracast compatible Android smartphones and tablets.

    Notes:
    • Miracast (wireless mirroring) will require that the vehicle's parking brake be engaged to mirror your smartphone or view any content from your smartphone on the Kenwood receiver's touchscreen monitor. Only audio content will be heard without the vehicle's parking brake engaged.
    • The Apple iPhone does not support Miracast or wireless mirroring.

    iPod/iPhone Music Playback Only: If you don't desire Apple CarPlay, you can also connect your Lightning-connector Apple iPod/iPhone to the DMX9706S for music playback & control only using Kenwood's Lightning connector-to-USB cable (113KCIP103 sold separately) or the Lightning-to-USB cable that came with your Apple device. Simply plug your compatible Apple device into either of the receiver's rear-panel USB ports. The Kenwood receiver supports playback of stored music and music apps, along music browsing and playback control, plus song/artist information and album art.

    • Head Unit Control: The Kenwood head unit allows you to navigation your iPod/iPhone's music library from its front-panel & touchscreen controls. The head unit offers unique search features like Category Search & Link Search, plus offers basic playback functions like Play/Pause, Fast Forward/Rewind, Previous/Next Track and Repeat/Random of your connected iPod/iPhone. You'll also still be able to control your connected iPod touch or iPhone from its own touchscreen so you can access other music applications.
      • Category Search: Category Search allows you to navigate your iPod/iPhone's music library by Playlist, Artists, Album, Song, Genre, Song, Podcast, Audiobook, or Radio. You can then search each of these categories using the head unit's touchscreen slider function (categories will be listed in alphabetical order).
      • Link Search: The head unit offers Link Search, which allows you to play songs related to the currently playing song. Link Search lets the head unit create an album list of the currently playing artist, a song list of the currently playing album, a artist list of the currently playing genre, or a album list of currently playing composer.
    • Song/Artist Info & Album Art: The DMX9706S will display your iPod/iPhone's stored music information including Track number, Elapsed playing time, Song/Album title, Artist name, and Album art. The unit will also display song/artist info and album art from select music apps.

    Note: Only one Apple Lightning-connector device can be connected at a time.

    Apple Device Compatibility Chart: The Kenwood DMX9706S is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 6/7/2019) -

    Apple Device Generation Tested Version Media Type Control Type Specific Apps Display Type Bluetooth Charge
    Audio Video Head Unit iPod/iPhone CarPlay Pandora Spotify Album Art Song/Artist Track Info Phone Audio Siri
    iPhone
    5/5C 10.3.3 Y N Y Y Y N Y Y Y Y Y Y Y Y
    5S/SE 12.3.1 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    6/6+/6S/6S+ 12.3.1 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    7/7+/8/8+ 12.3.1 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    XS-Max/XS/XR/X 12.3.1 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    touch
    5th 9.3.5 N N N N N N N N N N N Y N Y
    6th 12.3.1 Y N Y Y N N N Y Y Y N Y N Y
    nano
    7th 1.02 PC N N N N N N N N N N N Y N Y
    Notes:
    • Not compatible with 30-pin Apple devices.
    • Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

    Built-In WiFi: The Kenwood DMX9706S receiver's built-in WiFi can only be used for Wireless Apple CarPlay, Android Auto Wireless, and Wireless Mirroring via Miracast for select Android devices. The built-in WiFi is not designed to be used with WiFi hotspots.

    Cellular & Data Plan Requirements: Access to CarPlay and Android Auto apps will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Your compatible Apple or Android device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

    GPS Antenna: The included GPS antenna must be installed for Android Auto and Apple CarPlay navigation maps. The GPS antenna comes with a self-stick pad which mounts it on top of your dash inside the vehicle.

    Smartphone Charging: The Kenwood DMX9706S will also charge (5V/1.5A) your Android smartphone or Apple iPod/iPhone device while connected via USB with the vehicle's ignition switch set to the 'ACC' or 'On' position.

    Built-in Bluetooth

    Bluetooth 5.0: The Kenwood DMX9706S is equipped with built-in Bluetooth 5.0 allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

    • Hands-Free Communication: HFP 1.7 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile)
    • Audio Streaming: A2DP 1.3 (Advanced Audio Distribution Profile), AVRCP 1.6 (Audio/Video Remote Control Profile).
    Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Kenwood DMX9706S. Visit Kenwood's Support Site for a complete list of compatible Bluetooth enabled phones.

    SSP & Auto Pairing: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the Kenwood DMX9706S without having to enter pin codes or go through complicated settings. You can even pair your Apple iPhone (iOS 5+) or by simply connecting it to the Kenwood head unit via USB and following a single prompt on the head unit's display. You can pair up to ten Bluetooth-enabled devices to the Kenwood head unit. When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.

    • Dual Phone Connection: Thanks to the Dual Phone Connection feature, two Bluetooth-enabled phones can remain connected to the Kenwood receiver. This means you can an answer an incoming call from either phone from the head unit. Also, both of your phone's contact lists are downloaded to the receiver. To make a call from one of the phones using the Kenwood receiver, you simply have to select Phone 1 or Phone 2 on the head unit's touchscreen.
    • Music Mix: The new Music Mix feature allows five Bluetooth audio source devices to be connected to the Kenwood receiver at one time, so you can switch between Bluetooth playback sources a lot easier and quicker. While "BT Audio" source is selected on the head unit, you can simply press the music playback button on your connected Bluetooth source devices to switch between devices and begin music playback. However, you cannot stream audio from two different Bluetooth audio source devices at the same time or combine music libraries or playlists from two different connected devices.

    Hands-Free Communication: The head unit supports Bluetooth hands-free communication for your Bluetooth enabled smartphone. Thanks to the latest Hands-Free Profile (HFP 1.7) with wideband speech capability, the Kenwood DMX9706S provides more natural sound quality and details during wireless calls. The touchscreen controls of the DMX9706S can be used to dial a number, answer an in-coming call, or end a call. The unit also includes an external microphone (featuring adjustable gain), so you can carry on your side of the conversation while listening to the caller through your vehicles speakers (All or Front only). During a conversation, you can switch between the Private Mode (talking directly on your phone) and the Hands Free Mode.

    • Answering a Call: When a call comes in, a ring-tone will be heard through your vehicle's speaker and the caller's name or phone number will be displayed. You can answer the call from the head unit's touchscreen, or setup the head unit to automatically answer the incoming call immediately (1-30 seconds).
    • Dialing a Number: Using the DMX9706S, you can dial a phone number in one of the following ways:
      • Entering a Phone Number: Allows you to directly dial a phone number from the head unit's touchscreen keypad.
      • Preset Dialing: Allows you to register up to 5 phone numbers for quick dialing. The preset numbers can be accessed from the head unit's touchscreen.
      • Phonebook: You can download phonebook data (up to 1000 entries) from your phone to the DMX9706S. You can then dial by using the downloaded phone book and search it alphabetically.
      • Call History: The Call History is a list of calls that have originated from and were received by this unit that you can dial. You can select Outgoing, Incoming, or Missed calls (up to 50 entries total).
      • Voice Dialing: If your smartphone supports voice recognition (including Siri and Google Voice), then you can dial out by voice command. Simply speak into the included microphone.
    Note: This unit allows you to answer a call or dial out using any option without engaging the vehicle's parking brake.

    Wireless Audio Streaming: The Kenwood DMX9706S supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth-enabled smartphone or audio player, plus song/artist information display and support for AAC lossless music streaming. You are able to stream your stored music library on your Bluetooth-enabled smartphone, as well as music apps downloaded on your smartphone to the Kenwood DMX9706S for playback.

    • SBC & AAC Codecs: In addition to support for the standard SBC Bluetooth audio codec, the DMX9706S offers support of AAC codecs for higher quality audio streaming from select Apple devices. By supporting AAC, the DMX9706S offers better audio performance of the music streamed from your Apple iPod, iPhone, or iPad.
    • Advanced Music Playback: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the DMX9706S lets you browse your stored music by Playlist, Artist, Album, Song, etc. (AVRCP 1.4-up phones only; which includes Android 4.0+ and iPhone 5.0+).
    • Song/Artist Information: The head unit will also display your stored music and music app's song information; such as Artist name and Song/Album title (no album art).
    Note: When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

    External Microphone: The Kenwood DMX9706S includes an external microphone to carry on your side of your phone conversation and voice command dialing. The external wired microphone offers improved audio quality versus an integrated microphone, so you can be heard easier over noisy traffic and road noise. You can adjust the volume level, echo cancellation, and noise reduction of the microphone without affecting the other sources. The external microphone features an attached 10' cable terminated by a right-angle 3.5mm connector which plugs into the mic input on the rear-panel of the head unit. The microphone offers an integrated mounting bracket which can be clipped to your vehicle's sun-visor or taped to your dash.

    Internet+SiriusXM+HD Radio

    Internet Radio Apps (for iPhone & Android): You can access Pandora & Spotify online music services on your USB or Bluetooth connected iPhone, or Bluetooth connected Android smartphone through the Kenwood DMX9706S receiver. You can also access Apple Music Radio through your USB or Bluetooth connected iPhone. Your compatible mobile device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi. Subscriptions and fees will apply.

    • Pandora: The free Pandora App (for Apple iOS 11.0+ or Android OS 4.0+) lets you play music from the Pandora music service through the DMX9706S using your USB or Bluetooth connected Apple iPhone, or Bluetooth connected Android smartphone. The Kenwood DMX9706S provides control over the Pandora music service and displays Artist, Album, and Song information. You can select Pandora stations from your station list and sort them by date or alphabetically, or shuffle playback stations in your list. New stations can be created based on the current songs or artists playing. You can also select stations from a Genre list. In addition, you can skip song tracks within a station. You can even give songs a thumbs up or thumbs down. An active Pandora account is required.
    • Spotify: The DMX9706S has the ability to playback & control content from the Spotify music app (for Apple iOS 10.0+ or Android OS 4.0+) on your USB or Bluetooth connected iPhone, or Bluetooth connected Android smartphone. You can play, pause and skip tracks, browse playlists, albums and radio stations through the Kenwood receiver's touchscreen & front-panel controls. You can even create your stations by entering a track, artist, or playlist. You also get song/artist information on the unit's LCD touchscreen. If you are a Spotify Premium user (requires a monthly paid subscription), you can enjoy ad-free, high quality music even when there is no internet connection.
    • Apple Music Radio (iPhone Only): You can playback Apple Music Radio on your USB or Bluetooth connected Apple iOS 9.3.5+ device through the Kenwood DMX9706S. With a WiFi or cellular connection on your iPhone, you can listen to Beats 1 and other live radio stations through the Kenwood receiver. Apple Music subscribers can also listen to on-demand stations for almost any genre or create their own stations. You can use the head unit's touchscreen to select between your Apple Music Radio stations. The touchscreen will also display song/artist/album information, along with Album art.
    Note: Access to these Internet Radio services will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Not supported in Canada and only available in the United States.

    SiriusXM-Ready: The Kenwood DMX9706S is SiriusXM 3.0 Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300, sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 140+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:

    • Channel List w/ Category Search: A channel list displays a list of all available channels. The Category Search function searches for channels in a certain category.
    • Song/Artist Info + Album Art: Displayed Information such as Channel Name, Channel Logo, Artist Name, Song Title, & Album Art can be viewed on the head unit's LCD
    • Smart Favorite Presets: Up to 20 SiriusXM Satellite Radio station presets can be saved. Up to 6 of your SiriusXM presets on the current band are recognized as Smart Favorites for advanced features such as TuneStart, TuneScan, & TuneMix.
      • TuneStart: TuneStart allows you to choose whether to start a song from the beginning or from its live point when tuning to a Smart Favorite channel.
      • TuneScan: TuneScan plays the first 6 seconds of each song that has not been listened to from each of the channels which you have saved as Smart Favorites.
      • TuneMix: TuneMix plays a unique blend of songs from your Smart Favorite preset music channels from the current SiriusXM preset band, allowing you to build a custom channel from as few as two to as many as six music channels.
    • Instant Replay: You can pause, rewind, and replay up to 60 minutes of current channel. You'll also be able to rewind and replay the last 30 minutes of content from your six Smart Favorite channels.
    • Alerts: Receive alerts of your favorite song or artist, favorite sports teams, plus traffic and weather.
      • Content Alerts: When a broadcast program related to the your favorite artist or song starts, a message appears to allow you to switch to that station.
      • Sports Flash: Sports Flash will notify you when a big play happens during a game with one your favorite sports teams. You can choose to tune to that station or continue to listening to the previous channel.
      • Traffic & Weather Now: Traffic & Weather Now allows you to access the latest report whenever you want to hear it by city.
    • Parental Control: Channels containing unsuitable content for children can be blocked.
    Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

    AM/FM Tuner: The Kenwood DMX9706S features a built-in AM/FM tuner with manual, seek, and preset tuning. You can choose one of three tuning modes: Auto 1 (seek tuning), Auto 2 (cycles through and tunes the selected band's preset stations only with each button press), or Manual. Not only does the multimedia receiver's tuner allow you manually enter your desired presets (18FM/6AM) you can choose to have the unit automatically put stations with good reception in the memory banks automatically; this is a handy feature when traveling. Mono mode reduces the noise (static) when a stereo broadcast is received as monaural (for FM band only).

    • RDS (Radio Data System): RDS (Radio Data System) is a service used by some radio stations to transmit data outside of normal radio broadcast signals. When an RDS station is received, you can immediately find out what kind of data is being transmitted by looking at the program service name which appears in the display after the frequency.
    • Emergency Alerts: RDS features an emergency transmission function which interrupts regular programming to broadcast an emergency announcement (such as a tornado or severe storm).
    • Traffic Information: There is also a switchable Traffic Information function, which will automatically tune a traffic bulletin when it is broadcast on FM only, even when you're not listening to the radio.

    USB + AV Playback

    USB MSC Playback (Dual USB Ports): The Kenwood DMX9706S features two rear-panel USB inputs (one is "black" and the other is "grey"). Each rear-panel USB input consists of a USB (type-A) port attached to the rear-chassis by a 7" pigtail and comes with a 39" USB extension cable. These USB ports can be used for connection and control of up to two portable USB mass-storage class (MSC) devices, such as a USB thumbdrive. The USB ports enable playback of a variety of audio (including Hi-Res), video, and photo files stored on a compatible USB memory device (see chart below). USB portable audio devices that can be charged via USB will be charged when plugged into the digital media receiver's USB ports (5V/1.5A), and the vehicle's ignition switch is set to ACC or On.

    • Category Search: You can navigate music stored on your USB memory device by Playlist, Artist, Song, or Album. The content within each category will be listed in alphabetical order.
    • Link Search: Link Search allows you to play songs related to the currently playing song. The head unit can create an album list of the currently playing artist, a song list of the currently playing album, a artist list of the currently playing genre, or a album list of currently playing composer.
    • Song/Artist Info with Album Art: The Kenwood DMX9706S will display song/artist information as well as album art for MP3, WMA, AAC, and FLAC music tracks (if encoded).
    Notes:
    • Two USB mass storage class devices or USB thumbdrives can be connected at the same time; you can switch back and forth between devices (it does not combine the libraries).
    • The USB ports do not support MTP (Media Transfer Protocol), AOA (Android Open Accessory), USB hubs, or card-readers.
    • You can connect an Android smartphone with Android Auto to the "grey" USB port and a USB thumbdrive to the "black" USB port at the same time.
    • You can connect an Apple iPod/iPhone to the "black" USB port and a USB thumbdrive to the "grey" USB port at the same time.

    File Compatibility: The Kenwood DMX9706S supports the following types of audio (including Hi-Res), video, and photo files loaded onto a USB mass storage class device.

    Media Type USB (MSC)
    File System FAT 16/32, exFAT, NTFS
    Playable File Types Audio MP3/WMA/AAC: bit rate of 8-320kbps; sampling frequency of 16-48kHz
    WAV/FLAC (High-Res): bit depth of 16/24-bit; sampling frequency of 16-192kHz
    Vorbis:
    variable bit-rate; sampling frequency of 16-48kHz
    Video MPEG-1: max resolution of 352 x 240 or 352 x 288; max bit-rate of 1.5Mbps
    MPEG-2:
    max resolution of 720 x 480 or 720 x 576; max bit-rate of 8Mbps
    MPEG-4/H.264:
    max resolution of 1920 x 1080 (30fps); max bit-rate of 8Mbps
    WMV/MKV:
    max resolution of 1920 x 1080 (30fps); max bit-rate of 8Mbps
    Photo JPEG: 5000 x 5000
    PNG/BMP: 1000 x 1000
    Maximum # of Folders/Files Unlimited folders/9,999 files (999 files per folder)
    Tags MP3 ID3-tags, WMA/AAC/FLAC-tags, & Album Art

    High Resolution Audio Playback: The Kenwood digital media receiver supports playback of high-resolution FLAC & WAV music files (up to 24-bit/192kHz) via USB. High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music.

    AV Input: The Kenwood DMX9706S digital media receiver is fitted with a rear-panel minijack (3.5mm) audio/video input to connect external AV sources, such as a game system, Blu-ray player, or TV tuner.

    AV Output (with Dual Zone): The unit features a composite video jack and 3.5mm audio jack to output AV signals to an optional monitor and headphone system. The unit's AV output can be set to AV-In, USB, SD, or Off. Volume of the second zone can be controlled by the digital media receiver or your rear entertainment system.

    • If you select USB, SD, iPod, Disc, Spotify, Pandora, or Bluetooth as the main source; you cannot select USB as the AV output source.
    • If you select CarPlay or Android Auto as the main source; you cannot select micorSD, or USB as the AV output.
    Note: CarPlay, Android Auto, and Miracast cannot be displayed through the receiver's video output.

    Firmware Updates (via USB): The unit's operating system is updateable via free downloadable software from Kenwood's support site. Firmware downloads assist in maintaining system performance when using external devices and emerging technologies. Firmware/software updates can be downloaded onto a USB thumbdrive from your computer and then inserted into the head unit's USB port and uploaded. Go to Kenwood's Support Site for the latest firmware/software updates.

    Audio & DSP Section

    24-Bit/192kHz DAC: The Kenwood DMX9706S utilizes a 24-bit/192kHz digital to analog converter (DAC) for superior sound quality with a signal to noise ratio up to 98.5dB.

    MOSFET Amplifier: The Kenwood DMX9706S is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit. The power output specs for the DMX9706S are as follows:

    • Full Bandwidth Power: 22 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
    • Maximum Output Power: 50 watts x 4 channels

    6ch/4V Pre-Outs + Sub Control: The DMX9706S features front, rear and subwoofer 5.0-volt pre-outs. The front and rear speaker pre-outs are balance and fade adjustable. The subwoofer preamp output is non-fading and offers independent level control (-50 to +10 dB).

    Vehicle Setup: You can select your car type to automatically set the delay time of each speaker for timing adjustment of sound output of each channel to have the highest surround effect. Choose from Compact, Full Size Car, Wagon, Mini Van, SUV, or Off. For a better sound-stage you can select your optimal listening position & rear speaker location.

    • Listening Position + Digital Time Alignment: You can choose from All, Front Left, Front Right or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-20') for each individual speaker in the vehicle compared to your listening position.
    • Rear Speaker Location: You can indicate the location of your vehicle's Rear speakers. Choose from Door, Rear Deck, 2nd Row, or 3rd Row.

    Crossover Network: The Kenwood DMX9706S lets you choose between a 2-way or 3-way crossover network for your car audio application.

    • 2-Way Crossover: Allows you to set high-pass and low-pass crossovers for a standard Tweeter, Front, Rear, and Subwoofer speaker setup.
      • Speaker Size: select which size speakers are in your vehicle.
        • Tweeter: Small, Medium, Large, or None
        • Front & Rear: 3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", 6x9", 7x10" or None
        • Subwoofer: 6.5", 8", 10", 12", 15" or greater, None
      • X'Over: Select the high pass or low pass crossover settings for your speakers.
        • Tweeter: high pass filter (HPF)
          • Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
          • Gain: -8 to 0 dB
        • Front & Rear: high pass filter (HPF)
          • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • Slope: -6dB, -12dB, -18dB, -24dB
          • Gain: -8 to 0 dB
        • Sub: low pass filter (LPF)
          • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • Slope: -6dB, -12dB, -18dB, -24dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB
    • 3-Way Crossover: Allows you to set high-pass and low-pass crossovers for a complex 3-way speaker system with Highs, Mids, and Sub.
      • Speaker Size: select which size speakers are in your vehicle.
        • Tweeter: Small, Medium, Large, or None
        • Midrange: 3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", or 6x9"
        • Woofer: 6.5", 8", 10", 12", 15" or greater, None
      • X'Over: Select the high pass or low pass crossover settings for your speakers.
        • Tweeter: high pass filter (HPF)
          • HPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
          • Slope: -6dB, -12dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB
        • Midrange: high pass filter (HPF) & low pass filter (LPF)
          • HPF Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • LPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
          • Slope: -6dB, -12dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB
        • Woofer: low pass filter (LPF)
          • LPF Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • Slope: -6dB, -12dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB

    Equalizer: The Kenwood DMX9706S offers 8 EQ Presets for easy adjustment, a 13-band EQ for customized tuning, and a Drive EQ mode to overcome road noise. Separate EQ settings and EQ presets can be stored for each source or you can apply one EQ preset or curve to all sources.

    • Preset EQ: The integrated equalizer offers 8 preset sound modes (Flat, Pops, Easy, Top40, Jazz, Powerful, Rock, or User 1-4) suitable for the music genre of your choice.
    • 13-Band EQ: The User modes (1-4) allows you to manually adjust the head unit's 13-band EQ (62.5Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz, 10kHz, & 16kHz). Each frequency's gain level can be adjusted from -9dB to +9 dB.
    • Drive EQ: The Drive EQ mode helps you hear your music over road noise. It boosts certain frequency ranges that become hard to hear due to road noise.

    Music Enhancements: You can restore the sound lost due to audio compression, as well as enhance the sound by virtually manipulating the soundscape.

    • Realizer: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Realizer feature boosts low frequencies which can be lost during compression. Set to Level 1, Level 2, Level 3, or Off.
    • Supreme: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Supreme Setting function restores their high frequencies so the sound quality is closer to files encoded at a high bit rate. The processing is optimized for the compression format and the bit rate used. When the Supreme Setting is Off, the unit plays the original sound stored in the audio file.
    • Space Enhancer & Stage EQ: You can set the Space Enhancer to Small, Large, or Off. Each setting value indicates the soundscape level. You can also virtually raise the sound position heard from your speakers; the Stage EQ can be set to High, Middle, Low, or Off.

    Volume Level & Bass Management: The digital media receiver offers several volume level adjustments to tailor the audio output of your sources. The DMX9706S also provides bass management to get the most impact out of your system.

    • Volume Offset: The level of each source may be independently adjusted to prevent radical leaps in output volume when switching from one source to another. The available settings range from -8 to +6.
    • Dynamic Range: The dynamic range can be adjusted by selecting either Normal, Wide or Dialog. Dialog makes the total sound volume become larger as compared with Wide and Normal, allowing you to listen to the movie's dialogue more clearly. This is effective only on Dolby Digital software.
    • Bass Boost & DC Extension: The DMX9706S features a four-step Bass Boost (Off/1/2/3) to enhance your music's lower frequencies. When "Bass DC Extension is turned on, frequencies lower than 6.25 Hz are set the same gain level as the unit's 13-Band EQ 62.5 Hz gain setting.
    • Loudness: This function enhances low and high frequencies to make the sound clearer lower volumes.

    Source Beep: The in-dash receiver provides an audible beep to confirm source selection. This function can be turned On or Off.

    AV & OEM Connectivity

    Rear & Front Camera Inputs: The unit features a composite video input for connecting an optional rear view camera, such as the Kenwood CMOS-230 (113CMOS230, sold separately). By connecting a rear view camera, you can use the in-dash receiver's touchscreen LCD to see what's behind you when backing up. There is also a composite video input for connecting a front dash-cam (sold separately), so you can display what's ahead of you on the head unit's touchscreen LCD monitor. In addition, you can configure the unit's 3.5mm AV input with the help of a minijack-to-composite video adapter cable (sold separately) to act as a camera input for adding a side-camera.

    • Parking Guide Lines: When a rear-view camera is connected to the dedicated rear view camera input and you are viewing a rear view image, parking guide lines appear on-screen making parking easy and safer. There are three color-coded horizontal guidelines and two vertical guidelines.
    • Rear-View Auto Switching: The video from the dedicated rear view camera connection can be set to display when switched to this input, or display the rear view camera video automatically when the vehicle is shifted into Reverse gear. The purple/white wire of the wiring harness must be connected to the vehicle's reverse lamp circuit for automatic video switching. Automatic video switching takes approximately 0.8 seconds.
    Note: The rear view camera feature is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.

    Dash Cam Ready: In addition to the front camera input, the DMX9706S is equipped with a proprietary "Dash Cam" control input for connecting Kenwood's DRV-N520 dashboard camera (113DRV520, sold separately). The DRV-N520 offers high resolution 1080p recording, plus motion detection technology. The dashboard camera's live and recorded video are displayed on the DMX9706S's touchscreen. You'll also control the DRV-N520's settings and parameters from the DRV-N520's touchscreen.

    OEM Integration: This Kenwood digital media receiver is compatible with the iDatalink Maestro RR (794ADSMRR, sold separately); a web programmable module that will permit the aftermarket Kenwood receiver to work with select Ford, Lincoln, and Mercury vehicles that feature the factory SYNC system; as well as select GM vehicles with factory OnStar; select Chrysler/Dodge/Jeep vehicles with U-Connect, plus select Honda/Acura, Toyota/Scion, Volkswagen & Subaru vehicles with factory digital amplifiers.

    • Retained Features: The iDatalink Maestro RR lets Ford/Lincoln/Mercury, GM, Dodge/Chrysler, and VW owners swap out their factory radio for this aftermarket Kenwood head unit; while retaining the Ford Sync system, GM OnStar system, Chrysler/Dodge/Jeep U-Connect system, steering wheel controls, Bluetooth, USB interface, Satellite Radio, and 911 assist. You also get to keep the hands-free mic that comes with the car (which is specially tuned to that particular vehicle). *Retained features will vary by vehicle.
    • Extra Features: In some installations, the iDatalink Maestro RR lets you configure the head unit to operate interior climate controls and provides extra visual data; such as User Selectable Gauges, Vehicle Info (Tire Pressure/Battery Voltage/Check Engine Codes/Door Ajar Warning), and Visual Park Assist. *Extra features will vary by vehicle.

    Note: The iDatalink Maestro RR is web programmable, which means you'll need to flash the iDatalink Maestro RR interface module with the correct firmware from iDatalink's website. In addition to flashing the iDatalink Maestro RR module, you'll also need a vehicle specific harness (sold separately). The Kenwood receiver's OEM Setup menu must also be configured with your compatible vehicle's factory system before initial operation.

    Touchscreen & Remote Control

    6.95" Clear Resistive Touchscreen: The Kenwood DMX9706S features a 6.95" widescreen (16:9) clear resistive touchscreen LCD with LED backlighting. The clear resistive touchscreen LCD provides a high contrast ratio, crystal clear display, and vivid text. The LCD touchscreen has a resolution of 800 (H) x 480 (V) x RGB with 1,152,000 total pixels. Touchscreen operations include tap, touch & hold, flick left or right, and swipe up or down.

    • Custom Home Screen & Shortcuts: You can customize the head unit's Home Screen by rearranging the icons and moving the icons of the twelve most sources you use most to the first page of the Home Screen. Four programmable shortcut source keys offer a quick jump to your favorite sources from almost any screen.
    • Background Color & Wallpapers: You can choose between nine preset background colors - Blue, Purple, Sky Blue, Yellow, Green, Amber, Red, Pink, White. You can also choose to link the displays color with the unit's front-panel variable color illumination that you set. In addition, there are four preset background images (wallpapers) or you can download your own still image (800x600) for use as the unit's background from a connected USB thumbdrive.
    • Photo Frame Widget: You can even display a slideshow of images files (up to 500) stored on an inserted USB thumbdrive when on the Home Screen. Images must be JPEG (5000x5000), PNG (1000x1000), or BMP (1000x1000). Images remain on your USB device and are not downloaded to the head unit; the USB thumbdrive must be inserted for this feature to work.
    • Off Axis Viewing: Electronic angle settings adjust the display for best off axis viewing (actual screen does not move).

    Front-Panel Controls w/ Variable Color Illumination: In addition to the touchscreen controls, the unit includes frequently used buttons along the bottom edge of the screen. You can adjust the head unit's button illumination, as well as display background color from the following preset colors - Blue, Purple, Sky Blue, Yellow, Green, Amber, Red, Pink, White or Scan (Scans through all preset colors). You can also select a custom "User" color that is adjusted between Red, Green, and Blue (values range: 0-31).

    Dimmer: The dimmer function will dim the head unit's display & front-panel illumination automatically when your vehicle's light switch is turned On, if you have the unit's orange/white "Illumination" wire connected to your vehicle's headlamp circuit. You can also choose to dim the display manually.

    Clock & Date: The digital media receiver offers a 12-hour clock & day/month/year display. The clock is visible from any source or menu screen. With your vehicle's key in the accessory or run position, the head unit will continue to display the LCD background image, clock, and button illumination during "Standby" mode. Pressing and holding the Power/Home button turns the unit off completely.

    Remote Control: The Kenwood DMX9706S offers compatibility with factory steering wheel controls (adapter sold separately) and is compatible with Kenwood's IR wireless remote control (sold separately) for added convenience. Kenwood also offers a remote application which allows you to control the receiver from your smartphone device.

    • Steering Wheel Controls: The head unit features a factory steering wheel remote control input wire (blue/yellow) within the included wiring harness that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).
    • Optional Remote Control: The optional Kenwood KNA-RCDV331 IR wireless remote control (113RCDV331, sold separately) unit is designed to operate this Kenwood receiver. The wireless remote controller operates off of two supplied "AAA" batteries. The remote operates off of IR transmission so the KNA-RCDV331 must be pointed at the front-panel of the Kenwood head unit within direct line of sight.
    • Remote S App: The Kenwood Remote S (for Apple iOS 9.0+ and Android OS 5.0+) is an application that will connect and control the in-dash receiver from your compatible Apple or Android device via Bluetooth, like a wireless remote control. You can select source input, as well as command basic playback controls such as Play/Pause or Previous/Next Track from the touchscreen of your compatible smartphone. This application can also display the receiver's source and song/artist information on the screen of your compatible Apple iOS or Android device.

    Parking Brake Interlock: To prevent the display of video while the vehicle is in motion, the light green wire (within harness) must be connected to the vehicle's parking brake detection circuit. You cannot view video unless your vehicle's parking brake is engaged. If you attempt to view video without the parking brake engaged, the unit's LCD touchscreen will simply display a blue screen and "Parking Off". While your vehicle is in motion (parking brake off), you can still view all of the head unit's menu screens/settings, source information, metadata, and album artwork; as well as CarPlay and Android Auto.

    Note: The parking brake wire must also be connected and the parking brake engaged for certain setup functions and menu options.

    Loading accessories...

    Customer Q&A

    Q
    Crutchfield asked: Why did you buy this?
    A
    Great reviews and slim chassis [ Trevor  Sep 17, 2019 ]

    3 questions already asked

    Q
    a review for another head unit said that speed input is necessary for wires car play. Is this a requirement on this unit and for Android Auto? - How do you wire into speed sensor for a GM
    [ Brian  Jul 30, 2019 ]
    1 answer
    A
    I'm not sure about android auto as I'm using car play. You will have to use Vehicle speed sense wire. Google Your GM model + VSS. I used the idatalnk maestro rr and the FO2 harness. It was wire for wire on the FO2 harness. Tapping into the vehicle harness might be tougher. Also you also must use the gps antenna provided.
    [ Christopher  Jul 30, 2019 ]
    Q
    which version of iPhone is supported for wireless CarPlay?
    [ Corey  Jul 11, 2019 ]
    1 answer
    A
    Looks like the 6 and up or plug into the USB option
    [ Nick  Jul 11, 2019 ]
    Q
    Can I install it on a 2015 Infiniti qx60?
    [ Hussam  Jun 30, 2019 ]
    1 answer
    A
    You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
    [ Krissy  Jul 08, 2019 ]  Staff

    Loading articles...

    Looking for more?

    Check out the next model in this lineup.


    Adding...
    Kenwood Excelon DMX906S
    Digital multimedia receiver (does not play CDs)
    In stock
    42 reviews

    $649.99 -$100.00 Instant savings

    $549.99
    Add to cart

    Add HD Radio and a 2-year warranty

    The Kenwood Excelon DMX906S offers these features:
    • capacitive touchscreen
    • HD Radio tuner
    • 2-year warranty
    TOP
