About the Kenwood Excelon P-XRW102DB
Excelon excellence
Excelon excellence

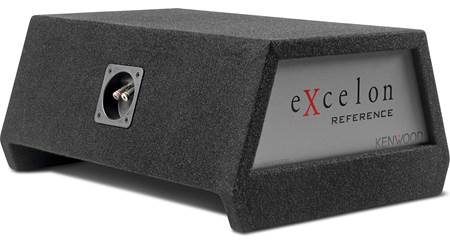

Kenwood's Excelon P-XRW102DB down-firing sub enclosure brings you the rich, full bass you love in a solid, durable enclosure that tucks neatly behind your seat or in your trunk. The enclosure houses a redesigned 10" subwoofer that features an oversized cone with ribbed reinforcement for maximum bass response. The 3/4" MDF sealed enclosure provides a rock-solid home for the sub, so you can count on accurate reproduction of low frequencies.
300 watts of power handling
Its low profile and angled sides allow the P-XRW102DB enclosure to fit in some seriously tight spots. Its 2-ohm sub handles up to 300 watts RMS, so send it plenty of power and it'll deliver the powerful bass that makes your music come alive.
Product highlights:
- sealed down-firing enclosure with one 10" oversized cone Excelon subwoofer
- ribbed polypropylene cone with rubber surround
- 3/4" medium density fiberboard enclosure with black carpeting
- push terminals accept 8-gauge speaker wire
- power handling: 300 watts RMS (1300 watts peak)
- 2-ohm impedance
- frequency response: 31-300 Hz
- dimensions: 20.125"W x 8.625H x 14.875"D
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # P-XRW102DB
What's in the box:
Kenwood Excelon P-XRW102DB owner's manual
- Loaded single 10" subwoofer enclosure
- Warranty information
Reviews
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kenwood Excelon P-XRW102DB
Features & specs
| General | ||
|---|---|---|
| Woofer Size (inches) | 10 | |
| Speakers Per Box | 1 | |
| Woofer Material | Polypropylene | |
| Enclosure Type | Sealed | |
| Color | Black | |
| Pieces in System | 1 | |
| Width (inches) | 20-1/8 | |
| Height (inches) | 8-5/8 | |
| Depth (inches) | 14-7/8 | |
| Connector Type | Spring posts | |
| Frequency Response | 31-300Hz Hz | |
| Power Range (Watts RMS) | 300 | |
| Maximum Wattage | 1300 | |
| Sensitivity | Not Given | |
| Impedance | 2 ohms | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features
Overview: The Kenwood P-XRW102DB features a single 10" oversized-cone subwoofer mounted in a sealed, low-profile, down-firing enclosure. The compact 2-ohm subwoofer system is capable of handling up to 300 watts RMS (1300W peak power).
Driver: The P-XRW102DB features an oversized cone, allowing increased low-frequency output, while keeping the same cutout diameter. This makes the subwoofer ideal for small sealed enclosures. The newly designed cone features ribbing for added cone strength and minimizing distortion. An improved larger magnet and Stress-Free Spider add to the subwoofer's mechanical and thermal durability, allowing it to deliver deep low frequencies with long lasting reliability.
Enclosure: The P-XRW102DB sub driver comes mounted in a compact and durable sealed 3/4" MDF enclosure, producing rich deep bass in a compact size that doesn't take up a lot of vehicle space. The enclosure is covered in automotive-grade black carpet, providing durable protection along with pleasing aesthetics.
Terminals: Two recessed spring-posts are provided for connecting speaker wire up to 12-gauge in size.
Specifications:
- Driver: 10" Oversized cone
- Power:
- RMS: 300W
- Peak: 1300W
- Impedance: 2-ohm (single voice-coil)
- Frequency Response: 31Hz - 300Hz
- Enclosure Type: Sealed, down-firing
- Enclosure Materials: 3/4" MDF, black automotive carpet
- Dimensions: Width = 20.125", Height = 8.625", Depth = 14.875"
The Kenwood Excelon P-XRW102DB replaces these items
- ribbed polypropylene cone with rubber surround
- 3/4" medium density fiberboard enclosure with black carpeting
- power handling: 300 watts RMS (1300 watts peak)
