Kenwood Excelon XR-1700P

6-1/2" component speaker system

Item # 113XR1700P

I know — your choices when it comes to component speakers feel overwhelming, but this Kenwood...

Read more from Crutchfield writer, Alexander H.

Find what Fits your car

Ships free

In Stock
$249.99

Other options

About the Kenwood Excelon XR-1700P

Quality components

I know — your choices when it comes to component speakers feel overwhelming, but this Kenwood Excelon XR-1700P 6-1/2" component system belongs on your list. The celebrated Excelon 2-year warranty is a meaningful symbol of the sound quality you can expect from these classics. You'll gain a rich, full sound, thanks to a strong, enhanced pulp woofer cone that offers the warmth of paper with the durability of modern plastics. The resilient rubber surround shrugs off weathering and provides support, no matter what.

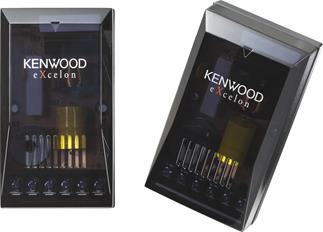

External crossovers

These high-quality external crossovers ensure the woofers and the tweeters receive the right frequencies.

Quality components

I know — your choices when it comes to component speakers feel overwhelming, but this Kenwood Excelon XR-1700P 6-1/2" component system belongs on your list. The celebrated Excelon 2-year warranty is a meaningful symbol of the sound quality you can expect from these classics. You'll gain a rich, full sound, thanks to a strong, enhanced pulp woofer cone that offers the warmth of paper with the durability of modern plastics. The resilient rubber surround shrugs off weathering and provides support, no matter what.

Huge tweeters

It's amazing the difference a well-placed tweeter can make in the sound of your system. The separate 1-3/16" soft dome tweeters deliver all the high-frequency details smoothly, while 2-way external crossovers and powerful, lightweight magnets make these tweeters extremely accurate without sounding harsh.

Bring on the power

With speakers this fine, you'll enjoy premium audio that'll make every drive a joy. And these well-built speakers will handle up to 80 watts RMS, so you'll maximize their performance when you power them with a nice amp. Grilles are included.

READ LESS

Product highlights:

  • component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
  • 6-1/2" advanced hybrid pulp woofer with rubber surround
  • 1-3/16" soft dome tweeter with neodymium magnet
  • 2-way external crossover
  • handles up to 80 watts RMS (280 watts peak power)
  • frequency response: 57-20,000 Hz
  • sensitivity: 86 dB
  • woofer top-mount depth: 2-5/16"
  • grilles included
  • warranty: 2 years
  • Our 60-day money-back guarantee
  • MFR # XR-1700P
KEEP READINGREAD LESS

What's in the box:

  • Two Woofers
  • 2 Tweeters (each has an integral flush mount frame and a 5" Length of wire attached)
  • 2 Woofer grilles
  • 2 Grille frames
  • 2 Tweeter flush mount retaining clips
  • 2 Angled surface mounting housings
  • 2 Woofer adapter brackets
  • 2 Crossovers
  • Eight 1/4" Bracket bolts
  • Twelve 1" Screws
  • Four 5/8" Screws
  • Two M3x6mm Machine screws
  • 12 Large speed clips
  • 4 Small speed clips
  • Grille putty
  • Instruction manual (English/ French/ Spanish/ Portuguese)
  • Warranty information
  • Templates on box

Customer reviews

Loading reviews...

Kenwood Excelon XR-1700P Reviews

Average Customer Review(s):

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

More details on the Kenwood Excelon XR-1700P

Features & specs

General
Speaker Size 6 1/2
Design 2-way
Tweeter Design 1-3/16" Dome
Impedance (Ohms) 4
Tweeter Composition ---
Woofer Composition Advanced Hybrid Pulp
Woofer Surround Rubber
Parts Warranty 2 Years
Labor Warranty 2 Years
Specifications
Sensitivity (1W at 1 meter) 86
Sensitivity at 2.83 volts N/A
Frequency Response 57 - 20k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 80
Peak Power Handling (Watts) 280
Top-mount Depth (Inches) 2 5/16
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 4 15/16

Product Research

Features

Woofers: The woofer cones are made of injection-molded polypropylene. This process of cone molding assures a uniform cone thickness for superior linearity and clarity. It is also light weight and rigid for decreased distortion and improved bass response.

Woofer Mounting: Without an adapter, the XR-X1700P woofers fit standard 6-3/4" applications. Given their required cutout, they will also fit 6-1/2" applications without an adapter, but new screw holes must be drilled. Using the included adapter brackets they can be mounted in a variety of 6-1/2" and 6-3/4" applications, without any modification. Enter you vehicle information to confirm fit.

Crossover: Each crossover has screw terminal inputs and outputs that will accommodate bare wire or spade connectors up to 0.315" wide. (Speaker wire is not included with the system.) The output level of the tweeters is adjustable; choose 0 dB or -3 dB.

Crossover Dimensions:

  • Length: 4.563" (plus wiring)
  • Height: 1.327"
  • Width: 2.6"

Tweeter Mounting Options: The tweeters can be flush mounted using the supplied hardware, or surface mounted using the included housings. Once mounted the tweeters have these dimensions:

  Flush Mount Angled Surface Mount
Mounting Depth 0.738" 0.55" (screw depth)
Mounting Height 0.421" 2.044"
Cutout Diameter 1.768" N/A
Frame Diameter 2.082" N/A
Frame Length N/A 2.094"
Frame Width N/A 2.089"

Warranty Note: Although the information included with these speakers indicates a 1-year warranty, they are actually covered by the Kenwood eXcelon 2-year warranty.
