Speaker Wiring Harnesses

For select 1996-up Lexus and Toyota vehicles

Item # 12071045

These harnesses allow you to plug your new speakers into the factory connectors present in your vehicle's speaker...

Read more from Crutchfield writer, Jim R.

Find what Fits your car

California customers:
Please click here for your Proposition 65 warning.

In Stock
$7.99

About the Speaker Wiring Harnesses

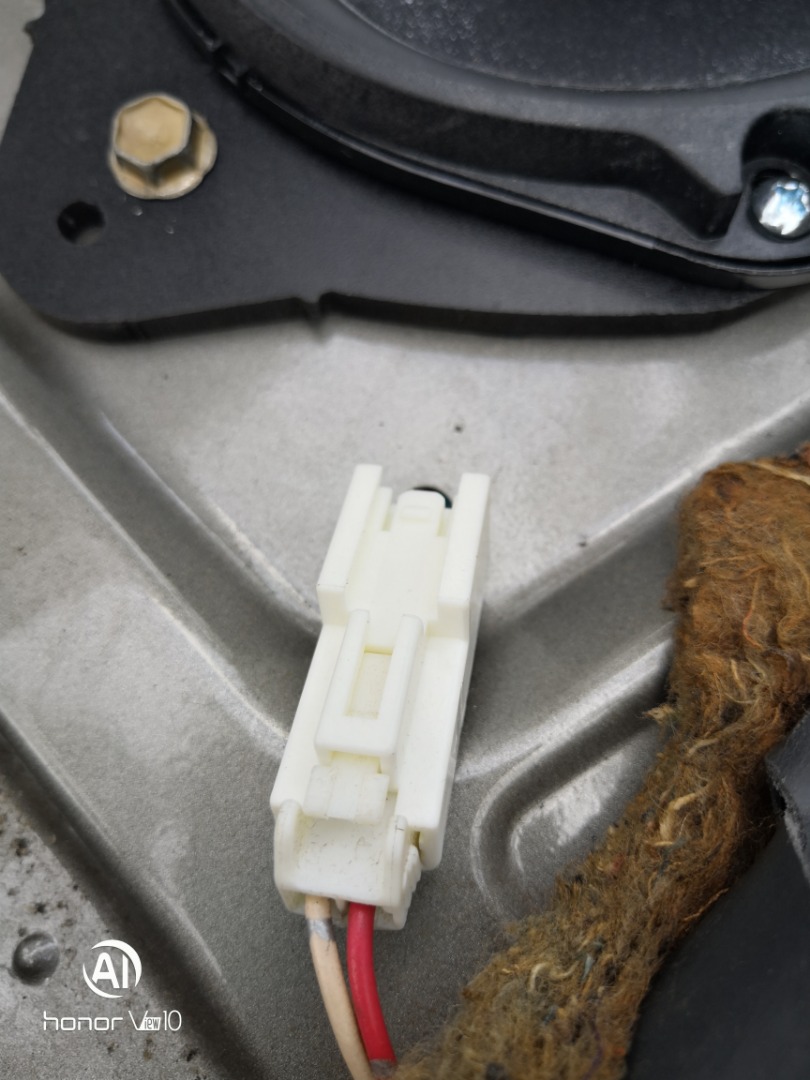

These harnesses allow you to plug your new speakers into the factory connectors present in your vehicle's speaker openings.

These harnesses allow you to plug your new speakers into the factory connectors present in your vehicle's speaker openings.

Note: Some aftermarket speakers have terminals that are wider than this harness's slide-on connectors. You may need to widen the harness's female slide-on connectors, or use the slide terminals that may be included with the speakers. If you need to connect your new speaker's connectors to the Crutchfield harness, soldering is best, and crimping is also very popular - see "Accessories."

Includes Crutchfield's 60-Day Total Satisfaction Guarantee

READ LESS

What's in the box:

Customer reviews

Loading reviews...

Speaker Wiring Harnesses Reviews

Average Customer Review(s):

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

More details on the Speaker Wiring Harnesses

Product Research

Features

Speaker Harness: These speaker harnesses prevent you from having to cut your vehicle's factory speaker plugs when replacing your factory speakers with aftermarket car speakers. The speaker harness features two female quick-slide connectors on one end to attach directly to your new aftermarket car speakers & a proprietary Molex connector on the other end that connects to your vehicle's factory speaker plug.

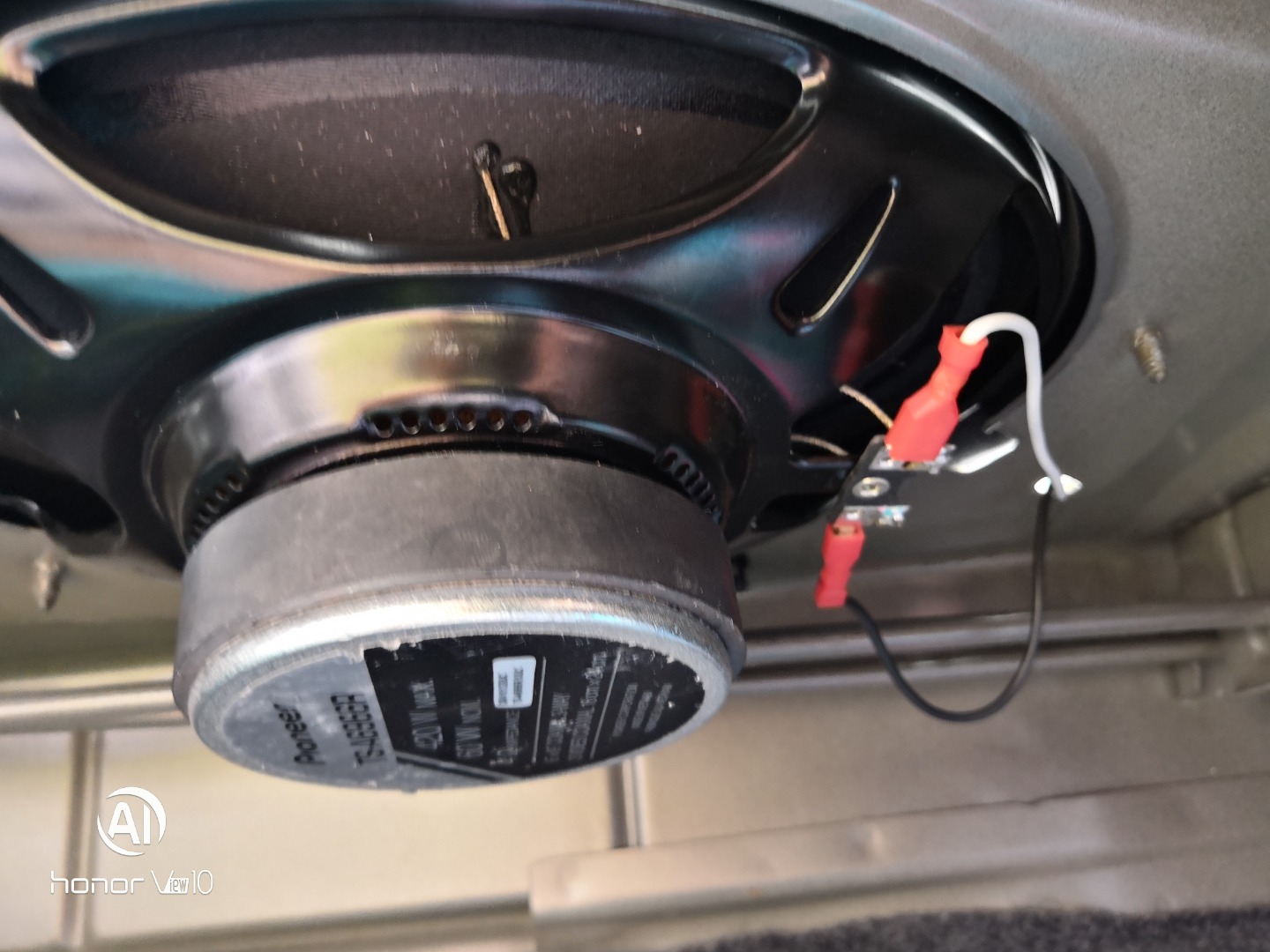

Quick-Slide Connectors: The speaker harness is equipped with a large (positive) & small (negative) female quick-slide terminal. These quick-slide terminals fit directly onto most aftermarket car stereo speaker terminals (slight crimping may be required). In rare cases that the quick-slide terminals do not fit your car speaker terminals, you will need to solder the speaker harness to your aftermarket speaker's terminals or replace the quick-slide connectors on the speaker harness with the correct size terminal.

Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.

Quick-Slide Terminal Measurements: The positive female quick-slide terminal measures 0.205" (inner width), while the negative female quick-slide terminal measures 0.115" (inner width).

Wire Code Chart: Two identical speaker harnesses are included.

Wire Color Function
White Positive
Black Negative

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
Because it says it fits [ Pamela  Mar 19, 2019 ]
A
Good service [ junior  Mar 10, 2019 ]
A
Best service ever and good product [ junior  Mar 04, 2019 ]
A
Starting a system over haul in my 2008 avalon and i need this harness for the rear deck subwoofer as i have the jbl system with navigation. I have a lot to figure out but i will be starting this weekend with the rear deck. [ Ruben  Jan 16, 2019 ]
A
Recommend and no cost [ Douglas E.  Jan 16, 2019 ]
A
Crutchfield did not recommend the speakers I selected for the rear panels in my car. On the front speakers(recommended by Crutchfield) these nifty "plug and play" wires were added automatically. So I added some speakers that did fit the rears and the system added the correct plug and play wires for the rears. I then took the part number to those wires and added them manually as they did not get added automatically by the system. I then removed the other speakers from the cart. [ Andrew  Jan 12, 2019 ]
A
Good sound in past installs [ CHRIS  Dec 17, 2018 ]
A
Install necessary [ Bill  Oct 14, 2018 ]
A
To make installation easier. It was free. [ John  Sep 30, 2018 ]
A
Free with purchase [ Dustin  Sep 29, 2018 ]
A
I rely on you folks for expert advice. My buddy Sam over there recommended the wiring harness. [ Charles  Sep 09, 2018 ]
A
Former speakers were shot, so I had to order new ones. Wouldn't fit with existing harness, so I purchased. [ Luke  Sep 06, 2018 ]
A
came with kit [ Garrol  Aug 21, 2018 ]
A
This item was included with my speaker purchase. That's why I used Crutchfield for their knowledge about my car and what it needs. [ Mike  Aug 09, 2018 ]
A
Makes installation easier.Thank you. [ JOSE  Jul 11, 2018 ]
A
They came free with the tweeters I ordered. [ CLINT  Jun 22, 2018 ]
A
I didn't, you did! This will quickly attach my speakers to my rear panels. [ Nathanael  Apr 30, 2018 ]
A
saves time. [ D  Apr 29, 2018 ]
A
Did not choose, was included free. [ Charles  Apr 07, 2018 ]
A
Connect right to factory adapter of speakers [ marcus  Mar 01, 2018 ]
A
It was included for free [ Jeremy  Feb 04, 2018 ]
A
Recommended by Advisor/Crutchfield to make installation easier [ MG74  Jan 31, 2018 ]
A
It makes installing much easier. [ Carl  Dec 14, 2017 ]
A
It makes installation easier and it looks clean and more natural. Instead of a butchered mess. [ Austin Lee  Nov 25, 2017 ]
A
Crutchfield automatically added it and it's free of charge. Plus I believe it will ease the installation. [ R  Oct 05, 2017 ]
A
The Crutch recommended it and included it with my purchase so I must need it. They've never done me wrong! [ Sean  Sep 21, 2017 ]
A
Allows a smooth install when you have the correct parts and tools!!! [ KYLE  Jul 19, 2017 ]
A
they make connecting to the factory wiring such a breeze. [ DAVID  Jun 15, 2017 ]
A
To avoid splicing the speaker wires per the Crutchfield article on 2004-2006 XB. [ James  May 06, 2017 ]
A
Ease in istallation [ Gary  May 02, 2017 ]
A
To make the install easier [ Cordero  Apr 18, 2017 ]
A
hopefully easier install [ LYLE  Apr 11, 2017 ]
A
to connect speakers [ jeff  Apr 11, 2017 ]
A
Recommended. [ Bill  Jan 16, 2017 ]
A
TO FACILITATE THE INSTALLATION [ Ulpiano  Dec 26, 2016 ]
A
easy installation [ Lambert  Nov 29, 2016 ]
A
I had bought 6x9 speakers for a previous vehicle that I owned but never installed the speakers. I have a different vehicle now and needed a different harness [ P  Sep 13, 2016 ]
A
Easier installation [ Gary  Aug 30, 2016 ]
A
Came free!!! [ Anthony  Jun 02, 2016 ]
A
to make the installation easy. [ Frank  May 06, 2016 ]
A
I picked these out because that way I don't need to cut any wires [ Hilario  May 01, 2016 ]
A
it was included free with my purchase. It great I didn't have to pay extra for it. [ Tracy  Mar 27, 2016 ]
A
Came with the product [ Philip  Mar 21, 2016 ]
A
Crutchfield provided free with speaker purchase for proper fit for my vehicle. [ Rich  Feb 29, 2016 ]
A
Replacing original equipment [ Scott  Feb 14, 2016 ]
A
To help with easier install. [ Chad  Jan 12, 2016 ]
A
Ordering these harness' because they were what was recommended for my 2000 Toyota Sienna. [ MICHAEL L  Dec 26, 2015 ]
A
These harnesses will make it easier to connect my new tweeters to my cars wiring. [ U  Dec 24, 2015 ]
SHOW MORESHOW LESS

1 question already asked

Q
May i know the model number of this item?
[ damitha  Dec 21, 2015 ]
2 answers
A
I may not remeber the item number or model number at the time because i bought this item almost 2 years ago but it helped alot to install my new speakers in my 1999 Toyota Camry and my speakers work really well with the harness?
[ Adam  Dec 23, 2015 ]
A
This is Item #: 12071045.
[ Kenny  Dec 21, 2015 ]  Staff
