Metra 82-3013 Corvette Speaker Mounting Brackets

Features

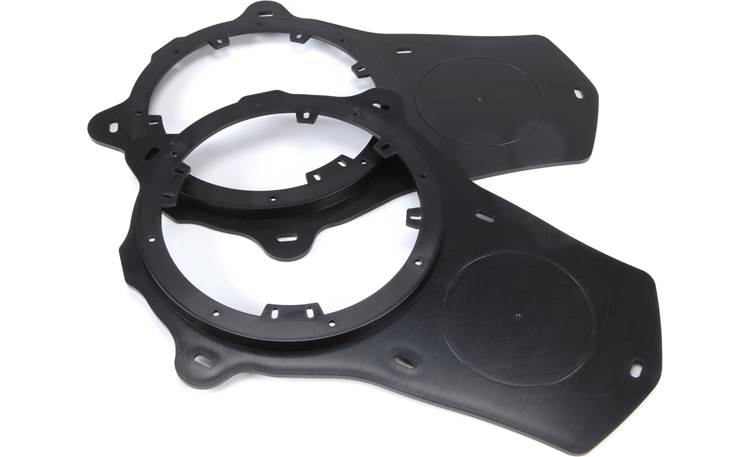

Overview: The 82-3013 brackets are designed for use in select 1997-2004 Corvettes. The brackets allow easy replacement of the factory speakers with select aftermarket 6½" and 6¾" speakers. There is also a section that can be cut out for mounting a seperate tweeter or midrange, up to 3¼" diameter. Please enter your vehicle information to confirm fit.

6¾ Speakers: For a 6¾" speaker to fit in the opening of this bracket, the tabs around the inner speaker opening need to be removed. They are scored along the bottom for easy removal, but still may require pliers and a file.

6½ Speakers: There are tabs with multiple 6½" speaker screw hole patterns, so most will fit easily.

5¼ Speakers: While a 5¼" speaker will mount easily in this bracket given the bolt pattern, the frame of a typical 5¼" is approximately ½" smaller than the opening in the bracket, making a 6½" or 6¾" a better fit. When using a 5¼", a speaker baffle must also be used to seal the rear of the speaker.

Dimensions:

• Inner Diameter: 5.733" (not accounting for the inner tabs)
• Height: 0.5"
• Screw Hole Spacing:
  • Three-Hole (6½):
    • Perimeter: 4.546"-5.028"
  • Symmetrical Four-Hole (6½ and 5¼):
    • Perimeter: 3.685"-4.129"
    • Diagonal: 5.259"-5.795"
  • Ford Four-Hole (6½):
    • Minor Axis: 3.685"-4.129"
    • Major Axis: 4.546"-5.028"
  • Four-Hole Spacing (6¾):
    • Perimeter: 4.270"-4.558"
    • Diagonal: 6.082"-6.389"
