Metra 95-6552B Dash and Wiring Kit

Features

Vehicle Compatibility: The Metra 95-6552B includes a dash kit, touchscreen display with built-in radio replacement interface module, plus comes with wiring harnesses and adapters that allow the replacement of the factory radio in your 2015-up Dodge Charger with an aftermarket head unit, while retaining important factory features.

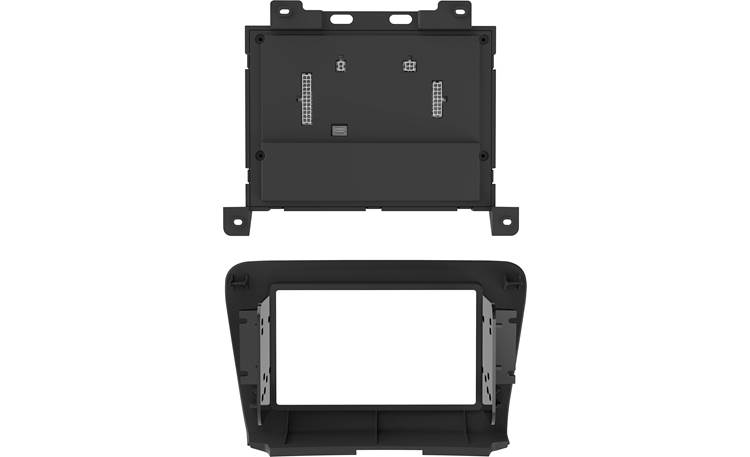

Double-DIN Dash Kit: The included kit features high-grade ABS plastic and is contoured to match your vehicle's factory dashboard color and texture. The dash kit will fit most Double-DIN (4") aftermarket head units. It is not compatible with Single-DIN (2") aftermarket stereos.

Note: The sub-dash of your vehicle behind the factory radio will need to be cut to make room for your new aftermarket radio. Make sure to not cut into the snap locations. See the Installation Instructions for further details.

7" LCD Touchscreen (w/ Climate Control & Vehicle Settings): The Metra 95-6552B includes a 7" touchscreen display which mounts separately in the vehicle's dash from the included Double-DIN dash kit. In addition to touchscreen operation, convenient push-button controls are mounted on the bottom edge of the 7" LCD touchscreen. The 7" LCD touchscreen and push-button controls let you retain climate and vehicle customization functions that are normally lost when removing the factory radio.

Retained Factory Features: The Metra 95-6552B's radio replacement interface module is built into the 7" touchscreen display monitor interface. The following factory features will be retained -

• Factory Amplifier: The Metra 95-6552B will retain your vehicle's factory amplifier. However, balance and fader controls will be lost. The 95-6552B can also be used with non-amplified factory audio systems. In this case, you'll retain balance and fader controls.
• Steering Wheel Controls: The Metra 95-6552B lets you retain your vehicle's factory steering wheel controls (including audio controls) when used with a SWC compatible aftermarket receiver - no additional adapter required.
• Backup Camera: Your vehicle's factory backup camera is retained through the Metra 95-6552B. You can choose to have the camera display on the external 7" LCD touchscreen monitor or your aftermarket head unit's LCD touchscreen. If you want the factory backup camera to display on your aftermarket radio's LCD touchscreen, the head unit must have a composite video camera input.
• R.A.P. (Retained Accessory Power): RAP (Retained Accessory Power) keeps the radio powered on after the key is off, until the driver door is opened or the OEM timer ends; whichever happens first. The Metra 95-6552B will retain this factory function.
• Warning & Safety Chimes: The Metra 95-6552B will also retain your vehicle's factory warning & safety chimes.

Media Hub: The Metra 95-6552B includes a media hub that allows you to retain your vehicle's factory USB ports and Aux input, as well as add an HDMI input. The media hub's USB inputs consists of two USB Type-A ports. The Aux input consists of male stereo RCA jacks. The HDM input consists of a full-size HDMI jack. Your aftermarket head unit must also have two rear-panel USB ports, an Aux input, and a HDMI input to utilize the included media hub. In some cases, you may need a stereo minijack to RCA adapter (sold separately) to retain the Aux input.

Outputs: The Metra 95-6552B contains a 12V/10A Accessory output, as well as Navigation outputs that make installation easier and less time consuming.

• +12V/10A Accessory Output: In the 2015-up Dodge Charger, there is no 12-volt accessory wire in the factory harness, so the 95-6552B is designed to provide a 12V/10A switched accessory output (red wire). Otherwise, you would need to run an accessory wire to the fuse box or underneath the steering column when installing an aftermarket radio
• Navigation Outputs: The Metra 95-6552B provides wired outputs for navigation radio installation; including a VSS (vehicle speed sense), Parking Brake, and a Reverse Gear output to make installing an aftermarket navigation head unit simpler and less time consuming.
