About the Axxess AX-HYKIA1-SWC Wiring Interface
Retain your car's factory features with a new radio
You want to install a new car stereo, but you don't want to lose the useful features built into your factory radio. The Axxess AX-HYKIA1-SWC interface gives you the ability to connect your new radio to the existing wiring in your compatible vehicle and still retain your steering wheel audio controls, the Blue Link system (if present), and the factory aux input. With the AX-HYKIA-SPDIF adapter (not included), you can also retain the use of your factory amplifier, but you'll lose your fader control.
Retain your car's factory features with a new radio
You want to install a new car stereo, but you don't want to lose the useful features built into your factory radio. The Axxess AX-HYKIA1-SWC interface gives you the ability to connect your new radio to the existing wiring in your compatible vehicle and still retain your steering wheel audio controls, the Blue Link system (if present), and the factory aux input. With the AX-HYKIA-SPDIF adapter (not included), you can also retain the use of your factory amplifier, but you'll lose your fader control.
Versatility and compatibility
The AX-HYKIA1-SWC gives you a built-in steering wheel control interface using Axxess' ASWC-1 auto-detect technology. And if you're installing a new navigation receiver, this adapter also includes the parking brake, reverse, and Vehicle Speed Sensor (VSS) outputs you'll need.
Product highlights:
- connect a new car stereo and keep factory functions
- retains steering wheel audio controls, factory aux input, and Hyundai Blue Link system
- uses Axxess' ASWC-1 auto-detect technology
- retains the factory amplifier with AX-HYKIA-SPDIF adapter (not included)
- fader control will be lost
- provides parking brake, VSS (Vehicle Speed Sensor), and reverse output connections for navigation receiver installations
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # AX-HYKIA1-SWC

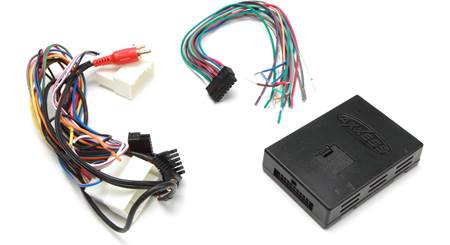

What's in the box:
Axxess AX-HYKIA1-SWC Wiring Interface owner's manual
- Radio replacement interface module
- LD-HYBL-22 harness
- LD-2NAVAMP harness
- LD-SWC-F3.5 Female 3.5mm SWC connector
- Composite video harness with white connectors (not used)
- Composite video harness with black connector (not used)
- Installation Instructions
12 reasons to shop with us
#10
60-day price protection
If our price drops after
you buy, call us.
REVIEWS
Customer reviews
Loading reviews...
Axxess AX-HYKIA1-SWC Wiring Interface reviews
Average review:
Thanks for submitting your review
Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.
Customer photos
More details on the Axxess AX-HYKIA1-SWC Wiring Interface
Researched by Crutchfield's Stacey B.
The Axxess AX-HYKIA1-SWC Wiring Interface replaces these items:
Product Research
Features
Vehicle Compatibility: The Axxess Integrate AX-HYKIA1-SWC lets you replace the factory radio in select 2010-2016 Hyundai & Kia vehicles with an aftermarket head unit, while retaining important factory features.
| Make | Model | Year |
| Hyundai | Elantra | 2011-2013 |
| Genesis Coupe (without factory Navigation) | 2013-2016 | |
| Santa Fe (without factory Navigation) | 2013-2016 | |
| Santa Fe Sport (without factory Navigation) | 2013-2016 | |
| Sonata (without factory Navigation) | 2011-2016 | |
| Sonata Hybrid (without factory Navigation) | 2011-2015 | |
| Tucson | 2010-2015 | |
| Kia | Optima | 2011-2015 |
| Sorento (without factory Navigation) | 2014-2016 | |
| Sorento with UVO (without factory Navigation) | 2012-2013 | |
| Sportage | 2011-2016 |
Retained Factory Features: The Axxess Integrate AX-HYKIA1-SWC retains the following factory features in your vehicle after you have replaced the stock radio with an aftermarket head unit.
- Factory Amplifier: The Axxess Integrate AX-HYKIA1-SWC is designed for vehicles with or without amplified factory audio systems. However, vehicles with an amplified factory audio system, will also require the AX-HYKIA-SPDIF (sold separately).
- BlueLink: The AX-HYKIA1-SWC retains your vehicle's factory onboard BlueLink telematics and infotainment system (if equipped).
- Steering Wheel Controls: The Axxess Integrate AX-HYKIA1-SWC offers built-in SWC letting you retain your vehicle's factory steering wheel controls (no additional adapter required). Your aftermarket radio must be steering wheel control ready.
- Factory Aux: The AX-HYKIA1-SWC allows you to keep the vehicle's factory Aux input by using your aftermarket head unit's rear-panel Aux input.
- RAP (Retained Accessory Power): The AX-HYKIA1-SWC is compatible with your vehicle's RAP (Retained Accessory Power) feature, which keeps the radio on until on of the doors is opened.
- Factory USB (Non-Nav): The AX-HYKIA1-SWC can retain the factory USB port on non-navigation model vehicles. The 22-pin interface harness includes a male USB connector (Type-A, 2.0) that plugs into the aftermarket radio's USB input.
Note: The two included composite video harnesses will not be used.
Outputs: The Axxess Integrate AX-HYKIA1-SWC provides a 12V/10A accessory output and navigation outputs to make installation easier and less time consuming.
- 12V/10A Accessory Output: Since there is no 12V accessory wire in the vehicle's factory harness, the AX-HYKIA1-SWC is designed to provide a 12V/10A switched accessory output to your new aftermarket stereo, preventing you from having to run an accessory wire to the fuse box or underneath the steering column.
- Navigation Outputs: The Axxess Integrate AX-HYKIA1-SWC provides navigation outputs (VSS, Parking Brake, and Reverse) to help ease the installation process of an aftermarket navigation stereo.
The Axxess AX-HYKIA1-SWC Wiring Interface replaces these items
Connect a car stereo and retain Blue Link® in select 2011-13 Hyundai and Kia vehicles
- connect a new car stereo and keep factory functions working
- retains Hyundai Blue Link system, factory amplifier, and factory aux input
- retains digital fade and balance controls included on some factory amplified sound systems
Loading accessories...
Customer Q&A
4 questions already asked
Q
Well the factory back up camera will work if I purchase AX-HYKIA1-SWC harness for my 2015 Kia Optima exl with no Navi with infinity sound system or is there an additional harness to order?
[ Chico Apr 27, 2019 ]
1 answer
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
[ Krissy May 05, 2019 ] Staff
Q
does metra/ axxess sell an accompanying interface to retain the backup camera as well (2014 Kia Sportage SX w/ OEM amplified Infinity audio and navigation)?
[ Aaron Jan 18, 2019 ]
2 answers
A
I ran into this too on my 15 Optima Turbo. Kia's wiring of its backup camera is proprietary and you have to run a yellow video cable and power/ground. It takes 2 hours at Crutchfield to install a new, HD camera that I bought from Crutchfield. Until I am satisfied, I call Abby, who IMO the BEST CSR at Crutchfield.
[ Christopher Aug 07, 2020 ]
A
Sorry, no. We do not have an a adapter/module for retaining the factory backup camera in your Sportage when an aftermarket stereo is installed.
For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service:
https://www.crutchfield.com/support/ContactUs.aspx
[ Ryan Jan 21, 2019 ] Staff
Q
Will this retain the A/C controls and display on aftermarket nav system (2013 Genesis Coup with Nav)?
[ e Oct 05, 2018 ]
3 answers
A
sorry I can't help you with that specific model of car as I had a Sonata Limited 2011 without the Navigation.
I will say this though, the instructions provided by Crutchfield and the interface manufacturers AXXESS made it very easy for me to wire my system an install it.
[ Jonathan Oct 13, 2018 ]
A
I had it installed today and unfortunately it did not. NoI can't see my AC temps or navigation, at least not on the system I chose. Steering wheel controls work but I think that is a different cable. Hope this helps!
[ Tracey Oct 06, 2018 ]
A
It did not effect the ac control on my Sonata, but I did have issues with the steering wheel controls.
[ Asraff Oct 05, 2018 ]
Q
will this fit a 2013 Hyundai Veloster turbo with the dimension 8 speaker system?
[ trev67 May 06, 2018 ]
1 answer
A
It sure does work in that vehicle with that 8 speaker system!
My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=101
[ Paul May 14, 2018 ] Staff
