About the Axxess TYTO-02 Wiring Interface

Axxess TYTO-02
The TYTO-02 interface allows the user to install an aftermarket car stereo in select 2012-up Toyota models and retain the factory amplified audio system. The interface retains your balance and fade controls, provides accessory power, and is micro-USB updateable. The interface also includes a plug-in connector for the ASWC-1 steering wheel control harness (sold separately) which makes it much easier for you to keep your steering wheel audio controls. If you're installing a new car stereo with a rear aux input, you can retain your Toyota's auxiliary input too. Warranty: 1 year.

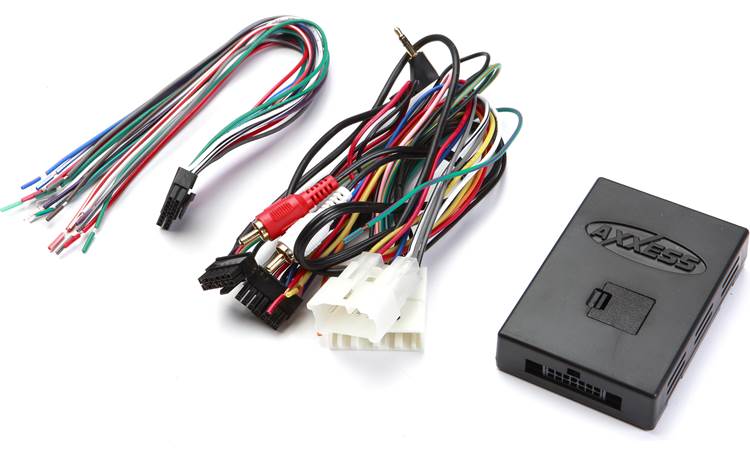

What's in the box:
Axxess TYTO-02 Wiring Interface owner's manual

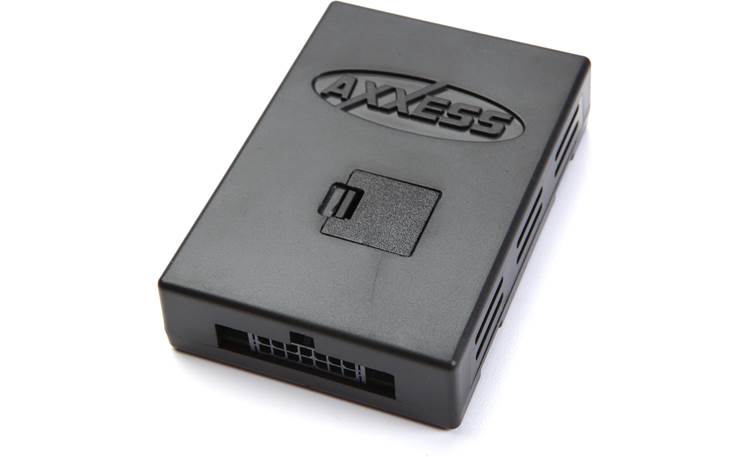

- TYTO-02 interface
- Vehicle harness
- Radio harness
- Installation Instructions
Reviews
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Axxess TYTO-02 Wiring Interface

Product Research
Features
Radio Replacement Interface: The Axxess Integrate TYTO-02 interface allows you to replace the factory navigation radio in select 2012-up Toyota vehicles featuring s factory amplified system with an aftermarket head unit.
Vehicle Compatibility: The TYTO-02 is compatible with the following 2012-up Toyota vehicles.
Make | Model | Year |
Toyota | ||
Avalon (w/ NAV) | 2013-up | |
Camry (w/ NAV) | 2012-up | |
Highlander | 2014-up | |
Prius 3rd gen (w/ NAV) | 2012-up | |
Prius PHV (w/ NAV) | 2012-up | |
Prius V (w/ NAV) | 2013-up | |
RAV-4 | 2015-up | |
Sequoia (w/ NAV) | 2013-up | |
Tacoma (w/ NAV) | 2012-up | |
Tundra (w/ NAV) | 2014-up | |
Venza (w/ NAV) | 2013-up |
Retains Factory Amps: The Axxess Integrate TYTO-02 interface will retain your vehicle's factory amplifier and fade control (when applicable).
Factory Aux Input Retention: The TYTO-02 interface module will retain your vehicle's factory aux input through its stereo RCA jacks. Your aftermarket head unit will need to have a rear Aux input.
Steering Wheel Control Compatible: The TYTO-02 features a right-angle 3.5mm connector that lets you keep your vehicle's factory steering wheel controls via the optional Axxess Steering Wheel Control Interface (120ASWC1, sold separately).
Wiring Harness: In addition to molex connectors which plug into your vehicle's factory radio plugs and the interface module, the wiring harness also provides the following bare-wire leads which will need to be hardwired to your aftermarket head unit's wiring harness.
Wire Color | Function |
Black | Chassis Ground |
Red | +12 Volt Accessory |
Yellow | +12 Volt Constant |
Orange | Illumination |
Blue/white | Amp Turn-On |
White | Left Front Speaker + |
White/black | Left Front Speaker - |
Gray | Right Front Speaker + |
Gray/black | Right Front Speaker - |
Green | Left Rear Speaker + |
Green/black | Left Rear Speaker - |
Purple | Right Rear Speaker + |
Purple/black | Right Rear Speaker - |
Green/purple | Reverse Gear |
Brown | Not Used |
Light Green | Not Used |
Orange/white | Not Used |
Blue-pink | Not Use |
