About the Pioneer DEH-S4120BT
Multimedia functionality with the Pioneer Smart Sync app
Multimedia functionality with the Pioneer Smart Sync app
I love playing with cool features like navigation, smartphone access, and music control that you have with touchscreen multimedia car stereos. But thanks to Pioneer's Smart Sync app, you can enjoy many of these advantages with a single-DIN CD receiver. Pioneer's DEH-S4120BT CD receiver exemplifies this fusion of car stereo and smartphone, bringing your nav apps, messages, music, and more together with a well-designed interface that puts these features at your command.
Need directions? One push of a button will link you to apps like Waze or Google Maps via voice control. Or you can easily check your messages and place a call. Into great sound quality? You can even access a 31-band EQ with Smart Sync. To learn more, head over to www.pioneer-carglobal.com/pss.
With Bluetooth®, I can instantly stream my favorite tunes, music services, and podcasts from my phone without plugging in. And I can take phone calls without having to hold my phone while driving. A lot of car stereos have Bluetooth, but they're not all created equal. The DEH-S4120BT features Wide Band Speech Technology, which ensures that your conversations are clear and easily understood. And this stereo will store 10 phones in its memory, so it'll accommodate all the members of your family. First-time pairing is a snap too — just plug your iPhone® or Android™ into the USB the first time and you're all set.
Ready for your iPhone or Android
Once your iPhone's connected to this Pioneer's front-panel USB input, you'll be able to access your playlists with the receiver's controls. Android Open Accessory 2.0 (AOA 2.0) lets you access music files stored on many Android phones through USB too. You'll enjoy excellent sound quality and you won't have to pick up the phone whenever you want to skip a track. You'll also enjoy control over your favorite Pandora® stations or Spotify on your Android phone or iPhone from this receiver.
If you're using your iPhone or Android with this Pioneer, just touch a button for voice control. Through Bluetooth, you can ask to make calls, select and play music, compose and hear text messages, read notifications, even use maps and get directions — all commanded by your voice.
With Pioneer's potent amplifier and 13-band EQ at your disposal, you can be sure you'll hear a big jump in sound quality over your old radio. Two pairs of preamp outputs make it easier to add external amplifiers or a powered sub.
Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.
iPod/smartphone note: If you're going to use your smartphone with this receiver, be sure to check "Details" for compatibility information.
- CD receiver with AM/FM tuner
- built-in Bluetooth for hands-free calling and audio streaming
- FLAC file playback from USB devices
- detachable face with 2-line LCD display
- 10-level illumination dimmer
- MIXTRAX for a DJ-inspired audio/visual experience with compatible devices
- optional remote control
Smartphone Features (see Details for info on compatibility):
- compatible with Pioneer's Smart Sync App for multimedia functionality
- voice control
- easy access to navigation, music, and messaging apps
- extra sound customization options
- selectable source lets you charge your phone without activating the USB port as a source
- Pandora and Spotify control through iPhone and Android
- control and charging of Apple and Android devices using the USB conncetion
- USB Quick Charge (1.5 amps)
- plays CDs, CD-Rs, and CD-RWs, and USB memory devices (see Details for full capabilities)
- Advanced Sound Retriever (ASR) for improved sound quality from compressed music files
- 13-band equalizer with seven preset tone settings (31 bands through Smart Sync app)
- 3-level loudness
- low-pass and high-pass filters
- subwoofer level control
- inputs: front panel auxiliary and USB inputs
- outputs: 4-channel preamp outputs (4-volt front, rear/subwoofer)
- compatible with most factory steering wheel audio controls (adapter required)
- built-in MOSFET amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # DEH-S4120BT
What's in the box:
- CD receiver (10A fuse)
- Face (attached)
- Trim-ring (installed)
- Sleeve (installed)
- Wiring harness
- Microphone w/ removable visor clip (attached 9.5' cable terminated by a right-angle male mono 2.5mm connector)
- Two-sided tape
- 4 Pan head ISO-mount screws (M5 x 8mm)
- 4 Flat-head ISO-mount screws (M5 x 9mm)
- 2 Removal tools
- Face-fixing screw
- Owner's Manual (En/Fr/Sp)
- Limited Warranty Information (US/CA)
More details on the Pioneer DEH-S4120BT
Features & specs
|Backup Camera Input||No|
|Second Camera Input||No|
|Memory Card Slot||USB memory|
|Satellite Radio Ready||No|
|RMS Power (CTA-2006)||14 watts|
|RMS Power (Manufacturer)||22 watts|
|Peak Output||50 watts|
|RMS Power Bandwidth||20-20kHz|
|Sub Preamp Outputs||No|
|Switchable Rear Preamp Outputs||Yes|
|Preamp Voltage||4 volts|
|Key Button Color||Blue|
|Steering Wheel Control Compatible||Adapter required|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|FM Sensitivity||11 dBf|
|Radio Data System||Yes|
|High-res Playback||FLAC (up to 96kHz)|
Pioneer Smart Sync: Pioneer Smart Sync (for Apple iOS 10.3+ and Android OS 5.0+) is an advanced application that links your USB or Bluetooth connected Apple iPhone or Android smartphone to the Pioneer receiver and provides intuitive app-based features and controls. By utilizing more of your smartphone's features, the Pioneer Smart Sync app expands the ability of the Pioneer receiver. With the Pioneer Smart Sync app, you can bring your smartphone's maps, messages, and music together in the car. Pioneer Smart Sync simplifies actions you make inside a vehicle by allowing a variety of applications to be accessed with a single button on the receiver or your voice making them much easier to use (you will still control the inner workings of each compatible application from the touchscreen of your mobile device). Pioneer Smart Sync will not only enhance the quality of your in-car entertainment, it also increases your level of safety. Because Pioneer Smart Sync displays its user interface on your iPhone or Android smartphone, you'll want to mount your smartphone device to your vehicle's dash - check out the list of mobile device mounts (sold separately) in the Accessories Tab.
- Safe Driving Tools: Pioneer Smart Sync helps ensure your safety by making operation more intuitive through the use of a user-friendly
touchscreen interface on your mobile device, one-touch access from your
receiver's front-panel controls, voice
recognition using the included wired microphone, and hands-free calling.
- Touchscreen User Interface: The Pioneer Smart Sync provides an intuitive user interface on your Apple iOS or Android device's screen with touchscreen control, along with display of song/artist info (including album art) and text messages. It provides access to compatible music, map and messaging apps; as well as audio settings. It even provides a time & date display, as well as indicates your vehicle's current speed.
- One-Touch Access: The Pioneer Smart Sync app provides easy one-touch access from the head unit's front-panel or the Pioneer Smart Sync app screen for making it easier to play your music, start a navigation app, have your messages read, and respond to phone calls. The receiver's front-panel "Phone" and "Nav" buttons, along with the rotary knob are used for one-touch access. It lets you easily access many of the apps you use on a daily basis without distracting you from the road.
- Voice Recognition: You can operate the Pioneer Smart Sync app simply with your voice and the included wired microphone, allowing you to pay full attention to the road while starting navigation, playing music, or opening your phone's address book. Voice recognition is activated by the "Phone" key on the receiver's front-panel and the "mic" icon on the Pioneer Smart Sync interface of your mobile device's touchscreen.
- Hands-Free Calling: Pioneer Smart Sync helps ensure that phone calls don't get in the way of your driving. Calls can be answered with one press of a button on the receiver's front-panel or the Pioneer Smart Sync interface of your mobile device, while the head unit's front-panel's "Phone" key can also be used to open your phone's address book and make calls.
- Compatible Apps: Compatible music, map, and messaging apps must be downloaded on
your compatible Apple iOS or Android device along with the Pioneer Smart
- Music: Whether it's the music stored on your smartphone or your downloaded music apps, Pioneer Smart Sync allows you to access your favorite music. Compatible music apps include Spotify, Tidal, Pandora, TuneIn, YouTube Music, and SoundCloud. You can also select the receiver's CD players, built-in AM/FM tuner, Aux input as a source. The Pioneer Smart Sync screen on your mobile device provides song/artist information, album art, and station identification (when applicable). It also allows you to browse your device's music library, search content within a compatible music app, control CD playback, and seek AM/FM stations. Basic playback functions include Play/Pause, Previous/Next Track and Random/Repeat.
- Maps Pioneer Smart Sync offers one-touch access to your most frequently used navigation app, making it easier for you to plot your trip to your destination. Simply press the "Navigation" button or icon on the head unit's front-panel or the Pioneer Smart Sync apps' screen. Compatible map applications include Google Maps, Apple Maps (iPhone only), Waze, INRIX, and Sygic. The navigation map will display on your mobile device's touchscreen, while audible directions will be heard through your vehicle's speakers. You will need to use the desired navigation app on your compatible mobile device to set your destination.
- Messaging: Once you've connected a compatible messaging app to Pioneer Smart Sync, you can always have your messages read out loud through your vehicle's speakers with a press of the rotary knob on the Pioneer receiver or touch of the "Message" icon on the Pioneer Smart Sync app screen. Compatible messaging apps include WhatsApp Messenger, Viber, Hangouts, WeChat, and Line.
- Sound Customization: In addition to access to the head
unit's standard audio settings, the Pioneer Smart Sync gives you the best audio
experience in your car through advanced audio settings that can only be
found within the app.
- 31-Band EQ: You can easily change your audio environment just by selecting a preset equalizer curve, adjusting the 31 bands in the curve to create your own custom sound.
- Live Simulation: Simulate the immediacy of live music with crowd cheers, clapping, and other effects produced with sound field control using your phone's digital sound processor
- Super Todoroki Sound: Super Todoroki Sound boosts low sounds and automatically adjusts mid- and high-range sounds to add impact and clarity to your audio environment
- Easy Sound Fit: This one-touch feature lets you customize audio to your car's acoustics in an instant by adjusting speaker output timing.
- Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, LTE (4G), EDGE, or WiFi.
- You will need to indicate in the receiver's menu the type of connection you are using for the Pioneer Smart Sync App. Select Wired (USB) or Wireless (Bluetooth).
- If connecting your Android smartphone via USB, it must be set to AOA 2.0 connection (does not work via an MTP connection).
- Once you have connected your compatible mobile device, you can activate the Pioneer Smart Sync App by pressing and holding the receiver's rotary knob or by opening up the app on your device.
- Click here to learn more about Pioneer Smart Sync.
Android Direct Connect via USB: The Pioneer DEH-S4120BT enables playback of stored music and music apps on select Android devices through its front-panel USB port. There are two types of modes to choose from based on your type of Android smartphone and what content you want to listen to.
- AOA (Android Open Accessory) 2.0: The Pioneer DEH-S4120BT supports AOA 2.0, which lets you connect your Android smartphone (OS 4.1-7.1.2) to the DEH-S4120BT's front-panel USB port and listen to stored music and select music apps from your Android device through the Pioneer receiver. You'll be able to control basic playback functions such as Play/Pause and Previous/Next Track. By downloading the Pioneer Smart Sync (for Android OS 5.0+), you also be able to view song/artist information and browse your Android smartphone's music library from the head unit's front-panel controls. You can browse your stored music library by Playlist, Artist, Song, Album, or Genre. You'll also still be able to access other functions and applications from your Android smartphone's touchscreen, while listening to music through the head unit. If you make a call or answer a call from your smartphone while listening to music in this mode, the music will pause until you are finished with the call and then start back up again.
- MTP (Media Transfer Protocol): The DEH-S4120BT also supports MTP for playback & control of stored MP3/WMA music files on your Android (OS 4.0+) device through the Pioneer receiver's front-panel USB port. In this mode, you get basic playback control (like Play/Pause & Previous/Next Track), plus song/artist information on the receiver's LCD screen. During MTP connection, you cannot use your Android smartphone's touchscreen to control music playback and you cannot select music apps from your smartphone for playback. However, you can continue to listen to stored music on your Android smartphone through the head unit while you check your Calendar, Facebook, Texts, etc on your phone. MTP is not compatible with Pioneer Smart Sync.
Note: Not all Android devices are compatible with AOA 2.0 or MTP, regardless of operating system. Pioneer does not guarantee operation with all Android devices.
iPhone Direct Connect via USB: The Pioneer DEH-S4120BT supports audio playback of stored music & music apps on your Apple iPhone with Lightning connector, along with control and song/artist information display through its front-panel USB port. You'll need an Apple Certified Lightning-to-USB cable to make connection. From the head unit, you can browse your iPhone's or iPod touch's music library by Artist, Album, Song, Genre, Playlist, Composer, Podcast, or Audiobook (make sure the Pioneer Smart Sync app is installed and open on your Apple device). You can also choose to control music playback and access music apps from your connected iPhone's touchscreen.
|Apple Device||Generation||Tested Version||Media Type||Control Type||Specific Apps||Display Type||Bluetooth||Charge|
|Audio||Video||Head Unit||iPhone||Pioneer Smart Sync||Spotify||Pandora||Artist/Song Text||Track Info||Phone||Audio||Siri|
- Only compatible with Apple iPhone with Lightning connector devices. Not compatible with iPod, iPad, or older 30-pin devices.
- Apple iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.
Mobile Device Charging: The head unit's USB connection provides 1.5A of current to power and charge your connected Android smartphone or Apple iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position (if your mobile device has no initial battery charge, then the unit will not recognize it).
USB Auto Function: The receiver's "USB Auto" function can be set to ON to enable the head unit to automatically switch to the USB source for playback when a USB-enabled device is connected. If set to OFF, the receiver will not switch sources and simply charge the connected USB device.
Bluetooth 4.0: The DEH-S4120BT is equipped with built-in Bluetooth 4.0, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles -
- Hands-Free Communication: HFP 1.6 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile).
- Audio Streaming: A2DP 1.3 (Advanced Audio Distribution Profile), AVRCP 1.5 (Audio/Video Remote Control Profile).
Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Pioneer DEH-S4120BT.
Multi-Device Pairing w/ Dual Phone Connection: Up to five Bluetooth-compatible devices can be paired to this receiver. You can switch music playback between the five paired devices by simply selecting a song track for playback from a device. You are even able to keep two Bluetooth-enabled phones connected at the same time, so you can make and receive calls from either phone through the head unit. You can only stream music from one phone at a time; you will be able switch between the two phones in the head unit's menu. Additional pairing features include -
- SSP (Simple Secure Pairing): With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the DEH-S4120BT without having to enter pin codes or go through complicated settings (your phone must also support SSP).
- USB Pairing for iPhone: You can also pair your Apple iPhone (iOS 5.0+) by simply connecting it to the Pioneer head unit via USB and following a single prompt on the head unit's display.
Hands-Free Communication (w/ External Mic): The DEH-S4120BT supports wireless hands-free communication (HFP/PBAB) for your Bluetooth enabled mobile phone. And, thanks to the latest Hands-Free Profile (HFP 1.6) with wideband speech capability, the DEH-S4120BT provides more natural sound quality and details during wireless calls. The DEH-S4120BT allows you to carry on a phone conversation from your Bluetooth enabled mobile phone using the head unit's external microphone and your car audio speakers. During a conversation you can adjust the volume, as well as switch between the Private Mode (talking directly on your cell phone) and the Hands Free Mode.
- Answering A Call: During an incoming call, the head unit will display the caller's information and an audible ring tone will be heard through your vehicle's speaker. You can manually answer an incoming call or have the unit automatically answer the call.
- Making A Call: Using the DEH-S4120BT, you can dial a phone number
in one of the following ways -
- Phone Book: The phone book in your Bluetooth enabled cellular phone will be transferred automatically when the phone is paired to this unit. After finding the number you want to call in the phone book from the head unit, you can select the entry and make the call.
- Presets: You can easily store up to six phone numbers as presets for speed dialing.
- Call Log: The most recent calls dialed, received, and missed are stored in memory. You can browse them and call numbers from these lists.
- Voice Dialing: When the Pioneer receiver is paired and connected via Bluetooth to an iPhone or Android smartphone with voice recognition, you'll be able to dial a phone number or contact via voice command.
Wireless Audio Streaming: The Pioneer DEH-S4120BT also supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth enabled audio player or smartphone. The head unit can stream music stored on your Bluetooth enabled device or music apps you have downloaded on your device. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call.
- Music Control: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the DEH-S4120BT lets you browse your stored music by Playlist, Artist, Album, Song, etc. Advanced music browsing is supported by Android 4.0+ smartphones and Apple iPhones 5.0+ (specific advanced functions vary by phone).
- Song/Artist Info: The head unit will also display song/album/artist information from your Bluetooth device's stored music and select music apps on your device.
Siri Eyes-Free Control: When paired and connected to an iPhone with Siri via Bluetooth, the Pioneer DEH-S4120BT has the ability to access Siri through its front-panel controls and external microphone. Simply press and hold head unit's phone key to engage Siri and use the included microphone to communicate with Siri. Siri's voice will heard through your vehicle's speakers. All Siri functions including hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more can be done through the DEH-S4120BT and its microphone. You can even ask Siri to get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your iPhone with Siri. The head unit's audio is attenuated while Siri provides audible directions.
Note: The head unit's front-panel LCD will only display hands-free calling and Bluetooth audio information (all other functions of Siri are only audible through the Pioneer CD receiver; visual data will still need to be viewed from your iPhone device).
Pandora Internet Radio: The free Pandora App (for Apple iOS 10.0+ and Android OS 4.0+) lets you play music from the Pandora music service through the Pioneer DEH-S4120BT using your USB or Bluetooth connected Apple iPhone, or Bluetooth connected Android smartphone. Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, LTE (4G), EDGE, or WiFi. The DEH-S4120BT provides control over the Pandora music service and displays Artist, Album, and Song information.
- Station List w/ Shuffle: You can select Pandora stations from your Station List by date or alphabetically (A-Z). You can also listen to songs played randomly from various stations within your Station List.
- New Stations + Delete: New stations can be created based on the current songs or artists playing. You can also delete a station from your Pandora station list.
- Skip Songs: You can skip song tracks within a station. You cannot skip back to a previous song. Pandora limits the number of skips allowed.
- Thumbs Up/Down: You can give songs a thumbs up or thumbs down to help Pandora personalize stations to suit your preferences.
- Bookmarking: The song/artist currently being played can be bookmarked & stored in your Pandora account.
Note: Access to the Pandora service will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone to connect to the Internet. Pandora is not supported in Canada & only available in the United States.
Spotify Online Music Service: The free Spotify music app (for Apple iOS 10.0+ and Android OS 4.0+) lets you play music from the Spotify music service through the Pioneer DEH-S4120BT using your USB or Bluetooth connected Apple iPhone, or Bluetooth connected Android smartphone. You can play, pause and skip tracks, browse playlists, albums and radio stations through the Pioneer receiver's front-panel controls. You also get song/artist information on the unit's front-panel LCD. Access to the Spotify service will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android device to connect to the Internet. If you are a Spotify Premium user (requires a monthly paid subscription), you can enjoy ad-free, high quality music even when there is no internet connection.
Supertuner IIID AM/FM Tuner: The Supertuner IIID features Feed Forward Control, which avoids multi-path interference. This pre-detection of interference enables quick filter control and results in less distortion. In addition, the Supertuner IIID creates enhanced stereo during multi-path interference, unlike conventional tuners that collapse to mono. Digital processing reduces distortion, and improves Signal-to-Noise Ratio and stereo separation. Advanced analog technology improves signal processing sensitivity.
- RDS: The Radio Data System (RDS) feature displays radio broadcast information such as artist, title, and album when listening to compatible AM/FM stations.
- BSM (Best Stations Memory): The BSM (Best Stations Memory) function lets you automatically store the six strongest stations under preset buttons 1-6 of the currently tuned band. The tuner has 3 FM banks and 1 AM bank. You can store 6 presets for each bank giving you a total of 18 FM presets and 6 AM presets.
- Local Tuning: Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception. There are 4 levels of sensitivity for FM and two levels for AM. The higher settings allow reception of only the strongest stations, while lower settings let you receive progressively weaker stations.
Compatible Discs: The Pioneer DEH-S4120BT CD receiver supports playback of CD-Audio, CD-R, and CD-RW discs. This unit can play MP3, WMA, AAC, and WAV files recorded on CD-R and CD-RW discs.
- Off Insert/Eject + Auto Power On: A CD disc can be inserted or ejected with the power off. When a disc is inserted with the power off, the unit will automatically power up and begin playback.
- Auto Off Eject: When you eject a disc, the unit will automatically power off (unless you switch sources before ejecting the disc).
- Installation Angle: Optimum CD playback performance is obtained when the unit is installed at an angle of less than 60-degrees.
USB MSC Playback: In addition to Apple and Android device connectivity, the CD receiver's front-panel USB-A 2.0 port allows you to connect a USB Mass Storage Class (MSC) device, such as a USB thumbdrive (up to 32GB). The USB port enables audio playback & control of MP3, WMA, AAC, FLAC, and WAV audio files stored on your portable USB MSC device through the Pioneer DEH-S4120BT. Basic playback controls included Play/Pause, FW/RW, Previous/Next Track, and Random/Repeat. Song/artist information such as track, artist, and album name will also be displayed on the head unit.
- USB Auto Switch: The receiver also includes the USB Auto Switch feature, so when a device is connected via USB you have the option to choose whether the receiver uses the phone as a source, or just charges the device.
- USB Charging: USB devices that can be charged via USB will be charged when plugged into the CD receiver's USB ports (max. 1.5A), and the vehicle's ignition switch is set to ACC or On.
Note: Not compatible with USB hubs and card readers.
Audio File Compatibility: The Pioneer DEH-S4120BT supports the following types of MP3, WMA, AAC, & WAV files loaded onto a USB MSC device.
|Media Type||CD (-R/RW)||USB (AOA/MTP/MSC)|
|File System||ISO9660 Level 1/Level 2, Joliet, Romeo||FAT 12/16/32|
|Playable File Types||MP3:
bit rate of 8-320kbps w/ sampling frequency of 8-48kHz |
WMA: bit rate of 48-320kbps w/ sampling frequency of 32, 44.1, 48kHz
AAC: bit rate of 16-320kbps w/ sampling frequency of 11.025-48kHz
WAV: bit rate of 8/16-bit w/ sampling frequency of 16-48kHz
bit rate of 8-320kbps w/ sampling frequency of 8-48kHz |
WMA: bit rate of 48-320kbps w/ sampling frequency of 32, 44.1, 48kHz
AAC: bit rate of 16-320kbps w/ sampling frequency of 11.025-48kHz
WAV: bit rate of 8/16-bit w/ sampling frequency of 16-48kHz (not supported by MTP)FLAC: bit rate of 8/16/24-bit w/ sampling frequency of 8-96kHz (not supported by MTP)
|Maximum # of Folders/Files||99 folders/999 files||1,500 folders/15,000 files|
|Tags||ID3 tags (ver.1.0/1.1/2.2/2.3/2.4), WMA/AAC/FLAC tags|
File/Track Name List: The Name List feature displays a list of MP3/WMA/AAC/WAV albums and tracks on a loaded CD or connected USB device (plus FLAC files for USB only), so you can easily access your music. Music files are listed first by Artist name, then by Album name, and finally by Song title.
Song/Artist Information: During music playback, the unit displays any recorded metadata information; including artist, song, and album name.
Playback Controls: The Pioneer CD receiver provides basic operations like Play/Pause, Fast Forward/Rewind, Previous/Next Track, and Repeat/Random for disc and USB device playback.

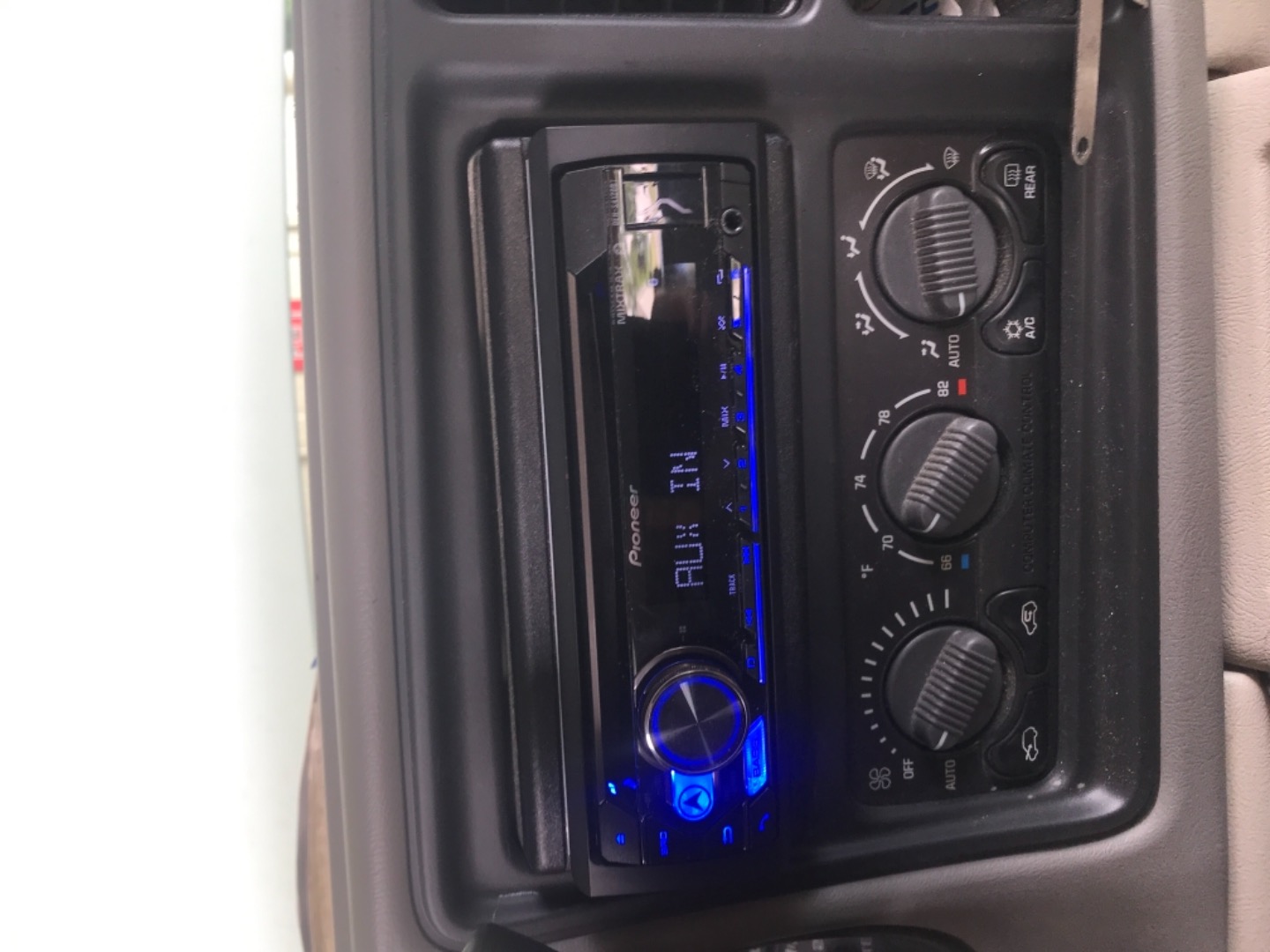

Auxiliary Input: The DEH-S4120BT is equipped with a front-panel 3.5mm stereo minijack auxiliary input for connecting external audio sources, such as a portable digital audio player.
24 Bit D/A Converter: The Pioneer in-dash head unit utilizes a 24-bit digital to analog converter for superior sound quality.
MOSFET Amplifier: The DEH-S4120BT is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.
- CTA2006 Specs: 14 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
- Continuous Power Output: 22 watts RMS x 4 channels (at 4 ohms, 50Hz-15kHz, 5% THD)
- Maximum Power Output: 50 watts x 4 channels
Note: The power specifications for the DEH-S4120BT are compliant with the CTA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Technology Association (CTA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers.
4V/4CH Preouts + Sub Control: The Pioneer DEH-S4120BT features two pair of 4.0-volt preouts (Front & Rear/Sub). The unit's rear preouts can be configured as fading rear-channel outputs or a non-fading subwoofer outputs. When the head unit's rear preouts are configured as subwoofer preouts, you can select the frequency of the select the subwoofer phase (normal/reverse) and volume (+10 to -24).
Built-In Crossovers: The Pioneer DEH-S4120BT is equipped with high and low pass crossovers to suit your type of speaker configuration.
- High-Pass Filter: When you don't want low-frequency sound to be heard through your front or rear speakers, you can simply active the head unit's HPF (high pass filter). By activating the HPF, only frequencies higher than those in the selected range are output from the front or rear speakers. The high pass filter crossover can be set to 25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250 Hz. The slope level of the HPF can also be adjusted to -6, -12, -18, or -24 dB.
- Low-Pass Filter: When using the head unit's Rear/Sub preout as a subwoofer output, you can activate the head unit's low-pass crossover and choose the low pass filter frequency and slope. The low pass filter crossover can be set to 25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250 Hz. The slope level of the HPF can also be adjusted to -6, -12, -18, -24, or -36 dB.
EEQ (Easy EQ) w/ 13-Band Graphic EQ: There are seven stored equalizer curves which you can easily recall at any time. You can choose from - Powerful, Natural, Vocal, Super Bass, Flat, Custom 1, or Custom 2. The Custom 1 and Custom 2 EQ modes allow you to manually adjust the level (+/- 12dB) of each band of the head unit's 13-band graphic equalizer (50, 80, 125, 200, 315, 500, 800, 1.25k, 2k, 3.15k, 5k, 8k, and 12.5k Hz).
Listening Position, Time Alignment, & Speaker Level Adjustment: For a better sound-stage you can select your optimal listening position. You can choose from All, Front Left, Front Right, or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-140") for each individual speaker in the vehicle compared to your listening position. You can then adjust each speaker and sub channel independently from -24 to +10 to best even out the sound in your vehicle.
Bass Management: The Pioneer receiver offers Bass Management through its D.Bass and Loudness feature. D.Bass boosts the bas level dynamically to offer an effect as if a subwoofer was added to the system. D.Bass can be set to High, Low, or Off. The Loudness function compensates for deficiencies in the low- and high-frequency ranges at low volume. You can set the Loudness to High, Mid, Low, or Off.
Advanced Sound Retriever: The Advanced Sound Retriever automatically enhances compressed audio and restores the original richness of the recording. When the Advanced Sound Retriever is on, the high frequency range is compensated to match the frequency response curve to the original sound. There are two available levels of the Advanced Sound Retriever effect.
Source Level Adjustment (SLA): This function lets you adjust the volume level of each source to prevent radical changes in volume when switching between sources. Settings are based on the unit's FM volume level, which remains unchanged. Each source can be independently adjusted from -4 dB to +4 dB.
Rear Speaker Setup: The rear speaker outputs can be set to provide full range output with full fading capability, or they can be set to provide non-fading subwoofer (low-pass) output. When the rear speaker outputs are set to subwoofer mode, the rear preamp outputs also switch from full range to subwoofer outputs. When set for subwoofer operation, you can connect the rear speaker leads directly to two small 4-ohm passive subwoofers or a dual voice coil sub with 4-ohm voice coils. If you prefer to use a single 2-ohm subwoofer, you can connect the woofer to one set of speaker leads, leaving the other set of rear leads disconnected. The maximum output provided when a 2-ohm load is connected to one set of leads is 70 watts.
MIXTRAX: Drawing from Pioneer's rich DJ heritage and passion for music, MIXTRAX delivers a unique DJ infused listening experience to listeners in the car. MIXTRAX is an innovative Pioneer technology that creates a non-stop mix of your music library complete with a range of DJ-inspired effects. MIXTRAX takes your typical music listening experience and creates a non-stop mix of your music with 3 random DJ effects and transitions, by removing the breaks and pauses normally introduced between tracks and replacing them with various beats. MIXTRAX is compatible with USB-connected iPhone & USB MSC devices. There is also a Short Playback option which limits the amount of time each track plays; select from 1, 1.5, 2, 2.5, or 3 minutes.
Note: The MIXTRAX function is not compatible with Android or the Pandora app.
Beep Tone: A beep tone can be heard when a button is pressed on the head unit's front-panel to confirm operation. This feature can be turned On or Off.
Detachable Face Security: The Pioneer DEH-S4120BT CD receiver features detachable face security. No face case is included with this unit. An optional soft face case (142DFC1X, sold separately) can be purchased for this unit. A face-fixing screw is supplied for making the face non-detachable, if desired.
2-Line LCD: The Pioneer DEH-S4120BT features a 2-line LCD screen with the choice of English, Spanish, or French text. The display illumination is fixed with white text and a black background.
- Brightness & Dimmer Control: You can manually adjust the brightness (1-10) of the head unit's display & button illumination to suit your viewing needs. You can also sync the receiver's display & button illumination to the head units' clock.
- Clock Display: You can select between the receiver's clock display or source display. Pressing and holding the "SRC/OFF" button turns off the head unit's audio output, but the clock display and button illumination remains on (you can then press the "D" button to turn off all illumination).
MIXTRAX Illumination: MIXTRAX features a club-style illumination that enhances the mood with a dynamic dance club-like lighting effect. As MIXTRAX begins, lights start pulsing to the beat of the music, adding an extra level of entertainment. You can choose different patterns of lighting variations from sound pressure level or low-pass synchronization modes. The lighting effects work like a spectrum analyzer, reaching peak colors based on the intensity of the music.
Optional IR Remote: The DEH-S4120BT supports Pioneer's CD-R510 IR remote control for wireless operation of the in-dash CD receiver.
Steering Wheel Control Input: The head unit features a 3.5mm steering wheel control input on the rear of the unit that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).
Q Crutchfield asked: Why did you buy this?
4 questions already asked
