Name: Pioneer TS-A652C
Brand: Pioneer
SKU: 130TSA652C
Price: 150.00 USD
Availability: InStock
Rating: 4.5 (50 reviews)

Overview

Open, smooth sound

If anyone knows how to make music sound phenomenal in your car, it's Pioneer. With their A-Series speakers, you'll experience their signature, open-and-smooth sound which helps overcome the limitations of off-axis listening in a vehicle while ensuring a seamless transition between woofer and tweeter playback. Best of all, Pioneer gives you this powerful speaker solution with a friendly price tag so you don't go over budget building a whole system. Pair this TS-A652C 6-1/2" component system with an outboard amp and power it with up to 80 watts RMS for seriously clean sound.

KEEP READING

Open, smooth sound

Optimized materials and design

A woofer cone made of carbon- and mica-reinforced polypropylene means awesome rigidity, low-frequency responsiveness, and weather-resistance. Pioneer also gives you versatile woofer brackets for use across all kinds of makes and models. Use the included tweeter mounts to install the separate 3/4" tweeters in a good spot up high in your vehicle for better stereo imaging. Inline crossovers eliminate the need to find a spot for crossover modules.

READ LESS

Product highlights:

component speaker system includes 2 woofers and 2 tweeters
6-1/2" multilayer carbon- and mica-reinforced IMPP woofer cone with elastic polymer surround
separate 3/4" polyimide hard dome tweeter with inline crossover
woofer adapter and tweeter mounting equipment included
grilles not included
handles up to 80 watts RMS (350 watts peak power)
frequency response: 34-49,000 Hz
impedance: 4 ohms
sensitivity: 85 dB
woofer top-mount depth: 2-3/8"
warranty: 1 year
Our 60-day money-back guarantee
MFR # TS-A652C

What's in the box:

Pioneer TS-A652C owner's manual

Two woofers
Two tweeters (with attached 10" speaker leads terminated with quick-connects)
2 Multi-application woofer mounting brackets
2 Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 11" input leg)
2 Tweeter angled surface mount housings
2 Tweeter flush mount rings
2 Tweeter factory mount brackets
Eight 3/4" Screws
Eight 3/8" Screws
Six 1/2" Screws
8 Flat washers
2 Speed clips
2 Adhesive backed foam discs
Warranty information
Template and specs on box

Pioneer TS-A652C reviews

Average review:

50 reviews

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Filter by rating

Customer photos

Verified customer

Verified employee purchase

Pros:

Cons:

Have questions for

Crutchfield response

Helpful?

Yes

<< >>

Details

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	6 1/2
Design	2-way
Tweeter Design	20mm Dome
Impedance (Ohms)	4
Tweeter Composition	Polyimide
Woofer Composition	Carbon and Mica reinforced IMP
Woofer Surround	Rubber
Parts Warranty	1 Year
Labor Warranty	1 Year
Specifications
Sensitivity (1W at 1 meter)	85
Sensitivity at 2.83 volts	N/A
Frequency Response	34 - 49k Hz
Minimum RMS Wattage	---
Maximum RMS Wattage	80
Peak Power Handling (Watts)	350
Top-mount Depth (Inches)	2 3/8
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	5 7/16
Mounting Height (Inches)	0.229

The Pioneer TS-A652C replaces these items:

Pioneer TS-A1606C

Product Research

Features

Size Classification Note: Some manufacturers, including Pioneer, call this size woofer a 6-1/2". Because it requires a larger cutout than a standard 6-1/2" speaker, Crutchfield has traditionally referred to this size speaker as a 6-3/4". Please enter your vehicle information to confirm fit.

Mounting Brackets: Pioneer includes a pair of mounting brackets to install the woofers in vehicle-specific applications. Again, enter your vehicle information to confirm fit.

Surrounds: For durability and a smooth response, each woofer uses an elastic polymer (synthetic rubber) surround.

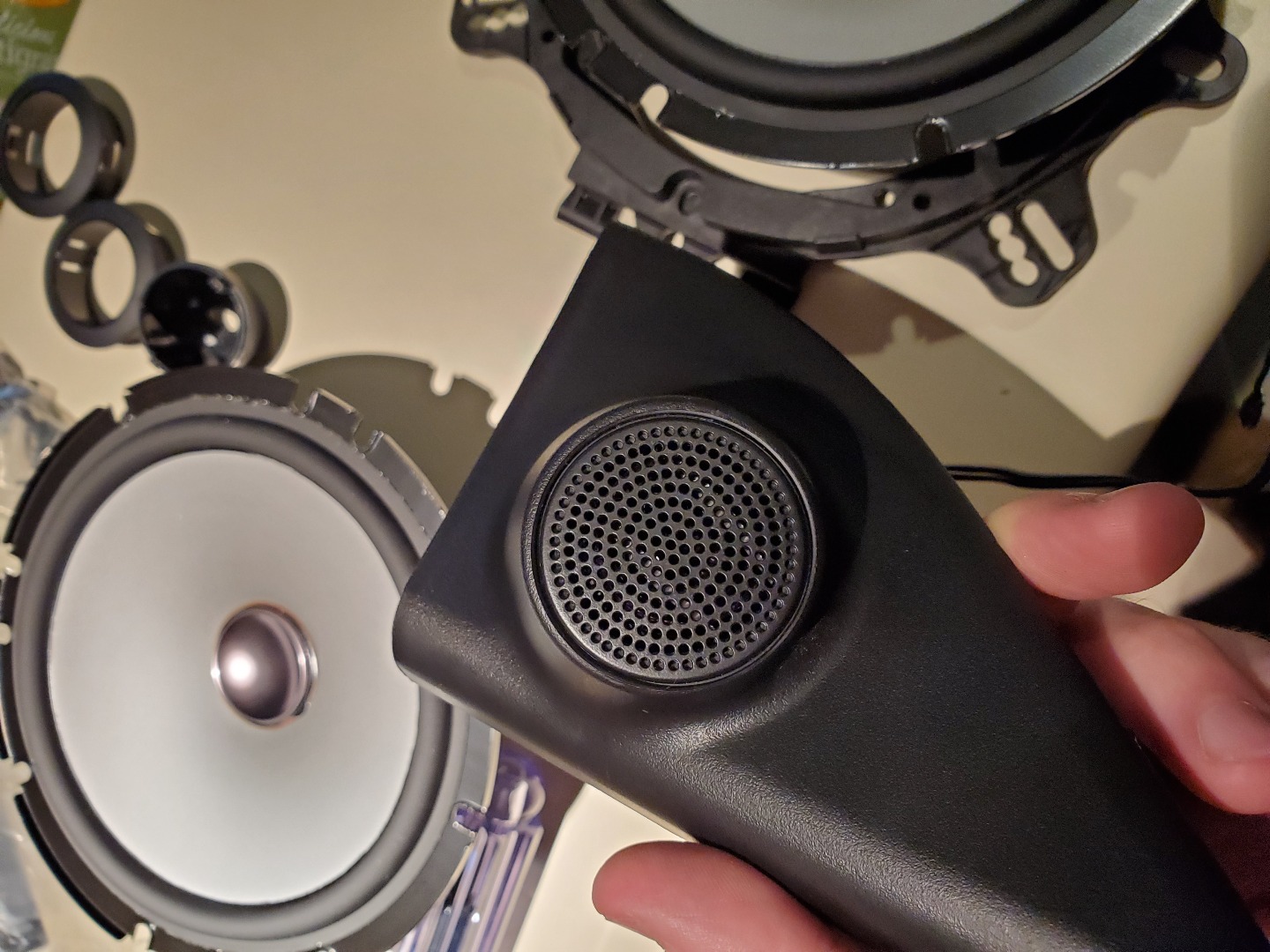

Tweeter Mounting: The system includes flush mount rings and angled surface mount housings for the tweeters. The surface mount housing positions the tweeters at approximately a 45° angle. Bendable brackets are also included for mounting the tweeters in factory locations. Once installed the tweeters do not swivel.

Tweeter Mounting Dimensions:

	Angled Surface Mount	Flush Mount
Mounting Height	1.47"	0.233"
Mounting Depth	screw depth	0.552"
Frame Diameter	N/A	1.955"
Frame Depth	1.785"	N/A
Frame Width	1.5"	N/A
Cutout Diameter	N/A	1.641"

Crossovers: The high pass crossovers are integrated into the included speaker wire and the low pass crossovers are integrated into the woofer baskets. Both are 6 dB/octave and the crossover point is 2.5 kHz. Each length of speaker wire connects to both a woofer and tweeter. Quick slides connect to the woofer, a 40" output leg with integrated crossover (approximately 1/2" diameter x 1-3/4" long) connects to the terminals attached to the tweeter, and an 11" input leg connects to the source.

The Pioneer TS-A652C replaces these items

Pioneer TS-A1606C

6-1/2" component speaker system — also fits 6-3/4" openings

12 reviews

6-1/2" multilayer mica-matrix woofer cone with elastic polymer surround
3/4" soft-dome tweeter
power range: 5-60 watts RMS (350 watts peak power)

Accessories

Loading accessories...

Q&A

9 questions already asked

I bought the TS-A652C speakers and when I installed them into my 2015 Honda Civic lx it wasnâ??t working. Is there a specific way to wire it? It didnâ??t come with directions.

[ Nathan Jan 10, 2021 ]

2 answers

Are you hooking it up to a amplifier? Is so make sure your rca jacks are connected properly and the amp is on. If you are just using the stock speaker wires make sure you use the stock lines connected to the speakers properly including the tweeter wires. They usually complete a circuit. If you try and bypass the stock wires it won't work.

[ CHARLES Jan 11, 2021 ]

If you are replacing factory speakers wire the Woofer with the factory wires and then parallel the tweeters off of the Woofer.

[ Mike B Jan 10, 2021 ]

I bought the TS-A652C speakers and when I installed them into my 2015 Honda Civic lx it wasnâ??t working. Is there a specific way to wire it? It didnâ??t come with directions.

[ Nathan Jan 10, 2021 ]

Can I run these with a pioneer SPH-DA23ODAB or do they need a separate amp?

[ Michael Nov 29, 2020 ]

1 answer

These speakers have a low sensitivity which means they should be powered by an amp to get good sound

[ Paul Dec 14, 2020 ] Staff

I do not have tweeters on my passenger doors, do the speakers have to come with the tweeters or can the woofers be sold separately?

[ jacob May 09, 2020 ]

1 answer

You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.

[ Calvin May 27, 2020 ] Staff

With the included adapter rings will these fit in an MK5 Jetta with the windows still being able to go down all the way?

[ Ricardo Sep 23, 2019 ]

1 answer

Hi Ricardo! We will need a little more info so we can take a closer look into your vehicle. One of our Advisors will be happy to help you out. Just chat with us online or by phone at 1-800-324-9695.

[ Jess Oct 03, 2019 ] Staff

Do you have to use the tweeter's to get any mids or highs out of these speakers?

[ John Aug 10, 2019 ]

3 answers

I would say yes. Especially the highs. This is a great component speaker system. The highs out of the tweets are extremely crisp!

[ SCOT Aug 25, 2019 ]

You can get some range out of the woofer alone but you have to remember the woofers frequency range is in the middle between 100hz to 5000hz. Anyrhing above or below will not be clear or quality sound. The 6db crossover further adds complication to get the right sound from just a woofer alone. If used in a rear door it may be ok for filling the rear space of the vehicle. This can also be problematic as your passengers listening back there will be missing fidelity. Short answer is that you can use them alone. But there is more to the question as to why you would need to.

[ Brandon Aug 19, 2019 ]

If you don't want to install the tweeters then get the model with them built on

[ roc22 Aug 18, 2019 ]

There is one wide terminal and one thin terminal on the speakers. Which one is positive and which is negative?

[ Donald Aug 10, 2019 ]

1 answer

Look on the speaker where the terminals come off the back. There should be + and - markings on the speaker body, right next to the terminal.

[ Brad Aug 18, 2019 ]

Does it come with the crossovers?

[ KAUAIxKILLAH Jun 14, 2019 ]

2 answers

Yes they are tiny inline ones non adjustable

[ michael Jun 14, 2019 ]

if it is integrated in the wire

[ Santos Jun 14, 2019 ]

where would you install the tweeters on a 2006 Tacoma?

[ ptorro Apr 04, 2019 ]

1 answer

The factory location is in the top of the door according to our research file. That would be the best place but those Pioneer tweeters also come with some angled tweeter mounting housings if you prefer to surface mount.

[ Cosmo Apr 17, 2019 ] Staff
