About the Pioneer TS-Z10LS2
Treat yourself to great bass
Treat yourself to great bass
There's nothing like great bass in your vehicle to bring home all the excitement of your favorite music. And today, a good subwoofer is more important than ever, especially with high-resolution audio files which contain even more musical information than CDs. With this in mind, Pioneer designed their Z-Series subs for high fidelity, high output, and ease of installation.
Designed for responsiveness

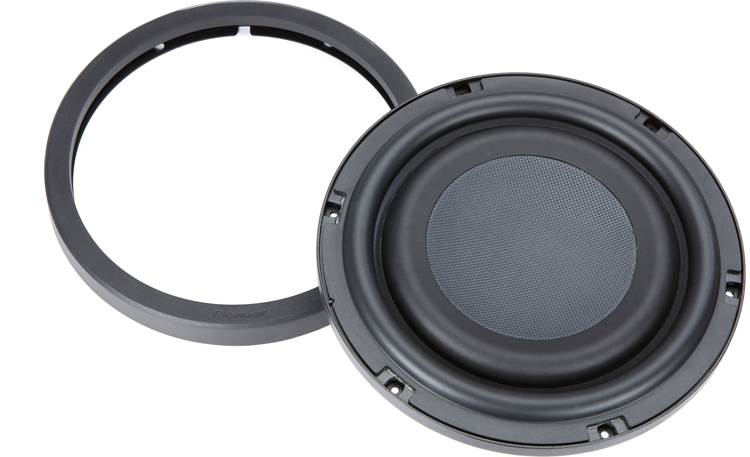

The TS-Z10LS2 10" subwoofer will handle up to 400 watts RMS, and the sub's shallow basket allows you to install it in places where an ordinary subwoofer won't fit. The oversized dual-layer cone of Aramid fiber and cellulose fiber supported by a tough butyl rubber surround delivers accurate, hard-hitting bass notes even when the music's turned up loud. The lightweight die-cast aluminum basket provides an incredibly stable housing for the sub, without any coloration. The sub's 2-ohm voice coil lets you draw maximum wattage from your mono sub amp.
- 10" subwoofer with 2-ohm voice coil
- injection-molded aramid fiber/cellulose fiber cone
- butyl rubber surround
- lightweight die-cast aluminum basket
- handles up to 400 watts RMS (1300 watts peak)
- frequency response: 20-3800 Hz
- sensitivity: 80 dB
- mounting depth: 3-3/16"
- grille not included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # TS-Z10LS2
What's in the box:
Pioneer TS-Z10LS2 owner's manual
- One 10" Shallow mount subwoofer
- Six 1-1/8" Self-tapping screws
- Rubber gasket (installed)
- Manual (English/ German/ French/ Spanish/ Portuguese/ Italian/ Russian)
- Warranty information
Scratch & Dent items may be missing non-essential accessories. In some cases the manufacturer's accessories have been replaced with generic equivalents.
See the difference between "Open Box" and "Scratch & Dent" Outlet items
Pioneer TS-Z10LS2 reviews
Thanks for submitting your review
This review was collected as part of a promotion
More details on the Pioneer TS-Z10LS2
Features & specs
|Cone Material||Woven Aramid Fiber/Cellulose F|
|Surround Material||Butyl Rubber|
|Ideal Sealed Box Volume (cubic feet)||0.6|
|Ideal Ported Box Volume (cubic feet)||0.6|
|Port diameter (inches)||3|
|Port length (inches)||7.5|
|Dual Voice Coil||No|
74 dB at 1 watt |
|Frequency Response||20 - 3800 Hz|
|Max RMS Power Handling||400|
|Peak Power Handling (Watts)||1300|
|Top Mount Depth (inches)||3 1/4|
|Bottom Mount Depth (inches)||N/A|
|Cutout Diameter or Length (inches)||9 1/16|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.
Sealed Box Volume: The sealed box sizes recommended by Pioneer range from 0.35 ft³ to 0.7 ft³; within this range the ideal size is 0.6 ft³.
Vented Box Volume: The vented box sizes recommended by Pioneer range from 0.5ft³ to 0.7 ft³; within this range the ideal size is 0.6 ft³ with a single 3" diameter x 7.5" long port.
Free-Air: The woofer can also be mounted in free air to a baffle board (infinite baffle, no enclosure). When mounted in free air, the power handling is reduced by 75% (to 100 watts).
