About the JL Audio Stealthbox®
JL Audio bass in your 2019-up Ranger
JL Audio bass in your 2019-up Ranger
The JL Audio Stealthbox® custom-fit subwoofer delivers incredible bass in a package that takes up minimal space and blends in with your vehicle's interior. JL Audio designs Stealthboxes to fit in specific vehicles, then loads them with appropriate subwoofers for optimal performance. Pair the system with an appropriate amp and wiring for stellar, concealed bass.
Perfect sound to go with the perfect fit
JL Audio puts months of research and design into each Stealthbox® custom-fit subwoofer to ensure not only that it fits, but that it sounds better than any other custom enclosed system. First, JL Audio determines the ideal shape and mounting location for each enclosure, so that it looks like an original part of the vehicle it's designed for. Next, they mount each high-performance subwoofer so it delivers amazing firepower from within its unique enclosure, without sacrificing clarity or musical depth.
The fiberglass enclosure offers superior rigidity while allowing more interior volume, so the sub can turn out louder, deeper bass. JL Audio craftsmen then laminate, grind, join, and finish each Stealthbox® by hand. The end result: full-bodied, distortion-free bass from an impressively stealthy enclosure.
Enjoy enhanced, custom-fit sound

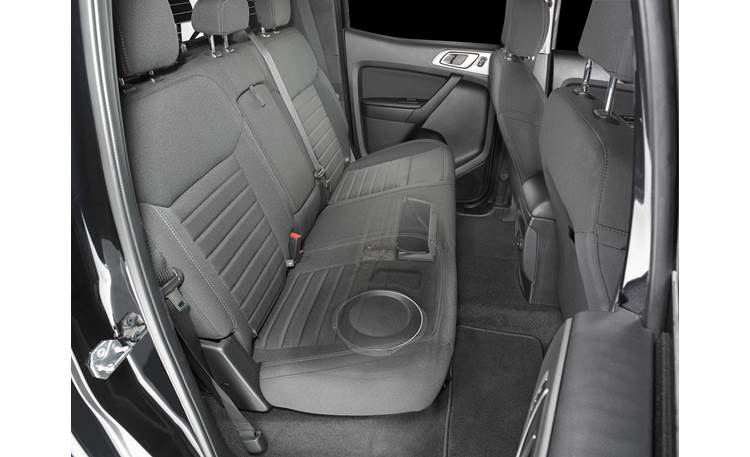

This Stealthbox® enclosure installs under the rear passenger seat in select 2019-up Ford Ranger SuperCrew trucks, replacing the storage compartment. This Stealthbox® includes one JL Audio 10TW1-2 2-ohm 10" subwoofer. Please check with us before purchasing by using the vehicle selector on our site, or calling a Sales Advisor at 1-888-955-6000 to verify fit information.
Product highlights:
- Stealthbox® custom-fit subwoofer
- sealed fiberglass enclosure
- contains one 10TW1-2 10" subwoofer
- 2-ohm total impedance
- installs under rear passenger seat
- power handling: 300 watts RMS (600 watts peak power)
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # 94684
What's in the box:
JL Audio Stealthbox® owner's manual
- Custom enclosure loaded with a single 10" 10TW1-2 subwoofer
- 2-1/2" Threaded post
- 1 Nut
- 1 Flat-washer
- 1 Lock-washer
- Adhesive wax pad
- Installation guide
- Warranty information
Reviews
Customer reviews
Loading reviews...
JL Audio Stealthbox® reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the JL Audio Stealthbox®
Product Research
Features
Overview: JL Audio's SB-F-RNGSCG4/10TW1 Stealthbox has been specifically designed to fit select 2019 - up Ford Ranger SuperCrew trucks. It features a single 10" 10TW1-2 subwoofer in a custom sealed enclosure that mounts underneath the passenger side rear seat in place of the factory storage pocket. Enclosure installation does not affect seat folding.
Note: Use our online vehicle selector to see what products work with your vehicle.
Subwoofer: The JL Audio Stealthbox's single 10" 10TW1-2 subwoofer offers a powerful combination of a shallow mounting depth and high excursion capability, producing deep powerful bass from a small enclosure. The single 2Ω voice-coil subwoofer is capable of handling up to 300 watts RMS (600W peak). A pre-installed black steel mesh grille is included for protecting the subwoofer.

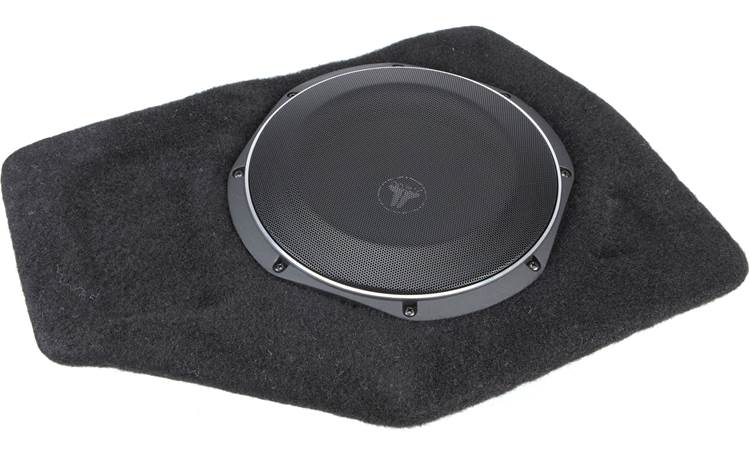

Enclosure: The Stealthbox enclosure is made from fiberglass coated in black carpet and is designed to mount underneath the passenger side rear seat in place of the factory storage pocket.
Terminals: Connection to the JL Audio Stealthbox is made through a single set of binding posts that can accommodate speaker wire up to 10-gauge in size.
Notes:
- Installation requires drilling into the body of the vehicle.
- Factory passenger-side underseat storage pocket must be removed and cannot be used with the JL Audio subwoofer enclosure. Driver side storage compartment will still be retained.
Loading accessories...
Customer Q&A
5 questions already asked
Loading articles...
Jesus Christ. I was very hesitant spending a grand on the stealth box. This thing sounds phenomenal. I honestly cannot believe my ears with this 300 watt rms sub in the most minimal airspace possible slamming so hard.
Jesse Wayne from HUNTERSVILLE, NC
