Name: JL Audio C1-690
Brand: JL Audio
SKU: 13699046
Price: 189.99 USD
Availability: BackOrder
Rating: 4.5 (179 reviews)

Overview

by Crutchfield's

Starter component speakers like no other

After an extensive tour of JL Audio HQ, I got the opportunity to talk to their engineering and development team about the current JL Audio lineup and upcoming projects. Given all the work they're doing with premium car audio, I was surprised by how excited they were for customers to hear their workhorse C1 Series — speakers designed for drivers simply looking for a sensible factory speaker replacement, not necessarily an audiophile-grade solution. The reason for that excitement, once I heard it, made perfect sense — every JL Audio speaker must uphold the quality and sound associated with the name. You may be looking for something that's just listenable, but what you'll get with the C1 Series is an audio experience that puts it at the top of its class. And then, just maybe, you'll end up being a JL Audio fan for life.

KEEP READING

Starter component speakers like no other

This 6"x9" woofer maximizes the space in your factory speaker location.

What sets C1 apart?

JL Audio designed this C1 Series C1-690 6"x9" component speaker system to be the very best it could be for the price. You'll find solid construction and finish, along with some eye-popping flair in its striking yellow mineral-filled polypropylene woofer. That woofer delivers impactful lows and is specially designed for a natural roll-off transition to the highs handled by the tweeter. And it's the separate aluminum edge-driven tweeter that gives the C1 Series its distinctive sound, setting it apart from other speakers in its class. You'll hear crisp detail in the high frequencies, incredible imaging, and minimal distortion no matter how you power them.

Why no grilles?

Most folks have no use for aftermarket grilles, opting to use their factory grilles for a streamlined look. With that in mind, JL Audio doesn't include grilles with the C1 Series, opting instead to incorporate those savings into building an all-round better speaker.

READ LESS

Product highlights:

component speaker system includes 2 woofers and 2 tweeters

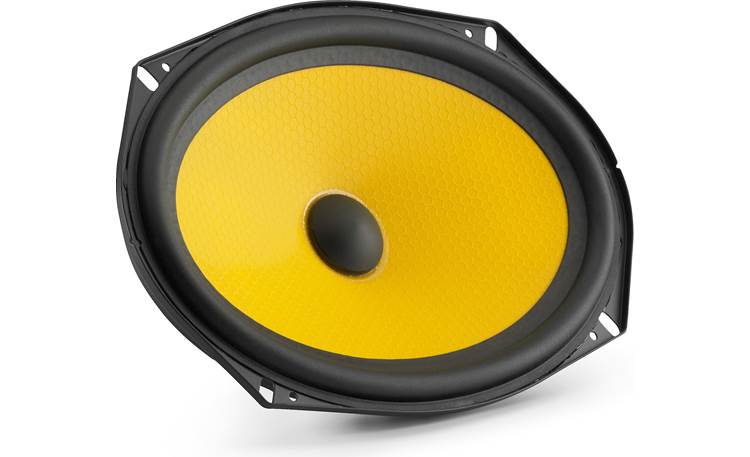

6"x9" injection-molded mineral-filled polypropylene woofer cone with rubber surround
separate 1" aluminum edge-driven dome tweeter with in-line high pass filter
handles up to 60 watts RMS (225 watts peak power)
frequency response: 39-22,000 Hz
sensitivity: 94 dB at 2.83 volts
top-mount depth: 2-3/4"
grilles not included
warranty: 1 year
Our 60-day money-back guarantee
MFR # 99046

What's in the box:

JL Audio C1-690 owner's manual

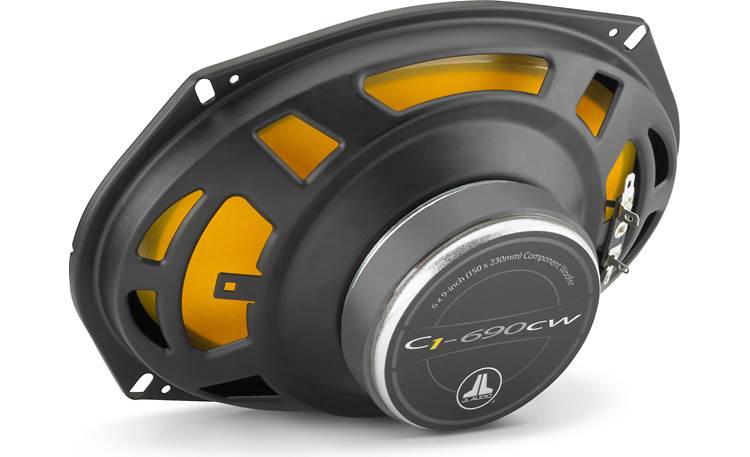

2 C1-690cw Woofers
2 Bottom mount woofer brackets
2 C1-100ct Tweeters (with 6" wires attached)
2 Tweeter crossovers
2 Flush mount tweeter housings (tweeters installed)
2 Surface mount tweeter housings
2 Metal spring clips for tweeter fixtures
2 Crimp-on 0.187" Female quick slides
2 Crimp-on 0.110" Female quick slides
Four 5/8" Flat head screws
Eight 3/4" Pan head screws
Eight 1-1/2" Pan head screws
8 Speed clips
Two 25mm Stud bolts
Two 10mm Stud bolts
2 M5 Nuts
Owner's manual

JL Audio C1-690 reviews

Average review:

179 reviews

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Filter by rating

Customer photos

Customer provided image, click to load a larger version.

Verified customer

Verified employee review

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Have questions for

Crutchfield response

Helpful?

Yes

<< >>

Details

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	6X9
Design	2-way
Tweeter Design	1" Edge-Driven Dome
Impedance (Ohms)	4
Tweeter Composition	Aluminum
Woofer Composition	Mineral-Filled injection-Molde
Woofer Surround	Rubber
Parts Warranty	1 Year
Labor Warranty	1 Year
Specifications
Sensitivity (1W at 1 meter)	91.5
Sensitivity at 2.83 volts	94
Frequency Response	39 - 22k Hz
Minimum RMS Wattage	10
Maximum RMS Wattage	60
Peak Power Handling (Watts)	225
Top-mount Depth (Inches)	2 3/4
Bottom-mount Depth (Inches)	3 9/16
Cutout Diameter or Length (inches)	0
Mounting Height (Inches)	0.256

Product Research

Features

Woofers: Each JL Audio C1 woofer features a mineral-filled, injection-molded polypropylene cone with a rubber surround.

Tweeters: The 1" edge-driven, aluminum dome tweeters are damped by a silk surround suspension. Flush and surface tweeter mounting brackets are included.

Tweeter Dimensions:

	Frame Diameter	Cutout Diameter	Mounting Height	Mounting Depth
Flush Mount	1.970"	1.734"	0.330"	0.931"
Surface Mount	2.005"	Screw Holes Only	0.872"	0.535" (Screw Depth)

Tweeter Crossovers: The in-line tweeter crossovers are 2nd order (12 dB/octave slope) and the 31" input and 14" output wires are attached. The input wires are terminated with female quick slides that plug into terminals on the woofers and the output wires are terminated with male quick slides that plug into the terminals on the wires attached to the tweeters. The woofer is unfiltered, using its engineered roll-off characteristics to blend with the tweeter. The electronic tweeter protection circuit is designed to minimize the possibility of tweeter failure. It monitors current going to the tweeter and will disconnect the tweeter from the signal when it senses overload. Once the volume has been reduced, the protection circuit will reset itself automatically.

Power Handling: JL Audio publishes several power specifications for this speaker system, 60 watts continuous power handling (RMS), 225 watts peak music power, and 10-100 watts recommended amplifier power (RMS). We've listed the conservative combination of 10-60 watts RMS in the specs table.

Accessories

Loading accessories...

Q&A

13 questions already asked

In my Prius the front door and dash tweeters are wired in parallel with the dash tweeters proximal to the amp outputs. As the bass filter for the dash mounted tweeter must be wired up near the tweeters I'd like to know that there's room in the tweeter area for this bass filter (crossover). How might this be done?

[ J Jan 24, 2023 ]

1 answer

These tweeter crossovers are in-line, J. These are small enough to tuck into the dash attached to the wiring on the tweeters. The JL C1 component sets are a great choice for vehicles like yours that have the tweeters wired in parallel with the door speakers. Use our Vehicle Guide below to see all available fits for your specific model and trim Prius. https://www.crutchfield.com/m_399/Car-Speakers.html

[ Bo Jan 24, 2023 ] Staff

What is the minor apex talking about? These speakers fit in a 2017 ram but your system says they don't.

[ Raw1414 Dec 01, 2022 ]

1 answer

Minor apex could be regarded as the "short diameter" for an oblong speaker. It is the shortest distance across an ellipse whereas major apex is the longest distance. In this case, the major/minor apex measurements relate to the cut out required for a speaker to fit into a hole. For help with reviewing speaker fit for a vehicle, please reach out to our advisors via online chat or phone at 1-800-324-9695.

[ ZACHARY Dec 01, 2022 ] Staff

The details section lists these as 4ohm, but they were recommended for my 05 4runner with a 2ohm system as an easy replacement. Are they truly 4ohm?

[ Blake Oct 30, 2022 ]

1 answer

Those JL speakers are true 4 ohm. If your 4Runner has the factory JBL system which is 2 ohms, the only direct replacements usually are a brand called PowerBass. The website could have recommended those JL Audio, even though they are 4 ohm, because they are very sensitive to low powered systems and to give you more options those were recommended.

[ ARIELLE H Oct 30, 2022 ] Staff

How can I mount the tweeters in a 2008 Toyota Highlander?

[ VINCE Apr 13, 2022 ]

1 answer

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the installation of the product. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.

[ KENNETH Apr 16, 2022 ] Staff

Will this fit a 2007 Lexus rx350?

[ Aidan Apr 13, 2022 ]

1 answer

You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.

[ KENNETH Apr 13, 2022 ] Staff

Are these free air?

[ Tracy Jul 15, 2021 ]

3 answers

Not sure what they are rated for, but mine are mounted in my front doors with no enclosure around them and they sound great. Hope that helps!

[ JACK Jul 21, 2021 ]

I guess. Works in door or rear shelf

[ RAMIRO Jul 21, 2021 ]

I installed these in a friends doors/not in a sealed box and they sound great. They will sound better with backing, etc., but they will function fine free air

[ MARK Jul 20, 2021 ]

I have an old dodge quad cab. I'm putting in JL audio subs under the small rear seat. I'm replacing the mid ranges in the rear doors and the tweeters in the front columns. The front doors have a 6X9 and a 5 1/2 midrange. What should I do for the best sound?

[ Jason Jul 10, 2021 ]

1 answer

We have advisors that can be reached by calling 1-800-324-9695 will be happy to discuss the specific Dodge quad cab pickup that you are working on along with all the goals you have for the system to give a personal recommendation on the complete setup.

[ JASON Jul 17, 2021 ] Staff

Do the tweeters mount in a 2020 Outback's OEM tweeter location? Any fabrication/modification needed?

[ C Nov 21, 2020 ]

1 answer

These do not mount in right in place and will need a custom mount made to held in place and we think backstraps work well for this application: www.crutchfield.com/p_120BKSTRAP/item.html

[ JASON Dec 06, 2020 ] Staff

will this include speakers for back doors as well?

[ JOZEF Oct 11, 2020 ]

I have a 13 tacoma crew cab with the jbl audio system am I going to need any adapter for the tweeters?

[ EDGAR Jul 13, 2020 ]

5 answers

I have a fj cruiser and I love my speakers. I made a mistake with my first attempt at mounting the tweeters so don't be in a rush to install them.

[ MARC Jul 16, 2020 ]

If you are talking about needing a crossover it's not needed. They come with high pass filters. At least mine did. If you are talking about fitment I don't know. My application was different

[ DAN Jul 15, 2020 ]

Yes you will need an adapter, the tweeter wiring has bare ends . Or you can cut the connector off the truck and connect the wire ends together .

[ DARREN Jul 14, 2020 ]

i installed mine in a 2014 Toyota Camry...so cant answer specifically for your truck. My car had stock tweeters in the dashboard, i just disconnected them. i installed the JL tweeters in the door of my car just above the speakers. it was just small holes for mounting screws and wires. i just looked for a place in the door where the door panel stuck out away from the metal door in the back. I just looked up your cab and I dont think you will have any problems finding a spot on the door panel to mount them - dont do a flush mount, do a surface mount. It was fairly easy and the tweeters blend in almost like it was stock. The speakers rock! no need for a sub woofer

[ James Jul 13, 2020 ]

Honestly, I left my factory tweeters in the dash. There is no custom strap that I know of and it's a hard location to access unless you have them professionally installed.

[ SARA Jul 13, 2020 ]

Do we get 1 or 2 speakers?

[ CHASE Aug 06, 2019 ]

3 answers

2 woofers, 2 tweeters and 2 crossovers.

[ Michael Aug 06, 2019 ]

You will ger 2

[ ROSS Aug 06, 2019 ]

[ Glen Aug 06, 2019 ]

Are the c1 690 made for stock replacement in a 2016 f150 without an amp?

[ Everett Jul 01, 2017 ]

1 answer

You would be better served reaching out to an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They can pull up fitment & compatibility details on your '16 F-150 model to figure out which speakers will perform best. Thanks!

[ DAVID Jul 07, 2017 ] Staff

Will this fit a 2017 F150 crew cab (front doors) with Sony sound system?

[ JEREMY Jun 22, 2017 ]

1 answer

[ KENNETH Jun 23, 2017 ] Staff
