JL Audio MC2150

Features
Controls
Connections

Features

Marine Rated: The JL Audio M2150 amplifier is designed to provide premium audio performance while being engineered for marine duty.

Two-Channel Full-Range Amplifier: The JL Audio M2150 is a class AB full-range amplifier that is 2-ohm stable in stereo and 4-ohm stable in bridged mode.

• Rated Power at 12.5V between 20-20kHz with 0.08% THD:
  • Stereo:
    • 45 watts RMS x 2-channel @ 4-ohm
    • 75 watts RMS x 2-channel @ 2-ohm
  • Bridged:
    • 90 watts RMS x 1-channel @ 8-ohm
    • 150 watts RMS x 1-channel @ 4-ohm
• Rated Power at 14.4V between 20-20kHz with 1.0% THD:
  • Stereo:
    • 70 watts RMS x 2-channel @ 4-ohm
    • 110 watts RMS x 2-channel @ 2-ohm
  • Bridged:
    • 140 watts RMS x 1-channel @ 8-ohm
    • 220 watts RMS x 1-channel @ 4-ohm

Absolute Symmetry A/B Circuitry: The JL Audio full-range amplifier benefits from a patented technology called Absolute Symmetry to deliver amazing fidelity with extremely low distortion over a wide range of load impedances. The JL Audio amplifier features a revolutionary Class A/B circuit that employs identical N-Channel MOSFET transistors for push and pull with true buffering from the load impedance. This is accomplished via a patented circuit that reverses the operation of one of the transistors in each pair to achieve absolute power symmetry and extremely low distortion over a wide range of load impedances.

Simplified Gain Setting: The M2150 amplifier makes setting the gain level of the amp via the input sensitivity control very simple. All you need is Digital AC Voltmeter (142TK12V, sold separately) and a Test CD Disc (503CD104, sold separately) with a sine-wave test-tone recorded at 0 dB reference level in the frequency range to be amplified for that set of channels (50 Hz for subwoofer channels, 1 kHz for a midrange application).

Differential-Balance Inputs: The JL Audio amplifier features differential-balanced input architecture to effectively control noise and ensure compatibility with a wide variety of source units, including many OEM systems. Without resorting to line output converters, you can directly connect most OEM source units to the JL Audio amplifier without creating any noise or compatibility issues. Unlike conventional single-ended inputs, the differential-balanced design does not connect one side of the audio signal to chassis ground. This eliminates any voltage sensitivity between one input terminal and ground and greatly reduces the incidence of alternator whine in a typical car audio installation. The M2150 amplifier provides range switching on each of its inputs via the "Input Voltage" switch. This permits connection to a wide range of source voltages while retaining excellent sensitivity setting precision.

Note: You will need a speaker wire to RCA adaptor (136XDCLR2S, sold separately) to connect this amplifier to your headunit via speaker-level.

Preamp Outputs: The marine amplifier features one pair of preamp outputs that make connecting multiple amplifiers simple. The preamp pass-through outputs are configured in parallel with the amp inputs. The signal present at these outputs is identical to the signal at the amp inputs and is unaffected by any on-board processing.

Advanced Rollback Protection: Should the marine amplifier ever overheat, its
intelligent, unregulated power supply reacts by limiting available peak voltage until the amplifier returns to a safe temperature range. Likewise, if an impedance lower than optimal for the amplifier is present at the outputs, the marine amplifier will roll back peak voltage to protect itself without shutting down.

Note: If your boat's supply voltage drops below 10 volts, the entire amplifier will shut itself off to protect its internal circuitry.

Protection Circuitry With Status Indicator Lights: There are two status indicator lights on the right side of the amplifier.

• Power (Green): This LED lights green to indicate that the amplifier is turned on and operating normally.
• Protect (Red): The Protection LED lights Red to indicate the amplifier's protection circuitry has been activated to prevent product failure due to a short-circuit or a dangerously low impedance connected to the amplifier's outputs.

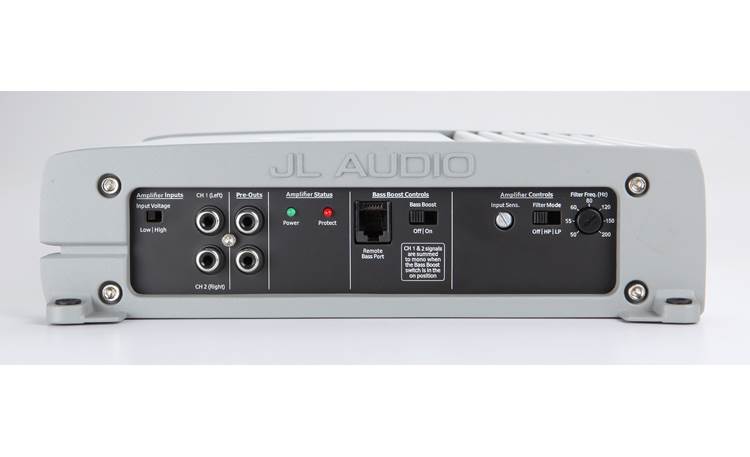

Controls

Active Crossover: The active crossover sections of the marine amplifier offer excellent flexibility and precise tuning. The M2150 features the following crossover adjustments.

• Filter Mode: You can select a 12 dB/octave High Pass, 12 dB/octave Low Pass or Full-Range filter mode for the amplifier.
• Filter Frequency: The filter frequency for the High Pass or Low Pass crossover can be set from 50 to 200 Hz.

Bass Controls: The bass boost circuit of the Marine series amplifier offers the following controls.

• Bass Boost: The amplifier is equipped with a fixed +6dB, 48 Hz Bass Boost.
• Remote Bass Port: The amplifier is equipped with a connection for a wired Remote Bass Control (136RBC1, sold separately) that allows fully variable boost control (0-12dB) from the front of your vehicle.

Connections

Power and Ground: The JL Audio amplifier's set-screw Power and Ground connections are designed to accept 8 to 4 AWG power wire.

Remote Turn-On: The marine amplifier's set-screw turn-on lead will accept 18 to 12 AWG wire.

Speaker Outputs: The M2150 amplifier's set-screw speaker terminals will accept 16 to 8 AWG speaker wire.

Preamp Inputs: The amplifier features one set of differential-balanced RCA jack inputs. The amplifier's input level can be set to Low (200mV-2V RMS) when connecting the amplifier to a low-level preamp signal or set to High (800mV-8V RMS) when connecting the amplifier to a high-level speaker signal.

Preamp Outputs: The amplifier also features one set of pass-through preamp outputs so you can send an unaltered audio signal to another amplifier in your system.

Remote Bass Port: The amplifier is equipped with a connection for a wired Remote Bass Control (136RBC1, sold separately).
