About the Scosche TAQ02
Secure wireless phone charging for your Tacoma
Secure wireless phone charging for your Tacoma
Scosche's TAQ02 combines the convenience of the MagicMount™ phone mounting system with the functionality of a Qi (pronounced "chee") wireless charging system. Top it off with the fact that Scosche designed this charger to fit right in the front console location in your Toyota Tacoma, and you've got a charger that looks like it came right from the factory. You'll need to remove a few panels and drill a hole, and Scosche includes the "T" harness for your Toyota's wiring — eliminating the need to cut and splice. Once it's in, you'll be able to charge your Qi-compatible smartphone without searching for that hard-to-find charging cable while you're driving.
What you need
You'll need a phone that includes the Qi charging system, or you'll need to add a Qi-compatible USB coil, battery cover, or charging sleeve to your existing smartphone. This MagicMount system includes the MagicPlate™ to attach to your case or directly to the back of your smartphone, so it'll stay in place as you drive around town. Scosche includes the detailed instructions for your installation, as well as a template for the placement of the MagicPlate magnets.
Note: This charger is not compatible with Tacomas that have a manual transmission or bench-seat models that do not have a center console.
This charging system will require permanent modifications to your vehicle's console. These modifications aren't visible upon the completion of the installation.
- vehicle-specific Qi wireless charger for select smartphones
- installs in front console of select 2005-15 Toyota Tacoma models (automatic transmission models with center console only)
- up to 10W of wireless charging power
- compatible with iPhone® 8, iPhone 8 Plus, and iPhone X
- LED light on side of mount indicates charging status
- Foreign Object Detection prevents charging when objects obstruct charging area
- included thin non-magnetic metal plate that attaches to device with adhesive
- features powerful built-in neodymium magnets safe for smartphones
- not for use with hard drive devices
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # TAQ02
What's in the box:
- Qi wireless charger
- Mounting cradle
- 5' T-harness
- Large self-adhesive magnetic plate (for smartphone device)
- 2 Small self-adhesive magnetic plates (for cases)
- Cleaning wipe
- Template Guide
Scosche TAQ02 reviews

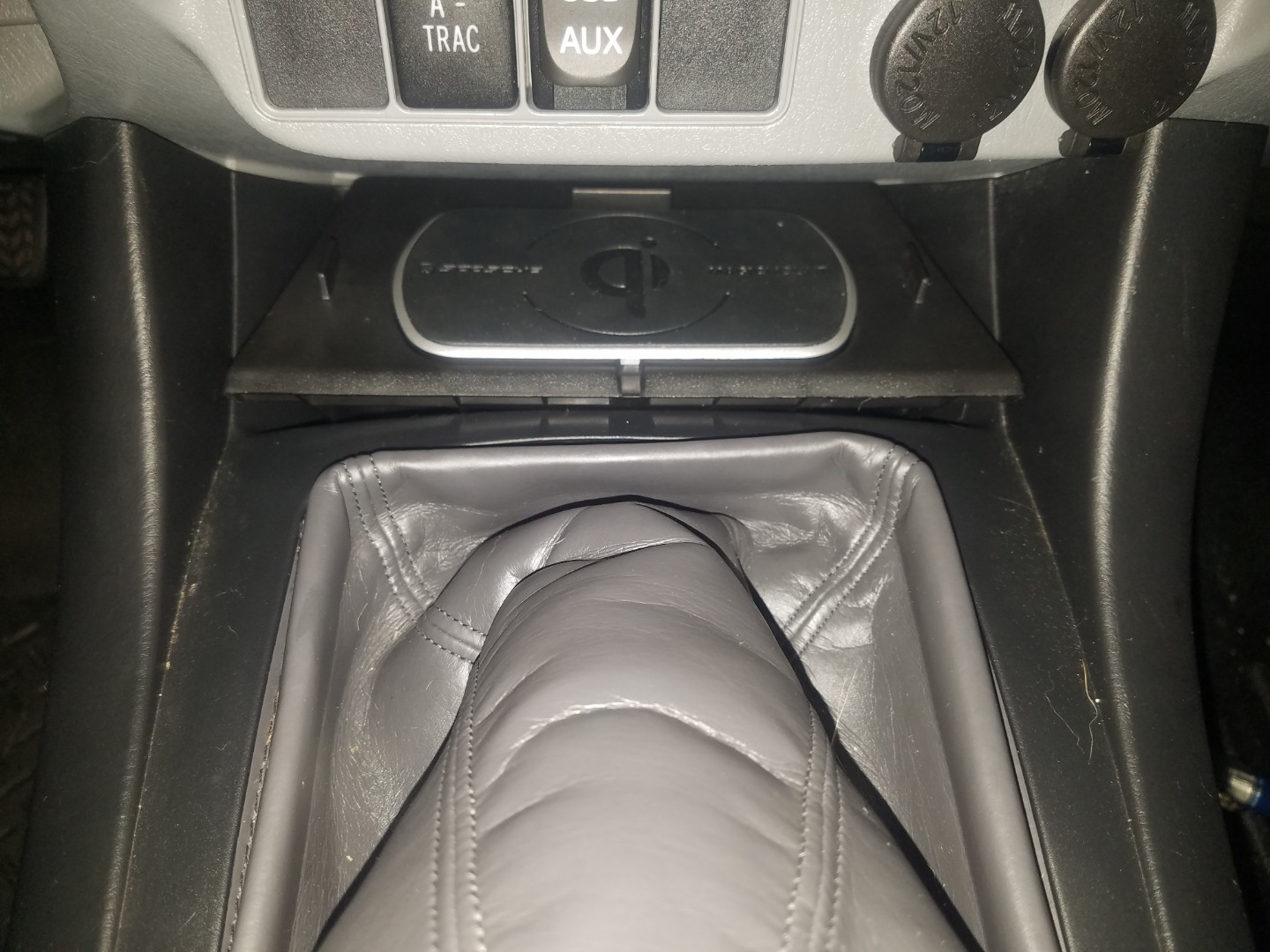

Product works exactly as designed. the mold for the qi charger is a bit small if you have a phone like the google pixel 3 xl in a case. but will still charge the phone just has to sit at a slant inside the qi charger. would give it 5 stars if no drilling was required to make the wire fit thought the existing trim panel. took me about 10 mins to tear down everything than 5 mins to mark and drill the hole for the type C cable. another 10 mins to test fit and button up everything. Would recommend if you like me want the new features on the 2016+ Tacoma's but like the 05-2015 model year better. Happy Tacoma now. Thanks Crutchfield for the good quality products and timely shipping to Hawaii.
Pros: Does Qi charge the Pixel 3XL will come with backing plates for the Samsung S9 and S9+ among other little plates. plates not required to qi charge.
Cons: drill a small hole but at least you wont see the hole.
0 of 0 found this helpful
I would love to give this 5 stars. Seems like an awesome product and would absolutely solve my issue of having charger cords in the way, yet it does not fit with a manual transmission
Pros: Qi charger works great, no cords in the way
Cons: Doesn't fit Manual Transmission
0 of 0 found this helpful

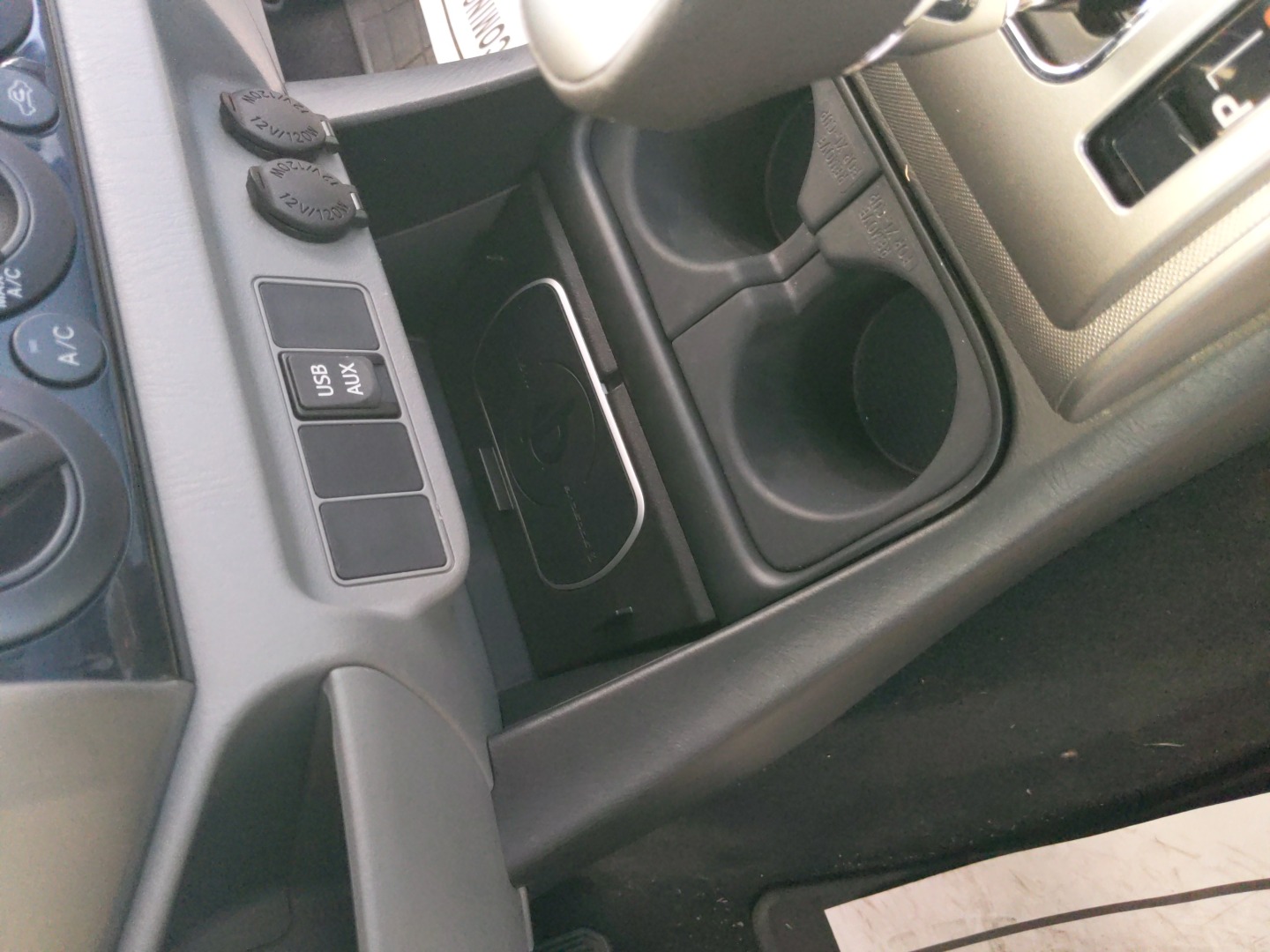

I got this to upgrade my Tacoma and to have an easy way to charge without cords hanging all around. It does just that. Its a nice edition however you will need to remove a fair amount of your center console and dash to install this. It doesnt fit exactly side to side snugly but does stay put. Given its a darker area the gaps aren't too notable but are there. All in all I think it will be a good add on to my vehicle.
Pros: Does exactly what it should do
Cons: Minor gaps on the sides
6 of 6 found this helpful
More details on the Scosche TAQ02
MagicMount Charge: Scosche has combined the latest Qi wireless charging technology with their MagicMount magnetic mount system for the ultimate solution in hands-free magnetic mounting and wireless charging. The Scosche MagicMount Charge OEM offers vehicle specific applications.
Vehicle Compatibility: This MagicMount Charge OEM model is compatible with the following vehicles: 2005-15 Toyota Tacoma trucks-- including Double Cab and Access Cab with Limited, TRD, and PreRunner premium trim levels with full center console and independent bucket seats. (Not for use with bench seat, including single cab and base trucks.)
Qi Certified: The Scosche MagicMount Charge has been designated as "Qi Certified" by the Wireless Power Consortium. Qi Certified products have been thoroughly tested by independent laboratories to ensure their safety, compatibility and energy efficiency.
Note: Some wireless charging products may use terms like "Qi compliant", "Qi compatible" and "Works with Qi", but these terms are not the same as "Qi Certified." Products using such terms have not undergone Qi certification testing.
Qi Wireless Charging: Qi (pronounced "Chee") is the global standard for smartphone wireless charging. Wireless charging uses electromagnetic fields to safely transfer power from a transmitting source (such as the MagicMount Wireless Charge) to a receiving device (Qi-enabled smartphones or add-on wireless charging accessories.) to wirelessly charge the device's battery.
Wireless Fast Charging for Apple and Samsung: The Scosche MagicMount Charge delivers up to 10W of charging power, making it compatible with Apple and Samsung Wireless Fast Charging. It is also compatible with other Qi-enabled smartphones that support 5W charging, as well as many other Qi-enabled products.
- Apple (10W): iPhone Xs, iPhone Xs Max, iPhone Xr, iPhone X, iPhone 8 Plus, and iPhone 8
- Samsung (10W): Galaxy S9/S9+, Galaxy S8/S8+, Galaxy S7/S7 Edge, and Galaxy S6/S6 Edge, Note 9
- Other Qi-Enabled Smartphones (5W): Google, Microsoft, LG, HTC, and Motorola
- Other Qi-Enabled Products: Cases, Receivers, and Battery covers
LED Indicator: The LED indicator on the side of the Scosche MagicMount Charge illuminates green during standby and blue during charging.
Magnetic Mount: Not only does the Scosche MagicMount Charge deliver fast wireless charging, it also provides two points of magnetic contact for a solid hold via powerful, rare-earth, neodymium magnets. Scosche includes a large self-adhesive MagicPlate for directly applying it to your smartphone device and includes two small self-adhesive MagicPlates for use with smartphone cases. A MagicPlate Template Guide is also provided to make sure you position the MagicPlate(s) in the proper location.
Note: The included MagicPlate should be installed on your Qi-enabled device to avoid interfering with wireless charging functionality. It is not recommended with use of a wallet case, and should not be used with any hard-drive based devices.
Mounting Options: The Scosche MagicMount Charge comes with a mounting cradle where the Qi wireless charger will install. The MagicMount Charge OEM vehicle specific models are designed to fit perfectly in your compatible vehicle. It replaces the vehicle's factory tray in the front center console without modification and provides a factory OEM appearance.
Wiring Harness: The Scosche MagicMount Charge OEM includes a 5' T-harness for your vehicle that integrates into your factory wiring. The T-harness has a USB-C connector which plugs into the MagicMount Charge. On the other end of the T-harness are two molex connectors which plug into your vehicle's wiring harness underneath the storage tray.
Safety Protection: Advanced safety features like Foreign Object Detection safeguards your device from overheating and becoming a potential fire hazard.
