Scosche UQ01

MagicMount™ Qi wireless charging kit with universal vehicle mount

1 Review | 3 questions - 1 answer

California customers: Please click here for your Proposition 65 warning.
Overview

Our take on the Scosche UQ01

Scosche's UQ01 combines the convenience of the MagicMount™ phone mounting system with the functionality of a Qi (pronounced "chee") wireless charging system. Scosche designed this charger to flush-mount in a custom location close to your vehicle's 12-volt power socket. There are modifications involved, such as removing a few panels, cutting out a hole for the charger, and drilling a hole to route a cable. Scosche includes a "T" harness for your vehicle's 12-volt power plug — eliminating the need to cut and splice wiring. Once the mount is installed, you'll be able to charge your Qi-compatible smartphone without searching for that hard-to-find charging cable while you're driving.

Secure wireless phone charging for your vehicle

Scosche's UQ01 combines the convenience of the MagicMount™ phone mounting system with the functionality of a Qi (pronounced "chee") wireless charging system. Scosche designed this charger to flush-mount in a custom location close to your vehicle's 12-volt power socket. There are modifications involved, such as removing a few panels, cutting out a hole for the charger, and drilling a hole to route a cable. Scosche includes a "T" harness for your vehicle's 12-volt power plug — eliminating the need to cut and splice wiring. Once the mount is installed, you'll be able to charge your Qi-compatible smartphone without searching for that hard-to-find charging cable while you're driving.

What you need

You'll need a phone that includes the Qi charging system, or you'll need to add a Qi-compatible USB coil, battery cover, or charging sleeve to your existing smartphone. This MagicMount system includes the MagicPlate™ to attach to your case or directly to the back of your smartphone, so it'll stay in place as you drive around town. Scosche includes instructions for your installation, as well as a template for the placement of the MagicPlate magnets.

This charging system will require permanent modifications to your vehicle. These modifications shouldn't be visible upon the completion of the installation. If you're not sure about the modifications involved or safely choosing a location in your vehicle, you'll want to contact a professional installer.

Product Highlights:

  • universal-fit Qi wireless charger for select smartphones
  • installs in vehicle location near 12-volt power port
  • requires modifications to vehicle's interior for permanent mounting
  • up to 10W of wireless charging power
  • compatible with iPhone® 8, iPhone 8 Plus, and iPhone X
  • LED light on side of mount indicates charging status
  • foreign object detection prevents charging when objects obstruct charging area
  • included thin non-magnetic metal plate that attaches to device with adhesive
  • features powerful built-in neodymium magnets safe for smartphones
    • not for use with hard drive devices
  • warranty: 1 year
  • Our 60-day money-back guarantee

What's in the Box:

  • Qi wireless charger
  • Mounting cradle
  • 5' Power/ground harness
  • Large self-adhesive magentic plate (for smartphone device)
  • 2 Small self-adhesive magnetic plates (for cases)
  • Cleaning wipe
  • Instructions
  • Template Guide
Reviews

Scosche UQ01 Reviews

Average Customer Review(s):

(1 Review)

Scosche UQ01

Crutchfield customer from Bedford, IN on 9/6/2018

Crutchfield Customer Review (What's this?)

Love this device!!! Does exactly what it is supposed to. Further more I had it wired in with my trucks ignition and mounted it on center console tray. Great product no more mess of cords either

Pros:

Cons:

Details

Hands-on research

Product Research

Features

MagicMount Charge: Scosche has combined the latest Qi wireless charging technology with their MagicMount magnetic mount system for the ultimate solution in hands-free magnetic mounting and wireless charging. The Scosche MagicMount Charge UQ01 offers a universal fit, and will work for many vehicle applications.

Note: Scosche MagicMount Charge is also available in vehicle specific models for select Dodge/RAM, Jeep, Ford, Chevrolet/GMC, Honda, Toyota, and Tesla vehicles.

Qi Certified: The Scosche MagicMount Charge has been designated as "Qi Certified" by the Wireless Power Consortium. Qi Certified products have been thoroughly tested by independent laboratories to ensure their safety, compatibility and energy efficiency.

Note: Some wireless charging products may use terms like "Qi compliant", "Qi compatible" and "Works with Qi", but these terms are not the same as "Qi Certified." Products using such terms have not undergone Qi certification testing.

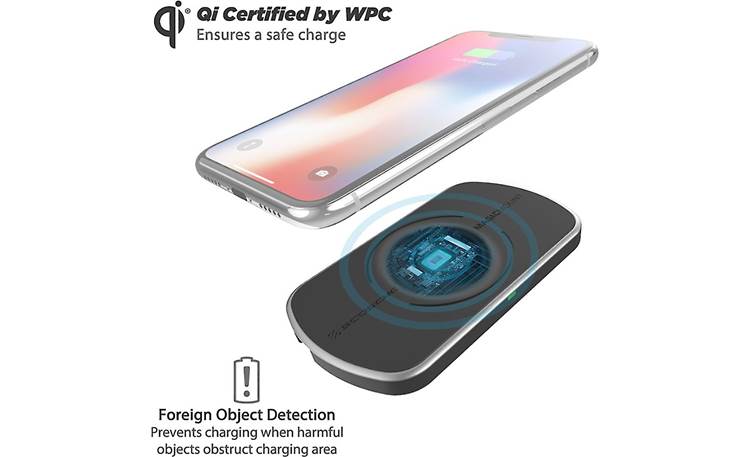

Qi Wireless Charging: Qi (pronounced "Chee") is the global standard for smartphone wireless charging. Wireless charging uses electromagnetic fields to safely transfer power from a transmitting source (such as the MagicMount Wireless Charge) to a receiving device (Qi-enabled smartphones or add-on wireless charging accessories.) to wirelessly charge the device's battery.

Wireless Fast Charging for Apple and Samsung: The Scosche MagicMount Charge delivers up to 10W of charging power, making it compatible with Apple and Samsung Wireless Fast Charging. It is also compatible with other Qi-enabled smartphones that support 5W charging, as well as many other Qi-enabled products.

  • Apple (10W): iPhone Xs, iPhone Xs Max, iPhone Xr, iPhone X, iPhone 8 Plus, and iPhone 8
  • Samsung (10W): Galaxy S9/S9+, Galaxy S8/S8+, Galaxy S7/S7 Edge, and Galaxy S6/S6 Edge, Note 9
  • Other Qi-Enabled Smartphones (5W): Google, Microsoft, LG, HTC, and Motorola
  • Other Qi-Enabled Products: Cases, Receivers, and Battery covers

LED Indicator: The LED indicator on the side of the Scosche MagicMount Charge illuminates green during standby and blue during charging.

Magnetic Mount: Not only does the Scosche MagicMount Charge deliver fast wireless charging, it also provides two points of magnetic contact for a solid hold via powerful, rare-earth, neodymium magnets. Scosche includes a large self-adhesive MagicPlate for directly applying it to your smartphone device and includes two small self-adhesive MagicPlates for use with smartphone cases. A MagicPlate Template Guide is also provided to make sure you position the MagicPlate(s) in the proper location.

Note: The included MagicPlate should be installed on your Qi-enabled device to avoid interfering with wireless charging functionality. It is not recommended with use of a wallet case, and should not be used with any hard-drive based devices.

Mounting Options: The Scosche MagicMount Charge comes with a mounting cradle where the Qi wireless charger will install. The MagicMount Charge UQ01 is designed to flush-mount in a variety of vehicles. You will need to make a 3-1/8" x 5-5/16" rectangular cutout with a mounting depth of 1/2" for the unit to flush mount into the opening. The outer dimensions of the MagicMount Charge measure 7-5/8" x 4" with a 1/4" thick top bezel.

Note: You should install the MagicMount Charge at least 10" away from the ignition lock, key fob docking station, or any location where the key fob might be stored while driving. Failure to do so can result in interfere with wireless systems inside your vehicle. In addition, it should not be mounted near the airbag.

Wiring Harness: The Scosche MagicMount Charge includes a 5' power/ground wiring harness which will need to hardwired to the vehicle (Red wire to +12V Accessory; Black wire to Ground). The harness terminates into a USB-C connector which plugs into the MagicMount Charge.

Safety Protection: Advanced safety features like Foreign Object Detection safeguards your device from overheating and becoming a potential fire hazard.

Our Product Research Team

At Crutchfield, you'll get detailed, accurate information that's hard to find elsewhere. That's because we have our own in-house Product Research team. They verify what’s in the box, check the owner's manual, and record dimensions, features and specs. We stay on top of new products and technologies to help people make informed choices.

Accessories
Q & A

Customer Q&A

3 questions already asked

The overall dimensions of the plate are 7.625" x 4.0". You will need to make a 3.125" x 5.3125" rectangular cutout with a mounting depth of 0.5" for the unit to flush mount and only stick up the 0.25" from the mounting surface My Bio: https://www.crutchfield.com/bio/Paul [ Paul  Feb 23, 2019 ]  Staff
