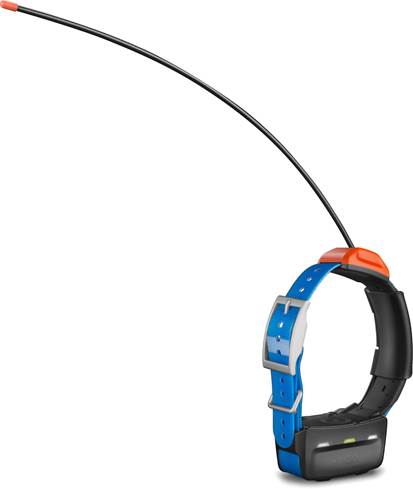

About the Garmin T 5 Dog Tracking Device
Track your dog
Track your dog
A blue collar strap is included with the device.
If you need a tracking-only collar device for your outdoor adventures, the T 5 will not let you down. Use it in conjunction with Garmin's Alpha® 100, Astro® 320, or Astro 430 handheld devices to keep track of your dog from up to nine miles away. The top-mounted, high-sensitivity GPS/GLONASS receiver can update your dog's location as often as every 2.5 seconds, so you always know where she is.
And it was designed with competition rules in mind, so it can even be used in most field trials and hunting competitions that allow GPS devices.
It can go the distance
The T 5 is rugged and water-resistant to 32 feet, so it's tough enough to keep up with your dog through all kinds of terrain. It also has built-in LED beacon lights to help locate your dog in low-light conditions.
The rechargeable battery lasts a long time and can be extended by putting the collar in "rescue mode."
- dog tracking device for use with compatible Garmin handheld systems
- top-mounted, high-sensitivity GPS/GLONASS receiver for better tracking than GPS alone
- range: 9 miles
- 18.5" standard antenna
- 22.5" extended-range antenna
- user replaceable 1" collar strap fits neck sizes between 13" and 22"
- blue collar strap included
- water rating: 1 ATM (10 meters)
- remotely operable LED beacon lights to locate your dog in low-light situations
- approved for use in AKC pointing breed field trials and hunting tests
- compatible with Alpha 100, Astro 320, or Astro 430 devices
- cannot be tracked by different device styles simultaneously
- powered by rechargeable lithium-ion battery (cable included)
- approximate battery life: 20-40 hours
- rescue mode conserves battery power
- 3-1/2"W x 1-3/4"H x 1-7/8"D
- weight: 9.3 oz. (including collar)
- warranty: 1 year
- MFR # 010-01041-70
What's in the box:
- Dog tracking device on 24" x 1" blue collar
- 22.5" Extended range antenna (installed)
- 18.5" Standard antenna
- 12" Charging cable with female Mini-B USB
- 68" DC battery charging cable with male Mini-B USB plug
- AC adapter with attached 5' DC output cable (DC output: 5V 1A)
- US 2-prong AC plug adapter
- Quick Start Manual
- Important Safety and Product Information
- Read Instructions Before Using! sheet
More details on the Garmin T 5 Dog Tracking Device
Overview: The Garmin T 5 Dog Device is a long range dog tracking collar, with a sensitive GPS receiver and VHF radio transceiver. The T 5 works with the Astro 320, Astro 430, or Alpha 100 handheld device (sold separately). The collar comes with a charging clip with AC and DC power adapters.
Dog Collar Device: The T 5's device is mounted to the top of a 3/4" wide blue polyurethane-coated collar strap. This rugged device is water resistant with a 1 ATM rating (withstands pressures equivalent to a depth of 10 meters). With the compatible handheld device, you can track your dog up to 9 miles away. The collar comes with interchangeable antennas: a 22.5" extended range antenna (attached) and an 18.5" standard antenna. The T 5 device is 3.46" x 1.76" x 1.87", and weighs 6.6 ounces (9.3 ounces including the collar).
Note: The T 5 device is for dog tracking only. For tracking and training, see the TT 15 or TT 15 Mini Dog Devices.
Collar Strap: The collar fits dogs with neck sizes of 9.5" in circumference and up. Additional 1" collar straps are available from the manufacturer in a wide variety of colors.
GPS Tracking: The T 5 lets you track your dog's location from up to nine miles away. The device uses data from GPS (Global Positioning System) and GLONASS (Russia's version of GPS) satellites to pinpoint its location. The GPS data is transmitted via VHF radio frequencies to the handheld unit. The Alpha 100 handheld device lets you view your dog's location on a map. Up to 20 dogs collar devices can be linked to a single handheld device.
Power Options: The T 5 is powered by a Lithium-ion rechargeable battery. Estimated battery life is 20 to 40 hours per charge, and can be charged via the AC or DC power adapters included. Battery life varies with the handheld device in use. The battery is user-replaceable when it becomes worn out. A replacement battery (item # 010-11828-03) is available from the manufacturer.
