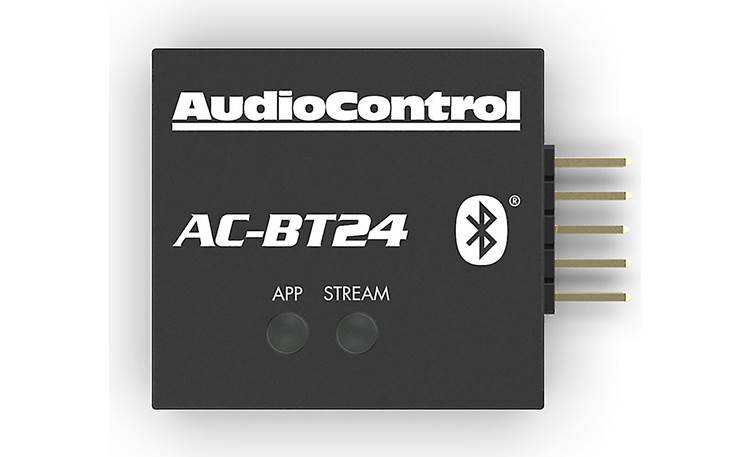

AudioControl AC-BT24

Bluetooth® adapter for an AudioControl DSP device

Item # 161ACBT24

Need help?
Contact our Virginia-based experts.

Item # 161ACBT24

Ships free

Temporarily out of stock

Ship date unknown

$129.99
Add to wishlist

About the AudioControl AC-BT24

Bluetooth streaming and app control for your DSP

If you own an AudioControl DM-608, DM-810, or D-6.1200 digital signal processor or amplifier, the AC-BT24 plug-in module will allow you to wirelessly stream music into your system and control the processing app from your compatible Bluetooth device. It'll also work with AudioControl's DM-RTA, so you can analyze a system's signal wirelessly. This add-on module simply plugs into the Option Port of the processor.

Product highlights:

  • Bluetooth adapter for an AudioControl DSP
  • for streaming and DSP control
  • high-definition low-latency audio streaming (aptXTM HD Support)
    • up to 24 bit, 48 kHz streaming from compatible devices
  • wireless DSP programming via DM Smart DSP app for iOS/Android
  • plugs into Option Port of select AudioControl processors:
    • DM-608
    • DM-810
    • D-6.1200 amp/processor
    • DM-RTA system analyzer
  • dimensions: 1-1/2"W x 1/2"H x 1"D
  • warranty: 5 years
  • Our 60-day money-back guarantee
  • MFR # AC-BT24

What's in the box:

  • Bluetooth module
  • Instructions (on packaging)

Customer reviews

Loading reviews...

AudioControl AC-BT24 reviews

Average review:

3 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

AudioControl AC-BT24

Crutchfield customer from Miami, FL on 5/26/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

It's ok but not Great!!

Pros:

Cons:

Crutchfield response on

0 of 3 found this helpful

Very limited functionality and mediocre performance

Henry from East Lansing, MI on 4/6/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

It does work, as advertised however it just falls short given the price tag. There are two main issues with this item: First, If you want to use the optical input on your DM-810, this module does not work while an optical signal is present, the DSP always defaults to optical, whereas it "SHOULD" default to the BT Module whenever it is paired with a device, and then fall back to optical input when no bluetooth connection is active. The engineers at AudioControl did not think this thru when they designed it. Who would run BT all the time and then occasionally use the optical input? Really? This was the deal breaker for me, I could have accepted the lower resolution (See below) but I cannot lose my optical input for any reason, it was the main reason I purchased a DM-810. Second, it supports 24-bit streams, but only up to 48khz... Hi-Def starts at 24/96 according to pretty much anyone you ask, so what good is this at 24/48? In order to be useful and worth the price tag it needed to support 24 bit / 96Khz input streams. This module had the potential to be amazing, but ended up being a huge disappointment. Since I require the optical input on my DM-810, I will be returning this.

Pros: None I can think of.

Cons: Too Expensive Not true Hi-Def Overrided by Optical Input on DSP

Crutchfield response on

3 of 3 found this helpful

AudioControl AC-BT24

ronald from Lindenhurst, NY on 3/13/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

It is a better way to program the dsp but it would be great if you could use a laptop wireless as well

Pros: Can use phone or tablet to program wirelessly

Cons: Cant use a wireless laptop

Crutchfield response on

2 of 2 found this helpful

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the AudioControl AC-BT24

Mark G.

Product Research

Features

Overview: The AudioControl AC-BT24 lets you add high definition Bluetooth streaming capability along with complete DSP setup and programming of select AudioControl DSP processors.

Compatibility: The AC-BT24 is designed to plug directly into select AudioControl amps and DSP processors that feature an Option Port. These include the DM-608 and DM-810 DSP processors and the D-6.1200 DSP amplifier.

Bluetooth: Featuring Bluetooth version 4.2, the AC-BT24 allows for high-definition low-latency audio streaming directly into a compatible amplifier or processor from a Bluetooth enabled playback device. The interface supports aptX HD, for 24-bit / 48kHz audio streaming from devices with aptX codec, and features a dual differential class A-B output stage, offering a signal-to-noise ratio of 96dB. The AC-BT24 has a maximum data transfer rate of up to 3 Mbps with typical rates at approximately 1.6 Mbps. Bluetooth range is up to 33 feet.

Note: The AC-BT24 does not support Bluetooth hands-free phone calls.

DSP Programming: The AC-BT24's UART bidirectional interface allows you to setup and configure the DSP in a compatible DM-model processor or amplifier. After downloading the DM Smart DSP app from the App Store or Google Play Store to your Bluetooth-enabled smartphone or tablet, simply pair the device to the interface. Once paired, the app will allow complete control of the amp or processor's DSP parameters.

Indicators: Two LED indicators on the top of the Bluetooth interface will light to indicate if the interface is either Streaming audio or in App mode.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
I love audio control [ Kenneth  Jun 26, 2019 ]
A
To better tune my D-6.1200 amp/processor [ J  May 12, 2019 ]
A
I have the DM-810 processor and I hate having to use my laptop to progrAm the sound processor [ lea  May 01, 2019 ]
A
I have a AudioControl D-6 1200 DSP. TheBT24 will allow me to stream music as well as make adjustments on all the speakers , front and rear as well as my sub! Allowing to save up to 4 separate programs from my iPad & iPhone. [ Steve  Feb 26, 2019 ]
A
have the DM810 and want control using iphone or ipad [ Kenneth  Jan 30, 2019 ]
