Dual GPS/GLONASS Systems + Autonomous Flight: Dual GPS/GLONASS
satellite positioning and advanced computer vision systems help avoid obstacles
to ensure a safe and stable flight. Utilizing two cameras on the front giving it
binocular vision, EVO creates a 3D environment and reacts to obstacles in the
way. Intelligent algorithms are constantly running during autonomous flight,
making long-range decisions for path planning around obstacles. Two ultrasonic
sensors paired with two more computer vision cameras on the bottom of EVO, help
protect the aircraft from landing on unlevel surfaces. On the rear of the
aircraft, EVO is equipped with a near IR sensor protecting you when flying
- Forward & Rear Visions System: The Forward Vision
System installed on the front of the aircraft using image data to detect the
distance between the aircraft and obstacles. The aircraft will brake by itself
when obstacles are detected in front. At the same time, infrared sensors located on the rear of the aircraft are also
capable of measuring the heat being emitted by an object and detecting motion,
which will help the aircraft avoid obstacles in a different way.
- StarPoint Positioning System: The StarPoint
Positioning System installed
functions through Binocular
the bottom of the aircraft. The sensors identify the current height of the
aircraft through ultrasound, and the camera obtains location information through
image analysis. With the help of the StarPoint
the aircraft can hover in place more precisely when flying indoors or in other
environments where the GPS signal is unavailable.
Return-to-Home + Precision Landing: Built-in failsafe features like
Return-to-Home call the aircraft back to its home point when the battery is low
or the remote control signal is interrupted. You can also manually activate the
Return-to-Home function and send the drone back to its starting position. Using the Precision Landing feature
the cameras on the bottom of EVO will capture reference images and use them
during the Return-to-Home providing pinpoint precision during the landing
sequence. When the aircraft arrives above the return-to-home point location, it will detect ground conditions during the landing
descent. It will scan and
match the terrain and will land as close as possible to the
take-off point once the current terrain matches take-off point terrain. The aircraft will land automatically
if the terrain matches and looks safe; otherwise it will hover in-place to wait the next command.
Intelligent Flight Modes: The EVO offers the following Intelligent
Flight Modes through the Autel Explorer on your compatible Apple iOS 9.0+ or
- Dynamic Track: Using advanced algorithms, EVO can autonomously follow an object easily by
drawing a box around the subject on the Autel Explorer app
- Viewpoint: You'll be able to send EVO to a new viewpoint during flight by simply tapping on the screen of
your mobile device using the Autel Explorer app.
- Orbit: You can select a point-of-interest (POI) and EVO will fly a perfect circle making cinematic
shots easy to capture.
- Waypoint: You are able to set waypoints to program autonomous flight routes. EVO can even save multiple
waypoint missions making it easy for surveying.
- VR: You can take a seat in the cockpit with a virtual reality heads-up display (VR
headset sold separately).
Flight LED Indicators: There are four LEDs located on the end of the
aircraft arms, one on each arm. The color and flashing rate of the LEDs indicate
the aircraft's status, working mode, and battery level. The front indicators
will be solid red to help you identify the direction of the aircraft's nose, and
the rear indicators show the current flight status of the aircraft.
XI-5A Camera Gimbal: The EVO's camera is built on a 3-axis stabilized gimbal
capturing stunning video at 4k resolution & 60 frames per second and
12-megapixel still images. Using real glass optics and the Ambarella H2 image processor,
the camera can record more dynamic range in each shot. You'll be able to capture wide-angle perspective with 94° field-of-view and crystal-clear still
imagery from a 12MP camera.
- 3-Axis Gimbal: The 3-axis gimbal enables the camera to capture
clear photos and videos. It is specially designed to minimize camera
vibration and providing the best experience for you. The controllable range
of the gimbal roll axis is 0°~90° and the operating temperature is
maintained between 14°F~122°F. The gimbal is powered by the aircraft
battery, and a self-test is performed each time the gimbal starts where the
gimbal will rotate through its limits and calibrate itself. The 3-axis
gimbal supports two working modes -
- Stabilized Mode: The gimbal's orientation will always remain
constant with the aircraft's nose, but the gimbal will keep horizontal
even when the aircraft tilts.
- FPV Mode: The gimbal will be synchronized with the aircraft's
movement including rotation and tilt to create a first-person view
during the flight.
- 4K UHD Camera: The gimbal-mounted 4K UHD camera supports various
shooting modes, including single shot, burst shooting, AEB and time-lapse.
Photos can be saved in RAW or JPG formats, and videos can be recorded in MOV
or MP4 formats. A high-definition live view from the camera can be displayed
on the remote controller or Autel Explorer app (for Apple iOS & Android)
with clear and smooth image quality.
- microSD Card Slot: Videos & photos are recorded onto a microSD
card (sold separately). The EVO supports microSD cards up to 128GB. It is
recommended that you use a Class 10 or UHS-1 microSD card for
- microUSB Port: The microUSB port on
the back of the EVO aircraft is used to transfer your photos and videos to a
Windows PC or Mac computer using the included microUSB-to-USB cable.
Note: When stored the XI-5A Camera Gimbal is held in place with a gimbal
holder to protect the gimbal from incidental rotation and avoid damage. Remember
to remove the holder before powering up the aircraft. Failure to do so may
result in damage and overheating of the gimbal motors and circuitry.

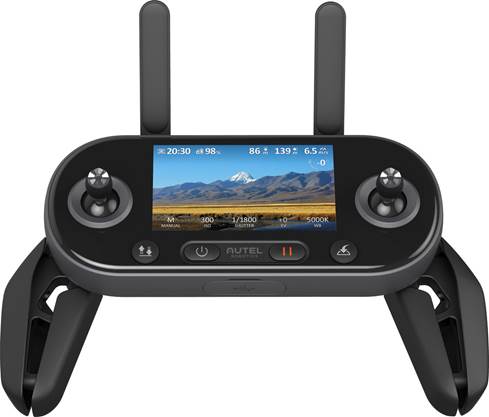

Remote Controller: The included remote controller supports
live video downlink and aircraft remote control functions without the need of a
mobile app. The video downlink system and aircraft remote control system operate
at 2.4GHz or 900MHz (user selectable). The controller and aircraft have an
unobstructed wireless range of up to 4.3 miles. The remote controller
features a 3.3" OLED screen, joy-sticks, and push-button controls. It
is powered by a built-in rechargeable battery.
- 3.3" OLED Screen: With the built-in 3.3" OLED screen, you'll
be able to easily view a live 720p HD video feed or critical flight
information without the need to connect to a mobile device. The flight
information panel of the 3.3" OLED screen indicates altitude, distance,
speed, GPS signal, battery life, and more.
- Joy-Stick and Push-Button Control: Joy-Stick controllers are used
to manually control the EVO drone's flight pattern. Push-button controls
allow you to command EVO to return home,
automatically take off or land and capture photos & video without taking your
hands off the controller.
- Rechargeable Battery: The remote controller is powered by a
built-in, lithium-ion battery (6700mAh) that can last up to 3.8 hours on a
single charge from the included battery charger.
A built-in buzzer in the remote controller emits different alert sounds
according to various conditions such as low battery warning, video link error,
or losing aircraft communication.
Autel Explorer App: With the Autel Explorer App (for
Apple iOS 9.0+ and Android
OS 4.4+), it's easy to control the Autel Robotics EVO. The newly re-designed Autel Explorer app provides a 1080p live camera view,
flight telemetry, access to advanced settings and powerful Intelligent Flight
Modes. Your compatible Apple iOS or Android mobile device will act as the central
monitor (HD Live View) for remote piloting control, aerial photographing and
filming, and flight parameter tuning to achieve optimal flight performance.
Monitor your aircraft data and use autopilot features such as Dynamic Track,
Viewpoint, Orbit, and Waypoint modes to make flying the EVO even easier.
- Live Video Feed & Flight Data: Thanks to the Autel Explorer app, you can enjoy FHD live video feed from
the EVO's 4K camera and get real-time monitoring of aircraft flight data and
- Flight Controls: The Autel Explorer app lets you easily configure
the aircraft's flight
control settings. Select Intelligent Flight Modes (such as Dynamic Track,
Viewpoint, Orbit, and Waypoint modes), as well as upgrade flight safety with
the Failsafe feature and Low-battery RTH Countdown.
- Camera Settings: The Autel Explorer app acts as a professional
camera setting assistant with support 4K/60fps video recording and 12MP
Rechargeable Battery: The EVO drone is powered by a rechargeable
lithium-polymer with the capacity of 4300mAh. It can only be charged with the
included battery charger. A fully charged battery can provide up to 30 minutes
of continuous flight. Several smart functions added into the aircraft battery
will protect and preserve battery life.
- Real-Time Battery Information: The aircraft is able to
communicate with the battery to get real time battery information such as
voltage, capacity, current, temperature, etc. This information is visible on
the remote controller's OLED screen.
- Protection Circuitry: The rechargeable battery features Balance
Protection to balance the voltage of each battery cell to prevent
overcharging or over-discharging. The battery will stop charging
automatically when the battery reaches full charge or if the charging
current exceeds 8A in order to prevent severe damage. The battery will also
shut down if a short circuit is detected. If the battery is not in use, it
will disconnect power output once the self-discharge cycle has completed.
- Power Saving: The battery will cut off the power supply and enter
power saving mode after 30 minutes of inactivity to retain the energy. To
save power, the battery will enter the Ultra-Low Power Consumption Mode if
it is idle for 7 days and the battery voltage is lower than 11.7V. In this
situation, the battery can be used normally after being connected to the
Optional Accessories: Additional accessories are available for the EVO
drone. Purchase a spare battery, replacement propellers, extra battery charger,
and carrying case (all sold separately - see Accessories Tab).
Built To Last: Designed with portability in mind, EVO was built with quality craftsmanship.
Each component of EVO goes through multiple tests before assembly and every EVO
must pass a rigorous flight test before it leaves the factory. At Autel Robotics,
all products come with a full one year warranty and
7 days a week customer support (844-692-8835 or firstname.lastname@example.org).
FAA Rules & Regulations: Please familiarize yourself with
the FAA's rules & regulations for unmanned aircraft systems before flying your
drone. Click here
for more details.
