Yale Real Living Assure Lock Touchscreen Deadbolt (YRD226) with Z-Wave®

Electronic door lock with capacitive touchscreen keypad and smart home compatibility (Satin Nickel)

Item # 198Y226ZWN

Grant access to your home with an app, a unique passcode, or a key.

Grant access to your home with an app, a unique passcode, or a key.

Item # 198Y226ZWN

Low stock
$199.99

Other options

About the Yale Real Living Assure Lock Touchscreen Deadbolt (YRD226) with Z-Wave®

A convenient security solution

When my dogwalker lost his key to my house, I had to remember to leave mine in the lockbox for him until I could get to the hardware store to make another one. It took longer than I care to admit. With this electronic smart lock, I'd never have to worry about lost keys ever again.

A convenient security solution

When my dogwalker lost his key to my house, I had to remember to leave mine in the lockbox for him until I could get to the hardware store to make another one. It took longer than I care to admit. With this electronic smart lock, I'd never have to worry about lost keys ever again.

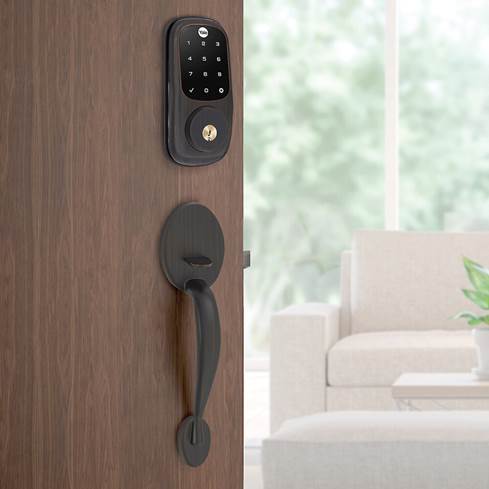

Yale Real Living Assure Lock Touchscreen Deadbolt on exterior entry door

Yale's Real Living Assure Lock is available in oil rubbed bronze (shown), satin nickel, or bright brass.

Just like the standalone version — this lock's capacitive touchscreen adds a coded entry option to your home. But this version also includes Yale's Z-Wave Network Module, which allows it to work with your existing Z-Wave hub — like SmartThings or Wink — to give you app control of your lock. Some hubs also allow the lock to work with your Amazon Alexa device for voice control.

Easy installation

All you need to replace your existing lock is a screwdriver — everything else to get you going is included in the box. With the included Z-Wave network module, the lock can store up to 250 unique entry codes chosen by you. These codes are between 4 and 8 digits, and they can be created or removed at any time.

The lock also comes with two keys if some members of the household prefer to kick it old school.

READ LESS

Product highlights:

  • electronic door lock replaces existing deadbolt with just a screwdriver (not included)
  • voice guidance walks you through setup and customization
  • create up to 250 unique passcodes between 4 and 8 digits in length
  • backlit numbers on capacitive touchscreen are easy to see
  • unlock the door with app, passcode, or key
  • locks with one touch
  • includes Yale Z-Wave Network Module for smart home integration
    • compatible hub is required for use
    • monitor, lock, and unlock from anywhere
    • receive notifications and view access history
    • features may vary based on Z-Wave controller
Compatibility:
  • fits doors 1-3/4" to 2-1/4" thick
    • doors with thickness of 1-3/8" require a thin door gasket (sold separately)
  • fits doors with a backset distance of 2-3/8" or 2-3/4" (measurement from the edge of the door to the center of the bore hole)
  • face bore hole: 2-1/8"
  • edge bore hole: 1"
Specs and warranty:
  • powered by 4 replaceable "AA" batteries (included)
  • exterior: 6-1/16"H x 2-3/4"W x 1-3/8"D
  • interior: 6-7/8"H x 3"W x 2-1/8"D
  • warranty: limited lifetime warranty for finish and mechanical; one year for electronics
  • Our 60-day money-back guarantee
  • MFR # YRD226ZW619

What's in the box:

  • Outdoor unit with touchscreen keypad (Satin Nickel)
  • Indoor unit with thumbturn (Satin Nickel)
  • Inside mounting plate (attached to the indoor unit)
  • Deadbolt latch assembly
  • 2 Keys
  • 4 "AA" alkaline batteries
  • Strike plate
  • 2 Through bolts (M6 x 59.5mm)
  • Four 20mm combo wood and machine screws (#7 wood and #8-32 machine)
  • 3 Inside lock screws (#8-32 x 5/16")
  • Yale Z-Wave Smart Module
  • Smart Module Installation Guide
  • Installation and Programming Instructions
  • Door marking template
  • "Before You Begin" sheet
  • Important Information on Product Returns

Customer reviews

We don't have any reviews, yet.
Submit a review and then enter to win a $350 rewards card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Yale Real Living Assure Lock Touchscreen Deadbolt (YRD226) with Z-Wave®

Mark G.

Product Research

Features

Overview: The Yale Real Living Assure Lock Touchscreen Deadbolt (YRD226) with Z-Wave Plus is a smart lock that replaces your existing deadbolt door lock. The lock offers keyless entry through the use of the touchscreen keypad, or keyed entry, if desired. With the included Yale Smart Module, you can lock, unlock, and monitor the door lock from anywhere through Yale's Z-Wave Plus Network, including Samsung SmartThings hub. Some hubs on the network even allow you to activate the lock with your voice using Amazon's Alexa. You can store up to 250 unique entry codes, between 4 and 8 digits, to gain entry to your door. Without the Smart Module installed, there are only 25 possible entry codes. The Yale Assure smart lock is powered by 4 "AA" alkaline batteries (included). It is available in Satin Nickel, Polished Brass, and Oil Rubbed Bronze finishes.

Door Compatibility: You can install the Yale Assure Lock on doors with a thickness of 1-3/4" to 2-1/4". A special order thin door gasket kit must be used for doors 1-3/8" thick. The door should have a backset distance of 2-3/8" or 2-3/4" (from the edge of the door to the center of the bore hole), with a face bore hole of 2-1/8" and an edge bore hole of 1".

Installation Overview: Once you have removed the existing door hardware, you should use the included template to be sure your door is compatible (with the proper door thickness, backset placement, and bore hole size). The new latch and strike plate are installed in the bore holes. There are two components of the door lock -- the external escutcheon with the touchscreen, and the internal escutcheon with the thumbturn. The external unit is mounted to the door and attached to the inside mounting plate on the other side with the long through screws. The two units plug together via the 10-pin cable attached to the touchscreen keypad unit. The internal escutcheon mounts to the mounting plate via three short screws. Once the hardware is installed and tested mechanically, you can insert the Yale Smart Module and the 4 "AA" batteries into the slot in the battery compartment. Programming the Smart Lock involves setting the Master PIN and as many User PINs as you need.

Other Programming Features: In addition to setting the Master PIN and User PINs, you can program these other convenient features:

  • Automatic Re-lock: You can program the Smart Lock to automatically re-lock after a preset amount of time: 30 seconds (default), 60 seconds, 2 minutes, or 3 minutes. You can also disable the feature, as well.
  • Inside Indicator Light: The indoor escutcheon has an LED indicator to show you at a glance if the door is locked or unlocked. The default setting is "disengaged."
  • One Touch Locking: When the latch is retracted, you can press any key on the touchscreen to immediately lock the door. The default setting is "engaged."
  • Privacy Button Setting: Privacy Mode disables all PIN codes and puts the lock into a "do not disturb" mode. By default, this feature is disabled, and you must press the privacy button (on the indoor escutcheon) for more than 4 seconds to enable it.
  • Audio Mode: When a PIN is entered correctly, the Smart Lock will sound a confirmation tone. If you wish to defeat the tones, you can disable the feature through programming.
  • All Code Lockout: This mode restricts access to all users except with the Master PIN code. When one of the other PIN codes is entered, the touchscreen flashes 8 times, and beeps 3 times.
  • Network Settings: You can allow the Smart Lock to connect with a network controller. You can program the lock to join or exit the network through the programming menu.

Warranty: The Yale Real Living Assure Lock is covered by a Limited Lifetime warranty for the finish and mechanical operation of the lock. The electronics are covered for one year. These warranties apply to the original owner only.

Dimensions: The Yale Assure Lock's main components have the following dimensions:

  • Outdoor Escutcheon: Width 2.603", Height 5.96", Depth 1.31" (2.578" w/mounting tabs), Weight 1.53 pounds
  • Indoor Escutcheon: Width 2.762", Height 6.403", Depth 2.613", Weight 1.624 pounds (w/batteries and Smart Module)
