Name: Bazooka BTA10100FHC
Brand: Bazooka
SKU: 204BTA10FH
Price: 299.99 USD
Availability: OutOfStock
Rating: 4.5 (41 reviews)

Overview

by Crutchfield's

A bass cannon

The BTA10100FHC Bass Tube package from Bazooka includes a great-sounding amplified subwoofer tube and convenient radio connection kit. With this handy combo, you can enjoy thumping low end with a minimum amount of hassle.

KEEP READING

A bass cannon

Bass makes up about 30% of your music, and it gives music its power and impact. A good subwoofer can make an average car audio system sound good, and a good car audio system sound great. Good bass is all about moving air, and a cylindrical tube translates the motion of its woofer into maximum air pressure so you hear and feel more bass. Bazooka designed the Bass Tube to act like a bass cannon, firing low frequencies throughout your vehicle.

BTA10100FHC 10" amplified Bass Tubes package

Bazooka's BT Series BTA10100 10" amplified Bass Tubes enclosure gives you the thrill of powerful bass without having to make any permanent modifications, especially handy if you drive a leased vehicle. It features an efficient 10" woofer, a built-in 100-watt amplifier, and mounting hardware. Place the BTA10100 in a convenient spot in your vehicle, connect it to your car stereo, and enjoy some punchy bass while you drive.

The included F.A.S.T. combination from Bazooka features everything you need to hook up the BTA10100 to the factory or aftermarket radio in your vehicle: the F.A.S.T.-9999 universal harness and a 16-foot extension cable. The F.A.S.T.-9999 universal harness uses Posi-Tap connectors and simple, reliable plugs to get the signal from your radio to the Bass Tube — no splicing needed. Hook the other end of the universal harness up to the 16-foot long F.A.S.T.-BTAH extension cable, which you've connected to the BTA10100 in the rear of your vehicle.

Bass Tubes enclosures fit just about anywhere

A compact Bass Tubes enclosure will fit in almost any vehicle, and you can disconnect it in a snap if you need more cargo space. Since the tube's speaker and port are right next to each other, you can get amazing results by "corner loading" your tube — placing it in a corner of your trunk or cargo area so your vehicle's boundaries act as a natural amplifier, boosting bass production.

Bass control from the driver's seat

An optional wired Remote Bass Control Module gives you independent in-dash volume control of your bottom end.

READ LESS

Product highlights:

package includes one BTA10100 10" 100-watt powered Bass Tube and F.A.S.T. connection package

BTA10100 100-watt powered Bass Tube:

10" woofer in ported enclosure
built-in amplifier (100 watts max power)
mounting hardware included
line- and speaker-level inputs
frequency response: 39-85 Hz
subsonic filter (12 dB/octave at 35 Hz) for improved amp efficiency
sensitivity: 107 dB
dimensions: 10-3/8"W x 12-1/4"H x 20-7/8"D
warranty: 1 year

F.A.S.T. connection package:

includes F.A.S.T.-9999 universal connection harness and F.A.S.T.-BTAH extension cable
warranty: 60 days
Our 60-day money-back guarantee
MFR # BTA10100FHC

What's in the box:

Bazooka BTA10100FHC owner's manual

10" Amplified bass-tube
10" FAST-9999 universal harness
15.5' FAST-BTAH extension harness
2 Nylon mounting-straps
4 Mounting screws
Installation Instructions (Eng/Spa)

Featured review

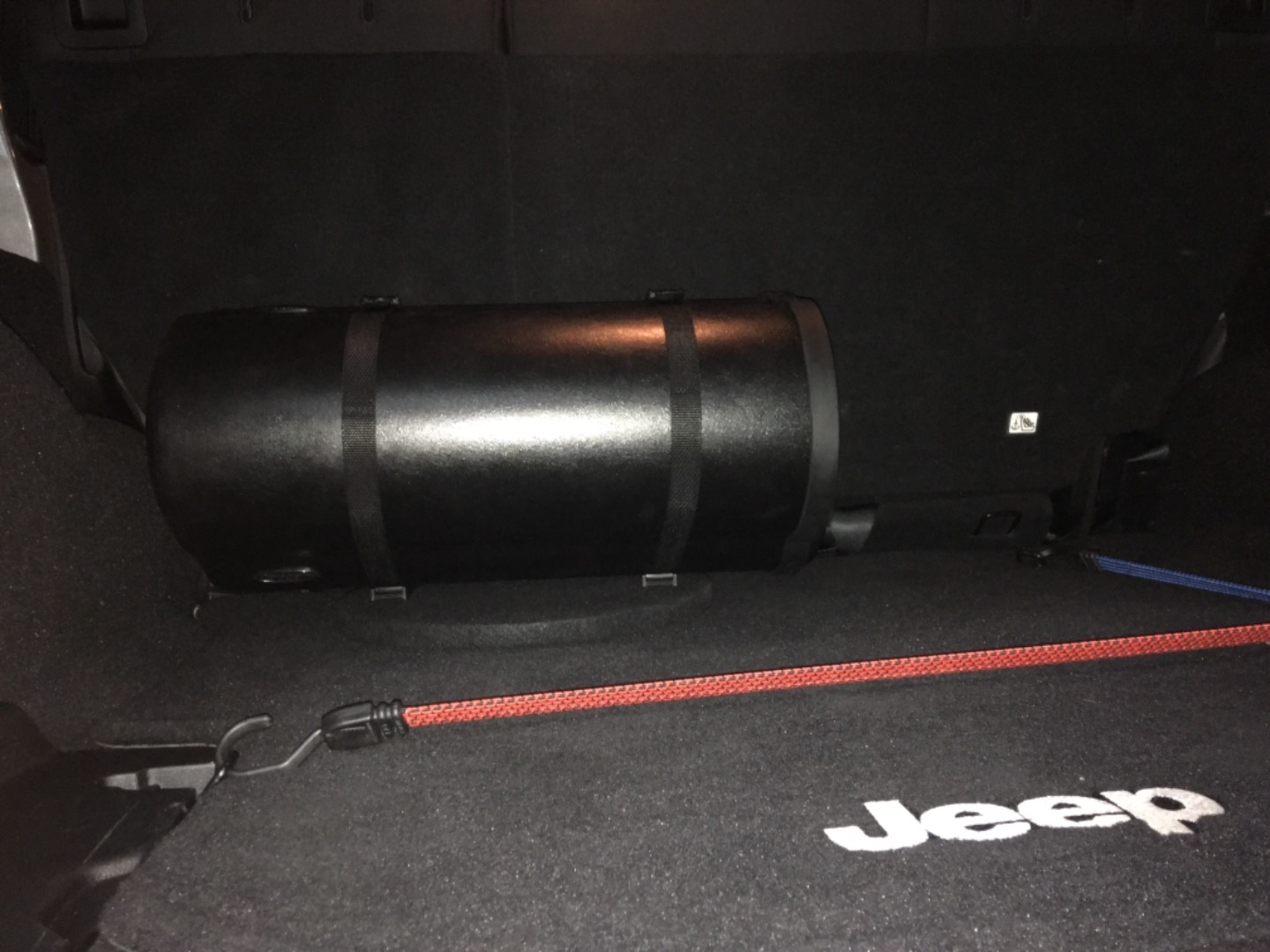

This is a wonderful product. Very quick delivery. The sound is exactly what i wanted for my jeep wrangler. The stock stereo setup really needed some low end and this speaker accomplished that nicely.

Steve from Overland Park, KS

See all 41 reviews

Customer Q&A

With the purchase of the (BT Series 100-watt powered 10" Bass Tubes enclosure¢ with factory radio connection kit) do I need to also purchase speaker wires to connect stereo to speakers?

It is not necessary to purchase speaker wire with this powered subwoofer. The FAST harness comes with the wire as well as tap connectors to help attach these new wires to the stock speaker wires

Reviews

Loading reviews...

Bazooka BTA10100FHC reviews

Average review:

41 reviews

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Filter by rating

Customer photos

Verified customer

Verified employee review

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Have questions for

Crutchfield response

Helpful?

Yes

<< >>

Details

Researched by Crutchfield's Pat M.

Features & specs

General
Enclosure Type	Ported
Finish Material	Poly
Grille	Plastic
Connector Type	Harness
Quick-disconnect Plug	Yes
Bi-amp Inputs	No
Woofer Size (inches)	10
Woofer Material	Poly
Passive Radiator	None
Width	10-3/8"
Height	12-1/4"
Depth	20-7/8"
Parts Warranty	1 Year (Tube only)
Labor Warranty	1 Year (Tube only)
Specifications
Frequency Response	39-85
Amplifier Power (RMS)	100 watts
Maximum Wattage	N/A
Sensitivity	107 dB
Impedance	2 ohms
Second Voice Coil Impedance	N/A
Crossover Point	85

Product Research

Features

Overview: The Bazooka Bass Amplified Subwoofer Kit (BTA10100FHC) features Bazooka's patented Bass Tube enclosure design. It is a complete subwoofer solution for your truck, SUV, sedan, or hatchback. The kit includes an amplified bass tube, a Fast-harness, and an extension harness.

Bass Tube Type Enclosure: The Bazooka subwoofer's patented Bass Tubes bass-reflex enclosure design allows for use of 100% of the woofer's cone area.

10" Woofer w/ 100-Watt Amp: The Bazooka BTA10100FHC features an extremely efficient 10" woofer, coupled to a 100-watt amplifier for a frequency response of 39Hz to 85Hz.

Corner Loading: The Bazooka Bass Tubes enclosure is optimized for corner loading. The Bass Tube enclosure's port and woofer are on the same plane and in close proximity for maximum corner-loading results. The corner of your car amplifies the concentrated bass output of the Bass Tube enclosure.

F.A.S.T. Harness: F.A.S.T. is an innovative universal harness system that allows you to integrate the Bazooka subwoofer into the vast majority of factory and aftermarket sound systems. The included FAST-9999 universal harness uses the patented Posi-Tap connector from Posi-Products for making fast, secure connections to your OEM/aftermarket headunit's wire harness. The included FAST-BTAH extension harness is routed from the Bazooka Tube location to the radio; one end connects to the FAST-9999 universal harness, and the other end to the amplified bass tube. The extension harness also contains RCA line level inputs (at the radio end) and a ground wire which will need to be grounded to the metal chassis of your vehicle.

Note: The FAST-9999 universal harness features the following wire leads - Red (+12V), Blue/White (Remote turn-on), White (LF+), White/Black (LF-), Gray (RF+), and Gray/Black (RF-).

Signal Inputs: The included FAST-BTAH extension harness has line level (male RCA plugs) and speaker level (Posi-Tap connectors on the FAST-9999 harnes) inputs.

Mounting Straps: The BTA10100FHC comes with straps to keep the bass tube securely mounted, while still making removal quick and easy if you need more cargo room.

Accessories

Loading accessories...

Q&A

12 questions already asked

Do you need a separate 10 gauge amp wiring kit if you purchase the 10 inch with the F.A.S.T. wiring?

[ Rodelito Nov 09, 2022 ]

1 answer

Greetings Rodelito, and thank you for your question. The Bazooka BTA10100FHC comes with all the wiring you need to finish your install except for an RCA cable if you have an aftermarket stereo. Roughly 15 foot harness has power but not ground, You will not need a 10 gauge amp wiring kit.

[ Thomas Nov 09, 2022 ] Staff

With the purchase of the (BT Series 100-watt powered 10" Bass Tubes enclosure® with factory radio connection kit) do I need to also purchase speaker wires to connect stereo to speakers?

[ SUSAN Jun 19, 2022 ]

1 answer

It is not necessary to purchase speaker wire with this powered subwoofer. The FAST harness comes with the wire as well as tap connectors to help attach these new wires to the stock speaker wires

[ JASON Jun 19, 2022 ] Staff

Is this compatible with a 2021 Camry factory head unit 7inch non jbl system? Also, what will I need to install it?

[ Phillyborn Jul 21, 2021 ]

1 answer

It doesn't matter what head unit you have. The wire harness that comes with it just taps right into the wiring behind the head unit. I recently installed this in my HHR. Very easy to do and sounds great!!! Hope this helps. Craig

[ CRAIG Jul 21, 2021 ]

does this come with a remote control for volume, or is it an option? and if so do you stock it.

[ jack Feb 06, 2020 ]

5 answers

It does not come with the bass k knob, but you can purchase it separately here: https://www.crutchfield.com/p_204RBCM100/Bazooka-RBCM-100.html

[ Thomas Feb 20, 2020 ] Staff

Doesn't come with remote but remote bass knob is an option.

[ Ellsmuno Feb 19, 2020 ]

No I ordered it separate

[ RONDA Feb 19, 2020 ]

That would be a extra purchase. At least for me it was not included.

[ Raul Feb 19, 2020 ]

It is a add on but worth every penny and it's not for volume it's for gain

[ TERRY Feb 18, 2020 ]

Are the wiring harnesses the same on all units?

[ Steve Apr 23, 2019 ]

1 answer

my understanding is the wiring harness is vehicle specific. I had to enter my truck info in order to get the correct harness.

[ mike Apr 23, 2019 ]

Will this be a good fit for 2-door pickup truck?

[ Keith Jan 10, 2018 ]

2 answers

I think it might take up too much space. You probably won't be able to put your seat back all the way...might need to look at a slim fit sub.

[ STEPHEN Jan 10, 2018 ]

It should fit behind the seats

[ JOSH VAN Jan 10, 2018 ]

can I keep using my factory subwoofers and add this one?

[ John Oct 25, 2017 ]

2 answers

I don't see why not. You have the option of using the factory rear speakers as the source while running the Subwoofer simultaneously. The kit allows you to easily attached to the wiring behind the dash.

[ Geoff Oct 25, 2017 ]

Yes will enhance the bass very well

[ DAVID Oct 25, 2017 ]

i don't see in accessories but do I also need to purchase a power wire kit to connect and fuse to battery or does this harness take care of that also?

[ JAMES P Jan 29, 2017 ]

6 answers

The answer to your question is you can do one of two things........Buy the power supply kit or just buy an appropriate length and gauge piece of wire and an inline fuse holder,I opted for choice #2 and did it myself but that's totally up to you !!! Hope this was a help for you.

[ WILLIAM Jan 30, 2017 ]

You do not need a power wire to the battery The wire harness takes care of all..

[ Barry Jan 30, 2017 ]

Harness takes care of all power needs. I've had mine installed for awhile with no problems.

[ Robert Jan 30, 2017 ]

Yes, you need the power wire kit with inline fuse.

[ Todd Jan 30, 2017 ]

It comes with a harness to connect to the battery and speaker outputs

[ Neil Jan 30, 2017 ]

The harness has everything you need to hook it up.

[ PARK Jan 30, 2017 ]

My son has a '04 Chevy pickup with Bose speakers and sub. Will one of the harnesses that comes with this powered sub connect to the factory receiver and speakers? I understand he wouldn't have the Bose sub anymore since it would be replaced with the Bazooka.

[ Nathan Dec 07, 2016 ]

1 answer

Yes it comes with a wiring kit to wire it up 2 different ways

[ PARK Dec 07, 2016 ]

CAN I CONNECT 2 OF THEESE AMPLIFIED BAZOOKAS AT THE SAME TIME ? I HAD A GRIEND INSTALL 1 .I WAS WONDERING IF I COULD HOOKUP ANOTHER ONE. ?WHAT WOULD I NEED ?

[ ROGELIO Aug 29, 2016 ]

1 answer

You can install a second powered Bazooka tube in your vehicle is you have the space for it, sure. The BTA10100FHC comes packaged with their F.A.S.T. harness you can use for the power, ground and signal leads. You will find this information, and more, by clicking the "Details" tab on the Bazooka's main webpage and scrolling down below the "Features & Specs" table. I hope that helps. My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=5

[ Ryan Sep 01, 2016 ] Staff

what type of clamps holds tubes in place? I'm looking for the metal clamps?

[ Carlo Mar 24, 2015 ]

3 answers

Tube comes with nylon cinch straps and two plastic bases. It works out pretty well and is secure. If you want metal you will need to fabricate something.

[ Jon Mar 25, 2015 ]

the fasteners are metal but the strap is nylon

[ Russell Mar 24, 2015 ]

It comes with straps and plastic strap holders that screw into the floor.

[ Jerome Mar 24, 2015 ]

I have a 2013 ford f150 super cab will this fit under the back seat?

[ Shaun May 01, 2014 ]

4 answers

It probably could. I'm sure the 8 inch one would. Might check the dementions and measure, haven't been in an f150 in awhile so I'm not really sure. Hope that helps :)

[ TODD May 01, 2014 ]

I think so. I have a silverado 2005 and it perfect. The 8in anyway. The 10 will n o t fit. I tried.

[ JEREMIAH May 01, 2014 ]

It should, maybe with the ported side facing forward instead of on top, can't really remember the exact dimensions of the tube but I think its less than 16 inches tall

[ AARON May 01, 2014 ]

Not sure. At first glance it looks like it might fit if the high top part of the bazooka is leaning on the floor. It would be tight for sure and might stick out from under the seat where your feet sit. It doesn't hurt to try. I bought two of these to use behind the 3rd row seat of a dodge Durango and in the trunk of a Acura TL. Crutchfield's returns are simple and hassle free.

[ LEANDRA May 01, 2014 ]

SHOW MORESHOW LESS
