Kicker 11S8L74

Solo-Baric L7 Series 8" subwoofer with dual 4-ohm voice coils

Item # 2061S8L74

Immense bass Kicker builds the Solo-Baric L7 component subwoofer to deliver state-of-the-art bass.

Immense bass Kicker builds the Solo-Baric L7 component subwoofer to deliver state-of-the-art bass.

River
Need help?
Contact our Virginia-based experts.
Discontinued item
3 questions - 3 answers

Item # 2061S8L74

River
Need help?
Contact our Virginia-based experts.

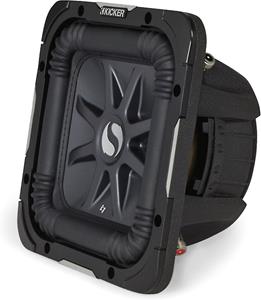

About the Kicker 11S8L74

Immense bass
Kicker builds the Solo-Baric L7 component subwoofer to deliver state-of-the-art bass. An ultra-rigid cast aluminum basket houses the patented SoloKon™ one-piece square cone to create a speaker that moves lots more air than a comparably sized round sub. The precision-built motor structure won't yield to stress, giving you chest-thumping low end that won't quit when you push your system hard.

Immense bass
Kicker builds the Solo-Baric L7 component subwoofer to deliver state-of-the-art bass. An ultra-rigid cast aluminum basket houses the patented SoloKon™ one-piece square cone to create a speaker that moves lots more air than a comparably sized round sub. The precision-built motor structure won't yield to stress, giving you chest-thumping low end that won't quit when you push your system hard.

Solo-Baric L7 Series 11S8L74 8

Built tough
The Solo-Baric L7 Series 11S8L74 8" subwoofer features an injection-molded polypropylene cone that works with a tough Santoprene™ rubber surround to dish out monster bass in a sealed or ported enclosure. Its unusual shape and black finish make a strong style statement, and you can add an optional grille to further enhances its looks. This sub packs dual high-temperature 4-ohm voice coils, giving you the flexibility to build a multiple sub setup or to draw more power from your amp with a low-impedance load.

Note: If you are wiring this DVC sub for lower impedance, make sure that your amp is compatible.

READ LESS

Product highlights:

  • 8" subwoofer with dual 4-ohm voice coils
  • square SoloKon™ polypropylene cone with Santoprene rubber surround
  • aluminum basket
  • power range: 100-450 watts RMS (225 watts per voice coil)
  • peak power: 900 watts
  • frequency response: 28-100 Hz
  • sensitivity: 82.37 dB
  • mounting depth: 4-3/4"
  • sealed box volume: 0.5-0.75 cubic feet
  • ported box volume: 0.66-1.0 cu. ft.
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # 11S8L74

What's in the box:

  • One square 8" dual 4-ohm voice coil subwoofer
  • Owner's manual (English/ Spanish/ German/ French)
  • 2 Kicker decals
  • Template on box lid

Customer reviews

We don't have any reviews, yet.
Submit a review and then enter to win a $350 rewards card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Kicker 11S8L74

Pat M.

Product Research

Features
Enclosure Compatibility

Features

Dual Voice Coils: For increased system flexibility, the woofer has two 4 ohm voice coils. When the voice coils are wired in parallel, the woofer presents a 2 ohm load. When the voice coils are wired in series, the woofer presents an 8 ohm load.

Square Design: By making the Solo-Baric square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the Solo-Baric L7 moves more air, resulting in louder, deeper bass.

Cone Material: The square SoloKon design is a unique one-piece construction, using polypropylene material that moves as a lightweight piston, for improved control. The cone remains rigid, minimizing cone flex and distortion. A rear cone brace integrates into the cone with a continuous contact perimeter weld, which improves strength and resistance to deformation under pressure.

Surround: The tough, flexible Santoprene rubber surround has a long-throw, positive-roll design, which controls extreme cone excursion and is highly tear-resistant. The corners of the surround are ribbed to ensure linear cone motion. The surround is stitched to the reinforced cone edge, making separation between them virtually impossible, even in the harshest conditions.

Spider: The woofer is equipped with a wide poly-cotton spider which easily handles high cone excursions due to its increased diameter and unique shape.

Enhanced BAM (Basket And Motor) Assembly: The Solo-Baric L7 utilizes a high strength stamped steel basket which features a low-profile open design and provides a solid foundation for the precision-aligned motor assembly. Perimeter venting in the BAM relieves pressure from under the spider, supports linear excursion, and helps dissipate heat from the voice coil and motor structure.

Voice Coils: The dual ultra length voice coils sustain enormous cone excursion and provide flexible impedance matching options. The high-temperature Polyimide Film Voice Coil former improves sonic and conducive properties, and prevents thermal-electrical meltdown. The voice coils are rated to 220° Celsius.

UniPlate Construction: The Solo-Baric L7 features a one-piece UniPlate construction with a vented hyper-extended pole piece and backplate. This unique design provides the following benefits:

  • Optimizes heat transfer efficiency for cooler operation and maximum power handling capability
  • Eliminates erratic magnetic flux from the voice coil gap
  • Releases pressure under the suspension for uniform cone movement and responsive low bass
  • Prevents the voice coil from bottoming out and the corresponding damage

Tinsel Lead Wires: The sleeved, high-power tinsel lead wires eliminate broken leads and power loss, due to the common use of insufficient gauge lead wires. The lead wires are terminated with multiple polymer-based strain relieving mechanical fasteners.

Speaker Terminals: The terminals are spring loaded and nickel plated for solid connections with speaker wire up to 10 gauge.

Break-in Period: Due to the complex nature of Kicker Solo-Baric L7 woofers, they require a break-in period in order to produce optimum low-bass response. The high-performance suspension system makes the speakers very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.

Enclosure Compatibility

Recommended Sealed Box Volume:

  • Compact (minimum enclosure volume): 0.5 cubic feet
  • SQ (maximum enclosure volume): 0.75 cubic feet

Recommended Vented Box Volume:

  • Compact: 0.66 cubic feet; 1.5" x 9.25" port opening; 19.25" port length
  • SQ: 1.0 cubic feet; 2" x 9.5" port opening; 21.25" port length

Cutout: The woofer will not mount in a standard enclosure with a round cutout. Instead, the woofer must be mounted in an enclosure with a 7.211" x 7.211" square opening.

Loading accessories...

Customer Q&A

3 questions already asked

Q
I have an 05 Dodge Ram 1500 quad door is there a box too put under seat for solo basic L7 10's?
[ Robert  Feb 24, 2017 ]
1 answer
A
You can check to see what fits your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on what fits and what you will need for an installation in your vehicle.
[ Kenny  Feb 24, 2017 ]  Staff
Q
What amp do you recommend for this sub?
[ Sheldon  Dec 29, 2016 ]
1 answer
A
Thanks for your question. For information on selecting the best amp for your subs I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.
[ Kenny  Dec 30, 2016 ]  Staff
