Kicker Resolution R13

1/2" semi-dome tweeters

Item # 206R13

Here's a high frequency "Resolution" that's easy to keep — and hear! Resolution tweeters are a great way to...

Find what Fits your vehicle

Here's a high frequency "Resolution" that's easy to keep — and hear! Resolution tweeters are a great way to...

Discontinued item

Item # 206R13

Car-specific installation packages

Deep discounts on the essential accessories that help your new gear work with your car.

We'll do the wiring for you

ReadyHarnessTM lets you get on with the fun part of your car stereo installation.

60-day returns

If you don't love it, send it back.

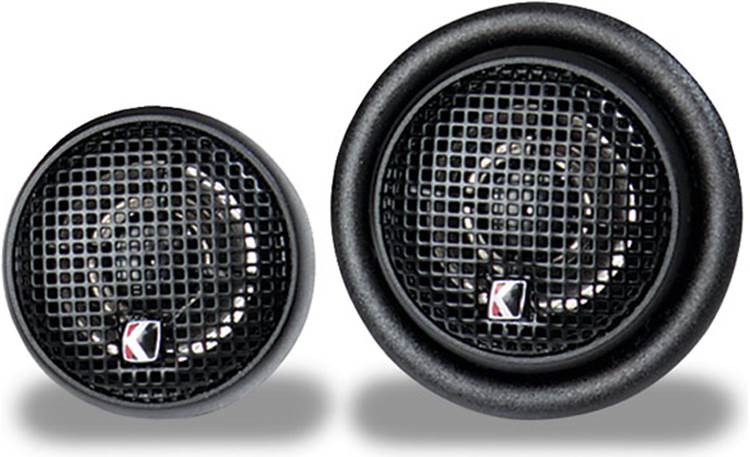

About the Kicker Resolution R13

Here's a high frequency "Resolution" that's easy to keep — and hear! Resolution tweeters are a great way to express your upper register. The R13 1/2" semi-dome tweeter is made from Kaladex (polyethylene naphthalate) for bright, shimmering highs.

Here's a high frequency "Resolution" that's easy to keep — and hear! Resolution tweeters are a great way to express your upper register. The R13 1/2" semi-dome tweeter is made from Kaladex (polyethylene naphthalate) for bright, shimmering highs.

The R13 handles up to 75 watts RMS, and comes equipped with a 4,500 Hz passive crossover (12 dB/octave) to keep damaging low frequencies from reaching the tweeter. Surface and recessed swivel mounts provide great imaging options.

Details:

  • 1/2" Kaladex semi-dome tweeters
  • flush- or surface-mountable
  • 4,500 Hz in-line crossovers
  • power range 8-75 watts RMS
  • peak power handling 150 watts
  • frequency response 4,500-21,000 Hz
  • sensitivity 91 dB
  • flush-mount depth 15/16"
  • warranty: 1 year

Priced per pair

What's in the box:

  • 2 Tweeters installed in flush mount housings
  • 2 Crossovers with attached 6' input/output leads
  • 2 Surface mount housings
  • 2 Flush mount clips
  • 2 Speed clips
  • 2 Self-tapping screws
  • 2 Machine screws
  • 4 Red butt connectors
  • 2 Plastic wire ties
  • Manual
  • Warranty Registration card
MFR #R13

Customer reviews

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response

<< >>

More details on the Kicker Resolution R13

Pat M.

Features & specs

General
Speaker Size
Design 1-way
Tweeter Design Semi-dome
Impedance (Ohms) 4
Tweeter Composition Kaladex
Woofer Composition NA
Woofer Surround NA
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) 91
Sensitivity at 2.83 volts N/A
Frequency Response 4500 - 21k Hz
Minimum RMS Wattage 8
Maximum RMS Wattage 75
Peak Power Handling (Watts) 150
Top-mount Depth (Inches) 0 15/16
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 1 3/4
Mounting Height (Inches) 0.302

Product Research

Tweeters
Crossovers

Tweeters

Tweeter Dome Material: Each 3/4" tweeter is made with a Kaladex (polyethylene naphthalate-PEN film) semi-dome that offers crisp, clear high frequency response. Kaladex is a polymer film that is rugged and resistant to environmental extremes.

Neodymium Magnets: This type of magnet produces a strong magnetic field. Since neodymium magnets are so strong, a small neodymium magnet can be used to make a compact tweeter, without sacrificing performance.

Ferro-Fluid Cooled Voice Coils: Each tweeter voice coil is fluid cooled for greater durability.

Tweeter Mounting Options: The tweeters may be flush or surface mounted. The tweeters swivel in the flush and surface housings, so you can control the direction of your high frequencies. The tweeters must be installed using one of the two housings.

  Flush Mount (swivel) Surface Mount (swivel)
Mounting Depth 0.921" 0.822" (screw depth)
Mounting Height 0.302" 1.063"
Cutout Diameter 1.697" NA
Frame Diameter 1.915" 1.808"

Crossovers

Crossover Dimensions: L=3.429", W=2.039", H=1.256"

Crossover Type and Specifications: The crossovers contain a 12dB/octave, 4.5kHz high-pass network to prevent low frequencies from being sent to the tweeters.

Inputs/Outputs: The crossover inputs and outputs are bare ended wires.
