About the Morel Hybrid 602
Why let a silly thing like a budget get in the way of phenomenal audio? Treat yourself to the rarified driving experience that Morel car speakers allow and rediscover what it feels like to love your music. Morel's Hybrid Series component speakers are celebrated for their reliability and signature sound. Every bit of that excellence is due to Morel's passion for sound and their insistence that every hand-made Hybrid Series component be tested to meet their premium standards.

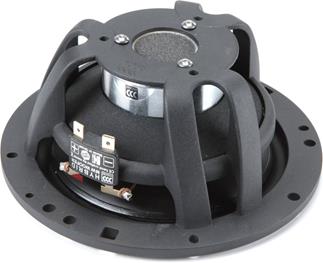

The rugged woofer incorporates several Morel innovations to deliver strong, accurate performance.
A Morel favorite
The Hybrid 602 component speaker system handles up to 140 watts RMS without a worry. Its 6-1/2" damped polymer woofer handles the lower frequencies, benefiting massively from its sturdy one-piece dustcup and diaphram structure. Morel's famous MT230 soft dome tweeter really helps define this speaker system with its warm highs, and the one-of-a-kind Acuflex™ compound that coats the tweeter enhances damping for a cleaner sound. And the innovation doesn't stop there — External Voice Coil (EVC™) technology maximizes voice coil size in these speakers for better heat dispersion and efficient performance.
Morel includes external MXR crossovers to deliver an ideal blend of the highs and lows for an incredible stereo image. Three levels of tweeter control let you dial in the sound to your car's environment.
- 6-1/2" component speaker system
- one-piece Damped Polymer Cone (DPC)
- cast aluminum basket
- 1-1/8" Acuflex coated silk dome tweeter
- external crossover with 3 tweeter level settings
- handles up to 140 watts RMS (600 watts peak power)
- frequency response: 35-25,000 Hz
- sensitivity: 91 dB at 2.83 V
- woofer mounting depth: 2-7/16"
- grilles included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # 350386-505
What's in the box:
- Two Woofers
- Two Tweeters (with attached 7" length of speaker wire)
- 2 Crossovers
- 2 Woofer grilles
- 2 Oval flush mount tweeter housings (with tweeters installed)
- 2 Round flush mount tweeter housings
- 2 Flush mount brackets
- 2 Large angled surface mount tweeter housings
- 2 Small angled surface mount tweeter housings
- Six 3/4" Screws
- Four 1" Screws
- Eight 1-1/4" Screws
- 8 Speed clips
- Four 0.25" Crimp-on female quick slides
- Two 0.187" Crimp-on female quick slides
- Two 0.110" Crimp-on female quick slides
- Two 0.187" Quick slide insulating covers
- Two 0.110" Quick slide insulating covers
- Installation guide
- 2 Morel logo badges
- Morel window sticker
- Genuine product verification instructions
Morel Hybrid 602 reviews
I have been listening to these for about five months now. The mids are in the front doors and the tweeters are in the dash of my 15 wrx. The tweeters are in custom mounts that lift the tweeters above the grills and point them towards the center of the cabin to minimize reflections. I am currently giving them 100 watts per channel with an AudioControl LC-4.800 that I purchased from crutchfield along with the hybrids. I have them actively crossed at 63hz and above and I also have a 10" sealed sub. My head unit is a pioneer PRS 80 which has time delay and decent equalization. I used a spectrum analyzer to tune the system. I also ran them active with 100 watts per driver, but decided to try the crossovers in a 3 way set up with my 4 channel amp. These speakers sound great. The mid bass is excellent, and the tweeters are soft and natural sounding. I have the tweeters turned down a bit using the crossover switch and additional equalization. The tweeters simply disappear with a good CD or lossless source. I bought these on sale around Thanksgiving and they are worth every penny I spent. I am very happy with the speakers and the system overall. These were my first set of morels but probably not the last.
Pros: Sound great when set up properly.
Cons: A little spendy.
4 of 4 found this helpful
More details on the Morel Hybrid 602
Features & specs
|Speaker Size||6 1/2|
|Tweeter Design||28mm Dome|
|Woofer Composition||Damped Polymer|
|Woofer Surround||Butyl Rubber|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||N/A|
|Sensitivity at 2.83 volts||91|
|Frequency Response||35 - 25k Hz|
|Minimum RMS Wattage||---|
|Maximum RMS Wattage||140|
|Peak Power Handling (Watts)||600|
|Top-mount Depth (Inches)||2 7/16|
|Bottom-mount Depth (Inches)||2 11/16|
|Cutout Diameter or Length (inches)||5 5/8|
Woofer Size Classification Note: Some manufacturers, including Morel, call this size woofer a 6-1/2". Because it requires a larger cutout than a standard 6-1/2" speaker, Crutchfield has traditionally referred to this size woofer as a 6-3/4". Please enter your vehicle information to confirm fit.
Tweeter Mounting Options: The tweeter can be surface or flush mounted using the included adapters. The large surface mount housing also uses the oval flush mount housing and angles the tweeters at approximately 45°. The small surface mounting housing angles the tweeters at approximately 20°.
|Oval Flush Mount||Round Flush Mount||Large Surface Mount||Small Surface Mount|
|Mounting Depth||0.840"||0.955"||screw depth||screw depth|
Crossover: The outboard crossovers have screw terminal inputs and outputs (0.315" wide). The crossover point is 2.2 kHz; the low pass slope is 18 dB/octave and the high pass slope is 12 dB/octave. A jumper inside each crossover allows you to adjust the tweeter output level; choose -2 dB, 0 dB, or +2 dB.
- Width: 5.55"
- Height: 1.433"
- Depth: 4.182"
