About the Morel Maximo 6
Discover Morel components for yourself
Discover Morel components for yourself
I dream of having Morel speakers in my car, and the Maximo Series comes at a price tag that could make that dream come true. Every bit of Morel's passion for sound is present in this tough speaker system.
Maximo sound
This Morel Maximo 6 component speaker system uses a treated 6-1/2" paper composite woofer and a separate 1" soft dome tweeter to deliver impressive full-range sound. This efficient system will respond well even when driven by a factory radio, but it'll handle up to 90 watts RMS, so you'll get the best performance powering these component speakers with an aftermarket amplifier. The external crossover delivers an ideal blend of the highs and lows for an incredible stereo image. Morel also includes mounting solutions for ideal tweeter placement.
Product highlights:
- 6-1/2" component speaker system
- treated paper composite woofer cone with butyl rubber surround
- steel woofer basket
- 1" soft dome textile tweeter
- external Morel Crossover Resolution (MXR) crossover
- handles up to 90 watts RMS (180 watts peak power)
- frequency response: 50-20,000 Hz
- sensitivity: 90.5 dB at 2.83 V
- woofer mounting depth: 2-3/8"
- tweeter mounting solutions included
- grilles included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # 350166-100

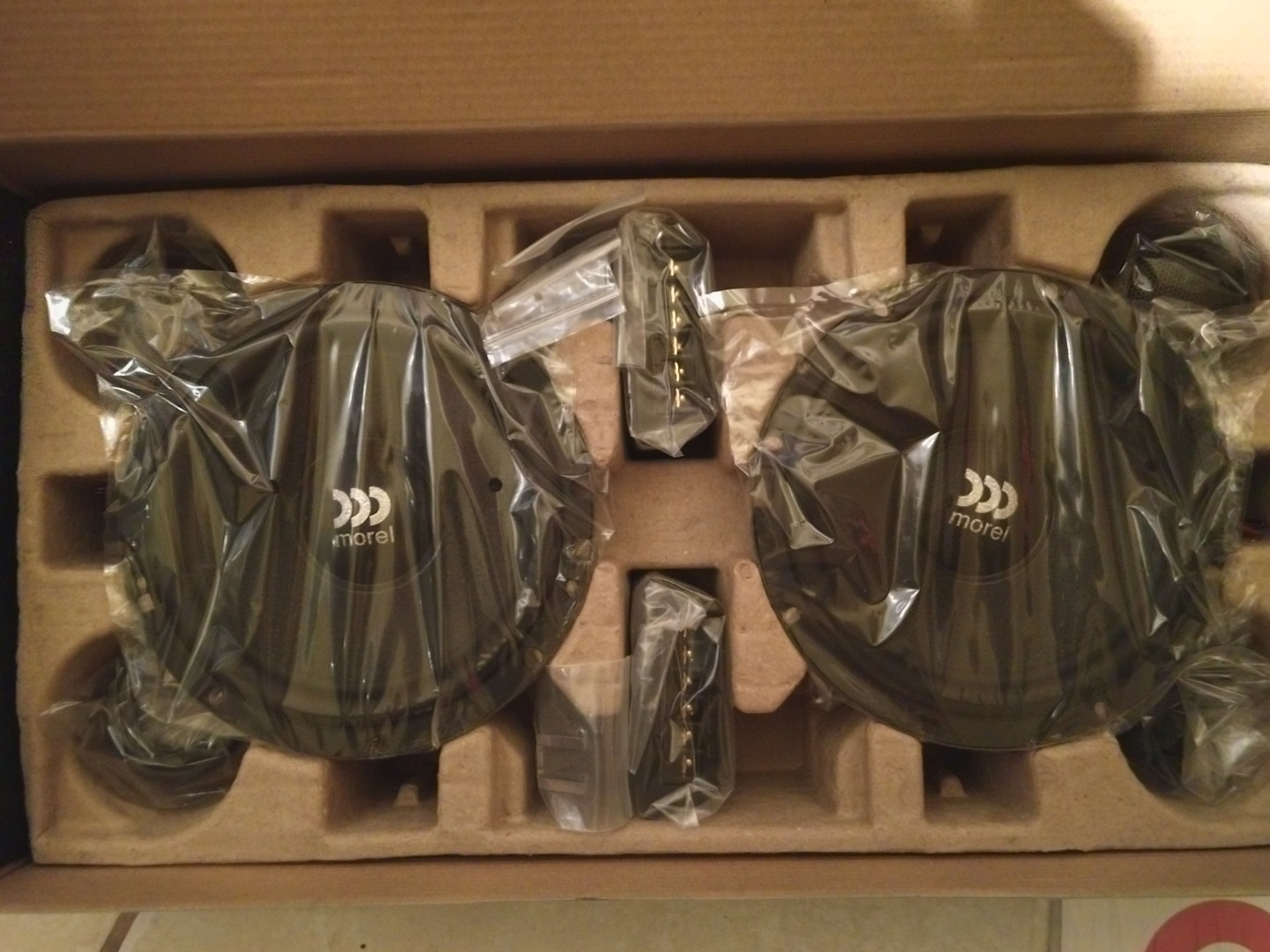

What's in the box:
- Two Woofers
- Two Tweeters (with attached 39" length of speaker wire)
- 2 Crossovers
- 2 Woofer grilles
- 2 Woofer grille frames
- Grille putty
- 2 Mesh tweeter grilles (installed)
- 2 Oval flush mount tweeter housings (with tweeters installed)
- 2 Flush mount brackets
- 2 Large angled surface mount tweeter housings
- 2 Small angled surface mount tweeter housings
- Twelve 1" Screws
- 8 Speed clips
- Two 0.187" Crimp-on female quick slides
- Two 0.110" Crimp-on female quick slides
- Two 0.187" Quick slide insulating covers
- Two 0.110" Quick slide insulating covers
- Installation guide
- Morel window sticker
Featured video:
Featured review
Great sounding speakers. Comparable to the Focal I had a couple of years ago in a different truck.
David from SOUR LAKE, TX
Customer Q&A
Q
What is the diameter of the tweeter alone?
A
1 inch
12 reasons to shop with us
#11
Free instructions & discounted install gear
The stuff you need to do it yourself.
REVIEWS
Customer reviews
Loading reviews...
Morel Maximo 6 reviews
Average review:
Thanks for submitting your review
Customer photos
More details on the Morel Maximo 6
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | 25mm Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Silk | |
| Woofer Composition | Treated Paper | |
| Woofer Surround | Butyl Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 90.5 | |
| Frequency Response | 50 - 20k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 90 | |
| Peak Power Handling (Watts) | 180 | |
| Top-mount Depth (Inches) | 2 3/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 3/4 | |
| Mounting Height (Inches) | 0.278 | |
Product Research
Features
Woofer Size Classification Note: Some manufacturers, including Morel, call this size woofer a 6-1/2". Because it requires a larger cutout than a standard 6-1/2" speaker, Crutchfield has traditionally referred to this size woofer as a 6-3/4". Please enter your vehicle information to confirm fit.

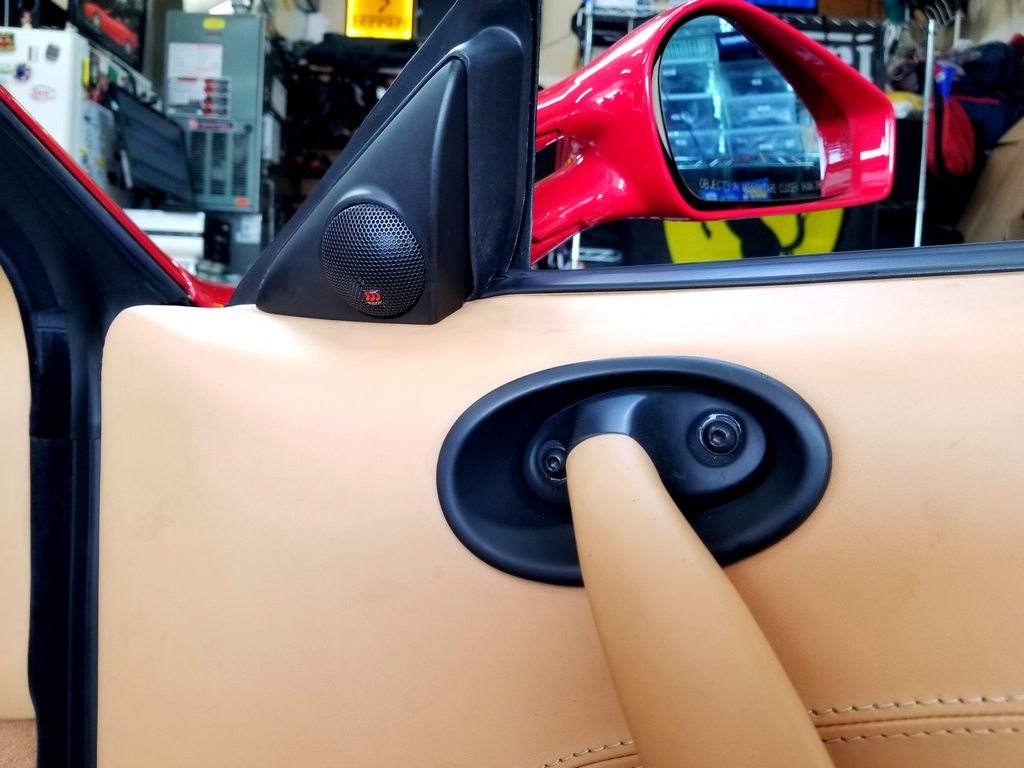

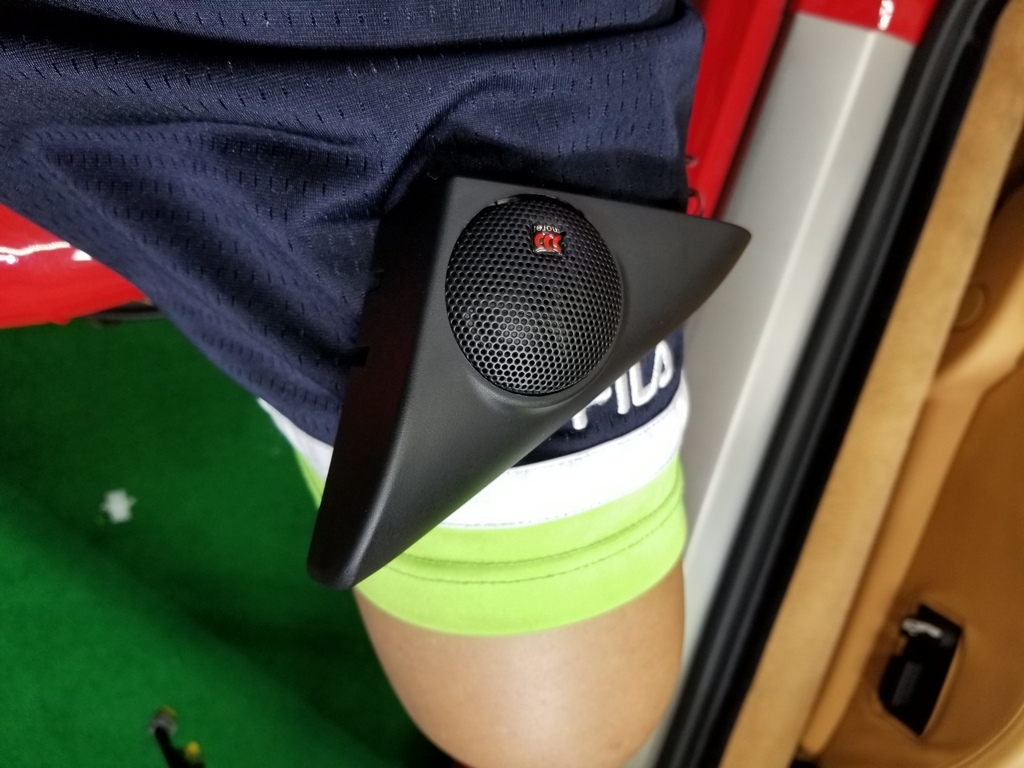

Tweeter Mounting Options: The tweeter can be surface or flush mounted using the included adapters. The large surface mount housing also uses the oval flush mount housing and angles the tweeters at approximately 45°. The small surface mounting housing angles the tweeters at approximately 20°.
Tweeter Dimensions:
| Oval Flush Mount | Large Surface Mount | Small Surface Mount | |
| Mounting Height | 0.54" | 1.945" | 1.362" |
| Mounting Depth | 0.722" | screw depth | screw depth |
| Cutout Diameter | 1.942" | N/A | N/A |
| Frame Width | 2.207" | 2.332" | 1.920" |
| Frame Depth | 2.695" | 2.645" | 1.950" |
Crossover: The outboard crossovers have screw terminal inputs and outputs (0.3" wide). The slope is 12 dB/octave and the crossover point is 3.5 kHz.
Crossover Dimensions:
- Width: 3.15"
- Height: 1.225"
- Depth: 2.587"
