About the Brandmotion 9002-8818
For aftermarket radios in your Wrangler
For aftermarket radios in your Wrangler
Brandmotion's 9002-8818 rear-view camera integrates nicely into the rugged design of your 2007-up Jeep Wrangler, displaying everything it sees on your aftermarket touchscreen radio or monitor with a composite video input. The included CMOS camera offers a wide view and excellent visibility for night driving, making it a must-have for the hard-drivin' Wrangler owner. Use it for off-road reversing when you need to watch out for stumps and stuff, or install this cam with the optional parking lines activated if you're a town & country driver.
Mount it with your spare tire
Brandmotion includes a bracket so you can mount the camera between the spokes of your rear-mounted spare tire.
Installation Note: Some wire-splicing may be required. If this is your first install of this kind, you may want to consider a professional installation.
Note: A rear-view camera provides an additional view when reversing your vehicle. It is intended to be used in conjunction with your rear- and side-view mirrors to give a fuller picture of what's behind you. It is not intended as a replacement for your mirrors.
- rear-view camera for select Jeep Wrangler vehicles
- CMOS color rear-view camera
- includes bracket for fitting between varying spoke patterns of factory and aftermarket rear spare tire
- wide-angle camera compatible with aftermarket radios with composite video input
- 170° wide viewing angle
- parking lines (selectable at time of installation)
- warranty: 3 years
- Our 60-day money-back guarantee
- MFR # 9002-8818

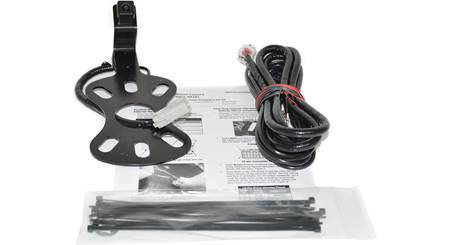

What's in the box:
- Rear-view camera (with attached 5.5' harness)
- Spare tire mounting bracket (pre-installed to camera)
- 23' Video/Power cable
- 21" Video/Power extension harness
- 18" Video harness (22-pin)
- 3 Push-nuts
- 15 Wire-ties
- Installation Instructions
More details on the Brandmotion 9002-8818
Jeep Wrangler Camera Kit: The BrandMotion Jeep Wrangler Camera Kit (9002-8818) allows you to add a rearview camera to select Jeep Wranglers with a factory radio that features a display monitor, or an aftermarket stereo that features a display monitor and camera input. The camera kit includes a rearview camera, spare tire mounting bracket, wiring, cables, harnesses, and hardware.
Note: This rear-view camera kit is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.
Vehicle Compatibility: The BrandMotion Jeep Wrangler Camera Kit (9002-8818) is designed specifically for 2007-up Jeep Wranglers that feature a factory radio with video monitor, or aftermarket head unit with video monitor and composite video rear-view camera input.
Note: Adding this camera kit to a factory radio will require dealer programming, which will add extra cost.
Panasonic Backup Camera: The BrandMotion Jeep Wrangler Camera Kit features Panasonic backup camera with a 1/4" CMOS image sensor for excellent daytime image crispness and nighttime brightness. It has a wide 170-degree viewing angle.
Park Assist Lines: The backup camera provides parking assist lines on the screen of your vehicle's factory radio display or aftermarket head unit display. These parking lines are there to assist you when backing up into a parking space. There are two vertical lines which help you judge the left and right edges of the parking space and your vehicle. There are also 4 color-coded horizontal lines that are used to distinguish how close you are getting to the end of the parking spot - Green (Clear), Orange (Getting Close), Yellow (Very Close), and Red (Stop).
Note: You can activate the Park Assist Lines by cutting the green wire (labeled "Parking Line") in the camera's harness.
Mirror or Reverse Image: The backup camera will display a "Mirror" or "Reverse" image on your aftermarket in-dash monitor. By default, the camera will display a mirror image. In order to display a reverse image, you will need to cut the white wire (labeled "Mirror Option") in the camera's harness.
Spare Tire Mounting Bracket: The BrandMotion Jeep Wrangler Camera Kit comes with a spare tire mounting bracket to mount the rearview camera inside the factory spare tire on back of your Jeep Wrangler.
