About the Brandmotion FVMR-1120
Rear-view system for your Bronco
Rear-view system for your Bronco
You bought a Bronco, and now you're up for a little bit of adventure. But what if all the gear stashed in the back is blocking your view? Brandmotion's FVMR-1120 rear-view video system adds to the awesome host of Bronco features by providing a constant rear-view video feed that you can monitor with their replacement rear-view mirror, which doubles as a full-screen video monitor. The system includes a replacement rear-view mirror, a Bronco-specific camera that mounts in your spare tire location, plus vehicle-specific integration gear. Brandmotion also lets you record any video your cam captures.
A constant rear view as you're going forward
Brandmotion's rear-view camera gives you 170-degree wide-angle coverage that ensures you have an expansive view as you negotiate lane-changing, backing up in tight spots, and more.
More than a mirror
The FullVUE monitor is also a proper replacement mirror with auto-dimming for day and night driving, in addition to supplying a full-screen 9.66" HD view from the camera's video feed. Touchscreen control gives you access to Brandmotion's menus and the built-in DVR. If you'd like to add an additional cam, the mirror includes a second camera input. Brandmotion also incorporates a G-sensor that prompts the system to automatically save video in the event of a fender-bender or a parking lot bonk-and-run.
Installation Note: Installation will require running wires for power and video between the mirror and the camera. If you have not attempted this kind of job before, professional installation is recommended.
- HD rear-view mirror/monitor with rear-view camera
- Bronco-specific adjustable camera and mirror mount
- includes 32 GB SD card and vehicle-specific harness
Rear-view Camera Specifications:
- 170-degree horizontal field of view
- IP 67 weather-resistant equivalent
- Sony CCD HD image sensor
- optional parking lines
- night vision: down to 1 Lux
- resolution: up to 1080p
- Super HD video touchscreen with D-tab wedge mount bracket
- 9.66" screen
- resolution: 1980 x 320
- two video inputs
- built-in DVR recording
- built-in G-sensor for event recording
- rear-view camera input
- parking monitoring mode
- video cable included
- warranty: 3 years
- Our 60-day money-back guarantee
- MFR # FVMR-1120
What's in the box:
- Rear-view mirror w/ integrated front-view camera (attached 16" video cable)
- Rear-view camera w/ integrated spare-tire mounting bracket and attached 18" video cable
- 29.5' Video cable w/ 4' bare-ended camera power wire
- 9' Video/power/ground cable w/ inline 2A mini-AGU fuse and attached fuse-tap ends
- Cable guide
- 32GB micro-SD card
- SD card adapter
- Two 6.5" fuse taps
- Two 5A mini fuses
- Optional camera bracket
- 2" Section of heat-shrink tubing
- 3 Push-nuts
- 1 Plastic bushing
- Thirteen 8" wire-ties
- Registration & owner's manual download information
Thanks for submitting your review
More details on the Brandmotion FVMR-1120
Overview: The Brandmotion FVMR-1120 FullVUE rear-camera mirror, for select 2021-up Ford Bronco (Full Size) vehicles, is designed to replace the factory rear-view mirror and provide a continual image of what's behind the vehicle via a rear spare tire mounted camera. A front-view camera, built into the mirror, is provided for recording the road ahead. Other features include automatic brightness control and Parking Monitoring, which utilizes the front camera to monitor your vehicle while parked. The FVMR-1120 also includes a replacement Ford Bronco compatible mirror stem.
- 2021-up Ford Bronco (Full Size)

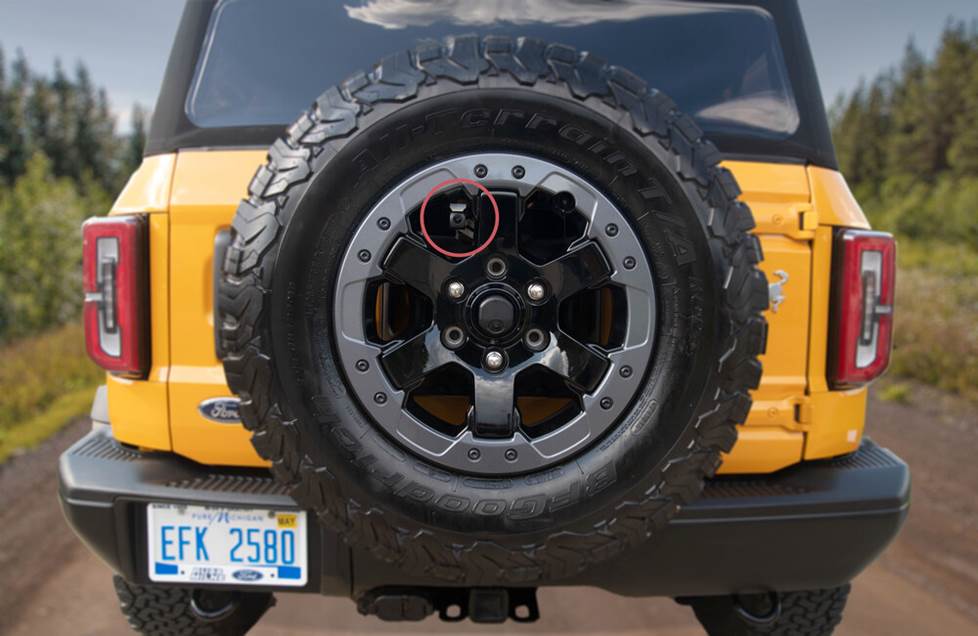

Spare Tire Mount: The included rear-view camera bracket is specifically designed to mount behind the spare tire with the camera partially concealed between two of the upper wheel spokes. This allows the camera to be centered on the rear of the vehicle looking down, offering a wide 170˚ horizontal x 150˚vertical field-of-view with no obstructions from headrests, passengers, luggage, etc. The bracket's mounting arm can be adjusted up/down and right/left for varying wheel design and offset. The rear camera provides a 1920x1080 @30FPS resolution view. The rear-view camera can be set to display parking gridlines while reversing.
Mirror Display&Front Camera: The FVMR-1120 replacement mirror features a 9.66" LCD touchscreen with a high definition 1980x320 pixel display. The full touchscreen provides easy adjustment for all settings and features advanced anti-glare tempered glass. A one-touch, on-screen selection lets you quickly switch between the mirror and the rear-camera view. The FVMR-1120 mirror also includes a built-in, 1920x1080 @25 FPS, front-facing camera for continual 1080p recording of the front of the vehicle. A built-in microphone lets you capture audio along with video, which can easily be selected from the mirror's main menu. A "screen-capture" button on the mirror's main menu lets you take a snapshot of the current front-facing view and save it to the included 32GB micro-SD card.
DVR: The Brandmotion FVMR-1120 features a built-in 2-channel DVR that records both front and rear camera video to the included 32GB micro-SD card, overwriting the oldest video when the card is full. If the internal G-sensor detects an impact, it will lock that section of video to the card. G-sensor sensitivity can be set to either Off, Low, Medium, or High.
Parking Monitoring: The FVMR-1120 features 8, 12, or 24 hour Parking Monitoring that uses G-sensor activation to capture an impact, via the front camera, while the vehicle is parked. Recording is in a time lapse mode, capturing 1 frame every second. Every 2 minutes of video will be 1 hour of recording time. G-sensor Parking Monitor sensitivity can be set to either High or Low.
