Crux SWRHN-62D Wiring Interface

Connect a new car stereo and retain steering wheel controls in select 2003-11 Honda vehicles

Item # 249HN62D

Installing a new car stereo can often mean losing your vehicle's steering wheel audio controls.

Read more from Crutchfield writer, Bob B.

Find what Fits your car

Ships free today

In Stock
$79.99

About the Crux SWRHN-62D Wiring Interface

Add a new radio

Installing a new car stereo can often mean losing your vehicle's steering wheel audio controls. Crux's SWRHN-62D wiring interface solves this problem, allowing you to install a new receiver while retaining the steering wheel controls. The interface also includes an adapter for the powered antenna.

You'll only be able to retain your steering wheel audio controls with a compatible car stereo made by Alpine, Blaupunkt, Clarion, JVC, Kenwood, Pioneer, or Sony. No other brands are currently compatible.

Add a new radio

Installing a new car stereo can often mean losing your vehicle's steering wheel audio controls. Crux's SWRHN-62D wiring interface solves this problem, allowing you to install a new receiver while retaining the steering wheel controls. The interface also includes an adapter for the powered antenna.

The interface does not support amplified systems, and it doesn't retain factory navigation or your rear seat entertainment system.

READ LESS

Product highlights:

  • connect a new stereo in select 2003-11 Honda vehicles
  • retain your steering wheel audio controls with select car stereos by Alpine, Clarion, JVC, Kenwood, Pioneer, or Sony
  • includes adapter for power antenna
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # SWRHN-62D
KEEP READINGREAD LESS

What's in the box:

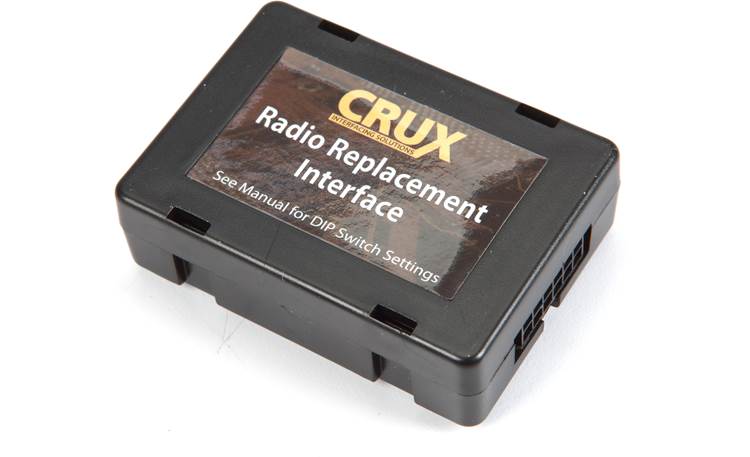

  • Radio replacement interface module
  • Wiring harness
  • Antenna adapter
  • 2 SWC harnesses
  • Installation Instructions

Customer reviews

Loading reviews...

Crux SWRHN-62D Wiring Interface Reviews

Average Customer Review(s):

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

More details on the Crux SWRHN-62D Wiring Interface

Product Research

Features

Honda Radio Replacement Interface: The CRUX SWRHN-62D is a radio replacement interface for select 2003-2011 Honda vehicles. It facilitates the integration of an aftermarket radio to enable retention of factory features when replacing a factory installed radio in select Honda vehicles. This interface is also pre-programmed for retention of steering wheel controls.

Note: This Honda radio replacement interface does not support factory amplified systems, RSE (Rear Seat Entertainment), or Factory Navigation.

Compatibility: The CRUX SWRHN-62D is supported by the following 2003-2011 Honda vehicles; with non-amplified and non-navigation factory systems only.

Make Model  Year
Honda Accord (DX/EX/LX) 2003-2007
CRV 2005-2006
Element 2003-2011
Odyssey 2005-2007
Pilot 2003-2008
Ridgeline 2006-2008

Steering Wheel Control Retention: The CRUX SWRHN-62D also features a steering wheel control output for Pioneer, Sony, Alpine, Clarion, Kenwood, JVC, and Blaupunkt aftermarket head units. The steering wheel control output consists of a right-angle 3.5mm connector and a light blue/yellow wire (use the connection that your aftermarket head unit is fitted with). The SWRHN-62D interface module will work with any of the listed aftermarket head units, by setting its three dip-switches (see owner's manual for appropriate setting).

Note: There are two steering wheel control harnesses labeled "Pioneer/Sony" and "Alpine/Clarion/Kenwood/JVC"). You will only plug in one of these harnesses into the interface module, based on the type aftermarket head unit you are installing.

Wiring Harness: The SWRHN-62D includes a wiring harness with a single 20-pin molex connector that plugs into your vehicle's factory radio harness. the SWRHN-62D interface module. On the other end of the harness is a 12-pin connector that plugs into the interface module. The wiring harness also provides bare-wire leads (power/ground, speaker, illumination, antenna, and turn-on) which will need to be hardwired to your aftermarket head unit's wiring harness. In addition, there is an antenna adapter to allow your aftermarket head unit to connect with the vehicle's factory AM/FM antenna.

Wire Color Function
Black Chassis Ground
Red +12 Volt Accessory
Yellow +12 Volt Constant
Orange Illumination
Orange/white Not Used
Blue Power Antenna
Blue/white Not Used
White Left Front Speaker +
White/black Left Front Speaker -
Gray Right Front Speaker +
Gray/black Right Front Speaker -
Green Left Rear Speaker +
Green/black Left Rear Speaker -
Purple Right Rear Speaker +
Purple/black Right Rear Speaker -
Gray/blue Note Used
Brown Not Used
Black/yellow Not Used
Blue/yellow Kenwood/JVC SWC

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
You told me to! [ randall  Mar 12, 2019 ]
A
I don't want to monkey around with it. The premo install kit seemed like top shelf. [ Roger  Jan 03, 2019 ]
A
to retain the OEM steering wheel controls. [ David  Nov 26, 2018 ]
A
System add [ Walter  Oct 27, 2018 ]
A
Rep told me this is what I need to add Kenwood radio to my 2006 Honda Ridgeline [ RG  Sep 22, 2018 ]
A
I wanted to use my factory steering wheel controls. [ Kenneth  Aug 31, 2018 ]
A
I like the convenience of have control at my fingertip without taking hands off steering wheel [ Belinda  Jun 08, 2018 ]
A
ease of installation [ Timothy  Jun 08, 2018 ]
A
I wanted to retain my steering wheel controls with my new radio. [ Michael  May 19, 2018 ]
A
steering control [ Mitchell  Apr 19, 2018 ]
A
Referred to by by Technician [ William  Mar 12, 2018 ]
A
To get the factory plugs and steering wheel controls. [ Michael  Dec 19, 2017 ]
A
part of bundle [ jeffrey  Dec 09, 2017 ]
A
I need this to properly install my new radio into my car. Why mess around? [ David  Dec 05, 2017 ]
A
I had ask, Wolf, my Crutchfield sales/technical advisor to recommend a package that would allow me to upgrade the audio system in my 2006 Honda Ridgeline that would allow me to continue to use the steering wheel controls and incorporate a rear view camera. He suggested I use all of the items in my purchase. [ GardenStateMike  Nov 25, 2017 ]
A
Max said so [ Stewart  Sep 18, 2017 ]
A
This harness was recommended to me by a former car stereo installer. [ JOSHUA  Apr 30, 2017 ]
A
A must have on any install [ Kathy  Apr 10, 2017 ]
A
Recommend by Troy [ Michael  Dec 08, 2016 ]
A
Came with kit [ Michael  Oct 04, 2016 ]
A
Necessary for steering wheel control! [ Josh  Sep 30, 2016 ]
A
Wanted to retain audio controls from steering wheel [ Israel  Aug 25, 2016 ]
A
Recommended by Crutchfield to connect my new stereo with existing factory wiring. [ Leonard  Aug 15, 2016 ]
A
I wanted to retain the factory steering wheel controls [ S  Jul 06, 2016 ]
A
Suggested [ Jack  Jun 18, 2016 ]
A
I need it [ Floyd  Jun 08, 2016 ]
SHOW MORESHOW LESS

2 questions already asked

Q
After my 2006 Odyssey was serviced, the steering wheel controls no longer map to the original correct keys. How can I reset it to the proper controls?
[ Graeme  Apr 12, 2018 ]
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
[ Krissy  Apr 17, 2018 ]  Staff
Q
I really hope I can have the RES in my Odyssey working after I install my Aftermarket stereo. I have an AUX input @ back seat, so could I still use the Overhead screen to display ipod videos through back aux inputs??
[ Saher  May 09, 2015 ]
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.
[ Krissy  May 12, 2015 ]  Staff
