Crux RVCCH-75WC Backup Camera System

Add a rear-view camera to your factory radio in select 2007-up Jeep Wrangler vehicles

Item # 249RCH75WC

Designed specifically for select 2007-up Jeep Wrangler vehicles, this Crux RVCCH-75WC rear-view camera system...

Find what Fits your car

Designed specifically for select 2007-up Jeep Wrangler vehicles, this Crux RVCCH-75WC rear-view camera system...

Discontinued item
6 questions - 11 answers

Item # 249RCH75WC

About the Crux RVCCH-75WC Backup Camera System

The backup cam just for you

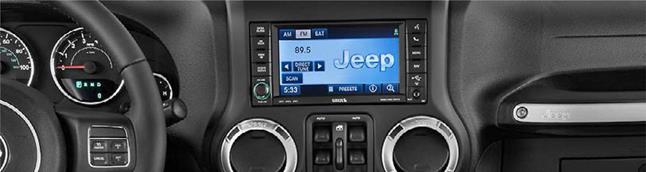

Designed specifically for select 2007-up Jeep Wrangler vehicles, this Crux RVCCH-75WC rear-view camera system allows you to integrate backup video into your MyGIG factory radio. The package includes the CH-75W rear-view camera and bracket, an interface and two harnesses that connect to the factory radio, and a cable that you'll route from the camera to the front of your car.

The backup cam just for you

Designed specifically for select 2007-up Jeep Wrangler vehicles, this Crux RVCCH-75WC rear-view camera system allows you to integrate backup video into your MyGIG factory radio. The package includes the CH-75W rear-view camera and bracket, an interface and two harnesses that connect to the factory radio, and a cable that you'll route from the camera to the front of your car.

Once installed, you'll see a generous, well-lit picture of what's behind you, with a 170-degree wide view and video capture down to 0.2 Lux for night driving. Crux also gives you the option to enable on-screen parking assist lines so you can gauge distance more easily.

RVCCH-75WC

NOTE: The Crux RVCCH-75WC backup camera system is only compatible with MyGIG style radios.

Note: A rear-view camera provides an additional view when reversing your vehicle. It is intended to be used in conjuction with your rear- and side-view mirrors to give a fuller picture of what's behind you. It is not intended as a replacement for your mirrors.

READ LESS

Highlights:

  • system includes waterproof CCD camera, video extension cable, factory interface and two factory harnesses
  • NTSC wide-angle rear view camera compatible with select Jeep Wrangler vehicles
  • resolution: 420 TV lines
  • pixels: 656 x 492
  • 170° wide viewing angle
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # RVCCH-75WC

What's in the box:

  • Rear-view integration module
  • Rear view camera with lamp housing (attached 19" power/signal cable)
  • 47" Power/ground cable
  • 19.5' Signal cable
  • 40" Vehicle harness
  • 14" Interface harness
  • 2 Wire-ties
  • Installation Instructions

Customer reviews

Loading reviews...

Crux RVCCH-75WC Backup Camera System reviews

Average review:

11 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Crux RVCCH-75WC Backup Camera System

Russ B.

Product Research

Features

Sightline Series Rear-View Camera System: The Sightline series RVCCH-75WC rear-view camera system by Crux has been specifically designed for select 2007-2017 Jeep Wranglers that are equipped with a MYGIG-style factory radio. Now you can use your vehicle's factory radio to see what's behind you when backing up. The RVCCH-75WC comes with an interface module and the necessary harnesses and cables to connect the rear-view camera to your Jeep Wrangler's factory system.

Note: The RVCCH75-WC rear-view camera is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.

Vehicle Compatibility: The Sightline series RVCCH-75WC rear-view camera system is compatible with the following 2007-2017 Jeep vehicles that feature a MYGIG-style factory radio (as of 2/2/2017).

Make Model Year
Jeep Wrangler 2007-2017

Automatic Rear-View Switching: The RVCCH-75WC features automatic rear-view switching. This means that when you place your vehicle in reverse gear, your factory radio's monitor will automatically switch over to the rear-view camera so you can see what's behind you immediately.

Park Assist Lines: The rear-view camera provides parking assist lines on the screen of your vehicle's in-dash factory radio. These parking lines are there to assist you when backing up into a parking space. There are two vertical lines which help you judge the left and right edges of the parking space and your vehicle. There are also 3 color-coded horizontal lines that are used to distinguish how close you are getting to the end of the parking spot - Yellow (Clear), Purple (Getting Close), Red (Very Close).

AV Input/Output: The RVCCH75WC also provides composite video/stereo RCA input and output for your vehicle's MYGIG system.

Mounting: The rear-view camera is integrated into a replacement lamp housing which attaches to the vehicle's license plate. You will need to remove the existing license plate lamp housing and replace it with the camera/lamp assembly included with the RVCCH-75WC. The lamp and rear-view camera housing is waterproof.

Power/Ground & Signal Connections: The rear-view camera features an attached 19" power/signal cable which plugs into the included 19.5' composite video cable and the 47" power/ground cable. The composite video cable then plugs into the include vehicle harness. The vehicle harness plugs into the RCVCCH-75WC's interface module and your vehicle's factory radio.

Specifications:

  • Resolution: 420 TV Lines
  • Pixels: 656 x 492
  • Viewing Angle: 170-degrees
  • Minimum Illumination: 0.2 Lux
  • Shutter Speed: 1/60s-20us
  • Voltage: 12V

Loading accessories...

Customer Q&A

6 questions already asked

Q
I have a 2015 Willys Wheeler with factory uconnect touchscreen but does NOT have navigation. Will this still work as plug and play or would I need to take it to dealership? I see it works with mygig factory touchscreen but is that the same factory unit as what I have? I cannot find info on the distinction because they say both are factory.
[ hunter  Oct 18, 2018 ]
1 answer
A
If you have the factory color touchscreen display. yes; the camera will be compatible. You do not need to take it to a dealership for installation. We provide lifetime tech support with every purchase so, you can always call with any problems or questions: https://www.crutchfield.com/Support/TechSupport.aspx
[ Ryan  Oct 31, 2018 ]  Staff
Q
Does this system work with any aftermarket headunits where it retains full functionality (switching automatically when in reverse, displaying full-screen on the unit)?
[ Colin  Jun 04, 2018 ]
1 answer
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
[ Krissy  Jun 11, 2018 ]  Staff
Q
What is the difference between this $299 camera and the CCH-01W ($79.99)? Both say it fits my vehicle only with the factory myGyg radio but the cheaper one says it's for an after-market radio.
[ Beverly  Oct 22, 2017 ]
1 answer
A
Thanks for your question. For information on comparing two or more models I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences and help you make the best choice for your system and your budget.
[ Krissy  Oct 26, 2017 ]  Staff
Q
Does this require the dealer flash the radio to activate?
[ John  Oct 03, 2017 ]
4 answers
A
No, as long as you order the unit with the interface module. Price is $299.
[ Bob  Oct 04, 2017 ]
A
No - the included module will activate the radio to display the picture when you put the vehicle in reverse. No additional programming is required
[ Craig  Oct 04, 2017 ]
A
Ever saw dealership, so no. Did require code on radio
[ C  Oct 04, 2017 ]
A
No, John. It's plug and play. -Craig
[ Craig  Oct 04, 2017 ]
Q
Can you see the trailer hitch since the camera is offset?
[ dave  Sep 08, 2017 ]
2 answers
A
I haven't had an opportunity to hitch anything to the rear, but you have a full view of the area behind you. I would say you should easily be able to see something hitched to the towing area. On mine, I can see just the edge of the rear tire, but it's not obstructing any of the full rear view.
[ robert  Sep 27, 2017 ]
A
I have the camera that mounts on the license plate light. You can see the trailer hitch, easily.
[ Ron  Sep 08, 2017 ]
Q
not getting power to integration module?
[ R  Jul 02, 2017 ]
2 answers
A
Check to make sure you have a good ground. Remember to scrape away any paint from under a connection. Also use a voltage meter to make sure you have power at the power connection with the key turned to the run position. Lastly make sure you have reconnected the battery.
[ Greg  Jul 03, 2017 ]
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer, or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.
[ Krissy  Jul 02, 2017 ]  Staff
