Aquatic AV AQ-MP-5UBT-HS

Features & Installation
Variety of Sources

Features & Installation

For Harley-Davidson Motorcycles: The AQ-MP-5UBT-HS Harley-Davidson Stereo from Aquatic AV is designed and built as an upgrade or replacement stereo for Harley-Davidson Motorcycles (1998-2013 models). It uses the existing Harley-Davidson factory stereo mounting bracket and wiring connections (no additional kit or wiring harness needed).

Note: If your Harley-Davidson Motorcycle (such as the Electra Glide Ultra Classic, Road Glide Ultra, or Ultra Limited) is equipped with rear speakers, you will need to hardwire this connection.

Marine Certified: The Aquatic AV AQ-MP-5UBT-HS is a high quality, robust and durable waterproof digital media receiver which can be used in a variety of applications and environments - such as a spa, boat, ATV, golf-cart, and more. It is waterproof (IP55 rated), UV protected (ASTM D4329 compliant), and salt-fog resistant (ASTM B117 compliant). Its front-panel is made of ABS, while the chassis is ZAM coated and the PCB is conformal coated.

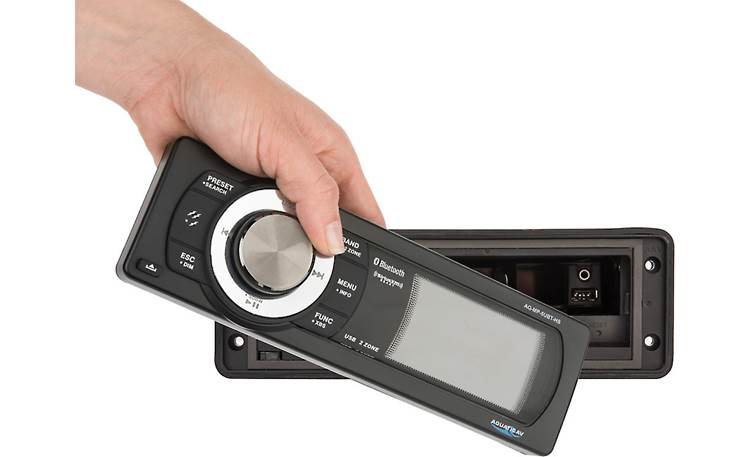

Detachable Front-Panel: The AQ-MP-5UBT-HS features a detachable front-panel which you can take with you when the Aquatic AV receiver is not in use. A protective faceplate/dust cover is included to protect the receiver when the front-panel is detached (there is no protective case for the detachable front-panel).

Note: The AQ-MP-5UBT-HS will not function with the front-panel detached.

Mobile Device Compartment: Behind the detachable front-panel is a mobile device compartment where you can store your smartphone and keep it protected. The mobile device compartment features a female 3.5mm aux input and a female USB (type-A) input. You can connect your smartphone to the AQ-MP-5UBT-HS via Bluetooth while your device is stored in the hidden compartment. The Aux input will support connection of a portable audio device with a headphone jack. The USB input will support connection of a USB thumbdrive or Apple iOS device (not compatible with Android).

• The mobile device compartment measures 3.3125" (w) x 0.75" (h) x 4.0" (d)
• Tested and confirmed to fit an iPhone 8 and Samsung Galaxy S8. Your USB thumbdrive needs to be less that 2.25" in overall depth.

Note: The detachable front-panel will need to be removed to access the mobile device compartment.

Built-in 4Ch Amplifier: The AQ-MP-5UBT-HS features an onboard 4ch Class A/B amplifier that is 2-ohm stable and capable of powering up to 8 speakers, or a combination of speakers and subwoofers.

• 4-Ohm Rating: 24 watts (RMS) x 4ch / 45 watts (Peak) x 4ch
• 2-Ohm Rating: 35 watts (RMS) x 4ch / 72 watts (Peak) x 4ch

4V/5Ch RCA Outputs: The AQ-MP-5UBT-HS is outfitted with a 4V/5Ch RCA outputs (Front, Rear, Mono-Sub) for the connection of external amplifiers to power additional speakers and subwoofers. If only use the receiver's RCA outputs, the internal amplifier can be turned off.

Dual Zone Operation: Dual Zone operation allows you to select a separate source to play through Aquatic AV receiver's front and rear channels (speaker or line-level outputs). You also get independent volume control of the front and rear channels (or Zones). If used in a boat, now you can have two independent zones with separate source selection and volume control.

Audio Settings: You can choose from 8 EQ Presets - Off (Flat), Rock, Pop, Techno, Classic, Jazz, Vocal and User. The User mode allows you to manually adjust the receiver's Bass, Midrange, & Treble. The unit also has balance and fader control. In addition there is an XBS feature which further enhances bass output. A beep tone is heard when your press a button (this feature can be turned on or off).

Color LCD Screen: The front-panel 3" color LCD screen lets you view song/artist/album information (including Album art) from a connected USB, iPod, or Bluetooth source device. In addition, the LCD screen indicates station identification, source inputs, volume level, menu selections, and time (clock). You can adjust the display brightness from 100% for normal operation to 30% brightness to reduce screen glare during night time operation, and save these settings for Day & Night mode.

External 12V Triggers: The AQ-MP-5UBT-S has provided two independent 12V triggers (brown and brown/white wires attached to the rear chassis), activated from the optional wired remote. These could activate any 12V based device, like 12V lights or 12V motors.  Load on the external triggers should not exceed 350mA.

Optional Wired Remote: The AQ-WR-5F waterproof wired remote control (sold separately) allows for 2-way communication with AQ-MP-5UBT-HS, so you can control the Aquatic AV receiver remotely while viewing song, track and other system information on the remote's back-lit LCD screen. This waterproof wired remote control mounts flush onto a flat surface and requires an extension cable (such as the AQ-EXT-24, sold separately). You can also use the AQ-Y-1 splitter (sold separately) to connect two wired remote controls (in this case, you'll need two extensions cables).

Variety of Sources

Bluetooth Audio Streaming: The AQ-MP-5UBT-HS features built-in Bluetooth A2DP/AVRCP for wireless audio playback and control of your Bluetooth-enabled source device, such as your smartphone or tablet (only one device can be paired). You'll be able to wirelessly stream audio from stored music, music apps, and other audio content from your Bluetooth source device to the Aquatic AV receiver. You'll also be able to control Play/Pause, Fast Forward/Rewind, Previous/Next Track, and Volume Up/Down from the receiver's front-panel. The unit will even display song/artist/album information. In addition, the AQ-MP-5UBT-HS supports album art and advanced music browsing from a Bluetooth paired Apple device.

Note: This unit does not support Bluetooth hands-free phone communication for answering or making phone calls.

Dual USB Ports: The Aquatic AV AQ-MP-5UBT-HS is outfitted with two USB (type-A) ports. There is front-panel USB media port located behind the detachable front-panel and inside the mobile device compartment, as well as a rear-panel USB charging port attached to the rear chassis via a 6" pigtail.

• Front-Panel USB Source Input: Behind the detachable front-panel and inside the mobile device compartment is a female USB input for connection of a USB thumbdrive or Apple iOS device. The USB connection supports music playback (MP3 only for thumbdrives), playback control & music browsing, song/artist info (including album art), and charging of your compatible device. This USB input is not compatible with Android devices.
• Rear-Panel USB Charging Port: On the rear-panel of the AQ-MP-5UBT-HS' is a female USB port for charging a USB-enabled device, such as your smartphone or digital audio player. The charging port is rated at 5V/1A. This is a USB charging port only; it does not support media playback. A 5' USB extension cable is included.

iPod/iPhone Direct Connection: The Aquatic AV digital media receiver's front-panel USB input supports playback of select Lightning and 30-pin Apple iPod/iPhone devices. The unit's USB input supports music playback, playback control & music browsing, song/artist info (including album art), and charging of a compatible 30-pin or Lightning Apple device.

Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

AM/FM Tuner w/ RDS: The AQ-MP-5UBT-HS is equipped with a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM presets and 12 AM presets for a total of 30 tuner presets. You can select between US or European tuning. The Radio Data System (RDS) feature displays radio broadcast information such as artist & track information when listening to compatible AM/FM stations. Connect Aquatic AV's AQ-ANT-1 dipole antenna ( sold separately) to the female antenna receptacle of the AQ-MP-5UBT-HS. For best FM performance make sure the antenna is extended to the highest possible position.

SiriusXM-Ready: The AQ-MP-5UBT-HS is SiriusXM Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300 sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 170+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:

• Channel List displays a list of all available channels, while Category Search searches for channels in a certain category.
• Direct Channel input allows you to directly enter a station number, or save up to 18 Satellite Radio presets.
• Information such as Channel Name with Channel Art, Artist Name, and Song Title can be viewed on the head unit's display
• Instant Replay allows you to Pause, Rewind, and Replay live content. In addition, channels containing unsuitable content for children can be blocked.

Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

Dual Aux Inputs: The AQ-MP-5UBT-HS offers two auxiliary inputs. There is a female 3.5mm jack inside the receiver's mobile device compartment (behind the detachable face-plate) to connect your device's headphone jack for music playback. There is also a female stereo RCA input on the rear-chassis for connection of a second external audio source.
