Revel W893

3-way in-wall speaker

Item # 265W893

In Stock

Add to Cart

Ask an expert

Our VA-based experts can help.

1.888.955.6000

Chat

Overview

Our take on the Revel W893

Revel knows a thing or two about designing in-wall speakers. In fact, we carry over a dozen different models from their lineup. The W893 is among the finest in our selection, and is one of only two speakers in the Revel in-wall family that employs a three-way design. If you're after sparking, room-filling sound that's adaptable to your room, the W893 is an excellent choice for your high-end in-wall system.

Incredible three-way sound from in-wall speaker experts

Revel knows a thing or two about designing in-wall speakers. In fact, we carry over a dozen different models from their lineup. The W893 is among the finest in our selection, and is one of only two speakers in the Revel in-wall family that employs a three-way design. If you're after sparking, room-filling sound that's adaptable to your room, the W893 is an excellent choice for your high-end in-wall system.

Advanced signal distribution

I'll admit, three-way speaker designs aren't usually my cup of tea. That's because it's difficult to design a high-quality crossover network that doesn't "get in the way" of the musical signal. But Revel has overcome this challenge. They've invested significant engineering, design, and testing resources to ensure that their advanced high-order crossover network allows the 9" woofer, 3-1/2" midrange driver, and 1" tweeter to blend together seamlessly.

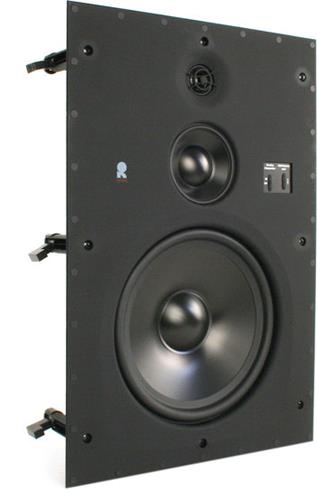

Revel W893 in-wall speaker

The Revel W893 3-way in-wall speaker offers woofer and tweeter adjustments to tailor its performance to your room.

Easy-to-access controls

The front panel of the W893 provides easy access to its sound control features. The tweeter has a three-position output level switch which lets you cut or boost high frequencies — a valuable adjustment if you have reflective surfaces like hardwood floors or windows, or absorptive surfaces like thick carpets or upholstered furniture.

The woofer features a boundary compensation switch, so you can adjust low-frequency output if the speaker is installed near a corner to prevent potential boominess.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-wall speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

Who is Revel?

Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman's state-of-the-art speaker R & D facility in Northridge, California.

Product Highlights:

  • three-way design
  • ideal for an in-wall music system or as the left or right channel of a home theater system
  • 9" micro-ceramic composite (MCC) woofer with cast-aluminum frame
    • boundary compensation switch adjusts low-frequency output when the speaker is placed near a corner
    • long-throw woofer design with rubber surround for high output and low distortion
  • 3-1/2" micro-ceramic composite midrange driver with cast-aluminum frame
  • 1" aluminum dome tweeter
    • three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room's acoustics
    • integrated waveguide provides excellent on- and off-axis performance
  • high-order crossover network features premium-quality components to deliver extraordinarily accurate timbre reproduction
  • recommended amplifier power: 10-200 watts
  • paintable zero-bezel magnetic grille
  • sensitivity: 89 dB
  • cutout dimensions: 11-5/8"W x 17-7/16"H
  • overall dimensions: 12-3/4"W x 18-1/2"H
  • mounting depth: 3-3/4"
  • weight: 10.8 lbs.
  • warranty: lifetime
  • Our 60-day money-back guarantee

What's in the Box:

  • In-wall loudspeaker
  • Grille
  • Scrim cloth
  • Cutout template
  • Instruction Manual
Reviews
Details

Hands-on research

Features and Specs

Quantity in Package Single
Tweeter Pivoting Dome
Midrange Size 3.5
Woofer Size 9
Cutout Size 11.625 x 17.4375
Woofer Composition Micro-Ceramic Composite
Woofer Surround Rubber
Power Range (Watts) 10-200
Sensitivity 89 dB
Impedance (Ohms) 8
Frequency Response Not givenHz
Connector Type Spring post
Bi-Amp Inputs No
Built-in Back-box No
Parts Warranty Lifetime
Labor Warranty Lifetime

Product Research

Features

3-Way In-Wall Speaker: The Revel by Harman W893 in-wall speaker utilizes a three-way driver design. It features a 1" angle-adjustable aluminum dome high-output tweeter with an integrated wave guide that provides optimized response both on and off axis. It also houses a 3.5" micro-ceramic composite midrange driver with rubber surround for detailed vocals, and a 9" micro-ceramic composite (MCC) woofer with rubber surround for high bass output with low distortion. A high-order crossover network delivers seamless blending between the tweeter, midrange and woofer, as well as accurate timbre reproduction.

Controls: The Revel W893 provides several adjustments that allow the in-wall speaker to achieve the best possible performance in a wide variety of listening environments. The following controls are found on the front baffle of the in-wall speaker and hidden behind the removable grille.

  • Tweeter Level Control: A 3-position tweeter level control lets you adjust for optimum high-frequency response in a variety of acoustical environments, or for using the speakers without grilles. Choose between 3 settings -
    • Increased High Frequency Output (+): Use this setting if  the room has many features that absorb high-frequency sound energy - such as thick carpeting, drapes, and fabric-covered furniture.
    • Normal High Frequency Output (0): Use this setting for most installation.
    • Decreased High Frequency Output (-): Use this setting if the room has many features that reflect high-frequency sound energy - such as large uncovered windows, bare tile floors and large expanses of bare walls, or if the speakers are used without grilles.
  • Boundary Compensation Control: The Boundary Compensation control reduces the speaker's bass output level to compensate for the greater reflection of bass energy when the speaker is placed near a wall. When possible, avoid mounting the speaker within 2' of a wall. If such placement is unavoidable, set the Boundary Compensation control to the "On" position. The Boundary Compensation control is located on the front baffle and hidden behind the grille.

Spring-Post Terminals: The W893 in-wall loudspeaker is equipped with a set of spring-post terminals that will accept speaker cable terminated with banana plugs (single or dual) and bare wire (up to 10AWG). Use high-quality speaker wire to obtain the best performance from the Revel in-wall speaker.

  • For wire lengths of less than 50', use at least 16AWG speaker wire.
  • For wire lengths of 50' to 100', use at least 12AWG speaker wire.
  • For wire lengths of greater than 100' use at least 10AWG speaker wire.

Magnetic Grille: The in-wall loudspeaker comes with a rectangular metal mesh grille. Powerful magnets in the speaker frame securely hold the grille in place. The grille covers the entire outer frame of the speaker and is extremely low-profile (sits out only 0.25" from the wall). The included grille can be painted to match your room's décor.

Applications: The Revel Architectural series in-wall speaker can be used in a two-channel stereo or home theater setup.

  • Two-Channel Stereo: Place the left and right loudspeakers the same distance from the primary listening area (or as close to the same distance as possible). The distance from each speaker to its nearest side wall should also be the as close to the same distance as possible.  Ideally, the distance between the left and right loudspeakers should be slightly less than their distance from the primary listening area.
  • Home Theater: The front left and front right loudspeakers should be located on either side of the video display, with their tweeters as close to ear level as possible. The front left and front right loudspeakers should be relatively close to the sides of the video display, while the center loudspeaker should be aligned with the center of the video display (its tweeter should be no more than 2' above or below the tweeters of the front left and front right speakers.
    • 5.1ch Surround: In a 5.1ch system, the surround left and surround right loudspeakers should be located to the sides of the main listening area (5'-7' from the floor).
    • 7.1ch Surround: In a 7.1ch system, the surround left and surround right loudspeakers should be located to the sides of the main listening area (5' to 7' from the floor), while the surround back left and surround back right loudspeakers should be located on the rear wall (3'-6' apart and 5'-7' from the floor).

Mounting Options: The W893 is designed to mount in a 0.5"-2" thick wall; it can be installed horizontally or vertically. Make sure the drywall, plywood or other wall material is capable of withstanding the weight (10.8 lbs) of the speaker. Use the included template to assist you with marking the cutout opening (11.625" x 17.4375") for the speaker. Be sure there is at least 3.75" of mounting depth behind the wall, and allow at least 1" between the edge of the supplied installation template and any rafters or other obstructions behind the wall - so the speaker's "dog-ear" clamps will have room to engage fully. Use a phillips-head screwdriver to tighten the eight "dog-ear" clamps and secure the speaker in your wall.

Position-Independent, Double-Blind Listening Tests: Every Revel by Harman loudspeaker is compared head-to-head with competitors' models in a position-independent, double-blind listening facility. True research-quality processes assure the validity of the listening tests, which employ the latest psychoacoustic research.

Our Product Research Team

At Crutchfield, you'll get detailed, accurate information that's hard to find elsewhere. That's because we have our own in-house Product Research team. They verify what’s in the box, check the owner's manual, and record dimensions, features and specs. We stay on top of new products and technologies to help people make informed choices.
