About the Simplified MFG M88KT
Flexible source distribution for your business
Flexible source distribution for your business
This HDBaseT™ matrix and receiver bundle from Simplified MFG lets you send 4K content from eight HDMI sources to up to 16 TVs, projectors, or monitors with a variety of connection and distribution options. It's ideal for a custom-integrated A/V system in an auditorium, sports bar, house of worship, or other commercial establishment.
Use it in a variety of business applications
Each of the M88KT's eight HDMI inputs can be mapped to a local display via eight conventional HDMI outputs. You can also send 4K content from each source up to 70 meters (230 feet) away via the eight included HDBaseT Ethernet-to-HDMI receivers. Each receiver mirrors the content of the corresponding HDMI output, while offering independent resolution scaling that accommodates a variety of display possibilities.
How the extender system works
The matrix takes the video signal from an incoming HDMI cable and converts it to CAT-6 Ethernet cable, which you'll run to each non-local display location. Each of the HDBaseT receivers accepts an Ethernet connection and converts the signal back to HDMI, for easy connection to each of your displays.
Source selection and control

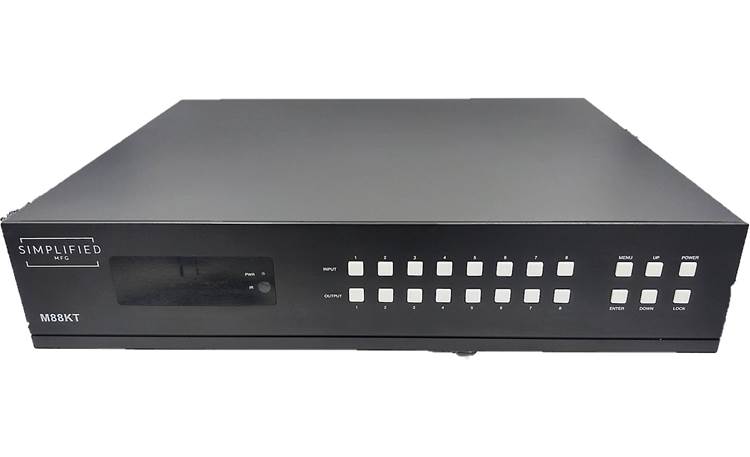

Flexible control options come courtesy of front-panel buttons, or with the included handheld remote control. This matrix also has RS-232 and infrared (IR) connections for use with optional third-party control systems.
Product highlights:
- audio/video matrix and signal extender system
- ideal for a custom-integrated A/V system in an auditorium, sports bar, house of worship, or other commercial establishment
- includes an HDMI-to-Ethernet matrix and 8 Ethernet-to-HDMI receivers
- supports 4K Ultra HD video transmission up to 70 meters/230 feet
- supports 1080p video transmission up to 100 meters/328 feet
- 18 Gbps bandwidth
HDMI features:
- HDCP 2.2 and HDMI 2.0b compliant
- supports HDR-encoded content (HDR10, HDR10+, HLG, and Dolby Vision®)
- supports a broad range of audio formats, including stereo PCM and Dolby Atmos®
- support for EDID ("HDMI handshake") management
Matrix:
- 8 HDMI inputs
- 3.5mm analog stereo, optical digital, and coaxial digital audio inputs
- 8 HDMI outputs for sending signal to local displays
- show a single source across all displays, or show a different source on each one
- supports resolution scaling up/down between 4K and 1080p
- 8 HDBaseT Ethernet outputs for sending signal to distant displays through CAT-6 Ethernet cable
- 8 coaxial digital (S/PDIF) and eight 3.5mm stereo mini audio outputs for connecting to optional external audio systems
- bi-directional IR pass-through for relaying remote control commands (IR cables included)
- 8 RS-232 ports for optional third-party controllers (3-pin Phoenix-style connections)
- 17-1/4"W x 3-1/2"H x 14-1/4"D
- weight: 15.2 lbs.
- AC power supply included

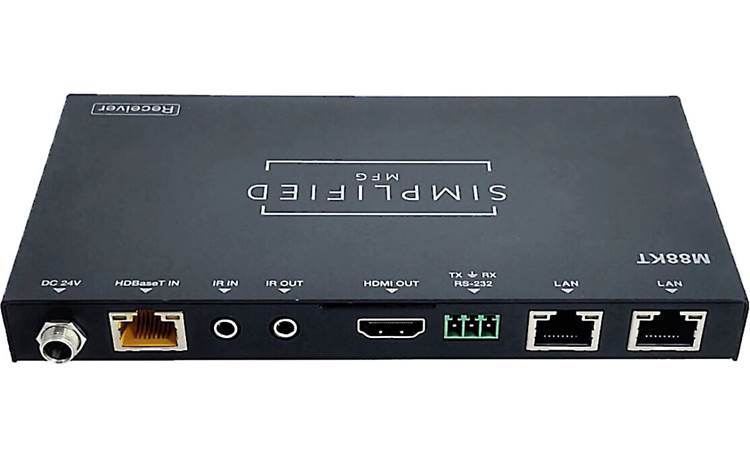

Receiver (x8):
- HDBaseT Ethernet input
- HDMI output
- RS-232 port for third-party controllers (3-pin Phoenix-style connection)
- IR input and output
- 6-7/16"W x 3/4"H x 3-1/2"D
- weight: 13.8 oz.
- powered by transmitter via Ethernet cable
Other info:
- transmitter and receivers are rack-mountable with included hardware
- warranty: 3 years
- Our 60-day money-back guarantee
- MFR # M88KT
