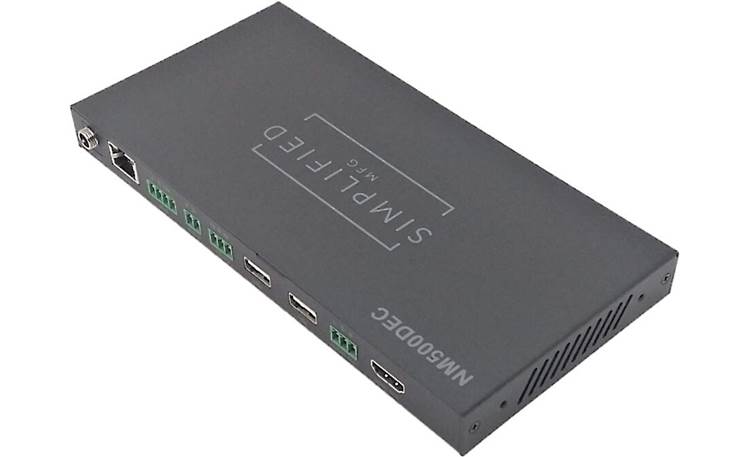

Simplified MFG Net Matrix 500 Decoder

Decoder for NM500 Series A/V over IP system (1080p-compatible)

Item # 297NM500DC

Simplified's NM500 Series allows advanced audio/video control and transmission over a local IP network.

Simplified's NM500 Series allows advanced audio/video control and transmission over a local IP network.

California customers:
Please click here for your Proposition 65 warning.

Item # 297NM500DC

Special order


Need an expert?

Our Advisors know their stuff and love to help.

Since 1974

Years of experience making people happy.

Free lifetime tech support

Whenever you need a hand.

About the Simplified MFG Net Matrix 500 Decoder

Versatile audio/video distribution over your IP network

Simplified MFG's Net Matrix 500 Series lets you send 1080p video and stereo audio signals across your place of business or house of worship using your local IP-based computer network. The three-part system consists of this decoder, as well as a matching encoder and controller. You can send signals from one encoder to many decoders to feed a single source to several displays. Or combine multiple encoders to accommodate several different audio/video sources. The system supports video wall grids up to 3x3 displays.

Product highlights:

  • works with matching encoders and a controller to send audio/video signals across an IP network
  • seamlessly distributes content in one-to-one, one-to-many, or many-to-many configurations
  • supports multi-display video wall applications (up to a 3x3 grid)
  • ideal for an auditorium, sports bar, retail space, or other commercial application
  • receives power via PoE (Power over Ethernet) or optional 12V power supply
HDMI features:
  • 1 HDMI output for sending A/V signals to a display
  • supports video resolutions up to 1080p
  • supports 2-channel PCM audio up to 48kHz
  • HDCP 1.4 and HDMI 1.3b compliant
    • Important note: This system uses an older version of digital copy protection (HDCP 1.4) — newer commercial content sources may not play through this unit
Connections and control:
  • analog stereo audio output (3-pin Phoenix-type connectors)
  • RJ-45 Ethernet port for connection to a local network
  • two USB Type-A port for connecting a laptop
  • RS-232C and IR (infrared) in/out connections for use with optional third-party controllers (Phoenix-type connectors)
Dimensions and other info:
