About the Samsung QN65QN95B
A top-shelf 4K Neo QLED TV
The Samsung QN65QN95B delivers crisp, detailed 4K visuals and Dolby Atmos-powered TV sound.
A top-shelf 4K Neo QLED TV
The QN95B series of TVs are Samsung's top-of-the-line 4K models for 2022. The QN65QN95B offers a gorgeous picture powered by thousands of precisely controlled Mini LED backlights and Samsung's ever-improving quantum dot technology for over a billion shades of rich color.
And if 4K wasn't sharp enough, HDR support further improves this 65" TV's brightness and color, bringing out additional detail and contrast when viewing HDR-encoded programs.
Samsung's Neural Quantum Processor 4K analyzes each scene with adaptive machine learning to optimize your experience. With multiple AI models working together, it delivers an ultra-sharp picture that's hard not to watch.
This flagship-quality processor uses Real Depth Enhancer, an algorithm which analyzes objects on-screen in relationship to their background. This creates a greater sense of space for deeper immersion.
Mini LED backlighting for superb contrast
Samsung's Quantum Matrix Technology Pro boasts thousands of Mini LED backlights, controlled with incredible accuracy. With detailed local dimming, this TV serves up impressive contrast with deep blacks and brilliant highlights.

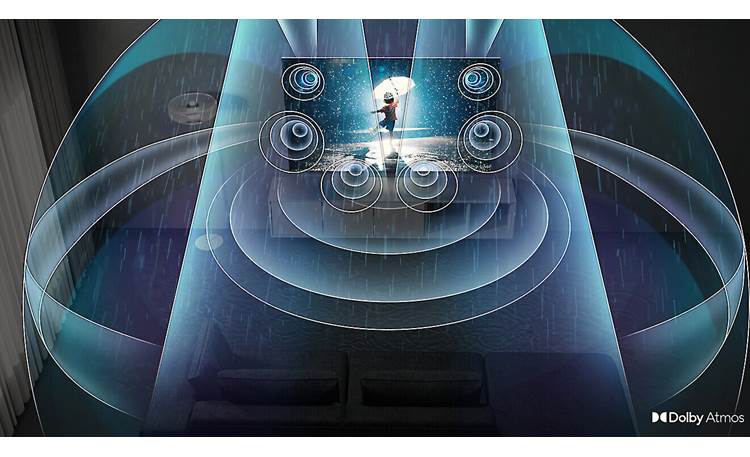

Dolby Atmos® sound
The QN95B has a built-in 4.2.2-channel speaker system to help it create rich, full sound. Speakers are arranged throughout the TV's frame, including drivers strategically placed behind the screen for more enveloping sound. With support for Dolby Atmos, this TV delivers surprisingly immersive sound without the need for additional equipment.
The TV's built-in audio system further amps up the action with Object Tracking Sound+, which directs sound effects to match what's on-screen. If you're catching the latest Fast & Furious, your ears can track squealing tires on pavement as Vin Diesel whips across an impossibly tight turn.
Convenient voice control
You can control the TV and search streaming services with your voice using a mic built into the remote. Just press a button and start talking. With Samsung's Bixby voice assistant, Google Assistant, and Amazon Alexa all built in, it integrates easily into an existing smart home system.
Spend less time searching
Samsung's built-in Tizen streaming platform lets you access a wide variety of services, from Netflix® and Amazon Prime Video to Disney+. These services are consolidated under a single on-screen guide to make searching for your favorite movies and TV shows easy.
You can even use the Smart Hub to video chat with friends and family while watching the same content together (web cam sold separately). If you have a few buddies who haven't caught up with your latest binge-worthy obsession and you don't want to spoil it, you can watch them react to the twists and turns live.
Made with gamers in mind
Samsung has gamers of all types covered with the QN95B. The TV supports 4K/120Hz for next-gen console gamers, plus it goes a step above the competition with 4K/144Hz for PC gamers with high-performance rigs. That's a recipe for crisp, smooth action. And with FreeSync Premium Pro, you won't have to deal with tearing or stuttering when things get hectic.
The QN95B also has Game Bar 2.0, a dedicated gaming menu that pops up on-screen and lets you make real-time adjustments until they're just right. You can double check stats like input lag and tinker with your fps (frames per second), HDR, and wireless headset settings. For compatible PC games you can even adjust your aspect ratio and the eye-level of the screen.
- 64.5" screen (measured diagonally)
- 4K screen resolution (3840 x 2160 pixels)
- Neural Quantum Processor 4K uses multi-layered neural networks to analyze and enhance video scene-by-scene, delivering gorgeous picture quality
- Real Depth Enhancer uses AI to process objects on-screen against their background for improved realism
- 4K AI Upscaling enhances standard-definition and high-definition video signals for optimum display on a 4K screen
- analyzes content to reduce image noise, restore lost detail, and define edges around objects and text
- Quantum HDR 32X (HDR10, HDR10+, HLG) for extended contrast and brightness when viewing HDR content
- HDR10+ Adaptive and HDR10+ Gaming Certified
- full-array Quantum Mini LED backlight with local dimming ensures precise contrast and excellent shadow detail
- Motion Xcelerator Turbo Pro ensures the action on-screen looks smooth and fluid
- Filmmaker Mode™ automatically adjusts picture settings to preserve the director's intent
- Quantum Dot technology provides 100% color volume — full color with full brightness (Quantum Matrix Technology Pro)
- Ultra Viewing Angle panel technology reduces glare and enhances color to provide a vibrant picture no matter where you sit
- selectable Adaptive Picture mode analyzes room's lighting and optimizes screen settings accordingly
- EyeComfort mode provides warmer tones and reduced blue light for comfortable night viewing
Video source compatibility:
- watch streamed 4K video sources like Netflix, Amazon Prime Video, and YouTube (requires internet speed of at least 25Mbps, and may require a subscription)
- Samsung TV Plus lets you enjoy subscription-free TV with 150+ channels
- NextGen TV ATSC 3.0 tuner pulls in over-the-air 4K broadcasts (antenna required)
Smart TV features:
- built-in Bixby, Google Assistant, and Amazon Alexa intelligent voice control assistants
- built-in Wi-Fi 5 (802.11ac) provides fast, reliable wireless streaming
- Smart Hub makes navigating to your favorite content easy with a sidebar with preset categories (Media, Gaming Hub, Ambient)
- Smart Calibration lets you fine-tune your picture settings quickly (Basic Mode) or optimize them in greater detail (Professional Mode) with your compatible smartphone
- built-in Apple AirPlay® 2 allows wireless streaming from your iPhone®, iPad®, or Mac®
- TV-to-mobile and mobile-to-TV wireless mirroring
- Multi View lets you mirror the phone on the TV with several layout options while you continue to stream other content simultaneously
- supports 4K at 144Hz for super-smooth gaming with high-performance PCs
- Game Motion Plus provides extra motion clarity to reduce halo and blur in fast moving action games
- FreeSync Premium Pro reduces tearing and stuttering
- Super Ultrawide Game View lets you adjust the aspect ratio from 21:9 to 32:9 and move the screen position to eye level for compatible PC games, optimizing your playing experience
- Game Bar 2.0 on-screen menu lets you double-check your input lag and make adjustments to your fps (frames per second), HDR, wireless headset settings, etc.
- HGiG (HDR Gaming Interest Group) mode calibrates tone-mapping for accurate detail and shading
- Gaming Hub lets you stream games from Xbox Game Pass, NVIDIA GeoForce Now, Google Stadia, Utomik, and Luna directly on your TV with a compatible controller (sold separately; subscriptions required)
- One Connect box acts as a hub for your A/V connections, making it easy to hook up your gear and minimizing clutter
- 4 HDMI 2.1 inputs
- all inputs are HDCP 2.3 compatible for connecting to copy-protected 4K video sources (supports 8K video up to 60Hz)
- supports ARC (Audio Return Channel)/eARC (enhanced Audio Return Channel)
- supports 4K/120 Hz and 4K/144 Hz
- RF input for antenna/cable signals
- Toslink optical digital audio output (can pass Dolby® Digital multichannel or 2-channel audio from connected sources)
- Ethernet port for the fastest, most secure internet connection
- 3 USB 2.0 inputs for connecting a thumb drive or other device
- USB-C port for optional web cam (sold separately)
- RS-232C port
- built-in 4.2.2-channel speaker system (70 watts total power)
- supports immersive Dolby Atmos with up-firing speakers for overhead surround effects
- Object Tracking Sound+ provides realistic sound effects that track the on-screen action using a series of tweeters built into the edges of the TV
- works with select Samsung sound bars featuring Q-Symphony technology to create a fuller soundstage
- Active Voice Amplifier analyzes ambient room noise and enhances voices for clear dialogue
- Bluetooth® 5.2 wireless audio streaming to a compatible speaker or set of headphones
General features & info:
- Infinity Screen design helps your eyes focus on the picture instead of the TV's frame or bezel
- includes remote with built-in microphone for voice control
- SolarCell Remote™ can be charged using light or USB
- Ambient Mode+ helps the TV blend into your room when it's wall-mounted, or shows screen savers featuring photos, artwork, or info like weather

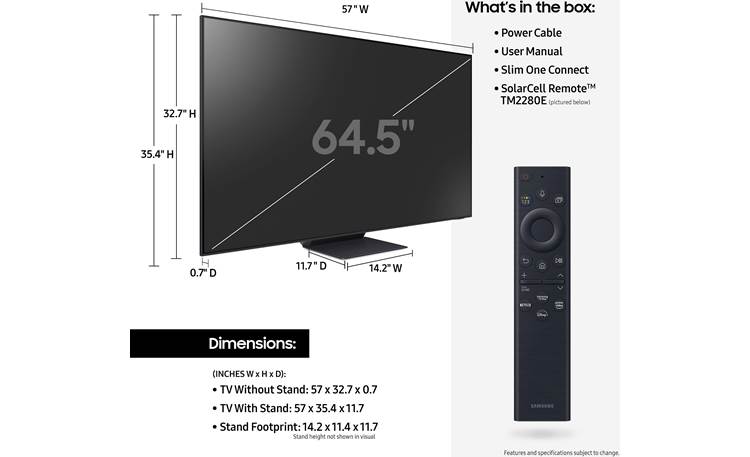

- dimensions (measured by Crutchfield): 58"W x 35-1/2"H x 11-3/4"D with stand; 58"W x 32-3/4"H x 1"D without stand
- weight: 67 lbs. with stand; 49.2 lbs. without stand
- stand footprint: 14-1/4"W x 11-3/4"D
- VESA mounting hole pattern: 400mm x 300mm
- warranty: 1 year parts & labor — in-home service
- Our 60-day money-back guarantee
- MFR # QN65QN95BAFXZA
What's in the box:
Samsung QN65QN95B owner's manual
- 65" LED-LCD TV
- Slim One Connect Box
- 8' One Connect Cable
- 1' One Connect Cable
- Pedestal base
- Pedestal bracket
- Slim One Connect Box mounting bracket
- 5' AC power cord
- Remote control (BN59-01385A)
- Twelve M4x12mm screws
- 4 Wall-mount spacers
- 3 Hanger-bolts
- Plastic clip
- Self-adhesive channel guide
- Slim One Connect Box cover-panel
- User Manual
- Quick Setup Guide
- Smart Remote Instructions
- Important Safety Precautions
- Warranty Information
EnergyGuide:View EnergyGuide label
Thanks for submitting your review
This review was collected as part of a promotion
More details on the Samsung QN65QN95B
Features & specs
Neo QLED TV: Samsung takes their QLED technology to the next level with their newest Neo QLED televisions. Samsung's Neo QLED TV uses a new Quantum Mini LED light source controlled by next-gen Quantum Matrix Technology and a powerful Neo Quantum Processor that has been specifically optimized for Neo QLED TV to produce an ultra-realistic picture.
- Quantum Mini LEDs: Samsung designed their Quantum Mini LEDs to be 1/40th the height of conventional LEDs. At just 1/40th the size of conventional LEDs, Quantum Mini LEDs allow for ultra-fine light control to produce deep blacks and bright whites. You'll experience a brilliantly intense picture powered by a vast array of Mini LEDs or tiny light cells for hyper-focused brightness and dimming in all the right areas.
- Quantum Matrix Technology with Ultimate UHD Dimming Pro: Quantum Matrix Technology with Ultimate UHD Dimming Pro enables exact control of the densely packed Mini LEDs, preventing blooming and allowing you to enjoy content as its meant to be seen with revealing deep black tones and the brightest of whites. Neo QLED with Quantum Matrix Technology introduces advanced contrast mapping with BLU (back-light unit), increasing the brightness level from 12 to 14-bit gradation for greater control of the Quantum Mini LED light source. This allows the TV to control its lighting across 16,384 steps - quadrupled from the previous 4,096 steps.
Neo Quantum Processor 4K: Samsung's next-gen Neo Quantum Processor 4K utilizes advanced AI based deep-learning analysis to analyze the signal, source, and scene-by-scene content to deliver an incredible 4K optimized experience. By using up to 16 different series of data-driven algorithm models, each trained in AI upscaling and deep learning technology, the Neo Quantum Processor can optimize standard definition and high definition picture quality to 4K. Whatever you watch on the Neo QLED TV, Samsung's powerful Neo Quantum Processor 4K knows how to make it better through 4K AI upscaling.
- The Samsung Neo QLED TV has a display resolution of 3840 x 2160 (4K) and will display all video at that resolution, regardless of input signal, thanks to 4K AI upscaling.
- 4K AI Upscaling delivers the complete Ultra-HD picture experience with a proprietary process including signal analysis, noise reduction, UHD upscaling, and detail enhancement to seamlessly upconvert SD, HD, or Full-HD content to Ultra-HD level picture quality.
Note: This TV complies with the CTA 4K Ultra High-Definition Connected definition requirements. The trade organization known as the Consumer Technology Association (CTA) is considered an industry authority on engineering standards for consumer electronics in the United States. Visit www.cta.tech for more information.
Infinity Screen: The Infinity Screen, a unique aspect of Samsung Neo QLED TV design, maximizes immersion by reducing the thickness of the outer bezel to almost nothing. The trim bezel of the Samsung Neo QLED TV has been narrowed to near zero thanks to advanced technologies and design processes. Its 0.8mm stainless steel frame removes the boundary between the screen and its environment, practically giving the illusion that the screen is "floating".
- Anti-Reflection Technology: Samsung's Infinity Screen is engineered to reduce glare and provide a vibrant picture no matter where you sit. The anti-reflective screen helps to minimize distractions from sunlight and indoor light, so you can enjoy the game or movie with or without the lights on.
- Ultra View Angle: The Infinity screen feature's Samsung's Ultra View Angle technology which restructures the TV's LCD panel so the backlight passes through the panel with lights evenly onto the screen - the result is sharper images with deeper blacks and a wider viewing angle. Now, practically any seat in the room can deliver an exceptional viewing experience.
Exceptional Color & Depth: The Samsung Neo QLED TV delivers 100% color volume with over a billion shades of color (powered by nano-sized Quantum Dots). Samsung's Neo QLED TV is also engineered to offer exceptional dimension and depth.
- 100% Color Volume: Neo QLED TVs with 100% Color Volume deliver a brilliant visual experience by providing a rejuvenating effect for colors that may appear dull or faded in challenging content. Neo QLED televisions can produce 100% color volume in the DCI-P3 color space, the format for most cinema screen and HDR movies for television. By definition, Color Volume is an index of how well colors are reproduced in richness and accuracy at different brightness. With higher color volume, you get a wider, more diverse range of color that feels rejuvenated at higher brightness levels.
- Real Depth Enhancer: Experience depth and dimension on your screen just like you do in real life. Real Depth Enhancer mirrors how the human eye processes depth by increasing foreground contrast making your content feel more life-like than ever.
Quantum HDR 32X: The Samsung Neo QLED TV features the ability to provide a premium High Dynamic Range (HDR) experience, with a higher level of contrast between light and dark images. HDR delivers a much higher level of contrast between light and dark to produce an image that is more realistic and closer to what the content creator imagined. This increased contrast reveals the subtle nuances of the image, from detailed blacks and shadows to the brightest whites and colors, plus greater depth. Quantum HDR 32X combines Samsung's QLED and HDR10+ technology to give you a much wider range of brightness and contrast, bringing all the picture nuances to life. As a result, you'll see ultra-rich colors that really "pop", with much more greater dynamic range, much improved contrasting detail, and much darker scene highlights that come alive in stunning HDR - just as the director intended. You'll enjoy a beautiful picture, whether you're watching in a room drenched with light or with no light at all.
- HDR10: HDR10 is an open standard and currently the most popular HDR format on the market. It supports 10-bit color and 1,000 nits. It uses static metadata at the start of a movie to tell the receiver and your TV that the video content is encoded using HDR.
- HDR10+: Samsung Electronics and Amazon Prime Video announced the entire Prime Video HDR library is now available in HDR10+, a new open standard that leverages dynamic metadata to produce enhanced contrast and colors on an expanded range of televisions. Prime Video is the first streaming service provider to deliver HDR10+ content to its users. The HDR10+ technology on Prime Video incorporates dynamic metadata that allows the Samsung Neo QLED TV to adjust brightness levels on a scene-by-scene or even frame-by-frame basis. By applying individualized tone mapping to each scene, HDR10+ delivers an incredible viewing experience. The picture quality offers an enhanced visual experience with more detailed expressions, brighter shadow areas and more accurate color renderings that stay true to the creator's original intent.
- HLG: HLG (Hybrid-Log Gamma) is primarily designed for live video feed and over-the-air broadcasts. It uses no pre-encoded metadata and is backwards compatible with SDR. HLG's native compatibility allows much of today's existing SDR infrastructure to be re-used for HDR in the future.
Note: This TV does not support Dolby Vision.
Four HDMI 2.1 Inputs: The Samsung Neo QLED TV is equipped with four HDMI 2.1 inputs (located on the one Slim One Connect Box) to connect to your Blu-ray player, Satellite/Cable receiver, Game Console, and/or AV receiver. Any HDMI input can also be used to connect a PC to this TV. All HDMI inputs are 4K/120Hz compatible, HDCP 2.2 compliant, and support 4:4:4 color subsampling. Please use a premium high speed HDMI cable with 48 Gbps and above to view 4K/120Hz content.
- Supported Resolutions: Supported video resolutions for all HDMI inputs include 4096x2160p, 3840x2160p, 1920x1080 (i/p), 720p, and 480 (i/p). The HDMI inputs' "Input Signal Plus" setting should be turned on if you will be watching 4K sources.
- HDCP 2.2 Compliant: HDCP 2.2 compliance on all HDMI inputs makes the TV fully compatible with the latest copyright protection standard for 4K video transmission from Ultra-HD Blu-ray players and 4K Satellite//Cable providers.
- Color Subsampling: With up to 4:4:4 (8-bit; 120Hz) or 4:4:4 (10-bit; 50/60/120Hz) color subsampling, luminance (brightness) and chroma (color) are sampled at the same rate; resulting in an RGB color palette as big as the video sampling rate for a video image with more total colors, plus greater color accuracy and detail. 4:2:2 (8/10-bit; 50/60/120Hz) and 4:2:0 (8/10-bit; 50/60/120Hz) are also supported.
Note: The TV does not contain composite or component analog video inputs.
Motion Xcelerator Turbo Pro: In addition to delivering smooth, fluid motion at up to 4K/120Hz, Samsung's Motion Xcelerator Turbo Pro takes your fast-paced content to the next level with higher refresh rates and next-gen gaming capabilities up to144Hz for PCs. You'll never miss a thing with minimized blur and enhanced motion clarity, plus catch all the fast-moving action whether you're watching sports or taking advantage of newer Next-Gen gaming capabilities. The TV also offers manual Auto Motion Plus adjustments.
- LED Clear Motion: Enable LED Clear Motion to sharpen fast moving images. When fast moving objects are recognized, the TV's backlight behind the objects are adjusted accordingly.
- Blur Reductions: Manually reduce screen blur to optimize for fast-moving images, such as sports content.
- Judder Reduction: Manually adjust the TV's Judder Reduction to smooth out uneven and jumpy visually processing that can sometimes be caused by fast motion video.
Note: Use a 48Gbps ultra high-speed HDMI cable for 4K/120Hz and 144Hz.
Gaming Mode: You can enable Game Mode to optimize the TV's settings for playing video games with a gaming console. Game Mode bypasses and disables some of the TV's video processing to allow for faster video gaming response time. In accordance with the HGiG (HDR Gaming Interest Group) standard, the TV sets the optimal image quality for HDR games according to the brightness information of the contents. You can also enable the Game Motion Plus option, which adds back in a little motion processing for smoother video motion while gaming (the video lag will be a little slower than the standard Game Mode).
- ALLM (Auto Low Latency Mode): ALLM (Auto Low Latency Mode) automatically detects gameplay so you can enjoy faster, smoother gaming with dramatically less lag and virtually no motion blur or judder.
- VRR (Variable Refresh Rate) with FreeSync Premium Pro: The QLED TV supports VRR (Variable Refresh Rate) with AMD FreeSync Premium Pro Technology to enable a true HDR console and PC gaming experience with a a combination of smooth tear- and stutter-free gaming at peak performance with stunning HDR visual fidelity and low latency (up to 4K/144Hz with <5.8ms). This feature is turned on automatically when the selected source is identified as a game console, like Xbox One X or Xbox One S, but must be turned on manually if the selected source is identified as PC. FreeSync will only function if it is supported by the connected device.
Super Ultra-wide GameView with Minimap Zoom: You'll be able to expand your view with multiple aspect ratios from 21:9 to 32:9 with Super Ultrawide GameView. You can even use the directional buttons and Select button on the remote control to zoom in on specific areas of the game screen and adjust the zoom rate.
- Game Bar & Dynamic Black Equalizer: You can also quickly optimize game settings with an on-screen menu that lets you check input lag, FPS, HDR, wireless headset settings and more through an easy-to-access game bar. The Dynamic Black Equalizer helps you easily detect items or hidden enemies lurking in dark corners of your games by improving visibility and object details in dark scenes without washing out colors and contrast in brighter scenes.
Note: Use a 48Gbps ultra high-speed HDMI cable for optimum gaming performance.
Adaptive Light Technology: Adaptive Light technology leverages the Neo Quantum Processor to analyze lines, shapes and surfaces to control the shape of light from the Quantum Mini LEDs, enhancing the brightness and accuracy of all shapes on the screen. The result is outstanding image quality that puts full HDR content on display. You can choose between an Adaptive Picture or EyeComfort mode.
- Adaptive Picture: The Neo QLED TV adapts the picture brightness in real-time. It automatically adjusts the backlight brightness of the screen by detecting the ambient light level using ambient light sensors. Whether in a sunlit living room or a darkened den, Adaptive Picture adjusts the TV to the lighting conditions around it for an amazing picture - wherever you are watching.
- EyeComfort Mode: EyeComfort mode automatically adjusts the screen's brightness and tone based on a built-in light sensor and sunset/sunrise information. As the ambient light changes, the screen will gradually reduce the amount of light and offer warmer tones, adjusting the blue light levels accordingly. This allows for a more comfortable viewing experience at night by reducing the blue light which may affect one's sleep quality.
Picture Controls: You can make the following adjustments for an optimum picture. The TV's picture adjustments can be made for a particular AV input or for all inputs. There is also a Smart Calibration feature for optimizing the TV's picture.
- Picture Sizes: You can choose one of the following screen sizes - 16:9 (16:9 widescreen format), 4:3 (4:3 standard format), or Custom (magnifies or shrinks 16:9 pictures vertically and/or horizontally). 4:3 cannot be select for Ultra HD 4K video and images.
- Picture Modes: Picture Modes apply preset adjustments to the picture. Select from Dynamic (increases the brightness of the screen), Standard (suitable for a normal environment), Movie (darkens the screen and reduces glare), or Filmmaker (reserves the director’s creative intent and provides a cinematic experience).
- Manual Picture Settings: The TV has several options for manually adjusting the picture quality. Manually adjust Backlight (adjusts the brightness of the LED backlight), Contrast (increases or decreases the contrast between dark and light areas of the picture), Brightness (adjusts the brightness level of the picture) Sharpness (sharpens or dulls the edges of objects), Color (adjusts the color saturation of the picture), and Tint (adjusts the amount of green and red in a picture).
- Expert Settings: The TV also offers more advanced
picture adjustments for expert fine tuning. Fine tune the
- Contrast Enhancer: automatically balances the contrast to prevent excessive differences between bright and dark areas
- Color Tone: adjusts the overall color tone of the televisions using Cool/Normal/Warm 1/Warm 2 presets
- Color Space: adjusts the range of colors available to create the image
- White Balance: adjusts the color temperature for more natural picture colors)
- RGB: displays the Red/Green/Blue color for making fine adjustments to the hue and saturation
- Gamma: adjusts the primary color (red/green/blue intensity)
- Shadow Detail: adjusts the brightness of dark images to increase detail in blacks
- HDMI Black Levels: adjusts the black level to compensate for low black levels, low contrast, or dull colors generated by external devices connected to the TV via an HDMI cable; this function is only available when the input signal connected to the TV via an HDMI connector is set to RGB 4:4:4
- Noise Reduction: reduce picture noise to avoid distractions such as flickering
- Film Mode: The TV can be set to automatically sense and process film signals and adjust the picture for optimum quality. This feature is only available for the built-in HDTV tuner and the TV's HDMI inputs (1080i only).
- Smart Calibration: The Samsung Neo QLED TV supports Smart Calibration within the SmartThings app (for Apple iOS 13.0+ and Android OS 7.0+) using a compatible smartphone device released after January 2019. Using Smart Calibration and your compatible smartphone, you are able to automatically calibrate and adjust the TV screen's white balance, grayscale, gamma, and chromaticity to render the best picture possible. Smart Calibration takes approximately 15 minutes to complete.
NextGen TV Tuner (ATSC 3.0): The ASTC 3.0 standard, commonly known as "NextGen TV" is the first major upgrade in broadcast TV since the transition to digital broadcasting (DTV) in 2009. NextGen TV is an Internet Protocol (IP) based system, which means it can carry internet content and services alongside the traditional over-the-air broadcast signal. The standard will enable never-before-available interactive features like video-on-demand and advanced emergency alerts for broadcast TV, all delivered free with an over-the-air antenna. NextGen TV signals will be stronger and will transmit over greater distances and deeper into buildings, with higher-quality picture and better immersive sound.
Note: Adoption of ATSC 3.0 is voluntary and stations that do transition to ATSC 3.0 will initially have to simulcast both ATSC 1.0 and ATSC 3.0 for 5 years. It is projected that by the end of 2020, sixty-one markets will be broadcasting in ATSC 3.
eARC (Enhanced Audio Return Channel): The Enhanced Audio Return Channel within the television's HDMI 3 input (located on the Slim One Connect Box) enables the TV, via a single HDMI cable, to send audio data "upstream" to an AV receiver; increasing user flexibility and eliminating the need for any separate S/PDIF audio connection. This feature allows audio to be sent from the television to your AV receiver through the same HDMI cable already being used to send audio/video to the television. This eliminates the need for extra cables connected to the TV. eARC allows audio from the TV tuner, Network connection, inserted USB device, or HDMI inputs connected device to be heard through your eARC compatible AV receiver via the television's HDMI eARC input.
- The audio from the TV's tuner, HDMI inputs, USB ports, and Samsung TV apps can pass as Dolby Atmos (via Dolby Digital Plus), Dolby Digital Plus, Dolby Digital, or 2ch PCM.
- DLNA compliant and wireless mirroring devices will only output audio at 2ch PCM only.
- DTS multichannel audio formats are not supported.
Note: Your AV receiver or soundbar will also have to support eARC (Enhanced Audio Return Channel) to accommodate the playback of these high resolution audio formats. If your AV receiver or soundbar only supports ARC (Audio Return Channel), audio playback will be limited to Dolby Digital or 5.1ch/2ch PCM.
Optical Digital Output: The TV's optical digital output terminal (located on the Slim One Connect Box) will output Dolby Digital (when available) or 2ch PCM. The digital optical output terminal only sends an audio signal in Dolby Digital when receiving Dolby Digital surround sound from a digital broadcast channel through the tuner, network apps, HDMI inputs, or USB ports. When the TV's optical digital output is selected, the TV's speakers are muted. DTS multichannel audio formats are not supported.
Note: This TV does not contain any analog audio outputs.
Built-In Bluetooth: Thanks to built-in Bluetooth 4.2, you can wirelessly connect a single set of Bluetooth headphones, a stereo pair of Bluetooth speakers, or a single Bluetooth speaker with the Samsung TV. You are able to stream audio from any of the TV's built-in sources or connected sources to the Bluetooth headphones or speakers. You can choose to have the TV speakers play at the same time as your Bluetooth headphones or speaker, or you can turn the TV speakers completely off. The TV's audio outputs and HDMI ARC will be deactivated when streaming audio to Bluetooth headphones or speaker. The volume of the Bluetooth headphones or speaker will be controlled via the headphones or speaker, and not the TV.
Intelligent Sound: The Samsung QLED TV intelligently recognizes and analyzes your room and content, while also analyzing your usage history to provide the best audio experience. The Intelligent Sound feature is only available when the TV's built-in speakers are being used (not available for the HDMI eARC, Optical Digital, Bluetooth, or WiFi). Intelligent Sound is also not compatible in Ambient or Game mode.
- Active Voice Amplifier: Background noise from your home can disrupt your viewing experience. Samsung's Active Voice Amplifier analyzes your room's ambient noise in real-time using the TV's built-in sensor and enhances the voices in the scene so you can hear the dialog loud and clear.
- Adaptive Sound + SpaceFit: Adaptive Sound + Spacefit provides optimized sound quality by analyzing the viewing space and the acoustic components of the content. It can optimize the sound based on where the TV is installed using the TV's built-in audio sensor.
- Adaptive Volume: Adaptive Volume automatically adjusts the TV's speakers to a specific volume level while you are watching a program. The TV analyzes your volume usage history by time period to automatically adjust the volume when you use an app or switch to an external input source.
Immersive Sound: Utilizing unique sound technologies (such as OTS and Q-Symphony), plus a selection of Sound Modes (Standard, Adaptive & Amplify), the QLED TV is able to create a more immersive sound experience (including Dolby Atmos).
- Dolby Atmos + Object Tracking Sound (OTS) Plus: Featuring a 70-watt, 4.2.2Ch speaker system with strategically placed speakers behind the TV screen, you can experience vividly realistic Dolby Atmos sound that pulls you in closer. Object Tracking Sound (OTS) Plus technology delivers a sound experience perfectly aligned with the picture. It lets you hear the action in every scene with audio that tracks every motion on the screen.
- Sound Modes: The Adaptive Sound mode provides optimized sound quality by analyzing the acoustic components (dialog, music and special effects) of the audio content scene-to-scene. The Amplify Sound mode enhances midrange and high frequency sounds, which is useful when voices are difficult to hear. The Standard Sound mode provides a balanced sound where no tones are over emphasized.
- Q-Symphony: Surround yourself with synchronized sound from the Samsung TV and a Samsung soundbar (sold separately), orchestrated in complete harmony with Q-Symphony. Q-Symphony creates a more dynamic listening experience by pairing the TV speakers with the audio of select Samsung soundbars. By utilizing both of these audio channels, Q-Symphony delivers a fuller, more dynamic sound experience. Q-Symphony is available only with a compatible Samsung soundbar; check for Q-Symphony compatibility on Samsung soundbar product specifications.
Other Audio Settings: The Samsung QLED TV also offers a variety of audio adjustments to help you meet your listening needs.
- Equalizer: You can manually adjusts the TV's built-in 7-band EQ (100, 200, 500, 1k, 2k, 5k, & 10k Hz) for a more customized sound.
- Auto Volume: The Auto Volume feature equalizes the sound automatically so that the volume level remains the same when you change between channels and sources.
- Audio Delay: The Audio Delay function corrects audio/video mismatch, when watching TV or video, and listening to a digital audio output using an external device such as an AV receiver. You can adjust the audio delay from 0ms to 250 ms.
Network Connection: You can set up the Samsung QLED TV so that it can access your home network and select online entertainment apps through your local area network (LAN) using a wired (RJ-45 Ethernet) or wireless connection (built-in WiFi); it also supports WiFi Direct.
- Wired Ethernet: The TV's contains an RJ-45 Ethernet jack (located on the Slim One Connect Box) for a wired network connection. You can setup a wired network connection automatically or manually.
- WiFi 802.11ac: The TV is IEEE 802.11ac WiFi certified for a wireless network connection. You can setup the wireless network connection using these four methods; Automatic, Manual, WPS (PBC), or WPS (PIN). The TV's built-in WiFi supports WEP (open/shared), WPA-PSK (TKIP/AES), or WPA2-PSK network security. The TV should be positioned within 50' of the wireless router, modem, or access point.
- WiFi Direct: When using WiFi Direct, you can connect directly with other devices without using a wireless router. You'll be able to wirelessly transfer personal content (such as photos & videos) to the Samsung QLED TV without connecting to your home network. WiFi Direct completely bypasses your WiFi access point/router, so it's easy to set up. Streaming of copy-protected content and other certain formats are not supported.
Note: Samsung recommends a dual-band Gigabit wireless-N router or better and a home network connection speed of at least 10Mbps for standard and high-definition streaming or 25Mbps for 4K streaming.
Samsung Smart TV Apps: Once you have connected the Samsung TV to your home network, you gain access to Samsung's TV Apps. Samsung's TV Apps let you download online applications and services to the Samsung QLED TV. Samsung TV Apps has a growing collection of online applications that connect you to some of your favorite online content. You can enjoy a variety of content from various downloaded applications - such as movies, TV shows, music, news, sports, and games (subscriptions and purchase fees will apply).
- Movies & TV Shows: Watch online movie & TV show providers from Amazon Video, HBO Max Netflix, Disney+, FandangoNow, Google Play Movies & TV, Paramount+, ShowTime, Vudu, and more. You'll also be able to watch live TV broadcasts from Hulu+Live, Sling TV and YouTubeTV.
- For The Kids: Get access to PBS Kids, Disney Now, and YouTube Kids for your children and the young at heart.
- Music & Radio: You can listen to online music and internet radio from Amazon Music, iHeart Radio, Pandora, Spotify, SiriusXM, and more.
- Gaming Hub: The Samsung Gaming Hub helps you discover and play online games faster through select game streaming services. You will have access to an extensive library of games through Samsung's partnerships with industry leaders such as NVIDIA GeForce Now, Stadia and Utomik. USB-enabled or Bluetooth-enabled gamepad is required and sold separately.
- News & Sports: Enjoy news & sports from CBS News, Newsy, ESPN, Fox Sports, NBC Sports, and more.
- 4K & HDR network streaming requires a network speed of 25Mbps or greater. A wired Ethernet connection is recommended over a wireless WiFi connection for better performance. If you desire a WiFi connection, then use a dual-band Gigabit wireless-N router (or better) for 4K & HDR streaming. Make sure the Samsung television has the latest software/firmware updates installed.
Samsung Curated Content: Samsung offers special curated online content for Entertainment & Fitness.
- Samsung TV Plus: With Samsung TV Plus, you can watch over 150+ live channels covering top news, sports, entertainment, and more. It’s 100% free and doesn't require any downloads or additional devices. Local channels not available. Available content may vary by region and is subsequent to change without notice.
- Samsung Health: Get the whole household moving with Samsung Health, Enjoy fitness content from wellness partners and build healthy habits with routines and more. Set and meet your fitness goals with on-screen data tracking for your completed workouts, total exercise time, calories burned and more - all of which can sync with a compatible wearable Samsung watch or device. Master your wellness routine with content from fitness partners and daily stats from the Samsung Health app. Some Samsung Health content and services may require additional payment.
Built-In Apple TV: The Samsung TV features built-in Apple TV with support for Apple Movies & TV Shows. With the new Apple TV app on the Samsung TV, you'll be able to access your existing Apple music library and browse the Apple Store to buy or rent from a selection of hundreds of thousands of movies and TV episodes (including the largest selection of 4K/HDR movies). The Apple TV app will work seamlessly with Samsung's Smart TV Services - such as Universal Guide, Keyword Search, and Bixby - to create a consistent experience across the Samsung user interface.
Note: Apple TV is not compatible with Alexa or Google Assistant voice control.
Mobile Device Mirroring: You are able to wirelessly mirror video and photo content from your compatible mobile device on the Samsung TV. Smart View for Samsung Android devices and AirPlay 2 for Apple iOS devices are the supported mirroring applications. During wireless mirroring, you can also use the Multi View feature that allows you to mirror the screen of your Samsung Android device or Apple iOS device alongside the TV's content at the same time, so you can watch them side-by-side. Your Apple iOS or Android device must be connected to same wireless network as the Samsung TV during wireless mirroring.
- Smart View (for Android): You are able to mirror content from your Samsung Android smartphone with Smart View built-in on the Samsung QLED TV. You'll be able to mirror photos, videos, music, online apps and more on the big screen. With Tap View (for Samsung Galaxy devices with Android OS 8.1 and higher) You can even mirror your phone on your TV in seconds with just a tap.
- AirPlay 2 (for Apple iOS): With support for AirPlay 2, you will be able to wirelessly stream content (including videos, photos, music, podcasts, and more) directly from your Apple iPhone/iPad (iOS 11.4 and newer) or Mac computer (OS X 10.13.2 and newer) to the Samsung TV's big screen - all without the need for an Apple TV or additional wired connection.
Work & Learn From Home Support: With more folks working and learning from home, you can turn the Samsung TV into a wireless monitor for your Windows PC, Mac computer, or Samsung Android smartphone. You can also connect a USB or Bluetooth mouse and keyboard (sold separately), as well as a USB-enabled camera (sold separately) to make the job easier. With a USB-enabled camera you are even able to use the Samsung TV to make video calls.
- PC On TV: You can wirelessly share the screen of your laptop or desktop on the Samsung TV using AirPlay 2 for Mac (OS X) and the Easy Connection PC app for Windows (8-up). The Samsung TV also provides Remote Desktop Connection (RDP) for remotely connecting to a Windows PC (10 Professional or later) and Virtual Network Computing (VNC) for a Mac computer (OS 10.5 or later) by simply following the TV's on-screen setup menu and entering a valid IP address or profile. You can even directly access MS Office 365 through the TV’s web browser to create and edit documents.
- Wireless Samsung DeX: Wireless screen mirroring for your mobile device is useful in some circumstances, but Wireless Samsung DeX gives you a much different, completely optimized desktop computing experience for productivity work on a larger screen. Wireless Samsung DeX is a great way to share content or present slides from your compatible Samsung Android smartphone (including the Galaxy S21 and Note20 Series), harnessing its power to capture a bigger picture. It doesn't just put your phone's screen on a larger display; you can view multiple apps, resize windows, access keyboard shortcuts and use right mouse button functionality. You also have the option of pairing a Bluetooth keyboard and mouse to work more seamlessly. You can even see your phone's incoming notifications and calls within Wireless Samsung DeX without having to stop what you’re doing to glance at your phone.
- Video Call Application: With a USB-enabled camera connected to the television, you are able to make video calls with up to 32 people from the Google Duo app on the Samsung TV. For work, family, or friends, the Google Duo app for Samsung TV lets you take calls from on the big screen from the comfort of your home with high quality picture and sound (USB-enabled camera is required and sold separately).
Content Share: You can play media content saved on your computer (via DLNA), thumbdrive or hard disk drive (via USB), and the cloud (via Samsung Cloud) through the Samsung Neo QLED TV.
- DLNA Certified: The Samsung Neo QLED TV is DLNA certified, allowing you to watch videos and photos, as well as listen to music saved on your Windows 7/8/10 PC (or other DLNA Certified media server) through the TV via its Ethernet (LAN) port or built-in WiFi (wireless).
- USB 2.0 Ports: The television is equipped with three USB-A 2.0 ports (located on the Slim One Connect Box); there are two USB 5V/0.5A port for connecting USB thumbdrives and one USB 5V/1A port for connecting a HDD (hard disk drive). An external HDD may require its own AC power adapter. All three USB 2.0 ports let you view photo and movie files, as well as listen to audio files saved on a compatible USB device. Files must be formatted in FAT, exFAT, or NTFS. The TV can recognize up to 1,000 files per folder.
- Gallery App (Samsung Cloud): The built-in Gallery App lets you view photos and videos synchronized with the Samsung Cloud. You can enjoy various content synchronized with a mobile device that supports the Samsung cloud. The available content types are photos, videos, stories, and other content shared through your groups.
Note: Compatible video file formats include AVI, MKV, WMV, MP4, and MOV. Compatible photo file formats include JPEG, PNG, BMP, and MPO. Compatible audio file formats include MP3, WMA, AAC, AIFF, ALAC, FLAC, WAV, and OGG.
SmartThings Compatible: From the Samsung TV's on-screen dashboard, you can monitor, configure, and control smart devices you connected to the SmartThings service via the SmartThings app (for Apple iOS 13.0+ and Android OS 7.0+) installed on your compatible smartphone or tablet device. You'll receive notifications about the statuses of your smart devices on the QLED TV's screen. You'll also be able to create custom modes to easily control multiple smart devices with a single command from the TV. Control of your SmartThings devices can be done from the included remote with Bixby or your mobile device running the SmartThings app.
- SmartThings & Samsung Devices: With SmartThings hub
functionality, the Samsung allows you to connect and control SmartThings
compatible devices - including a Multipurpose Sensor, a Motion Sensor, a Arrival Sensor, a Water Leak Sensor, and a Smart Outlet (all sold separately - see Accessories Tab). It is also compatible with a number
of Samsung appliances - including refrigerators and washers/dryer machines.
Internet of Things (IoT): In addition to being compatible with SmartThings and other Samsung network-enabled products, Samsung Connect Home is compatible with a number of third-party network devices that support Internet of Things (IoT) through Z-Wave, zigbee, LAN, or Cloud-to-Cloud; including locks (from Kwikset & Schlage), thermostats (from Honeywell), cameras (such as Netgear Arlo), light bulbs (such as Philips Hue), and more.
Full Web Browser: You can surf the Internet on the TV as you would on a PC. You may enter a URL addresses or enter a keyword search. The player will archive your web browser history. You can scroll web pages with the directional pad on the included remote. For a more convenient web browsing experience, connect a USB- or Bluetooth-enabled keyboard and mouse (sold separately) to the TV.
SolarCell Smart Remote: The QLED TV comes with Samsung's new SolarCell Smart Remote. that wirelessly connects to the TV via Bluetooth LTE. It has a built-in farfield microphone for voice control (using Bixby, Alexa, or Google); plus offers dedicated buttons for Netflix, Amazon Prime Video, Disney+, and Samsung TV Plus. The SolarCell Smart Remote features a rechargeable battery that can be solar-charged.
- Bluetooth Pairing: When you turn on the TV for the first time, the SolarCell Smart Remote pairs to the TV automatically. If the Smart Remote does not pair to the TV automatically, stand within 2' of the TV and point the Smart Remote at the remote control sensor of the TV, then press and hold the "Back/Return" and "Play/Pause" buttons simultaneously for 3 seconds or more. The remote has a wireless operating range of approximately 20' and does not require direct line of sight.
- Rechargeable Battery: The built-in battery can be solar-charged through the solar-panel on the back of remote via indoor or outdoor lighting. The remote also features a USB-C port, so you can charge the battery using a USB-C cable and USB/AC power adapter (both sold separately). The battery is non-replaceable.
Note: USB-C charging cable and USB/AC power adapter are not included.
Multiple Voice Assistants with Wakeup Word: Using the Samsung One Smart Remote's built-in microphone and Bixby, Alexa, or Google voice recognition, your voice is all you need to control the TV and your SmartThings compatible devices. Because the One Smart Remote communicates with the TV through a wireless Bluetooth communication, you don't even have to point the remote directly at the TV. Bixby, Alexa, or Google can be activated by pressing and holding the "mic" button on the remote or by simply saying "Hi Bixby", "Alexa", or "Hey Google" into the remote's Far Field microphone. The TV's on-screen setup menu lets you choose which voice control service (Bixby, Alexa, or Google) you want to use and provides a brief tutorial. Bixby, Alexa, and Google is only available when the TV is connected to the Internet. Bixby will require an active Samsung account user log-in, while Alexa requires an active Amazon account user log-in, and Google Assistant will require an active Google account user log-in.
- TV Control: Use the remote's built-in microphone and Bixby, Alexa, or Google to turn on/off the Samsung television, adjust menu settings, change channels or inputs, adjust the volume, and even launch your favorite online music or movie apps.
- SmartThings Control: Using the remote's built-in
microphone with Bixby, Alexa, or Google and the TV's on-screen dashboard, you'll be able control your
connected SmartThings and IoT devices. It will know all your connected
devices, so all you have to do is say a command.
Questions & Answers: You can also use the One Smart Remote to ask Bixby, Alexa, or Google questions about the weather, traffic, news, sports, etc.
Universal Remote Control Function: You can control external devices connected to the TV via HDMI using the Smart Remote via HDMI-CEC, Samsung's Anynet+, and Auto Source Recognition.
- Anynet+ (HDMI-CEC): You can use the TV's One Smart Remote to control external devices that are connected to the TV by an HDMI cable and that support Anynet+ (HDMI-CEC). Anynet+ (HDMI-CEC) can control up to 12 compliant external devices (up to 3 of the same type) except for home theaters; Anynet+ (HDMI-CEC) can control only one home theater system.
- Auto Source Recognition: The TV uses Auto Source Recognition technology to automatically detect what kind of devices are plugged in via HDMI; then the One Smart Remote makes it simple to control these detected devices through the TV via HDMI-CEC. Auto Source Recognition and controlling function may not be supported by certain devices connected to the TV. To use the Auto Source Recognition feature, all HDMI-connected devices must also be on the same network and Internet connection is required.
Note: The remote control does not support IR commands. However, the TV does have an IR receiver and will support universal remote controls (sold separately).
SmartThings App: Use the SmartThings app (for Apple iOS 13.0+ and Android OS 7.0+) to turn your compatible smartphone or tablet into a remote control for the Samsung QLED TV. Use the SmartThings app on your compatible Apple iOS or Android device to quickly and easily connect to the TV and control its main settings from your smartphone or tablet. Within the SmartThings apps is Smart Calibration, which allows you to calibration the TV's picture from your compatible smartphone device. In addition, you can remotely check and control the statuses of various devices such as Samsung smart devices, home appliances, and speakers registered to the server. Through the SmartThings app, you can even use Bixby on your Samsung Galaxy S8 series or higher mobile device to operate the TV via voice commands (not compatible with Apple iOS or older Android devices).
Remote Access: The new Remote Access feature on the Samsung QLED TVs provide you wireless, on-screen control over connected peripheral devices, enabling convenient web browsing, cloud office access and more. Remote Access allows you to directly control your devices connected to the TV with a keyboard and mouse in addition to simply displaying the content on a larger screen. With Remote Access, input devices, including keyboards, can be connected to the Samsung Smart TV, making it easier for you to control your on-screen content. Without a separate HDMI cable connection, you can remotely access a PC in your room through the TV in your living room to perform various tasks including surfing the web or playing games from the TV's screen using a connected keyboard and mouse. Additionally, web browser-based cloud office service can be accessed through Remote Access, so you can now access files and work on documents from the TV.
Note: To address security concerns surrounding wireless connectivity and cloud services, Samsung has integrated its proprietary Knox security technology into its Remote Access features. Knox is supported with regular firmware updates for continuous protection. Knox has been certified by Common Criteria for its security performance and is the only security solution in the TV industry to receive this certification.
Keyboard & Mouse Compatible: The Samsung QLED TV will support a USB or Bluetooth enabled keyboard and mouse (both sold separately), which makes web browsing a lot easier.
Serial Port (EX Link): You can connect the 3.5mm serial port to an external control device (such as a computer or A/V control system) to control the TV's functions externally.
Smart Hub via Tizen: The TV's Smart Hub via Tizen offers easy navigation and quickly access to off-air and online content, as well as menu settings (many of these features can be done while still watching a program). The Smart Hub offers convenient access to content by displaying your favorite and most used TV applications, as well as recommendations for even more entertainment options. Samsung's Smart Hub offers unique ways to search and access your favorite and new content from the TV's tuner and network apps.
- Universal Guide & Keyword Search: The TV's Universal Guide provides a list of curated content from broadcast and streaming channels, personalized just for you - so you can easily find your favorite content, all in one place. You can also type in a keyword to search for TV shows & movies across platforms, like over-the-air broadcasts and available online providers.
- Smart TV Apps: From the TV's Home Screen, you can easily select the apps that have been used previously or frequently. Many of the apps can also be moved or deleted from the screen. You are also able to easily view, navigate and select between a variety of App categories.
- Channel Guide & Favorite Channels: In the Channel Guide, you can see the daily program schedules for each off-air broadcaster and Samsung TV Plus channels, see program information, choose a program to watch, and set up a schedule viewing. You can even designate frequently watched off-air stations as Favorites (up to 5).
- Watch Together: The Smart Hub now allows you to video chat with friends and family while watching your favorite shows and movies, bringing everyone closer together. Video chat requires an external USB-enable camera (sold separately).
- Notifications & Reminders: Set notifications & reminders to display on screen. You'll get a pop up message on the corner of your TV screen when there is a notification or reminder.
Smart Connectivity: The Samsung TV offers Smart Connectivity making connection of all your wired and wireless devices simple and less time consuming.
- Connection Guide: The TV's on-screen Connection Guide lets you view detailed information about external devices that can be connected to the televisions. It shows you how to connect various external devices such as cable boxes, satellite receivers, Blu-ray players, game consoles, and more using on-screen images. You can also change the input name of a connected external device or add it to the Home Screen for easier access.
- Digital Butler: The Samsung TV's Digital Butler feature automatically discovers your nearby wireless WiFi and Bluetooth devices (including smartphones, tablets, appliances, and more) and helps you connect them to the TV. The Digital Butler will also make a chart of all connected devices, so you'll see them all in one place. Compatible wireless devices include select Samsung Galaxy S series smartphones and tablets, select Apple iOS devices (including iPhone, iPad, and iPod touch), Bluetooth-enabled devices (including speakers, headsets, soundbars, etc), AV source devices (including Blu-ray, set-top boxes, and more), as well as appliances (including robot vacuums, air purifiers, and more). Click here for a complete list of compatible devices.
Ambient Mode+: Ambient Mode+ helps the Samsung QLED TV blend with your home decor. Instead of a simple black screen, you can choose for TV to display meaningful images that match your lifestyle and room, with easy settings and plenty of choices from the TV's on-screen menu and SmartThings app (for Apple iOS 13.0+ and Android OS 7.0+). You can even have the TV automatically adjust the brightness level and turn off after a set time when in Ambient Mode+.
- Decor: Set the screen with a background and colors that matches your room decor perfectly.
- Info: You can display information on the TV screen like the time and date or weather and news updates with a beautiful background.
- Photo: Display your favorite photos from your mobile device using the SmartThings app. Photos stored on your Apple iOS or Android device are imported to the TV using the SmartThings app. You can even use various filters to transform your photos into beautiful works of art right before your eyes.
- Artworks: Lovers of art will also enjoy beautiful pieces from well-known photographers and artists, all grouped on a variety of themes.
- Lighting: Special lighting for special occasions. Select from a variety of options, like neon, and have some fun with your space.
Hearing & Visually Impaired: The Samsung QLED TV offers Closed Captions and Voice Guides for the hearing and visually impaired. The TV provides Analog Closed Captions and Digital Closed Captions for the hearing impaired. You can also activate Voice Guides that describe the menu options aloud to aid the visually impaired.
ECO Settings: The Samsung QLED TV provides ECO settings to reduce the television's power consumption and cut-down on energy costs.
- Brightness Optimization: You can set the TV to automatically adjust the picture brightness based on the ambient light level in the room. This feature optimizes the viewing experience while also saving you energy.
- Brightness Reduction: This feature adjust the brightness of the TV in order to reduce power consumption. When watching TV at night, set the Energy Saver feature to High to reduce eye fatigue as well as power consumption. You can set this feature to High, Medium, Low, or Picture Off (sound remains on).
- Motion Lighting: This feature adjusts the TV's brightness in response to on-screen movements to reduce power consumption.
- Auto Power Off: Automatically turns off the TV to reduce unnecessary power consumption if there is no operation for the length of time you specify (up to 4 hours).
Security Settings: The Samsung QLED TV offers security features for TV programming, apps, and the Internet.
- Program Rating Lock: The Program Rating Lock feature automatically locks out programs that are deemed inappropriate for children. You can block TV program based on their ratings and Movies based on their MPAA rating, so you have more control over what your children watch. The Program Rating Lock function is protected by a 4-digit PIN.
- App Lock: You can also block specific apps from being accessed by your children. These blocked apps can only be accessed by entering the same 4-digit PIN used for TV programs.
- Smart Security: When any device is connected to the Internet, it is vulnerable to hacks and malicious code. Samsung Smart Security protects the TV and storage media connected to the TV from such threats, when the television is connected to the Internet.
Timers: You can set Off Timer to shut off the TV automatically at a specific time; the Off Timer is only available if the Clock has been set. The Sleep Timer switches the television off after a specified amount of time. The Sleep Timer can be set to 30, 60, 90, 120, 150, or 180 minute.
Remote Support + Self Diagnosis: The Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely diagnose your TV, adjust the TV settings, perform a factory reset, and install recommended firmware updates. Your TV must be connected to your homes wired or wireless network. The Samsung QLED TV also provides a Self Diagnosis menu which allows you to check the television for picture, sound, and signal problems.
- The television only comes with a brief User Manual. A complete instruction manual is built-in into the TV and can be viewed on-screen. Open the e-Manual to learn how to use the TV's many features.
Auto Updates: If the television is connected to the Internet, you can have the TV update its software automatically while you are watching it. When the background update is completed, it is applied the next time the TV is turned on. Updates can also be done via USB. Visit the Samsung Download Center for the latest Firmware & Software updates.
- Do not turn off the TV's power until the update is complete. The TV will turn off and on automatically after completing the software update. Video and audio settings will be reset to their defaults after a software update.
Slim One Connect Box: The Neo QLED TV includes Samsung's Slim One Connect Box which connects to the television via the included 1' or 8' One Connect Cable. The Slim One Connect Box features a built-in NextGen ATSC 3.0 TV tuner and antenna connector, four HDMI 2.1 inputs, an Optical (toslink) digital output, Ethernet (RJ-45) jack, and three USB-A 2.0 ports. The Slim One Connect Box provides clean integration of all your external devices so there's less clutter, plus allows you to update your TV with the newest software and features.
- Mounting Options: The Slim One Connect Box can be mounted to the back of the TV's pedestal base, attached to the back of the TV when wall-mounted, or placed on a tabletop or shelf beside the television. The Slim One Connect Box measures 13.0625" (w) x 1.375" (h) x 13.4375" (d).
- Once Connect Cable: The Slim One Connect box comes with two One Connect Cables (a 1' length and a 8' length); only one will need to be used to connect the Slim One Connect Box to the Neo QLED TV. The 1' One Connect Cable can be used when attaching the Slim One Connect Box to the back of the pedestal stand or back-panel of TV. The 8' One Connect Cable can be used when positioning the Slim One Connect Box further away from the TV. The One Connect Cable features directional connectors on each end; one for the Slim One Connect Box and one for the Neo QLED TV. Do not bend the One Connect Cable at a 90-degree or greater angle, as this will damage the cable. The One Connect cable is not rated for in-wall use, but can be run through 2.5" conduit. The cable portion of the One Connect Cable measures 0.25" (diameter), the Slim One Connect Box connector measures 1.1875" (w) x 0.5625" (h) x 2.25" (d), and the TV connector measures 2.125" (w) x 0.5" (h) x 3.0625" (d).
- Detachable AC Power Cord: The Slim One Connect Box includes a detachable 5' IEC 2-prong AC power cord that plugs into the back of the box. The included One Connect Cable which plugs in between the Slim One Connect Box and the Neo QLED TV provides power to the television.
Notes: The only connector found on the Neo QLED TV is the proprietary One Connect connector located on the rear-panel. The included One Connect Cable plugs into One Connect connector on back of the Neo QLED TV and the One Connect connector found on back of the Slim One Connect Box.
Pedestal Base: The Samsung Neo QLED TV sits on a flat tabletop surface using the included pedestal base. The TV ships with the pedestal base unattached (requires assembly). The TV does not swivel. The television weighs 67 lbs with the pedestal base. The Slim One Connect Box can be attached to the pedestal base using the supplied hardware.
Wall Mounting: The TV has four M8 (8mm) threaded inserts on the rear-panel for use with an optional wall-mount bracket (sold separately - see Accessories Tab). The spacing of the threaded inserts is 400mm (h) x 300mm (v). The television weighs 49.2 lbs without the pedestal feet.
- If you are mounting the Slim One Connect Box to the back of the TV, then you'll need to use the provided wall-mount spacers to make room for the Slim One Connect Box in between the back of the TV and your wall-mounting bracket.
- Additional hardware (available from most local hardware stores) may be needed for some wall-mount brackets and applications.
Ventilation Clearance: When mounting the TV on the stand or a wall (with optional bracket) leave 4" of clearance on each side of the television and 4" above/below the television for adequate ventilation.
