Automotive Camera System: The Waylens Horizon HD automotive
camera system enables drivers to easily capture, edit, and share interesting
moments and automotive performance data from their vehicle and the road in
real-time. The Waylens Horizon consists of a high performance camera with
integrated OLED screen, windshield-mount with built-in GPS module, pre-paired
OBD-II connector, steering wheel remote control, and 12V adapter. The Waylens
Horizon Mobile App for Android and Apple iOS is also required.
High Performance Camera: The Waylens Horizon is comprised of high
performance components seamlessly integrated to create an outstanding automotive
- 1/1.8" Lens: The Horizon has a large 1/1.8" lens, allowing more
light to reach the sensor, producing clearer images with less motion blur at
high speeds. This is made possible by our custom lens, designed specifically
for the automotive environment. The lens is made from 7 high quality glass
elements and wrapped within a full metal lens barrel so images produced are
always ultra sharp and vibrant, across a wider range of temperatures.
- CMOS Image Sensor: The state-of-the-art CMOS image sensor inside
the Horizon is 90% larger than traditional 1/3" sensors used by other
manufacturers. For each photoreceptor on the sensor, up to 4x more light vs.
the iPhone 6s can be digitized into an image, resulting in less motion blur
at high speeds. The sensor itself has a back illuminated structure, meaning
it is extremely sensitive, so that even if only a little bit of light can be
detected, a great image can still be produced. The result is sharper,
brighter, more effective video anytime of day or night.
- Fast Video Processor: The Horizon has an incredibly fast video
processor with 1GHz ARM Cortex A9 CPU, capable of processing the full 318
mega pixels coming from the image sensor every second. You'll be able to
capture high-quality and high-speed video at 1080p/60fps with ease.
Note: Part of camera surface may become hot due to internal heat
dissipation or exposure to direct sunlight. The camera is designed to operate
at high temperatures.
Video & Audio Recording: The Waylens Horizon automotive camera system
can record video in 1080p and 720p. You can select from the following video
quality settings - 1080p/60Hz (28 or 38Mb/s), 1080p/30Hz (18 or 22Mb/s),
720p/120Hz (28 or 38Mb/s), 720p/60Hz (18 or 22Mb/s), and 720p/30Hz (12 or
14Mb/s). Built-in microphones record stereo audio inside the vehicle.
- Auto Start & Stop Recording: In this mode, the camera begins recording
automatically when your vehicle's engine is turned on and stops recording when
the engine is turned off.
- Continuous Recording: In this mode, once the camera is turned on
it will continuously record video until you turn the camera off.
- Slow-Motion: In this mode you can record video in slow-motion
(720p @ 120fps).
- Time-Lapse Video: In this mode you can record a time-lapse video.
microSD Card Slot: Video (H.264) and audio (MP3) are recorded
format onto a microSD/SDHC
memory card (sold separately). A 32 to 128GB Class 10 microSD card is
Built-In OLED Screen & Speakers: The Horizon camera system features an
integrated, circular OLED screen. The 286 pixels per inch display and its 178°
viewing angle never leaves the driver guessing what he or she is looking at. Its
high contrast ratio of 10,000:1 is one of the inherent benefits of using OLED
technology. Additionally, when an OLED pixel is black, its completely off,
resulting in no backlight leakage, preserving night vision during those long
night drive. In addition to your video footage, you can choose which data points
to show - from speed and RPMs to G forces, ambient condition, GPS location, and
much more. You can also flip through different gauges on the OLED display while
you're driving to get real-time feedback. A built-in speaker also provides audio playback.

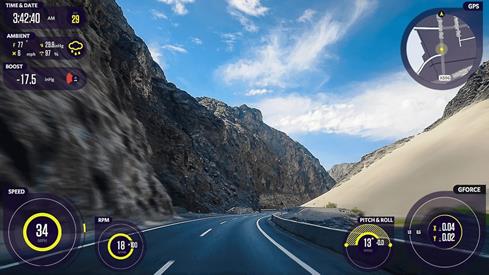

Data Overlay: While driving, the Horizon system takes great care to
capture everything it can about your vehicle including its location, absolute
orientation in space, and atmospheric pressure. All of these data points allow
you to tell a more complete story of your ride. The included 10Hz GPS module
allows the Horizon system to capture your position more accurately as you fly
around tight corners. The 9-axis inertial motion unit includes a 3-axis gyro, a
3-axis accelerometer, and a 3-axis magnetometer so your drive will always be
oriented correctly on-screen.
- The camera itself contains multiple sensors that will provide data
for the video overlay such as MPH, GPS, G-Force, Pitch & Roll, Time/Date, and
- The included OBD-II transmitter will provide data
for the video overlay such RPM, MAF, MPH, and Engine Temperature, as well as
Boost (when applicable).
- The included 10Hz GPS module captures your position and location.
OBD-II Transmitter: The Horizon camera system comes with a OBD-II
Transmitter which plugs into your vehicle's OBD port and wirelessly transmits
vehicle data via Bluetooth to the Horizon automotive camera system for real-time
data overlay on the integrated OLED screen. The OBD-II Transmitter captures,
RPM, MAF, MPH, and Engine Temperature, as well as Boost (when applicable). The
OBD-II transmitter is pre-paired from the factory with the Horizon camera.
Note: The included OBD-II transmitter is compatible with 1996 and
newer model year vehicles. The OBD-II transmitter does not support other
diagnostic tools from other manufacturers.
Steering Wheel Remote Control: The included remote control allows you
to highlight videos without having your hands move away from the steering wheel.
Simply fasten the strap to secure the remote on your vehicle's steering wheel.
The remote can be removed from strap without having to remove the mounting strap
from your steering wheel. The steering wheel remote control is powered by a
user-replaceable CR2032 3V battery.
Waylens Horizon Mobile App: The
Waylens Horizon Mobile App (for
Android OS 5.0+ and Apple iOS 9.0+ [coming soon]) provides additional
features through your compatible smartphone or tablet. Once your mobile
device, running the Waylens Horizon mobile, is paired to the Horizon camera
system, your video footage and data will be wirelessly downloaded to the app and
your mobile device for review and editing.
- Review & Editing: All of your footage is saved and ready for
review on the Waylens Horizon mobile app. You can even edit your footage
using the app. When you open the mobile app, you can easily locate
highlight-worthy moments identified by you and Horizon's algorithm, and
easily use them for further editing and sharing. Horizon's system also
allows you to define data-driven parameters and perform intelligent searches
of your footage to find exactly what you want. You can also choose which
pieces of performance data you want overlaid on your footage.
- LapTimers: The Waylens LapTimer feature uses GPS coordinates to
map out a custom track. The windshield mount needs to be powered to enable
the GPS module. The GPS track width tolerance is set to 50 feet (15 meters).
The Horizon LapTimer feature includes hundreds of pre-loaded track maps that
you can sync with the Waylens Mobile App. The pre-loaded track feature can
only be accessed while you are at the track.
- Performance Test: Record time cost of your vehicle's
0-30mph/0-60mph acceleration with accuracy up to 0.01s. Auto mode and
count-down mode are provided for your preference. All records will be saved
and ready for easy sharing.
- Social Media Sharing: You can link the Waylens Horizon Mobile app
to your Facebook and YouTube account, allowing you to share your recorded
video and vehicle data. You can also share your results with the Waylens
community. You can share instantly from the road or wait until you get home.
You can make your videos private or public, or choose only to keep for
yourself. Connect with anyone around the world on the Waylens app to compare
your ride to others, build a community, ask for advice, and brag.
- Time Sync: If connected to mobile APP, and the time difference
between the camera and your mobile device is greater than 10 seconds, the
camera will automatically synchronize its time to device's. The time-zone
will automatically synchronize to the time-zone of mobile device no matter
what the time difference.
- Firmware & Software Updates: Firmware & software updates
can be performed
through the Waylens Horizon Mobile app.
Notes: To pair your camera with the Waylens app, you have two
options - Hotspot mode & Client mode.
- In Hotspot mode, your camera generates a WiFi hotspot that you will
need to connect to through your mobile WiFi settings. Locate the SSID
hotspot name and password in the camera's WiFi hotspot menu and select
in your mobile WiFi settings. Once connected, your camera will sync with
the Waylens app and you will see a live preview.
- In Client mode, you will connect to a local WiFi network. First sync
your camera and mobile app using hotspot mode. Once you have connected
to your cameras hotspot, you will see an option in the app to "Continue
to connect camera to your home WiFi". Follow the link to select a local
WiFi network. Your camera will automatically switch from Hotspot to
Client mode. Next, you will need to connect your mobile device to the
same WiFi network in your mobile WiFi settings. Once connected, your
camera will sync with the Waylens app and you will see a live preview.
Suction-Cup Windshield Mount: The included suction-cup
windshield mount attaches the Waylens Horizon camera to your vehicle's front
windshield. It features a 5-pin connector which plugs into the camera and a
suction-cup that sticks to the inside front windshield. A 13' power cable plugs
into the windshield mount's microUSB port and the included 12V/USB car adapter which
then plugs into your
vehicle's cigarette lighter or 12V power port. The suction-cup windshield mount
lets you adjust the angle of the camera for proper positioning.
Power Requirements: The Waylens Horizon is primarily designed for use
in a vehicle where there is access to 12V power from the vehicle, using either
the included 12V adapter or optional
direct wire kit (sold separately). The built-in
battery is intended for short term use only. Battery life can vary depending on
many factors, such as resolution and WiFi connectivity settings. The Horizon
camera comes with a 1050mAh battery, which under normal conditions will power
the camera for 1 hour at 1080p/60Hz with WiFi on. Battery life can be extended
by using a lower resolution setting or turning off WiFi. The GPS module located
inside of the Waylens Horizon windshield mount requires power to enable GPS data
(the camera's battery will not provide power the GPS module).
USB Adapter: With the included USB adapter, you can charge the Horizon
camera or manage content of the camera using your computer at home. Once the USB
adapter is mounted to the camera's power and data port, the supplied 4'
microUSB-to-USB cable connects the USB adapter to your computer. Your computer
will recognize the Horizon camera as a USB MSC (mass storage class) device.
Waylens Studio App: With the
Waylens Studio app
(Windows PC and Mac) you can export raw performance data in a .CSV
spreadsheet from your highlights or buffered video. The data log includes a full
breakdown by millisecond of GPS positioning, speed, RPM, Pressure from OBD (kPa),
throttle position, boost (inHg), pitch & roll, g-force and more.
