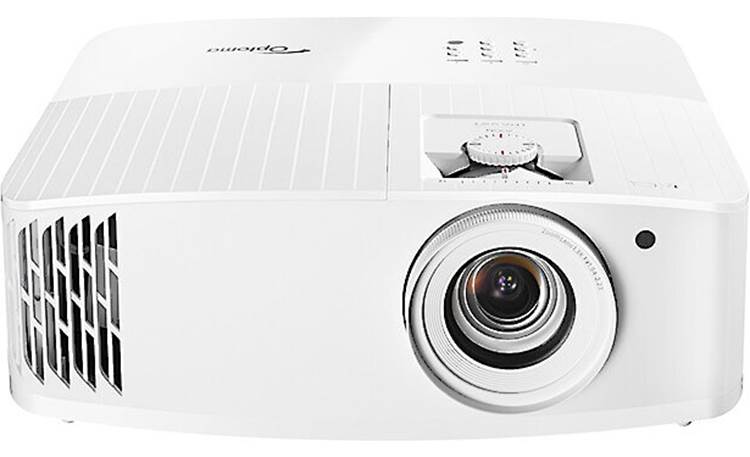

Optoma UHD55

Features

DLP Projector: The Optoma UHD55 projector incorporates DLP technology from Texas Instruments (TI), which creates razor sharp pictures and amazing videos with incredible colors and brightness, while also providing reliability and longevity. It can be used with 30" to 300" screen sizes.

• DLP is a reflective technology and can deliver images with both high native ANSI contrast (1,200,000:1) and exceptional brightness (3600 lumens), creating a picture that is natural and life-like.
• Video and graphics produced by the latest DLP technology are sharper because the mirrors on the DLP chip are so close together that the gaps between pixels in an image are less noticeable. Spaced less than one micron apart, its mirrors create a crisp, detailed image.
• The inherent speed of DLP technology means that Optoma projector can output video and images at an astonishing rate of 240Hz (1080p), 120Hz (1080p), or 60Hz (4K) for clear and seamless motion.

XPR 4K Pixel-Shift Technology: Texas Instrument's XPR Technology is a pixel-shifting technology that helps the DLP projector achieve CTA (Consumer Technology Association) approved 4K UHD (3840 x 2160) resolution. XPR Technology utilizes lightning fast pixel-shifting that creates pixels horizontally and vertically to perfectly quadruple the DLP projector's 0.47" DMD 1080p chip and generate 8.3 million distinct pixels on-screen. That's 4x more detail than Full HD 1080p and more than 2x the detail of Epson's 4K Pro UHD technology, which delivers just 4.1 million pixels.

• 4K UHD Resolution: 4K UHD resolution delivers sharper, life-like images and richer colors - allowing you to sit closer to the screen and enjoy a more immersive experience.
• 4K UHD Upscale: The Optoma UHD55 projector will also upscale lower resolution source content to 4K UHD. It will upscale WXGA, 720p, 1080p, WUXGA, and 1440p video resolutions to 4K (3840 x 2160) @ 60Hz.

Note: The Optoma UHD55 is not Native 4K. It uses pixel-shifting technology to create a 4K display image from a 1080p DLP chip.

Projection Lens: The Optoma UHD55 features projection lens with a focal length of 12.81mm to 16.74mm and throw ratio of 1.21:1 to 1.59:1. The projection lens offers a 1.3x zoom with a manual zoom lever and focus ring to make sure your projected image looks great on screen. The lens has a focus distance of 3.9' to 26.5'.

• Lens Shift: To adjust the image position on-screen, turn the lens shift dial clockwise or counterclockwise to adjust the position of the projected image vertically.
• Keystone Correction: The projector offers manual and auto keystone correction. Keystone Correction adjusts the image distortion caused by tilting the projector. It has a vertical and horizontal keystone correction of +/- 40 degrees.
• Four Corner: This setting allows the projected image to be adjusted from each corner to make a square image when the projection surface is not level.
• 3x3 Warp: This setting adjust the image distortion by 9 points of geometric correction.

Amazing Color Technology: Watch your movies, TV shows and play games with stunning colors in any environment. Optoma projectors provide reliable performance suitable for any content and environment. The UHD55 is capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended. It can even produce more saturated colors for a more vibrant looking image, great for gaming and animated movies.

• BrilliantColor: BrilliantColor technology utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture.
• CMS (Color Management System): Its CMS (Color Management System) displays accurate lifelike colors to best match your viewing content and environment; this unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

PureMotion (24p): Using sophisticated frame-interpolation technology, advanced motion control processing eliminates motion blurring or image judder, even in high-speed action consequentialness is a form of video processing with an attempt to make video filmed in 24fps to be more smooth and to compensate for motion blur. The processing will generate transitional frames in between the existing ones to reduce motion judder. You will enjoy smooth fast-moving scenes with PureMotion.

HDR Compatible: The Optoma UHD55 is capable of receiving and displaying HDR content via its HDMI 2.0 input. HDR (High Dynamic Range) enhances the image brightness and contrast for more detail and texture with a greater sense of depth in order to produce a more natural and life like image. The projector is compatible with HDR10 and HLG formats (not compatible with HDR10+ or Dolby Vision). You can choose between 4 HDR Picture Modes to adjust the dynamic range according to the video content or environment.

• Bright: Choose the Bright Mode for brighter and more saturated colors.
• Standard: Choose Standard Mode for natural looking colors with a balance of warm and cool tones.
• Film: Choose Film Mode for improved motion and film-like image.
• Detail: Choose Detail Mode for improved detail and image sharpness.

Enhanced Gaming Mode: Enhanced gaming mode optimizes the UHD55 for maximum contrast and vivid colors to capture every detail. It also reduces input lag for lightning-fast response times (16.7ms response time in 4K at 60Hz and 4ms in 1080P at 240Hz). Enjoy ultra-smooth fluid motion and reduced ghosting. A high refresh rate makes it easier to keep track of the action, giving you a better chance of hitting your target earlier. Ideal for fast action gaming.

3D-Ready: The Optoma UHD55 can display 1080p 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting, and the latest generation games consoles. You'll need a pair of Optoma's DLP Link active shutter 3D Glasses (sold separately - not available at Crutchfield). 3D content is available in 720p or 1080p (not 4K).

Display Modes: You can choose from a variety of factory optimized display mode presets to suit your source content, as well as manually adjust picture settings to suit your personal preference.

• Reference: This mode is intended to reproduce as close as possible the image the way the movie director intended. Color, color temperature, brightness, contrast and gamma settings are all configured to standard reference levels.
• HDR/HLG: HDR Mode decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest whites, and vivid cinematic color. This mode will be automatically enabled if HDR is set to On and HDR Content is sent to the projector. There is also a dedicated HLG mode for HDR content that uses the Hybrid Log-Gamma format.
• HDR SIM: This mode is used to enhance non-HDR content with simulated High Dynamic Range (HDR). Choose this mode to enhance gamma, contrast, and color saturation for non-HDR content (720p and 1080p Broadcast/Cable TV, 1080p Blu-ray, non-HDR Games, etc). This mode can only be used with non-HDR content.
• Cinema: The Cinema Mode provides the best colors for watching movies.
• Game: Select Game Mode to increase the brightness and response time level for enjoying video games.
• Bright: The Bright mode offers maximum brightness.
• 3D: 3D Mode allows you to enjoy a three-dimensional effect from 3D content; 3D active glass are required and sold separately.
• ISF: ISF allows you to save your calibrated day and night mode settings for the highest possible viewing experience.
• User: The User Mode allows you to manually adjust the projector's Brightness, Contrast, Sharpness, Color, Tint, Gamma, Color Temperature, Color Space, and RGB.

Mounting Options: The Optoma UHD55 is designed to be installed in one of 4 possible positions. It can be tabletop or ceiling mounted in front of or behind your projection screen (ceiling mounting bracket sold separately). The projector should be placed flat on a surface and 90-degrees (perpendicular) to the screen. The projector is equipped with three adjustable feet for adjusting the image height when installing the projector on a tabletop. There are three M4 threaded inserts on the bottom of the projector to attach a ceiling mount bracket (sold separately).

• The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the tabletop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.
• Allow at least 11.8125" on both the left and right sides of the projector, as well as allow at least 3.9375" above and behind the projector for proper ventilation.

Note: Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your audio/video equipment.

Projection Distance: The further away the projector is placed from the screen the projected image size increases and vertical offset also increases proportionally. See chart below for recommended projector distance based on size of screen; or use the Optoma Projection Calculator to assist you with placement of the projector.

Wall Color Adjustment: If you are not going to be using a projection screen and do not have a white wall, you can use the projector's Wall Color adjustment feature. No problem! With the Wall Color setting you can alter the projected image based on the color of your wall. With six options to choose from you can easily adjust for blackboard, light yellow, light green, light blue, pink and grey walls to get the most accurate color gamut.

Integrated Speaker System: The Optoma UHD55 is equipped with an integrated speaker system featuring two full-range transducers powered by a 10 watt x 2 channel amplifier.

Connections

Wired or Wireless Network Connection: The Optoma UHD55 is equipped with a Ethernet (RJ-45) LAN jack and comes with a USB/WiFi adapter to connect the UHD55 to your network router and ISP (internet service provider). The Ethernet jack provides a wired network connection, while the USB/WiFi adapter delivers a wireless network connection. The USB/WiFi adapter supports dual-band 2.4GHz/5GHz WiFi (802.11ac). The USB/WiFi adapter plugs into one of the USB 2.0 Type-A ports (not labeled "Service" on back of the projector. Either network connection provides access to select entertainment apps from Android TV; as well as enables screen mirroring for Apple iOS, Android, Windows, and Mac devices.

• Android TV Apps: The UHD55 projector features a customize version of Android TV that gives you access to select online entertainment services such as Amazon Prime Video, Netflix, Hulu Live, YouTube, Spotify, and more. Subscriptions and fees will apply. Not all Android TV apps will be compatible.
• Creative Cast: Wirelessly display and share content on your projection screen using the Creative Cast app or desktop software. You'll be able to mirror your Apple iOS, Android OS, Windows, MacOS and Chrome device at the touch of a button. You can also wirelessly cast images and documents stored on your mobile device. In addition, the app acts as a wireless mouse and keyboard allowing you to control your projector.

HDMI 2.0 Inputs: The Optoma UHD55 is outfitted with two HDMI 2.0 inputs for connection of a satellite receiver/cable box, Blu-ray player, game system or computer. The HDMI 2.0 inputs support up to a 4K/60Hz (3840 x 2160) video signal, compatible with HDR (High Dynamic Range) content, and comply with HDCP 2.2 for playback of copyrighted 4K/HDR material. The HDMI inputs will also support playback of copyrighted 480i/p, 720p, and 1080i/p content.

Note: There are no analog composite or component video inputs.

Three USB Ports: There are three USB 2.0 Type-A ports. Two of the USB ports support video, photo, and audio playback from a connected USB MSC (mass storage class) device - such as a USB thumbdrive. The other USB port is for charging and service purposes only.

• Video Files: Compatible video files include AVI, MKV, MOV, MPEG 1/2/4, and WMV.
• Photo Files: Compatible photo files include JPEG, PNG, and BMP.
• Audio Files: Compatible audio files include MP3, AAC, FLAC, PCM, and WAV.

Analog & Digital Audio Outputs: The Optoma UHD55 is is outfitted with stereo minijack (3.mm) analog audio output and a optical (toslink) digital audio output to connect the projector to an active soundbar, powered speaker, or AV receiver. The optical (toslink) digital audio output supports 2ch PCM and 5.1ch Dolby Digital (not DTS compatible).

Note: The projector does not support HDMI ARC or eARC.

Detachable AC Power Cord: The Optoma UHD55 comes with a detachable 6' IEC 3-prong power cord that will need to be plugged into an AC wall outlet; preferably a surge protected AC outlet.

Controls

Optoma Connect App: The Optoma Connect App (for Apple iOS 10.0+ and Android OS 5.0+) allows you to control the UHD55 projector from your compatible smartphone or tablet device. In addition to serving as a remote control, the Optoma Connect app and the UHD55 projector works with IFTTT to setup chain-of-commands for your smarthome devices. The app also provides unique display modes, such as Ambience & Information, that will project on your screen.

• Remote Control: The Optoma Connect App lets you use your compatible Apple iOS or Android OS device as a wireless remote control for the UHD55.
• Works with IFTTT: IFTTT (If This Then That) is a free web-based service that allows you to create chains of simple conditional commands, called applets. Applets are used to trigger events such as getting the projector to turn off when you leave the house.
• Ambience & Information Modes: The Ambience Mode includes images of artworks and natural light installations. The Information Mode provides weather information, work calendar and news.

Note: The projector must be connected to your network router via Ethernet or WiFi.

Optional Voice Assistance: The Optoma Connect App can also be used to setup the UHD55 projector for voice control from an Alexa or Google Assistant enabled device (sold separately - see Accessories Tab). In addition to the Optoma Connect App, you'll also need to install the Alexa App (for Apple iOS 11.0+ and Android OS 6.0+) or the Google Home App (for Apple iOS 12.0+ and Android OS 6.0+) onto your compatible smartphone or tablet device. You can ask Alexa or Google Assistant to change Display Mode, Picture Mode, PureMotion Mode, Brightness Mode, and ECO mode.

• The Optoma UHD55 projector must be connected to your network router via Ethernet or WiFi.
• The projector does not features its own built-in mic and requires either an separate Alexa or Google Assistant device (sold separately) for voice control.

Top-Panel: Top-panel controls included Power, Menu, Source, Information, Re-Sync, 4 Directional Select Keys, and Keystone Correction. Also on the top-panel are 3 LEDs that indicate On/Standby, Lamp, and Temperature. The top-panel controls are hidden behind a removal top-cover.

Backlit Remote: The included IR remote provides wireless operation of the Optoma UHD55 DLP projector. The remote is designed with subtle white LEDs to light up the buttons, making it to see and operate, especially in the dark. The IR (infrared) control sensor is located on top of the projector. Make sure to hold the remote control at an angle within 30 degrees perpendicular to the projector's top IR remote control sensor to function correctly. The distance between the remote control and the sensor should be no longer than 22'.

HDMI-CEC: HDMI-CEC (Consumer Electronic Control) enables synchronization of Power On/Off between the UHD55 and connected HDMI-CEC compatible sources.

IP & RS-232C Control: The projector offers remote management control through a RJ45 (LAN) network connection or via RS-232C port. Either connection can be used to control Power, Brightness, Contrast, and other projector settings from your laptop or desktop computer, or a 3rd party remote management system - such as Crestron, Extron, AMX, or PJLink.

12V Trigger Out: The 12V Trigger Out consists a female mono-minijack (3.5mm) which enables control of motorized screens that feature a 12V Trigger Input.

Timers: A Sleep Timer allows you to set the projector to automatically turn off after a predetermined set amount of time. The Security Timer lets you set the number of hours the projector can be used; once this time has elapsed you will be requested to enter your password again.

Auto Power Off: There may be instances when the projector is left running when not in use. To help save energy, the Auto Power Off feature automatically turns off the projector after a set period of time if it is not being used.
