About the Furrion F2AA003ABBK
Flexible mount for Furrion Aurora TVs

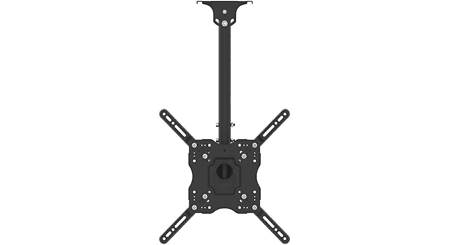

The Furrion F2AA003ABBK is a rugged, all-weather TV mount that lets you permanently install your Furrion Aurora outdoor TV. This ceiling mount offers a wide range of flexibility, giving you extra freedom to position your Furrion Aurora outdoor TV just where you like it. TheF2AA003ABBK swivels a full 360° and tilts between 0° (up) and 15° (down), letting you point the TV wherever the party is.
Product highlights:
- designed for use with 43"-65" Furrion Aurora™ outdoor TVs
- powder-coated finish resists rust and scratches
- mounting distance from ceiling: 24-3/16" to 34"
- supports up to 120 lbs.
- tilt angle: 0° (up), 15° (down)
- swivel angel: 360°
- fits VESA mounting hole patterns from 100 x 100mm to 400 x 400mm
- stud-mounting required
- weight: 9.7 lbs.
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # F2AA003ABBK
What's in the box:
Furrion F2AA003ABBK owner's manual
- Ceiling plate
- Mounting pole
- Extension pole
- TV mount
- 4 TV brackets
- our M6x16mm bolts
- Four M6x18mm bolts
- Four M6x25mm bolts
- Four M8x10mm bolts
- Four M8x18mm bolts
- Four M8x25mm bolts
- Two M8x55mm bolts
- Four M8x63mm lag-bolts
- Two M6x8mm screws
- Four M8x40mm metal anchors
- Four M9 washers
- Four M6/M8 washers
- Four M6/M8 spacers
- 2 M6 nuts
- 2 Wrenches
- Hex-key
- Instruction Manual
- Wall-Plate Paper Template
- Warranty Manual
Reviews
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Furrion F2AA003ABBK
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Ceiling Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | Yes | |
| Mounting Details | ||
| Wood Stud (Single) | Yes | |
| Wood Stud (Dual, 16-inch) | No | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | No | |
| Outdoor-rated | Yes | |
| Motorized | No | |
Product Research
Features
Outdoor Rated: Designed for the outdoors, the Furrion Outdoor Ceiling Mount (F2AA003ABBK) features a heavy-duty, galvanized steel construction. The galvanized steel frame, powder coating, and durable material are resistant to corrosion, rain, and humidity to support your TV even in the most extreme weather. The Furrion Outdoor Ceiling Mount (F2AA003ABBK) can be installed on porches, patios, decks, balconies and more.
TV Compatibility: The Furrion Outdoor Ceiling Mount (F2AA003ABBK) will support 43" to 65" TVs that weigh up to 121 lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 100x100mm to 400x400mm
- Screw Size: M6 or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Full-Motion Design: The full-motion capabilities allow you to level your ceiling mounted TV by 5°, tilt your ceiling mounted TV 15° down, swivel your mounted TV a full 360°, and extend your TV from ceiling by 24.1875" to 34.0" for the perfect viewing angle for specific application.
Note: The tilt and swivel adjustments can be made post installation. However, the extension and level adjustments should be made prior to final installation.
Single-Stud Installation: The Furrion Outdoor Ceiling Mount (F2AA003ABBK) attaches to a single wood stud in the ceiling or mounts to a concrete block ceiling (mounting hardware included). The ceiling plate measures 4.125" (w) x 7.375" (d). Tools required for installation include -
- Power drill
- 1/4" bit (wood), 15/32" bit (masonry)
- Phillips screwdriver
- Hammer
- Stud finder
- Level
- Pencil
- Tape Measure
- Tape
Cable Management: The Furrion Outdoor Ceiling Mount (F2AA003ABBK) comes with integrated cable management to keep wires safe, secure, and out of sight.
