About the ErgoAV ERMCM1-01B
Ceiling-mount your TV
Ceiling-mount your TV

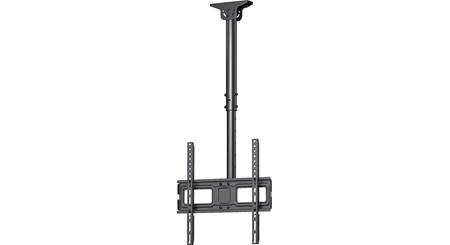

The ErgoAV ERMCM1-01B ceiling mount opens up additional placement options for your TV. Sometimes wall-mounting isn't ideal, such as in a corner of your room. The mount can support a TV 40"-55" in screen size and weighing up to 99 lbs.
Adjust for optimal viewing
The mount swivels a full 360 degrees. It also tilts up and down so you can angle your TV precisely and reduce glare. And after mounting, you can adjust your TV plus or minus 3 degrees to level it.
Adjustable height

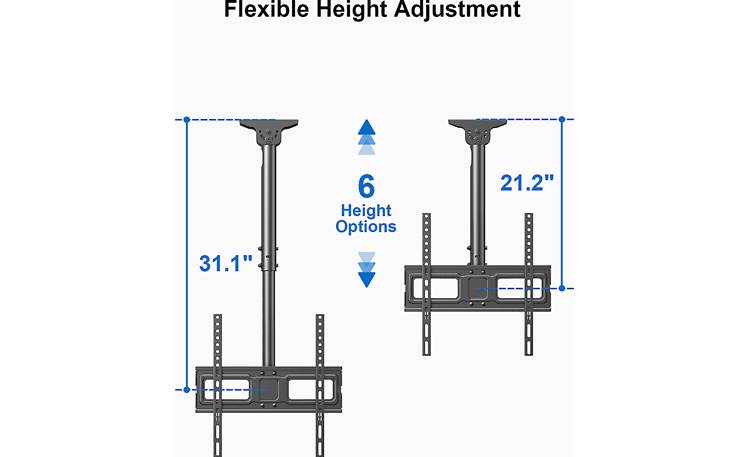

You can also adjust the height of the mount. Position your TV 21-1/8" to 31-1/4" from the ceiling (measured from the TV's center). Thread your TV's cables through the hollow column for a clean, uncluttered appearance.
Product highlights:
- for TVs 40"- 55"
- weight capacity: 99 lbs.
- fits VESA mounting hole patterns 100 x 100mm to 400 x 400mm
- adjustable height from ceiling: 21-1/2" to 31-1/4" (measured from center of TV)
- hollow channel for cable management
- tilt range: 10° down to 8° up
- swivel range: 360°
- level adjustment: ± 3°
- safety tested and UL Certified
- joist-mounting required (hardware included)
- weight: 6.61 lbs.
- dimensions (measured by Crutchfield): 16-15/16"W x 38-1/8"H x 6-7/8"D
- warranty: 5 years
- Our 60-day money-back guarantee
- MFR # ERMCM1-01B
What's in the box:
ErgoAV ERMCM1-01B owner's manual
- Upper pole
- Lower pole
- Ceiling plate
- TV horizontal bracket
- 2 TV vertical brackets
- Four M4x12mm bolts
- Four M4x30mm bolts
- Four M6x15mm bolts
- Four M6x35mm bolts
- Four M8x25mm bolts
- Four M8x50mm bolts
- Two M6x12mm bolts
- M6x60mm bolt
- Three M6 nuts
- Four M4/M5 washers
- Four M6/M8 washers
- 6.4mm Washers
- Three M6 washers
- Eight 2.5mm spacers
- Four 10mm spacers
- Four 22mm spacers
- Four 5/16" x 2-3/4" lag-screws
- 4 Anchors
- 2 Allen-keys
- Installation Manual
- Mounting Template
Reviews
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the ErgoAV ERMCM1-01B
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Ceiling Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | No | |
| Fixed | No | |
| Roll (Level) Adjustment | Yes | |
| Mounting Details | ||
| Wood Stud (Single) | Yes | |
| Wood Stud (Dual, 16-inch) | No | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | No | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features

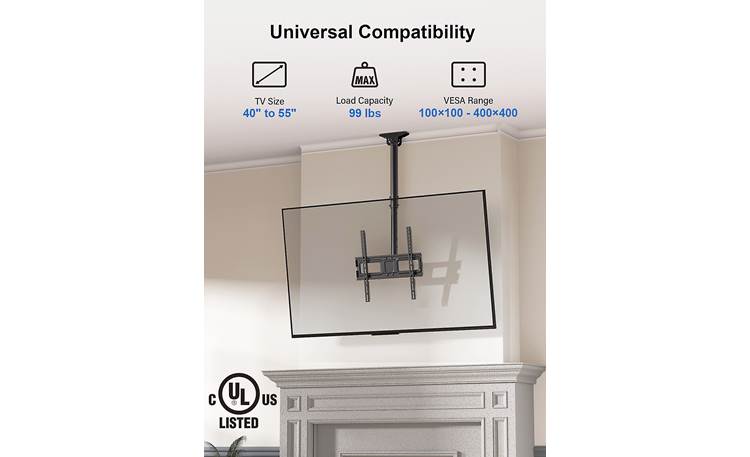

TV Compatibility: The ErgoAV ERMCM1-01B ceiling mount fits most 40" to 55" flat-panel TVs that weigh up to 99 lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 100x100 to 400x400
- Screw Size: M4, M6, or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Full-Motion Design: The ceiling mount offers a full-motion design with tilt, swivel, height, and level adjustments The mount's tilt (-10 to +8 degrees) and swivel (360 degrees) functionality help to reduce reflections and provide an optimal viewing experience. Its 9" of height adjustment allows your TV to be hung from the ceiling at the optimal height (21.5" to 31.125" from the center of the TV). There is also a level adjustment (+/- 3 degrees) that allows your TV to be properly leveled after installation.
Ceiling Installation: The ErgoAV ERMCM1-01B accommodates single joist installation, as well as concrete block installation using the included hardware. Tools required for installation include -
- Electric drill
- 7/32" bit (wood), 3/8" bit (masonry)
- Socket-wrench (3/8" and 1/2" sockets)
- Stud-finder
- Awl
- Tape-measure
- Phillips-screwdriver
- Level
- Pencil
- Hammer
UL Certified: This product has been safety tested and UL Certified.
